Green M.2 2280 circuit board with black controller and silver label

MSI

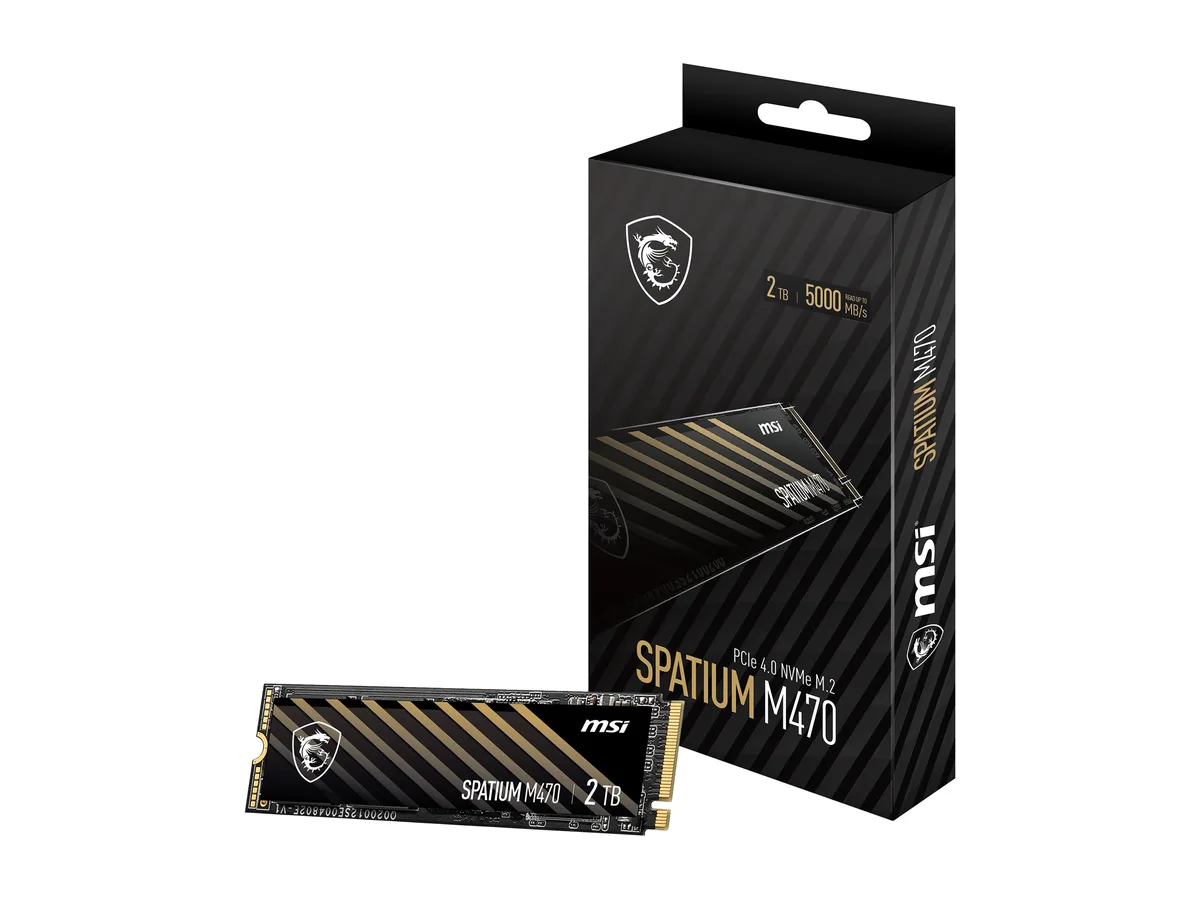

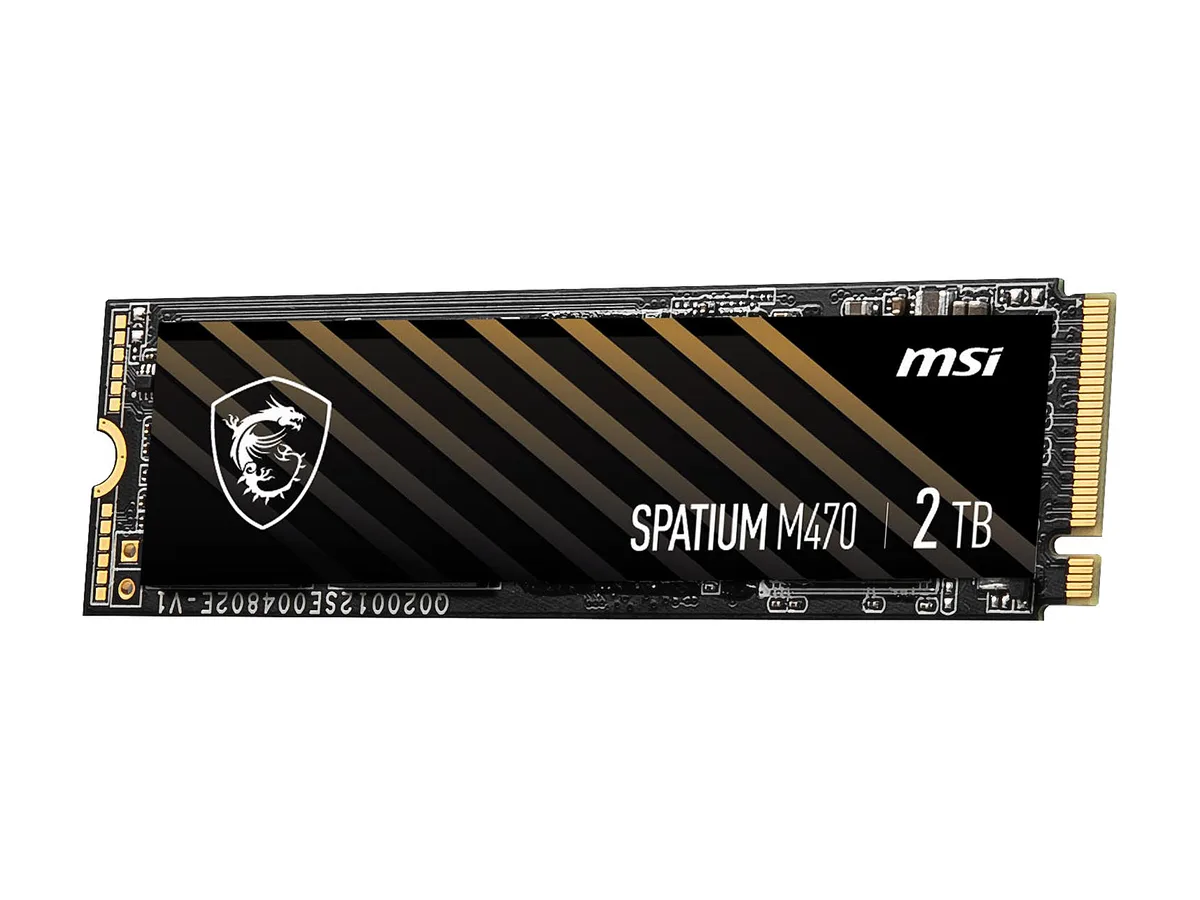

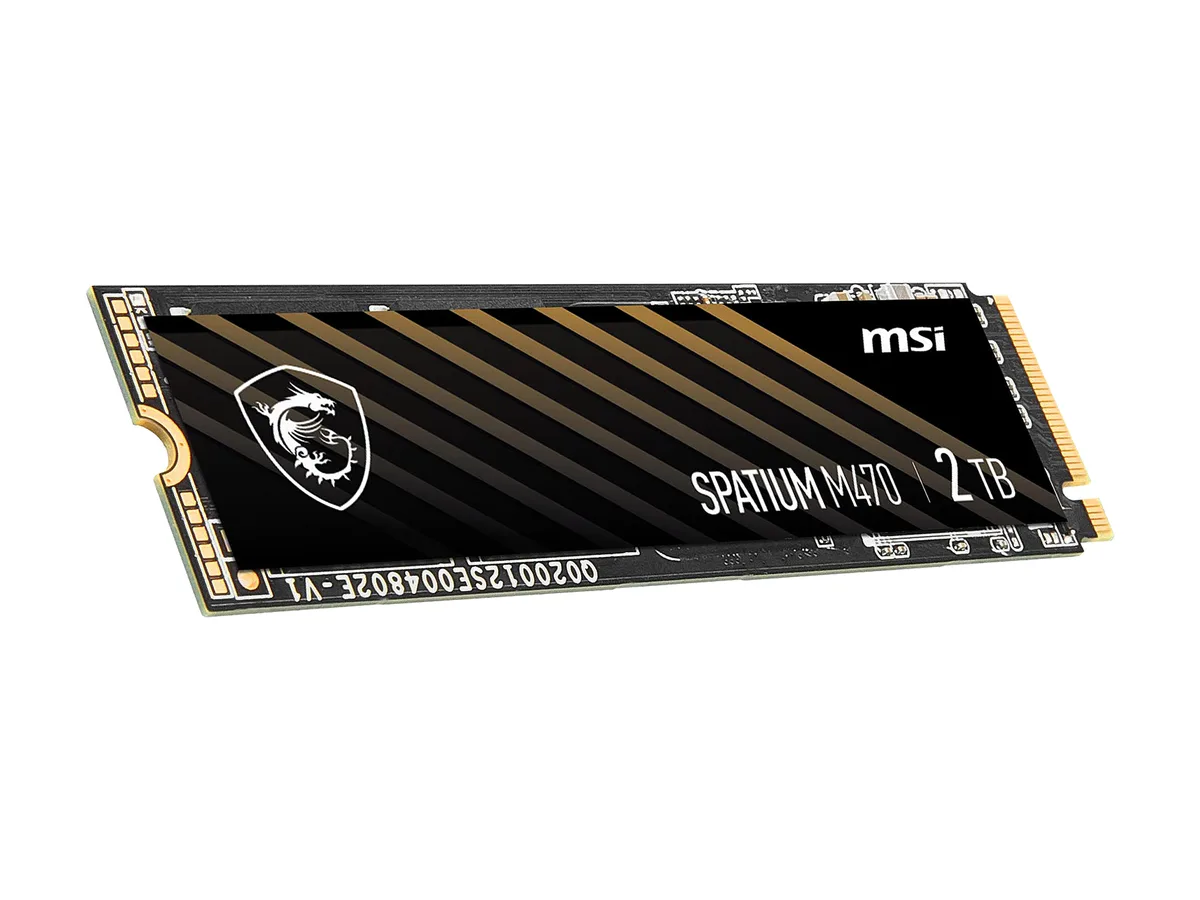

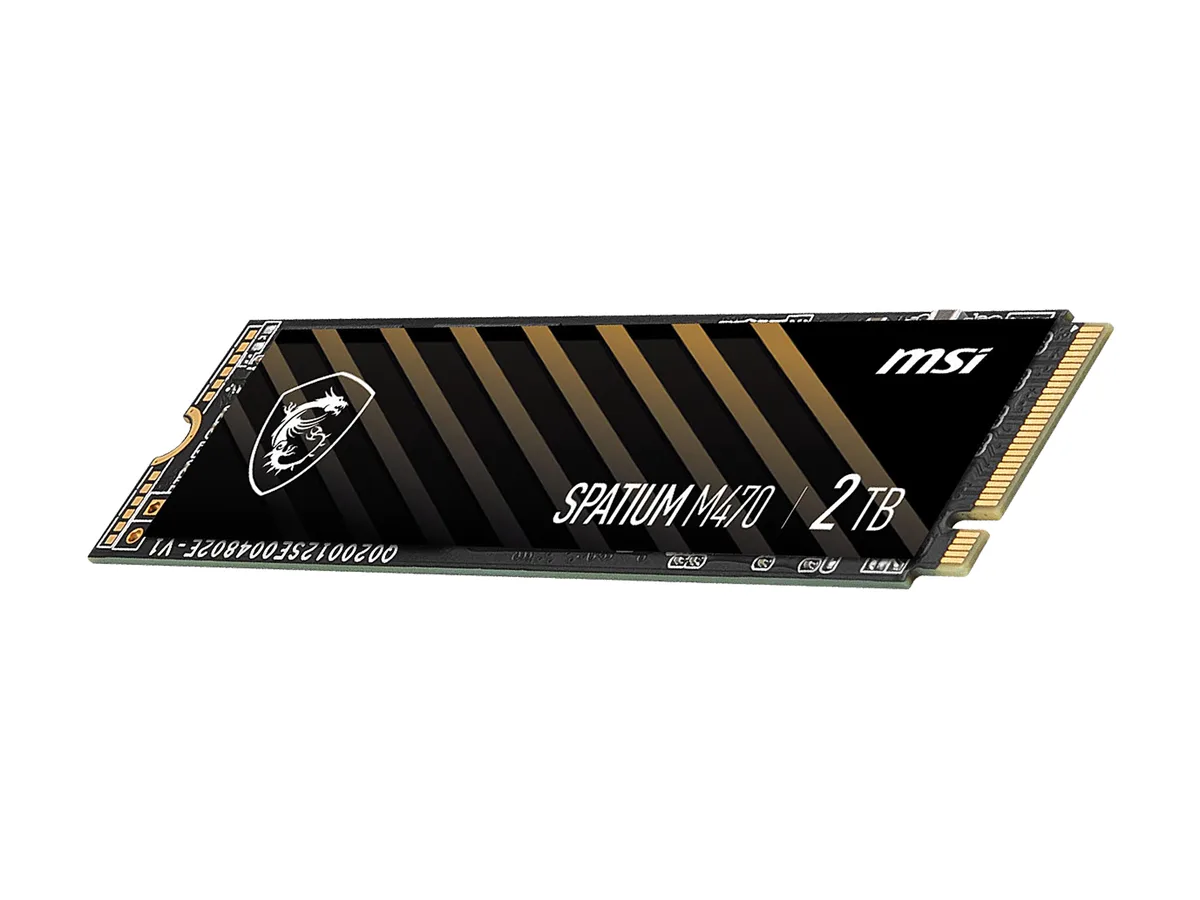

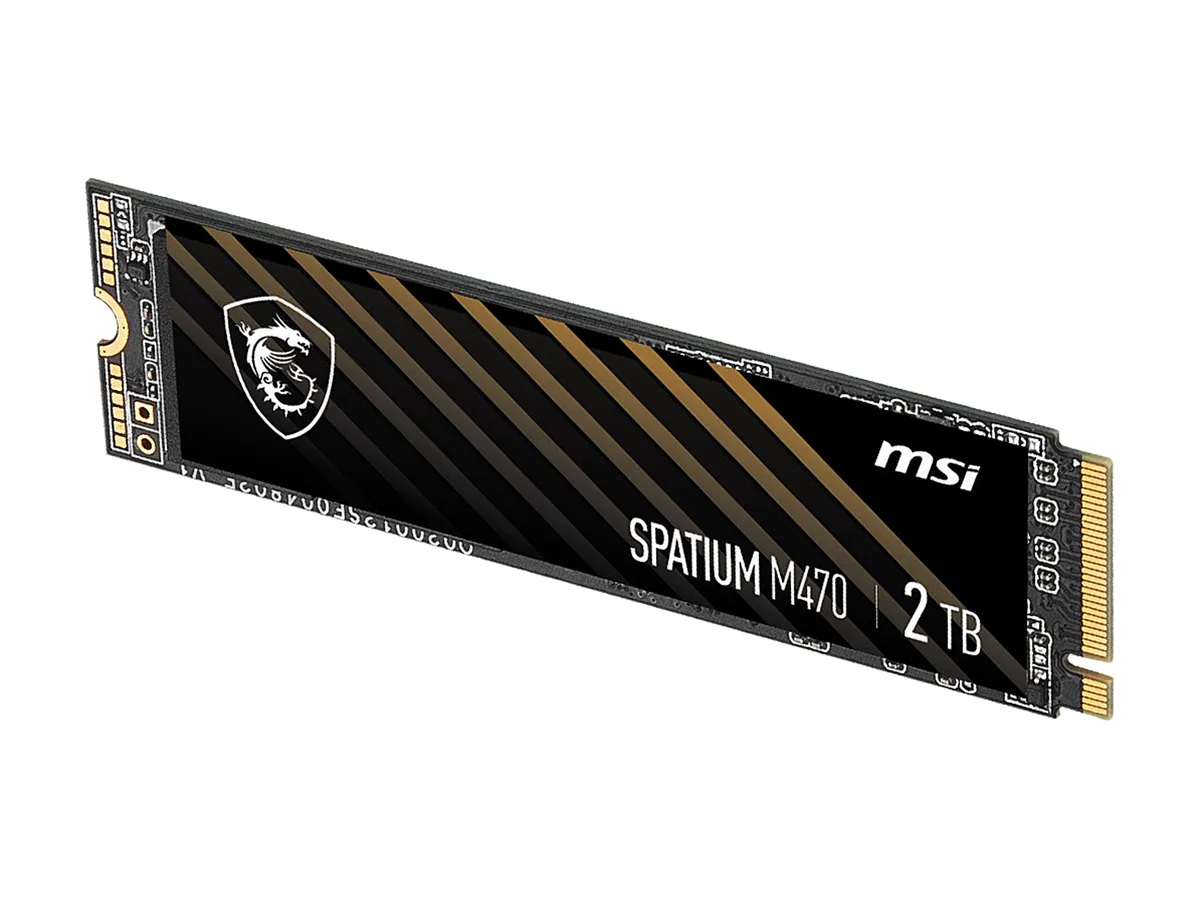

MSI SPATIUM M470 PCIe 4.0 NVMe M.2 2TB internal SSD

SKU CH-CER8-GVATN MPN SPATIUM M470 PCIe 4.0 NVMe M.2 2TB

PCIe 4.0 x4 NVMe 1.3 drive with 3D NAND and 2 GB DDR4 cache delivers 5000 MB/s read, 4400 MB/s write and 600000 IOPS random performance for 3300 TBW endurance

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity2TB
  • Memory Components3D NAND
  • InterfacePCI-Express 4.0 x4, NVMe 1.3
  • Sequential read up to 5000 MBps accelerates large-file transfers
  • Sequential write up to 4400 MBps speeds content creation workflows
  • 600000 IOPS random read delivers snappy application launch
  • 3300 TBW endurance rating supports heavy write workloads
  • 1700000 hours MTBF indicates long-term drive reliability

Capacity and interface

The MSI SPATIUM M470 is a 2TB internal SSD built for consumers who need fast, reliable storage. It uses the M.2 2280 form factor and connects through a PCI-Express 4.0 x4 interface with NVMe 1.3 support. The PHISON E16 controller and 2GB DDR4 cache handle demanding workloads in desktops and notebooks alike.

Upgrade path and value

Moving from a SATA SSD or mechanical drive to this PCIe 4.0 x4 NVMe SSD brings sequential reads up to 5000 MBps and writes up to 4400 MBps. The jump is worth it when applications, game loads or large file transfers benefit from the higher throughput and 600000 IOPS random performance. Endurance is rated at 3300 TBW with a 1700000 hour MTBF.

Sustained load behavior

End-to-end data path protection, LDPC error correction and Pyrite encryption maintain data integrity during prolonged writes. TRIM and APST keep performance consistent by managing free blocks and power states without user intervention. The 3D NAND flash and controller firmware are designed to sustain rated speeds across extended sessions rather than only in short bursts.

Highlights

  • Sequential read up to 5000 MBps accelerates large-file transfers
  • Sequential write up to 4400 MBps speeds content creation workflows
  • 600000 IOPS random read delivers snappy application launch
  • 3300 TBW endurance rating supports heavy write workloads
  • 1700000 hours MTBF indicates long-term drive reliability

Specifications

BrandMSI
SeriesSPATIUM Series
ModelM470
Part NumberSM470N2TB
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity2TB
Memory Components3D NAND
InterfacePCI-Express 4.0 x4, NVMe 1.3
ControllerPHISON E16
Cache2GB DDR4
EncryptionPyrite (Encryption, Data Security)
Max Sequential ReadUp to 5000 MBps
Max Sequential WriteUp to 4400 MBps
4KB Random ReadUp to 600,000 IOPS
4KB Random WriteUp to 600,000 IOPS
Terabytes Written (TBW)3300TB
MTBF1,700,000 hours
FeaturesTRIM (Performance Optimization, OS Support required)
SMART (Self-Monitoring, Analysis and Reporting Technology)
LDPC (Low Density Parity Check) ECC Algorithm
End to End Data Path Protection
APST (Autonomous Power State Transition)
TCG OPAL2.0/Pyrite (Encryption, Data Security)
Power Consumption (Idle)25 mW
Power Consumption (Active)7W
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Height2.15mm
Width22.00mm
Depth80.00mm
Shipping weight0.05 kg
Package size157 × 80 × 15 mm

Questions about this item

Does the M.2 2280 form factor need a specific motherboard slot length?

The drive uses the standard M.2 2280 size, so it fits any motherboard with an M-keyed slot that accepts 80 mm modules.

Which BIOS setting is often missed when installing the NVMe 1.3 drive?

Enable the PCIe 4.0 x4 link speed in the BIOS; leaving it on Auto or Gen 3 will cap the 5000 MB/s read potential.

How does the 3300 TBW rating affect the drive's service life?

The 3300 TBW endurance figure means the 2 TB capacity can absorb 3.3 petabytes of writes before the NAND reaches its rated limit.
