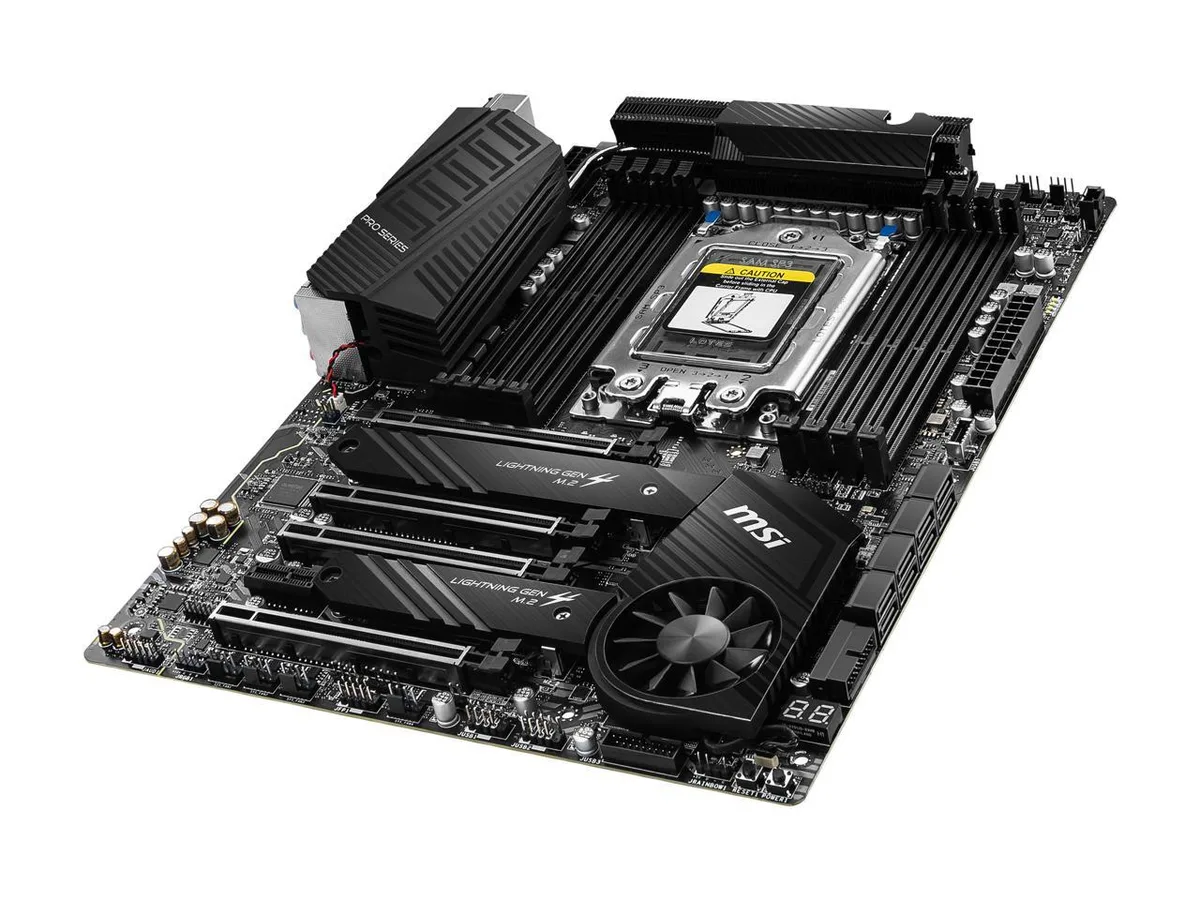

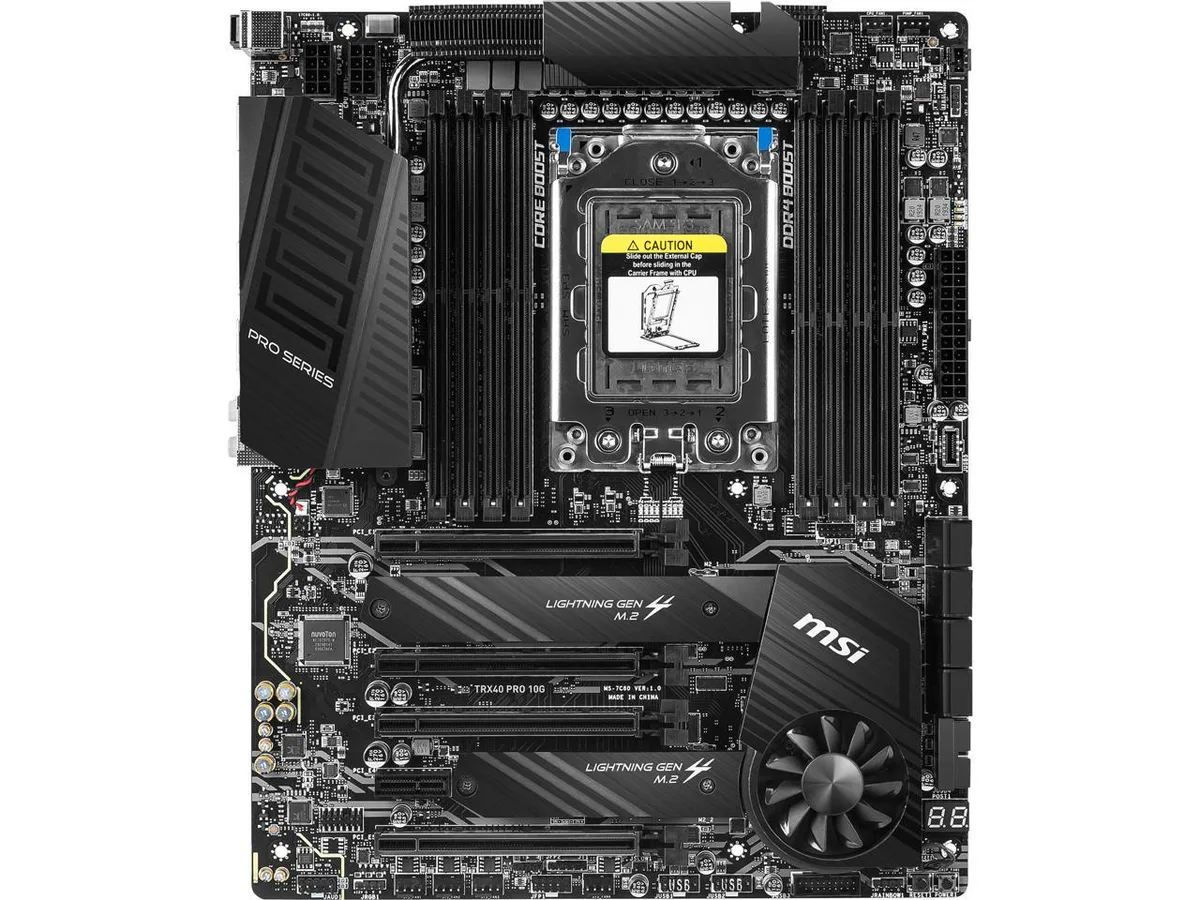

ATX motherboard with dark grey finish and metal-reinforced PCIe slots

MSI

MSI TRX40 PRO 10G AMD motherboard

SKU CH-XQTY-WSWFT MPN TRX40

An AMD TRX40 board with sTRX4 socket, eight memory slots for 256 GB quad-channel memory, four PCIe 4.0 x16 slots, dual 1 GbE LAN and 10 GbE LAN

  • CPU Socket TypesTRX4
  • CPU TypeSupports 3rd Gen AMD Ryzen Threadripper Desktop Processors f
  • ChipsetAMD TRX40
  • Number of Memory Slots8×288pin
  • Memory StandardSupports JEDEC 1R 3200/ 2666/ 2400/ 2133 MHz 1DPC 1R max spe
  • Maximum Memory Supported256GB
  • Supports 3rd Gen AMD Ryzen Threadripper processors via sTRX4 socket
  • Quad-channel memory architecture scales to 256 GB across eight 288-pin slots
  • Four PCIe 4.0 x16 slots run at x16/x8/x16/x8 for multi-GPU workstations
  • Dual Intel i211AT controllers deliver two 10/100/1000 Mbps LAN ports
  • Rear I/O includes USB 3.2 Gen 2x2 Type-C, three USB 3.2 Gen 2 Type-A and four USB 3.2 Gen 1 Type-A

sTRX4 platform for Threadripper workstations

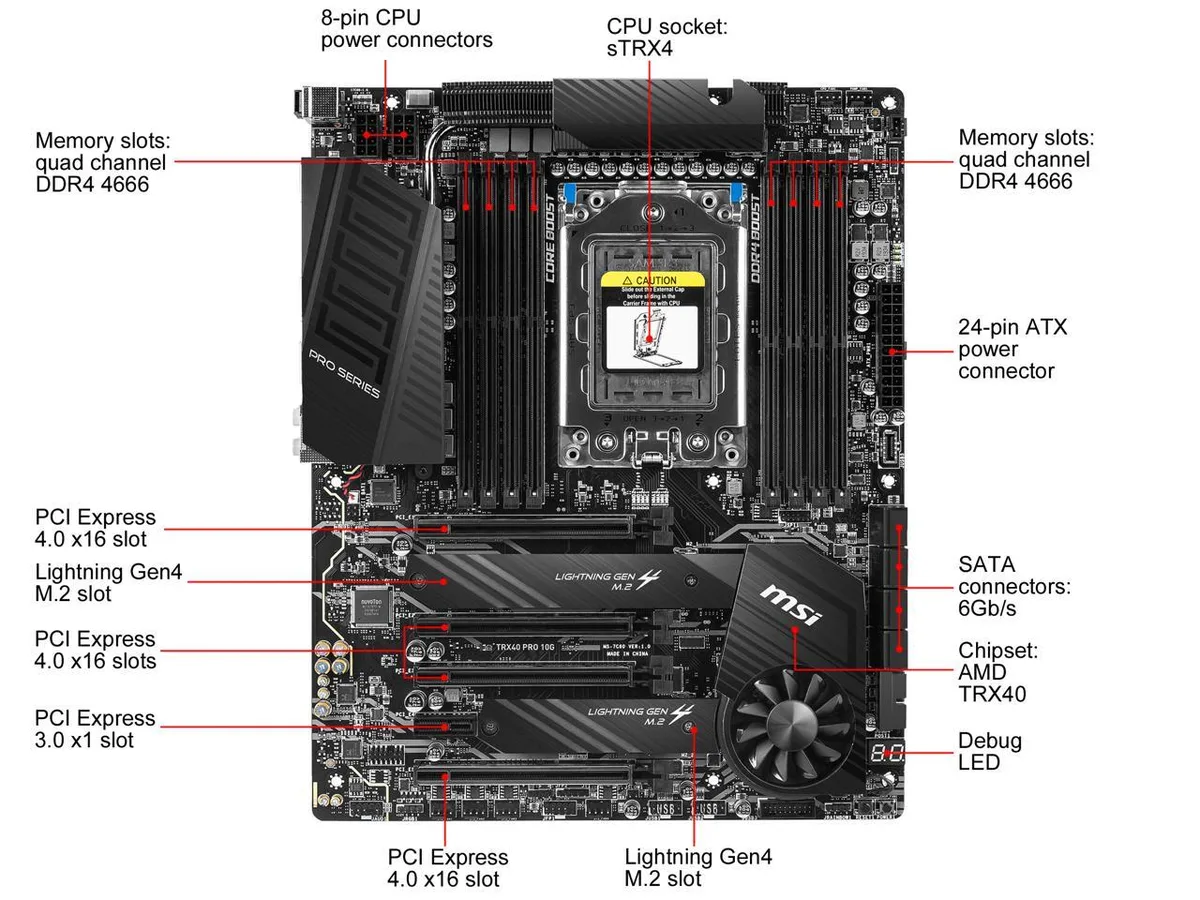

The MSI PRO TRX40 PRO 10G motherboard uses the AMD TRX40 chipset and sTRX4 socket to support 3rd Gen AMD Ryzen Threadripper desktop processors in an ATX form factor. It provides eight 288-pin memory slots operating in quad-channel mode with a maximum capacity of 256 GB.

Multi-GPU and high-speed storage builds

Four PCIe 4.0 x16 slots configurable as x16/x8/x16/x8 suit multi-GPU compute or render nodes, while two M.2 Key M slots and eight SATA 6Gb/s ports with RAID 0/1/10 cover high-throughput storage arrays. Dual Intel i211AT 1 GbE ports and a USB 3.2 Gen 2x2 Type-C connector serve networking and fast external drives.

10 GbE connectivity for collaborative pipelines

The board includes a 10 GbE LAN controller alongside the dual 1 GbE ports, making it the decisive spec for studios that need direct high-speed links to shared storage or backup servers without add-in cards.

Highlights

  • Supports 3rd Gen AMD Ryzen Threadripper processors via sTRX4 socket
  • Quad-channel memory architecture scales to 256 GB across eight 288-pin slots
  • Four PCIe 4.0 x16 slots run at x16/x8/x16/x8 for multi-GPU workstations
  • Dual Intel i211AT controllers deliver two 10/100/1000 Mbps LAN ports
  • Rear I/O includes USB 3.2 Gen 2x2 Type-C, three USB 3.2 Gen 2 Type-A and four USB 3.2 Gen 1 Type-A

Specifications

BrandMSI
SeriesPRO
ModelTRX40 PRO 10G
CPU Socket TypesTRX4
CPU TypeSupports 3rd Gen AMD Ryzen Threadripper Desktop Processors for Socket sTRX4
ChipsetAMD TRX40
Number of Memory Slots8×288pin
Memory StandardSupports JEDEC 1R 3200/ 2666/ 2400/ 2133 MHz 1DPC 1R max speed 4666 MHz 1DPC 2R max speed 4000 MHz 2DPC 1R max speed 4000 MHz 2DPC 2R max speed 3600 MHz
Maximum Memory Supported256GB
Channel SupportedQuad Channel
PCI Express 4.0 x164 x PCIe 4.0 x16 slots (support x16/x8/x16/x8 mode)
PCI Express x11 x PCIe 3.0 x1 slot
Serial ATA (SATA)8 x SATA 6Gb/s
M.22 x M.2 slots (Key M) M2_1 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/2260/2280/22110 storage devices M2_2 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/2260/2280 storage devices
SATA RAID0/1/10
Audio Chipset1 x Realtek ALC1220 Codec 1 x Realtek ALC4050H Codec
Audio Channels7.1 Channels
LAN Chipset2 x Intel i211AT
Max LAN SpeedDual 10/100/1000Mbps
Back I/O Ports1 x Optical S/PDIF Out / 1 x USB 3.2 Gen 2x2 Type-C / 2 x LAN (RJ45) / 3 x USB 3.2 Gen 2 Type-A / 4 x USB 3.2 Gen 1 Type-A / 5 x Audio Jacks
Onboard USB1 x USB 3.2 Gen2 Type-C port 2 x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors1 x 4-pin CPU fan connector 1 x 4-pin Water Pump Fan connector (supports up to 2A) 4x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x 4-pin 5050 RGB LED connector 2 x 3-pin ARGB LED connectors 1 x 3-pin CORSAIR LED connector 1 x Slow mode booting jumper 1 x Power button 1 x Reset button
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors
FeaturesSupports 3rd Gen AMD Ryzen Threadripper Desktop Processors for Socket sTRX4 Supports DDR4 Memory, 8 DIMMs, Quad Channel Max Frequency 4666(OC) MHz Lightning Fast experience: Lightning USB 20G, PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 GEN2 Set Core Power Free: Extended Heatsink Design, stacked fin array, Core Boost, Digital PWM IC, 12+3 digital power phases, dual 8-pin CPU power connectors, DDR4 Boost Frozr Heatsink Design: Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumer

Questions about this item

Which Threadripper generation and socket does this board accept?

It supports 3rd Gen AMD Ryzen Threadripper desktop processors in the sTRX4 socket.

What memory capacity and speeds can I run?

Eight 288-pin slots support up to 256 GB in quad-channel; JEDEC speeds are 3200, 2666, 2400 and 2133 MHz, with overclocked limits of 4666 MHz for one rank per channel, 4000 MHz for two ranks per channel, and 3600 MHz when all four channels are populated with dual-rank modules.

How many full-length PCIe 4.0 x16 slots are available and how do they share bandwidth?

Four PCIe 4.0 x16 slots operate in x16/x8/x16/x8 mode depending on population.
