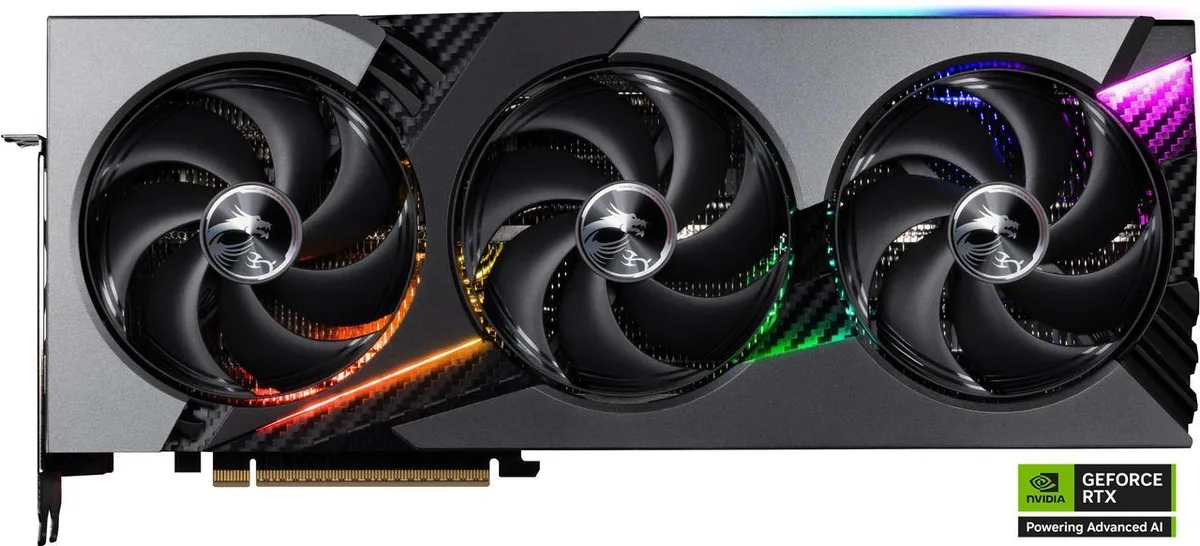

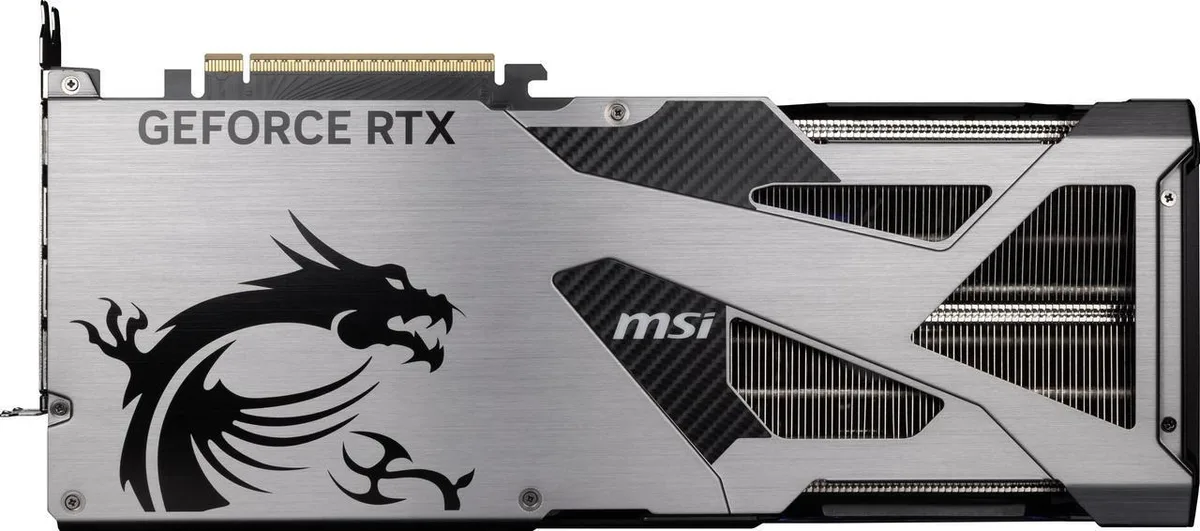

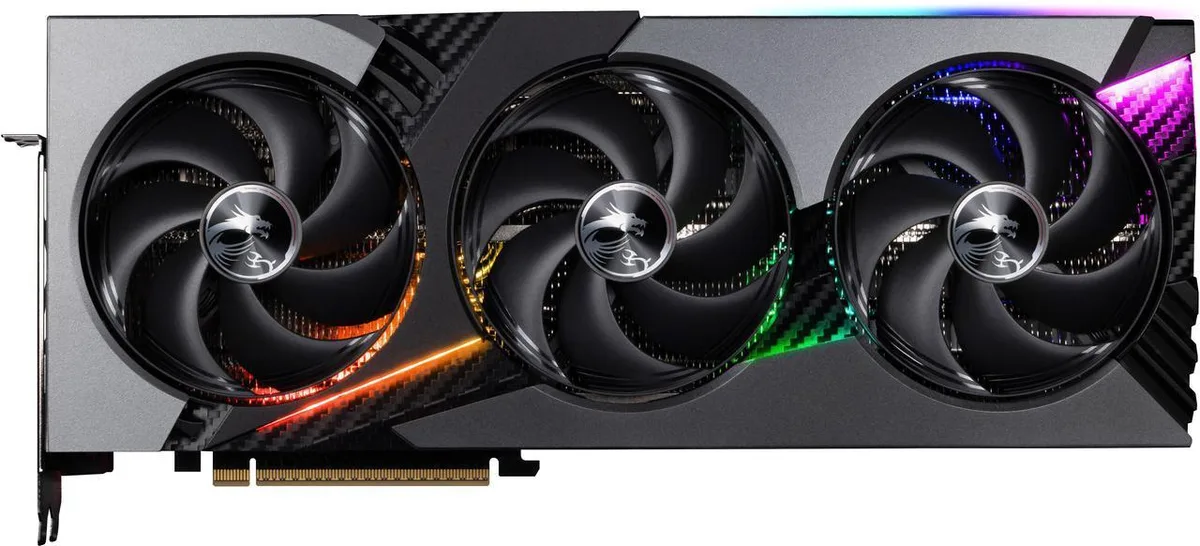

MSI VANGUARD RTX 5070 graphics card with triple-fan cooler in dark finish

MSI

MSI VANGUARD GeForce RTX 5070 12GB GDDR7 graphics card

SKU CH-P0J5-MC9TR

GeForce RTX 5070 GPU with 12 GB GDDR7 memory, 2640 MHz boost clock, 6144 CUDA cores and PCI Express 5.0 interface

  • InterfacePCI Express 5.0
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5070
  • Boost Clock2640 MHz
  • CUDA Cores6144
  • 12 GB GDDR7 memory at 28 Gbps delivers high bandwidth for 4K gaming
  • Boost clock of 2640 MHz provides strong single-threaded performance in heavy workloads
  • 6144 CUDA cores accelerate ray-tracing and AI-enhanced rendering
  • PCI Express 5.0 interface doubles link bandwidth over the previous standard
  • HDMI 2.1b plus three DisplayPort 2.1b outputs drive four displays up to 7680 × 4320

VANGUARD RTX 5070 12GB for PCIe 5.0 systems

The MSI VANGUARD GeForce RTX 5070 is a graphics card built for PCI Express 5.0 motherboards. It delivers 12GB of GDDR7 memory on a 192-bit bus for modern gaming and creative workloads. The card targets users who need current-generation display outputs and compute performance.

PCIe 5.0 bandwidth ceiling and display limits

The PCI Express 5.0 interface sets the practical bandwidth ceiling for data moving between the GPU and the rest of the system. Display outputs consist of one HDMI 2.1b and three DisplayPort 2.1b connectors supporting up to 7680 x 4320 resolution across four monitors. DirectX 12 Ultimate and OpenGL 4.6 define the feature ceiling for supported titles.

12GB GDDR7 on a 192-bit bus decides fit

The single specification that determines whether this is the right part is the 12GB GDDR7 memory configuration on a 192-bit interface running at 28 Gbps effective clock. That capacity and bus width combination fixes the texture and frame-buffer budget for 1440p and entry 4K workloads. If your workflow needs more VRAM or a wider bus, this model will not match.

Highlights

  • 12 GB GDDR7 memory at 28 Gbps delivers high bandwidth for 4K gaming
  • Boost clock of 2640 MHz provides strong single-threaded performance in heavy workloads
  • 6144 CUDA cores accelerate ray-tracing and AI-enhanced rendering
  • PCI Express 5.0 interface doubles link bandwidth over the previous standard
  • HDMI 2.1b plus three DisplayPort 2.1b outputs drive four displays up to 7680 × 4320

Specifications

BrandMSI
SeriesVANGUARD
ModelRTX 5070 12G VANGUARD SOC
Part NumberRTX 5070 12G VANGUARD SOC
InterfacePCI Express 5.0
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5070
Boost Clock2640 MHz
CUDA Cores6144
Effective Memory Clock28 Gbps
Memory Size12GB
Memory Interface192-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
Max Resolution7680 x 4320
SLI SupportNo
CoolerTriple Fans
Thermal Design Power250W
Recommended PSU Wattage650W
Power Connector1 x 16-Pin
HDCP ReadyYes
Max GPU Length337 mm
Card Dimensions (L x H)337 x 140 x 61 mm

Questions about this item

How do I pick between the listed versions of the MSI VANGUARD RTX 5070 12GB?

This listing is for the single VANGUARD SOC model with 12GB GDDR7 on a 192-bit bus and a 2640 MHz boost clock. No other capacity or variant is offered here.

What does the 28 Gbps effective memory clock deliver inside a real system?

The 28 Gbps GDDR7 memory feeds the 6144 CUDA cores across a 192-bit interface, giving high bandwidth for 4K textures and compute workloads at the 2640 MHz boost frequency.

What does the PCI Express 5.0 interface cap at in practice?

The card uses a PCI Express 5.0 connection and provides one HDMI 2.1b plus three DisplayPort 2.1b outputs, supporting up to 7680 x 4320 resolution across four displays.
