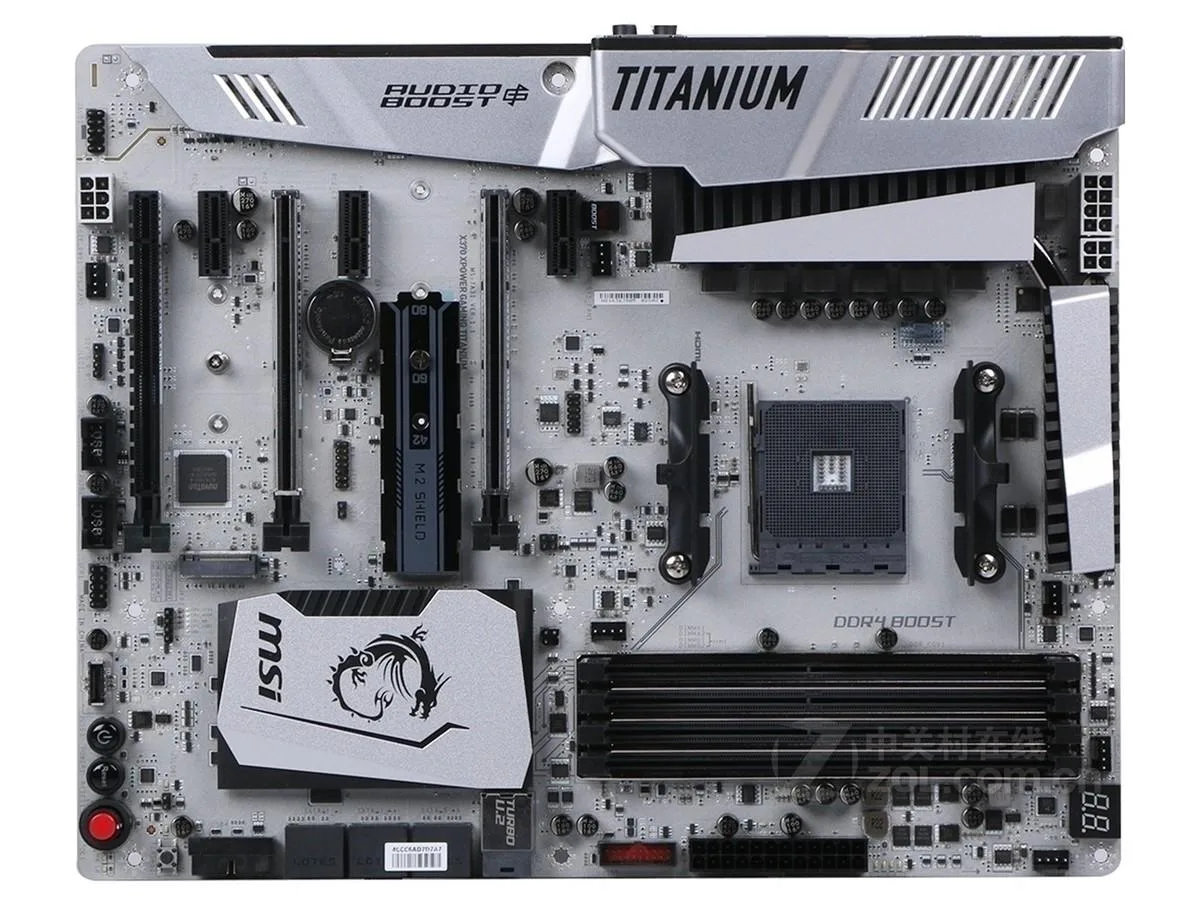

ATX motherboard with titanium finish and reinforced PCIe slots

MSI

MSI X370 XPOWER GAMING TITANIUM AMD motherboard

SKU CH-8XD9-7X73R

An ATX board for Socket AM4 Ryzen CPUs with the X370 chipset, supporting 64 GB DDR4 up to 3200 MHz, dual PCIe 3.0 x16 slots, six SATA ports, 10 Gbps USB 3.1 Type-C.

  • CPU Socket TypeSocket AM4
  • CPU TypeFirst and second generation AMD Ryzen ™ with AM4 pins/Ryzen
  • ChipsetAMD X370
  • Memory StandardSupports dual-channel DDR4 1866/2133/2400/2667 (OC)/2933 (OC
  • Maximum Memory Supported64GB
  • PCI Slots2 PCIe 3.0 x16 slots (PCIE_2, PCIE_4) - RYZEN series process
  • Dual-channel DDR4 up to 3200 MHz for responsive memory performance
  • 64 GB maximum capacity handles heavy multitasking and large datasets
  • Two PCIe 3.0 x16 slots enable x16/x0 or x8/x8 graphics configurations
  • Realtek ALC1220 codec delivers 7.1 channel high-definition audio
  • Intel I211AT controller provides reliable gigabit Ethernet connectivity

AM4 X370 ATX board for Ryzen builds

This motherboard uses the AMD X370 chipset and Socket AM4 to support first- and second-generation Ryzen processors and APUs. It delivers dual-channel DDR4 memory up to 64 GB and provides three full-length PCIe slots for graphics or add-in cards. The ATX form factor fits standard desktop chassis.

Suits overclockers and multi-GPU users.

Enthusiasts who want extensive voltage control, dual x8 PCIe 3.0 graphics lanes and front-panel USB 3.1 Gen2 Type-C will benefit. Builders planning third-generation Ryzen or later should choose a newer chipset because the socket and firmware do not support those processors.

DDR4 3200 (OC) memory ceiling decides fit

The board validates DDR4 at 3200 MHz only when overclocked, so memory kits rated higher may not run at their advertised speed without manual tuning. If your workload demands guaranteed high-frequency memory operation out of the box, verify compatibility before purchase.

Highlights

  • Dual-channel DDR4 up to 3200 MHz for responsive memory performance
  • 64 GB maximum capacity handles heavy multitasking and large datasets
  • Two PCIe 3.0 x16 slots enable x16/x0 or x8/x8 graphics configurations
  • Realtek ALC1220 codec delivers 7.1 channel high-definition audio
  • Intel I211AT controller provides reliable gigabit Ethernet connectivity

Specifications

BrandMSI
SeriesMSI X370 XPOWER GAMING TITANIUM
ModelMSI X370 XPOWER GAMING TITANIUM
CPU Socket TypeSocket AM4
CPU TypeFirst and second generation AMD Ryzen ™ with AM4 pins/Ryzen ™ processors with Radeon ™ Vega graphics and AMD A series/Ryzen ™ processors
ChipsetAMD X370
Memory StandardSupports dual-channel DDR4 1866/2133/2400/2667 (OC)/2933 (OC)/3200 (OC) MHz memory
Maximum Memory Supported64GB
PCI Slots2 PCIe 3.0 x16 slots (PCIE_2, PCIE_4)
- RYZEN series processors support x16/x0, x8/x8 modes
- 7th generation A-series/Athlon ™ processors support x8/x0 modes
1 PCIe 2.0 x16 slot (PCIE_6, supports x4 mode)
3 PCIe 2.0 x1 slots
SATA RAID1XU.2 interface, 2xM.2 interface, 6xSATA III interface
Audio ChipsetRealtek ALC1220 decoding chip
7.1 channel high-quality sound effects
Supports S/PDIF output
LAN Chipset1 x Intel I211AT Gigabit network interface card
Onboard USBASMedia ASM2142 Chipset
- 1 USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port located on the back panel
- 1 USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
AMD X370 chipset
- 1 USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C connector provided via onboard USB interface
- 4 USB 3.1 Gen1 (SuperSpeed USB) ports are provided via the onboard USB port
- 7 USB 2.0 (High-speed USB) ports (3 Type-A ports on the backplane, 4 ports via onboard USB)
AMD CPU
- 4 USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel

Questions about this item

Which Ryzen processors fit the Socket AM4 on this X370 board?

First and second generation Ryzen CPUs with AM4 pins, Ryzen processors with Radeon Vega graphics, and AMD A-series or Ryzen processors are supported.

How do the two PCIe 3.0 x16 slots share bandwidth when I keep an older graphics card?

With Ryzen series CPUs the slots run at x16/x0 or x8/x8; with 7th generation A-series or Athlon CPUs they run at x8/x0.

How can I confirm the Realtek ALC1220 audio is active after build?

Check Device Manager for the ALC1220 device, then play audio to verify 7.1 channel output and S/PDIF if used.
