MSI X470 Gaming Plus AMD motherboard

Socket AM4 foundation

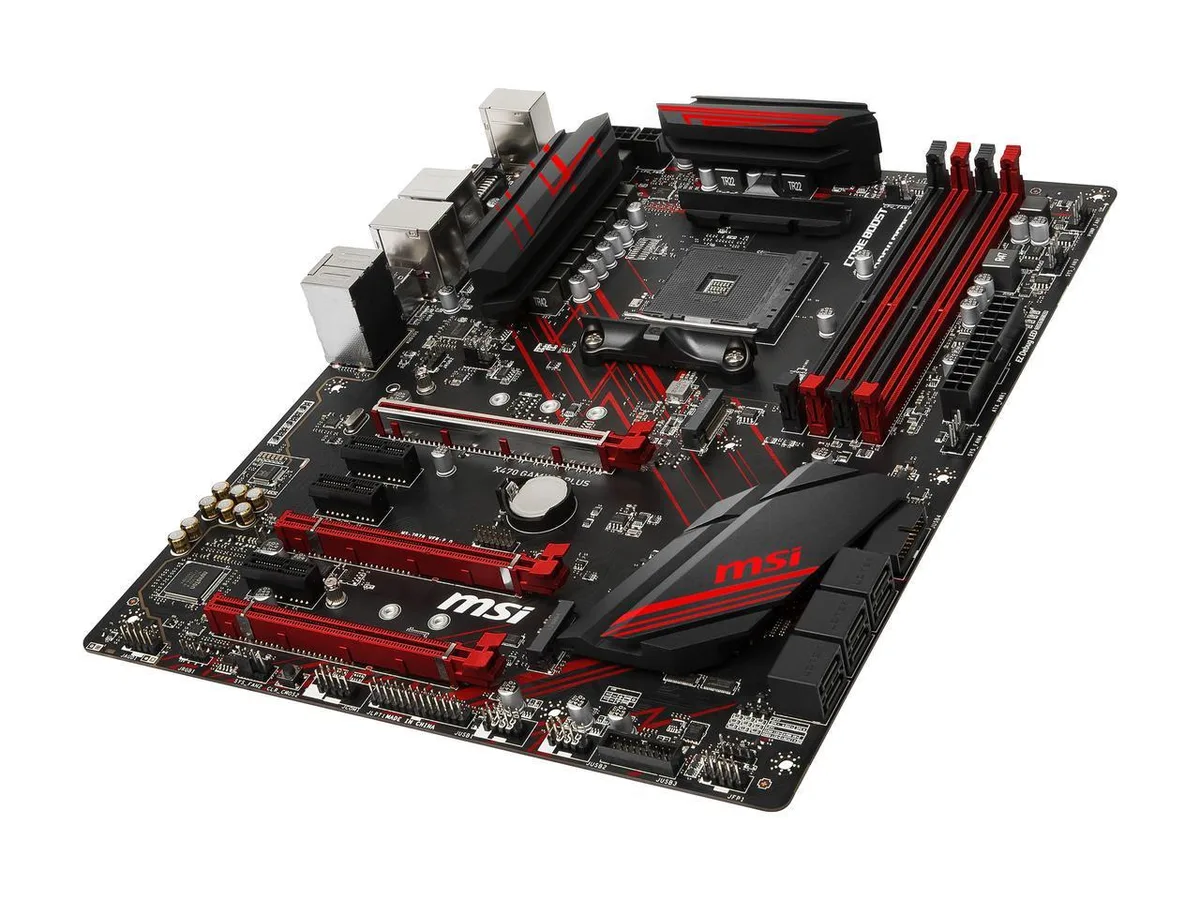

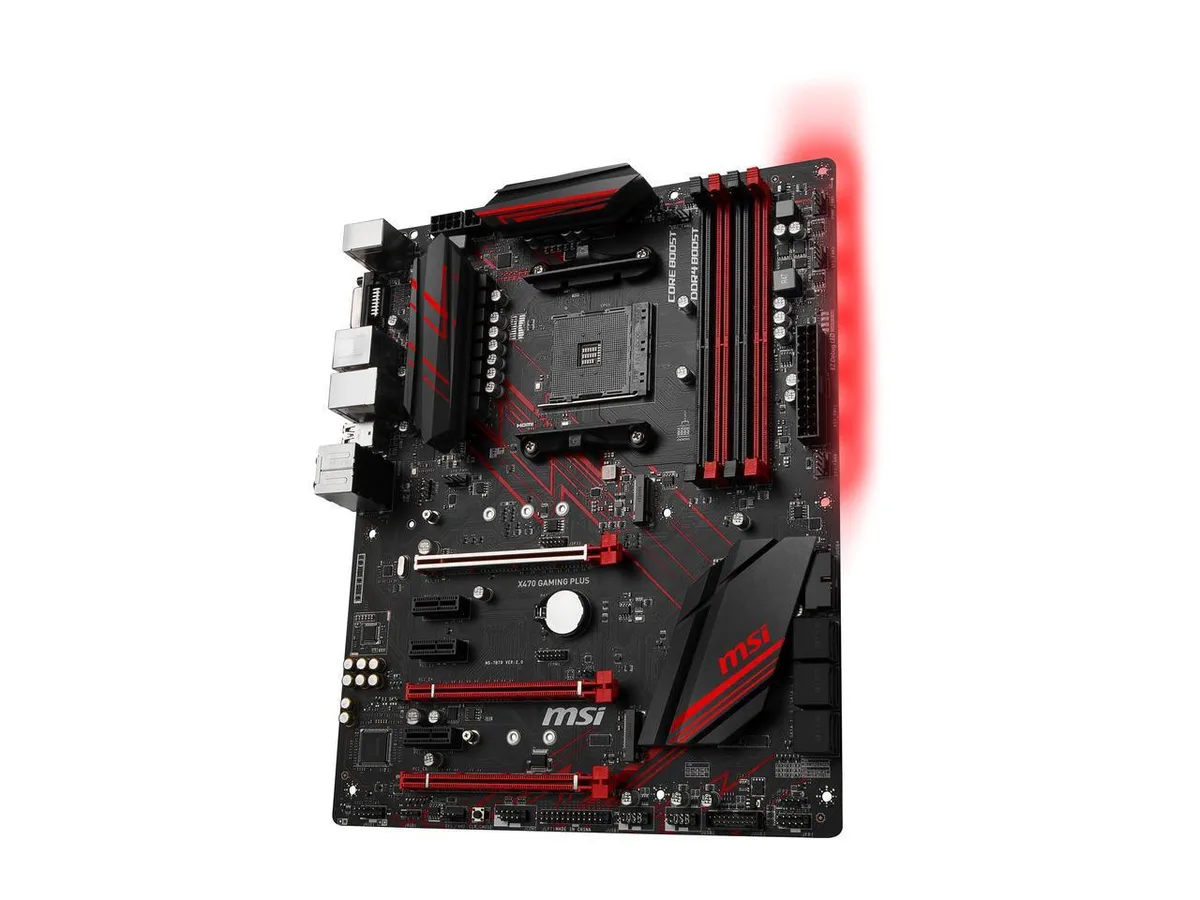

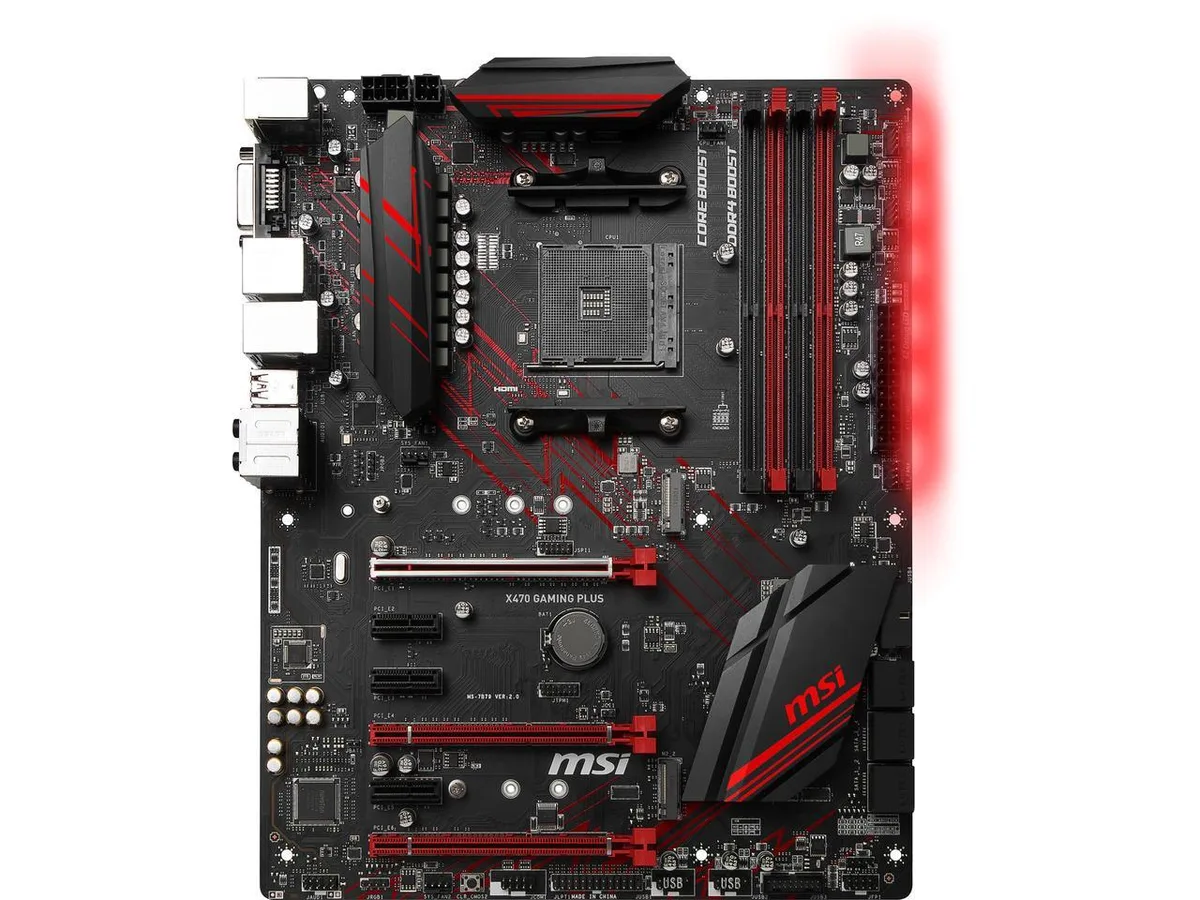

The MSI X470 Gaming Plus motherboard uses the AMD X470 chipset on an ATX board. It accepts AMD Ryzen desktop processors and A-Series or Athlon CPUs for socket AM4. Four DDR4 slots support up to 64 GB of memory in dual-channel mode. The layout provides two PCIe 3.0 x16 slots, one PCIe 2.0 x16 slot running at x4, three PCIe 2.0 x1 slots, six SATA 6 Gb/s ports and two M.2 Key M sockets for storage expansion.

CrossFire and USB 3.1 Gen2

The board enables up to three-way CrossFire multi-GPU configurations when compatible graphics cards are installed. A 32 Gbps M.2 slot and 10 Gbps USB 3.1 Gen2 ports are included for high-speed peripherals. Onboard video outputs consist of one DVI-D port limited to 1920x1200 at 60 Hz and one HDMI 1.4 port capable of 4096x2160 at 30 Hz, both active only with a CPU that has integrated graphics. Audio is handled by a Realtek ALC892 codec delivering 7.1-channel sound with S/PDIF output, and networking uses a Realtek 8111H controller at 1 Gbps.

DDR4 3466 MHz A-XMP ceiling

The highest validated memory speed is DDR4 3466 MHz via A-XMP OC MODE with Ryzen processors, while A-Series and Athlon CPUs top out at 2400 MHz. JEDEC standard speeds run up to 2667 MHz across all supported CPUs. This frequency limit is the key figure to check against your memory kit and processor choice before purchase.
