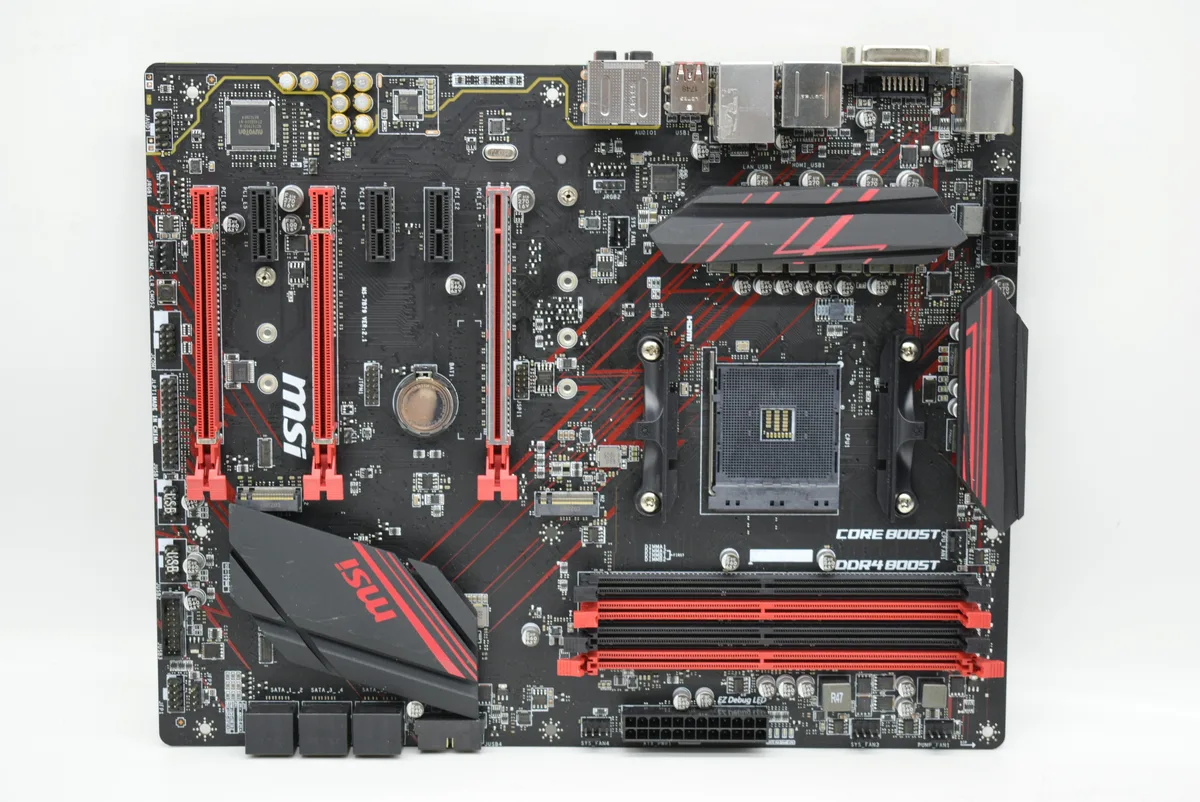

Black rectangular ATX motherboard with silver heatsinks, black PCB, four RAM slots, multiple PCIe slots

MSI

MSI X470 Gaming Plus Performance Gaming AMD motherboard

SKU CH-34HB-PDER1

AM4 board with X470 chipset runs 1st, 2nd and 3rd Gen Ryzen, four DDR4 slots to 64GB, two M.2, six SATA, 7.1 Realtek ALC892 audio, HDMI 1.4 and DVI-D video out, ATX

  • CPU Socket TypeAM4
  • CPU TypeSupports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon
  • ChipsetAMD X470
  • Number of Memory Slots4×288pin
  • Memory StandardSupports DDR4 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz b
  • Maximum Memory Supported64GB
  • Supports 1st, 2nd and 3rd Gen AMD Ryzen processors for broad CPU choice
  • DDR4 memory up to 3466 MHz via A-XMP OC MODE for fast system responsiveness
  • 64 GB maximum memory capacity across four 288-pin slots for heavy workloads
  • Two M.2 ports with PCIe 3.0 x4 from CPU for high-speed storage
  • 1-channel Realtek ALC892 audio with S/PDIF output for immersive sound

Socket AM4 platform

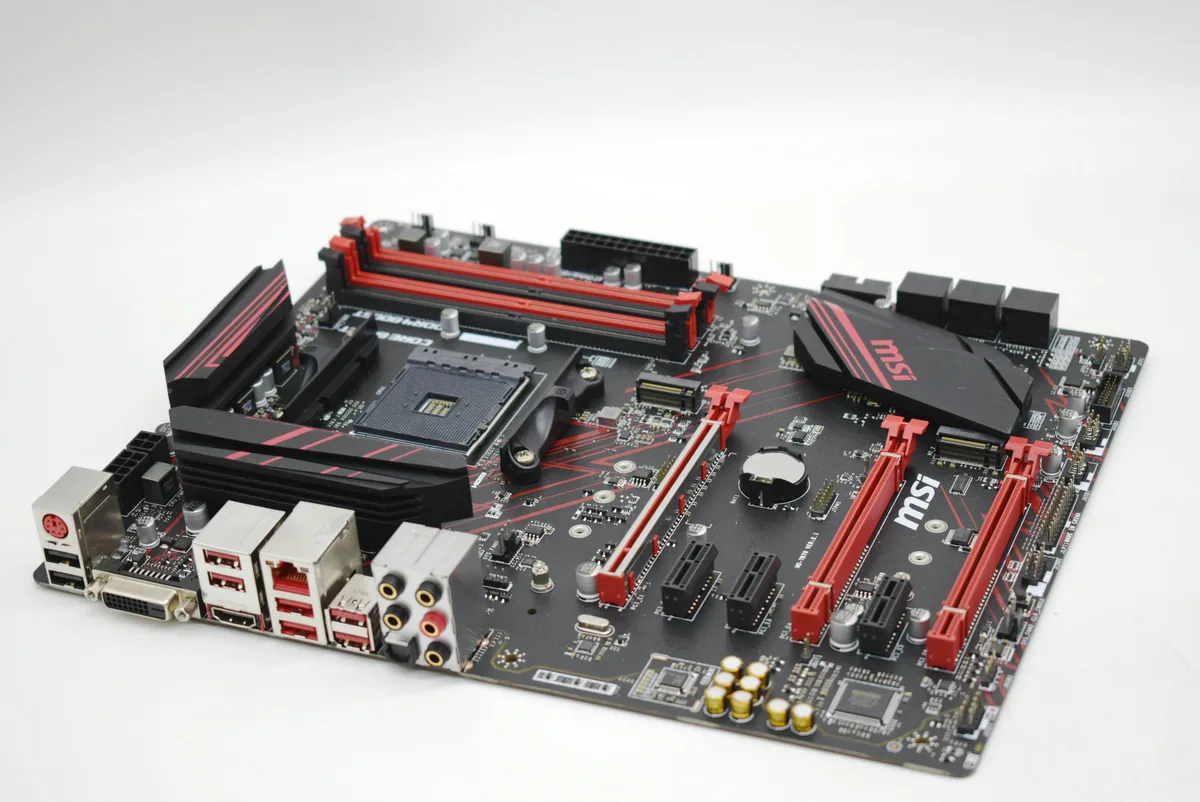

This MSI X470 Gaming Plus board targets builders using 1st, 2nd and 3rd Gen AMD Ryzen desktop processors, including APU models with Radeon Vega Graphics. The ATX form factor fits standard mid-tower cases and provides four DDR4 slots plus two full-length PCIe 3.0 x16 slots for graphics or compute cards.

Memory and storage limits

DDR4 speeds up to 3466 MHz are reachable through A-XMP OC MODE, while JEDEC profiles cover 2667/2400/2133/1866 MHz; Athlon APUs cap at 2400 MHz. Total capacity stops at 64 GB across the four 288-pin slots in dual-channel mode. Six SATA 6Gb/s ports and two M.2 Key M sockets handle storage; the second M.2 slot shares bandwidth with the PCIe 2.0 x16 slot running at x4, so that slot becomes unavailable when an M.2 PCIe drive occupies M2_2.

Compatibility checklist

Verify your CPU cooler clears the VRM heatsinks and that the power supply delivers an 8-pin EPS connector for the CPU. Confirm the chassis has room for a full-size ATX board and enough SATA power leads for six drives. Remember the box contains only the motherboard and I/O shield — no CMOS battery, no cables, no manual — so source those separately if needed.

Highlights

  • Supports 1st, 2nd and 3rd Gen AMD Ryzen processors for broad CPU choice
  • DDR4 memory up to 3466 MHz via A-XMP OC MODE for fast system responsiveness
  • 64 GB maximum memory capacity across four 288-pin slots for heavy workloads
  • Two M.2 ports with PCIe 3.0 x4 from CPU for high-speed storage
  • 1-channel Realtek ALC892 audio with S/PDIF output for immersive sound

Specifications

BrandMSI
SeriesPERFORMANCE GAMING
ModelX470 GAMING PLUS
CPU Socket TypeAM4
CPU TypeSupports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics / 2nd Gen AMD Ryzen with Radeon Graphics and Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4
ChipsetAMD X470
Number of Memory Slots4×288pin
Memory StandardSupports DDR4 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE*, and 2667/ 2400/ 2133/ 1866 MHz by JEDEC * A-series / Athlon processors support up to 2400 MHz. And the supporting frequency of memory varies with installed processor.
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x162 x PCIe 3.0 x16 slots (PCIE_1, PCIE_4) 1st, 2nd and 3rd Gen AMD Ryzen processors support x16/x0, x8/x8 mode Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics processors support x8/x0 mode Athlon with Radeon Vega Graphics processor supports x4/x0 mode
PCI Express 2.0 x161 x PCIe 2.0 x16 slot (PCIE_6, supports x4 mode)* * PCI_E6 slot will be unavailable when installing M.2 PCIe SSD in M2_2 slot.
PCI Express x13 x PCIe 2.0 x1 slots
PCI Slots2 PCIe 3.0 x16 slots (PCIE_1, PCIE_4)
Ryzen ™ desktop processor supports x16/x0, x8/x8 modes
Ryzen ™ Desktop Processor with Radeon Vega Graphics and A Series/Athlon ™ Supports x8/x0 Mode
1 PCIe 2.0 x16 slot (PCIE_6, supports x4 mode)
3 PCIe 2.0 x1 slots
Serial ATA (SATA)6 x SATA 6Gb/s
M.22 x M.2 ports (Key M)* M2_1 slot (from AMD processor) supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and 2242/2260/2280/22110 storage devices M2_2 slot (from AMD X470 Chipset) supports PCIe 2.0 x4 and SATA 6Gb/s 2242/2260/2280 storage devices * SATA1 port will be unavailable when installing SATA M.2 SSD in M2_2 slot. * PCI_E6 slot will be unavailable when installing PCIe M.2 SSD in M2_2 slot.
SATA RAID0/1/10
Onboard Video ChipsetSupported only by CPU with integrated graphic: 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz 1 x HDMI port 1.4, supports a maximum resolution of 4096x2160@30Hz, 2560x1600@60Hz Only support when using Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics processors Maximum shared memory of 2048MB
Audio ChipsetRealtek ALC892
Audio Channels7.1-Channel High Definition Audio Supports S/PDIF output
LAN ChipsetRealtek 8111H
Second LAN Chipset10/100/1000Mbps

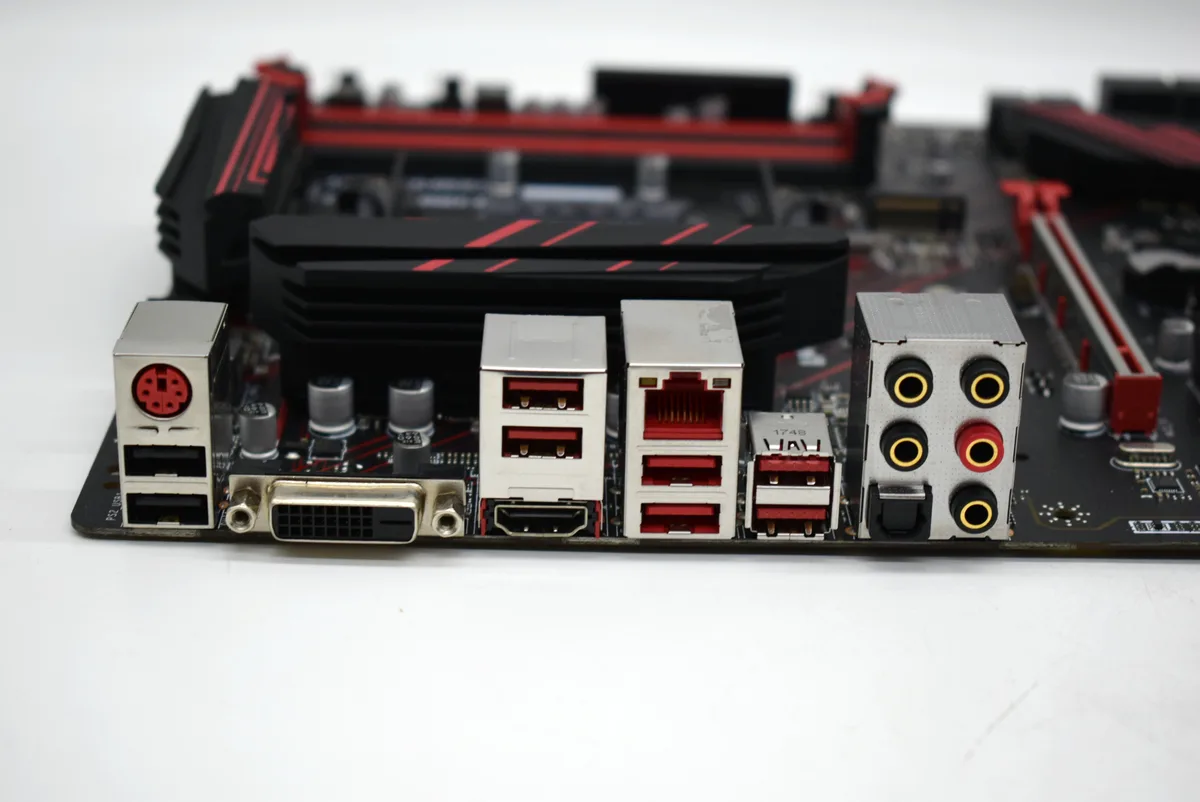

Back I/O Ports1 x DVI-D / 1 x HDMI / 1 x LAN (RJ45) / 1 x PS/2 / 2 x USB 2.0/1.1 / 2 x USB 3.1 Gen 2 Type-A / 4 x USB 3.1 Gen 1 / 5 x Audio Jacks
PS/21 x PS/2 keyboard/mouse port
Video Ports1 x DVI-D Port
HDMI1 x HDMI
RJ451 x RJ45
USB 3.12 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A ports 4 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports
USB 1.1/2.02 x USB 2.0 (High-speed USB) ports (Type-A)
S/PDIF Out1 x Optical
Audio Ports5 Ports
Onboard USB2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports)
Other Connectors1 x 4-pin CPU fan connector 1 x 4-pin PUMP fan connector (supports up to 2A) 4 x 4-pin system fan connectors 1 x Serial port connector 1 x Parallel port connector 2 x 5050 RGB LED strip 12V connectors 1 x TPM module connector 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x Clear CMOS button
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector
FeaturesSupports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics / 2nd Gen AMD Ryzen with Radeon Graphics and Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4 Supports DDR4-3466(OC) Memory DDR4 Boost: Give your DDR4 memory a performance boost Mystic Light and Mystic Light Sync: 7 colors / 7 effects in one click. Synchronize other RGB solutions for customization Lightning Fast Game experience: TURBO M.2, StoreMI, AMD Turbo USB 3.1 GEN2 Audio Boost with Nahimic: Reward your ears with studio grade sound quality for the most immersive gaming experience Core Boo
Package ContentsThe package only includes the motherboard and one I/O shield , no aditional accessories, no CMOS battery, no original packaging.

Questions about this item

Which DDR4 speed should I pick for the X470 Gaming Plus — 3466 MHz A-XMP or 2667 MHz JEDEC?

Choose 3466 MHz modules if you plan to enable A-XMP in BIOS for higher throughput; otherwise 2667 MHz JEDEC kits run at rated speed without manual tuning.

What does the 64 GB maximum memory mean for a daily-workstation build?

You can populate all four 288-pin slots with 16 GB DDR4 modules for 64 GB total, running dual-channel at up to 3466 MHz via A-XMP or 2667 MHz JEDEC.

How do the two M.2 slots and six SATA 6Gb/s ports share bandwidth on this board?

The first M.2 slot runs PCIe 3.0 x4 from the Ryzen CPU; the second M.2 slot uses chipset lanes and disables the PCIe 2.0 x4 slot when a PCIe SSD is installed, while all six SATA ports remain active.
