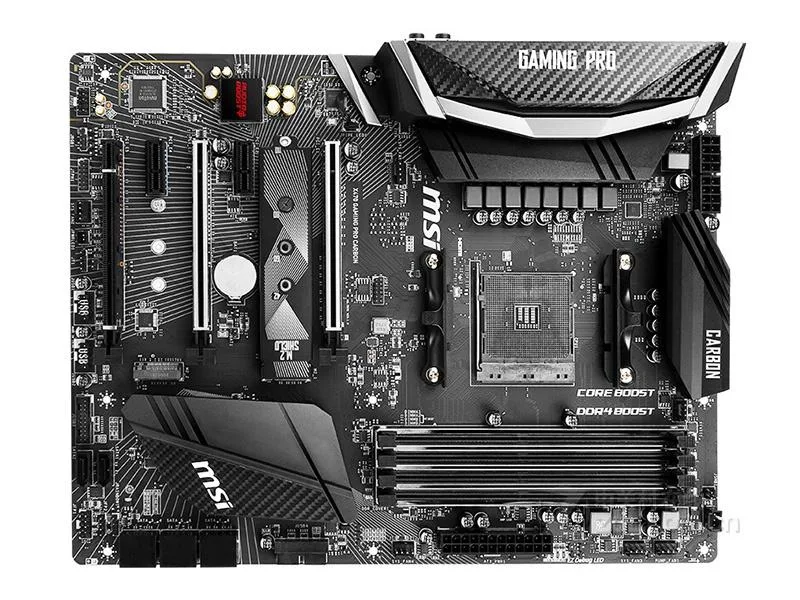

Black ATX motherboard with carbon-fibre pattern heatsinks and red accents

MSI

MSI X470 GAMING PRO CARBON AMD motherboard

SKU CH-FFFT-8CDXQ

Socket AM4 ATX board with AMD X470 chipset, dual-channel DDR4 up to 3466 MHz, 64 GB maximum memory, two PCIe 3.0 x16 slots, eight SATA III ports, Realtek ALC1220 7.1 audio and Intel I211AT Gigabit LAN

  • CPU Socket TypeSocket AM4
  • CPU TypeFirst and second generation AMD Ryzen ™ with AM4 pins/Ryzen
  • ChipsetAMD X470
  • Memory StandardSupport dual-channel DDR4 1866/2133/2400/2667/2800/2933/3000
  • Maximum Memory Supported64GB
  • PCI Slots2 PCIe 3.0 x16 slots (PCIE_1, PCIE_3) Ryzen ™ desktop proces
  • Supports first- and second-gen Ryzen processors with AM4 socket
  • Dual-channel DDR4 memory up to 64GB across multiple speeds
  • Two PCIe 3.0 x16 slots for multi-GPU configurations
  • Realtek ALC1220 audio delivers 7.1-channel high-definition sound
  • Intel I211AT controller provides wired Gigabit LAN connectivity

MSI X470 GAMING PRO CARBON

This ATX motherboard uses the AMD X470 chipset and Socket AM4. It supports first and second generation Ryzen processors plus Ryzen with Radeon Vega graphics and A-series CPUs. Dual-channel DDR4 memory runs up to 3466 MHz with a 64 GB maximum capacity.

Check compatibility before ordering

Verify your CPU is a supported Ryzen or A-series processor with AM4 pins. Ensure the ATX form factor fits your case and that your power supply provides the required 24-pin and CPU power connectors. Confirm you have DDR4 modules for the four memory slots.

Included accessories change the build

The package supplies the motherboard, three SATA cables and a chassis I/O back panel. A metal battery is fitted on the board. No original box, driver disc or additional brackets are included so plan for any missing mounting hardware or software downloads.

Highlights

  • Supports first- and second-gen Ryzen processors with AM4 socket
  • Dual-channel DDR4 memory up to 64GB across multiple speeds
  • Two PCIe 3.0 x16 slots for multi-GPU configurations
  • Realtek ALC1220 audio delivers 7.1-channel high-definition sound
  • Intel I211AT controller provides wired Gigabit LAN connectivity

Specifications

BrandMSI
SeriesMSI X470 GAMING PRO CARBON
ModelMSI X470 GAMING PRO CARBON
CPU Socket TypeSocket AM4
CPU TypeFirst and second generation AMD Ryzen ™ with AM4 pins/Ryzen ™ processors with Radeon ™ Vega graphics and AMD A series/Ryzen ™ processors
ChipsetAMD X470
Memory StandardSupport dual-channel DDR4 1866/2133/2400/2667/2800/2933/3000/3066/3200/3466MHz memory
Maximum Memory Supported64GB
PCI Slots2 PCIe 3.0 x16 slots (PCIE_1, PCIE_3)
Ryzen ™ desktop processor supports x16/x0, x8/x8 modes
Ryzen ™ desktop processors with Radeon Vega graphics and A-series/Athlon ™ support x8/x0 modes
1 PCIe 2.0 x16 slot (PCI_E5, supports x4 mode)
2 PCIe 2.0 x1 slots
SATA RAID2XM.2 interface, 8xSATA III interface
Audio ChipsetRealtek ALC1220 decoding chip
7.1 channel high-quality sound effects
Supports S/PDIF output
LAN Chipset1 Intel I211AT Gigabit network interface card
Onboard USBAMD X470 chipset
1 USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C interface located on the backplane
1 USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A interface located on the backplane
Four USB 3.1 Gen1 (SuperSpeed USB) interfaces are provided through the onboard USB 3.1 Gen1 interface
6 USB 2.0 (High-speed USB) ports (2 Type-A ports on the backplane, 4 ports via onboard USB 2.0 ports)
AMD CPU
4 USB 3.1 Gen1 (SuperSpeed USB) Type-A ports located on the backplane

Questions about this item

What comes in the box and what extra cables or accessories will I need to buy?

The package contains the motherboard, three SATA cables and the rear I/O shield. No original retail packaging or additional accessories are included.

Which memory speed should I choose for this X470 board?

The board supports dual-channel DDR4 from 1866 up to 3466 MHz with a maximum capacity of 64 GB.

What does the 64 GB maximum memory figure mean once the board is installed?

You can populate the two DDR4 slots with up to 64 GB total, running at any supported speed from 1866 to 3466 MHz.
