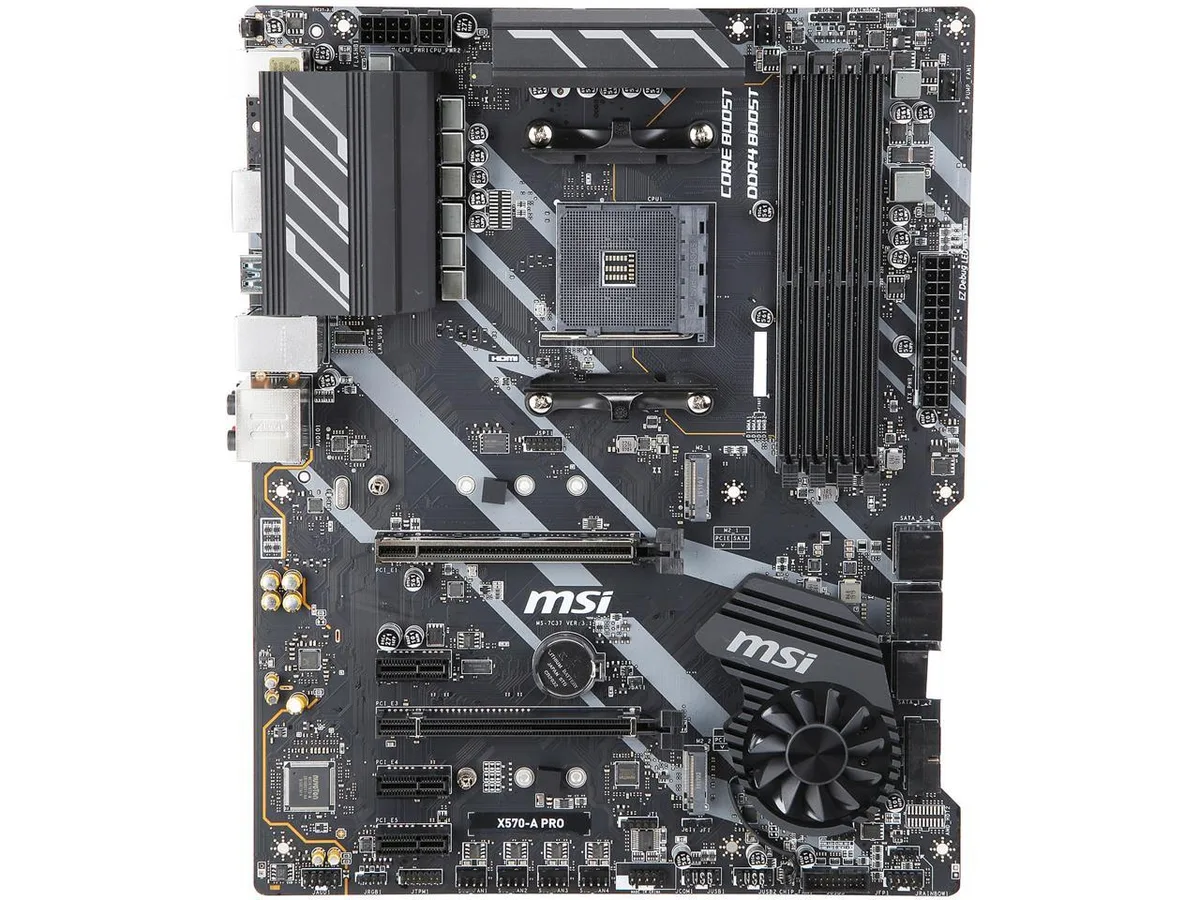

Rectangular ATX board in dark grey with silver heatsinks and black slots

MSI

MSI X570-A PRO AMD motherboard

SKU CH-ZQWJ-P17ZY

Socket AM4 ATX board for 2nd/3rd Gen Ryzen, PCIe 4.0 x16, dual M.2, six SATA 6Gb/s, gigabit LAN, HDMI 1.4, USB 3.2 Gen 2 Type-C

  • CPU Socket TypeAM4
  • CPU TypeSupports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega
  • ChipsetAMD X570
  • Number of Memory Slots4×288pin
  • Maximum Memory Supported128GB
  • Channel SupportedDual Channel
  • Supports 2nd and 3rd Gen Ryzen processors for AM4 socket
  • PCIe 4.0 x16 and dual M.2 slots enable Gen 4 bandwidth
  • 128 GB DDR4 capacity across four 288-pin slots
  • Realtek ALC1220 delivers 7.1-channel high-definition audio
  • USB 3.2 Gen 2 Type-A and Type-C plus Gen 1 ports on rear I/O

AM4 Socket AMD Motherboard

The MSI X570-A PRO is an ATX board built for 2nd and 3rd Gen Ryzen desktop processors. It supports CPUs with integrated Radeon Vega Graphics and standard Ryzen models for the AM4 platform. Four 288-pin slots accept up to 128GB of DDR4 memory in dual-channel mode. The AMD X570 chipset enables PCIe 4.0 pathways for graphics and storage.

Steel Armour PCIe Slot and Active Chipset Cooling

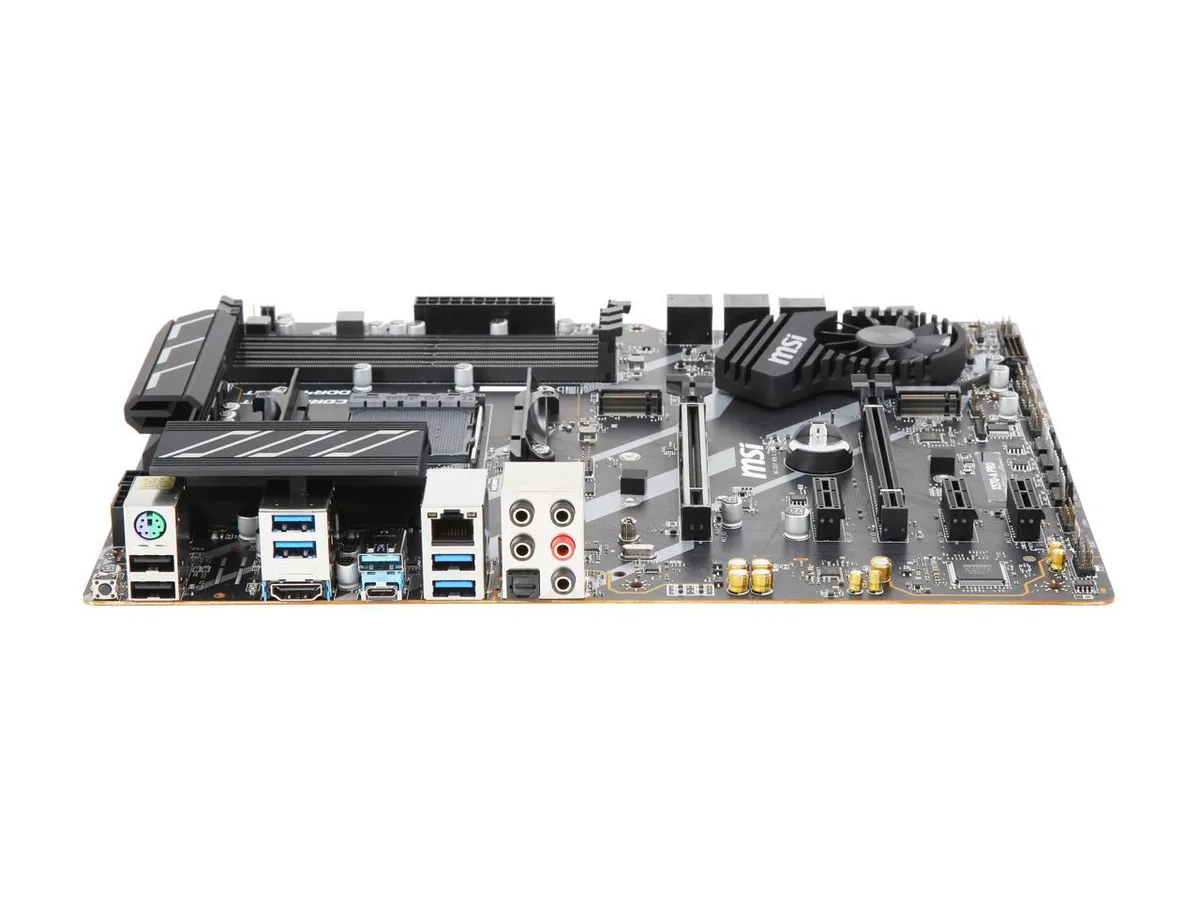

A reinforced PCIe 4.0 x16 slot protects heavy graphics cards from sag and signal interference. Three additional PCIe 3.0 x1 slots provide room for add-in cards. Six SATA 6Gb/s ports and two M.2 Key M slots handle 2.5-inch and stick-style drives. The X570 chipset uses a ball-bearing fan with Zero Frozr stop-mode for silent low-load operation. Rear I/O includes HDMI 1.4, USB 3.2 Gen 2 Type-A and Type-C, four USB 3.2 Gen 1, two USB 2.0, Gigabit LAN and 7.1-channel audio from the Realtek ALC1220 codec.

Check CPU Generation and Memory Speed Compatibility

Verify which Ryzen generation you will install because PCIe 4.0 x16 and M.2 speeds require a 3rd Gen processor. 2nd Gen CPUs and APUs fall back to PCIe 3.0 for both the primary slot and the first M.2. DDR4 frequencies above 3200 MHz rely on A-XMP overclocking profiles; JEDEC standard tops out at 3200 MHz. Ensure your power supply provides both 8-pin and 4-pin CPU connectors for the Core Boost VRM. The HDMI 1.4 port only functions with APUs that include Radeon Vega Graphics.

Highlights

  • Supports 2nd and 3rd Gen Ryzen processors for AM4 socket
  • PCIe 4.0 x16 and dual M.2 slots enable Gen 4 bandwidth
  • 128 GB DDR4 capacity across four 288-pin slots
  • Realtek ALC1220 delivers 7.1-channel high-definition audio
  • USB 3.2 Gen 2 Type-A and Type-C plus Gen 1 ports on rear I/O

Specifications

BrandMSI
SeriesPRO
ModelX570-A PRO
CPU Socket TypeAM4
CPU TypeSupports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for Socket AM4
ChipsetAMD X570
Number of Memory Slots4×288pin
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 4.0 x161 x PCIe 4.0/3.0 x16 slot (PCIE_1) - 3rd Gen AMD Ryzen support PCIe 4.0 x16 mode - 2nd Gen AMD Ryzen support PCIe 3.0 x16 mode - Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode 1 x PCIe 4.0/3.0 x16 slot (PCIE_3, supports x4 mode)
PCI Express x13 x PCIe 3.0 x1 slots* * The speeds may vary for different devices
Serial ATA (SATA)6 x SATA 6Gb/s
M.22 x M.2 slots (Key M): M2_1 slot (from AMD Processor) - Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) - Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) - Supports 2242/2260/2280/22110 storage devices M2_2 slot (from AMD X570 Chipset) - Supports PCIe 3.0 x4 and SATA 6Gb/s - Supports 2242/2260/2280 storage devices
Onboard Video ChipsetSupported only by CPU with integrated graphic: 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz Only support when using Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Processors Maximum shared memory of 2048MB
Audio ChipsetRealtek ALC1220
Audio Channels7.1-Channel High Definition Audio Supports S/PDIF output
LAN ChipsetRealtek RTL8111H
Max LAN Speed10/100/1000Mbps
Back I/O Ports1 x Flash BIOS Button 1 x PS/2 keyboard/mouse combo port 2 x USB 2.0 ports 1 x HDMI port 4 x USB 3.2 Gen1 ports 1 x LAN (RJ45) port 1 x USB 3.2 Gen2 Type A port 1 x USB 3.2 Gen2 Type C port 5 x OFC audio jacks 1 x Optical S/PDIF OUT connector
Onboard USB2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2 x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
Other Connectors1 x 4-pin CPU fan connector 1 x 4-pin water-pump connector 4 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x TPM module connector 1 x Serial port connector 1 x Clear CMOS jumper 1 x Chassis Intrusion connector 2 x 4-pin RGB LED connectors 2 x 3-pin RAINBOW LED connectors 4 x EZ Debug LEDs
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector
FeaturesMulti-GPU Support: Supports 2-Way AMD CrossFire Technology I/O Controller: NUVOTON NCT6797 Controller Chip Hardware Monitor: CPU/System/Chipset temperature detection CPU/System/Chipset fan speed detection CPU/System/Chipset fan speed control BIOS Features: 1 x 256MB flash UEFI AMI BIOS ACPI 6.1, SMBIOS 2.8 Multi-language Special Features: Audio - Audio Boost 4 Storage - Lightning Gen 4 M.2 - Twin M.2 Fan - Pump Fan - FROZR Heatsink Design LED - Mystic Light 3 - Mystic Light Extension (RGB) - Mystic Light Extension (RAINBOW) - Mystic light SYNC - EZ DEBUG LED Protection - PCIe Steel A

Questions about this item

What PCIe generation does the primary x16 slot run at with a 3rd Gen Ryzen processor?

With a 3rd Gen AMD Ryzen processor the primary PCIe 4.0 x16 slot operates at PCIe 4.0 x16 speed.

What CPU power connectors are required for this board?

The motherboard requires both an 8-pin and a 4-pin CPU power connector for Core Boost power delivery.

How do you update the BIOS without a CPU installed?

Use the Flash BIOS Button on the rear I/O: plug a USB stick with the BIOS file into the dedicated port and press the button.
