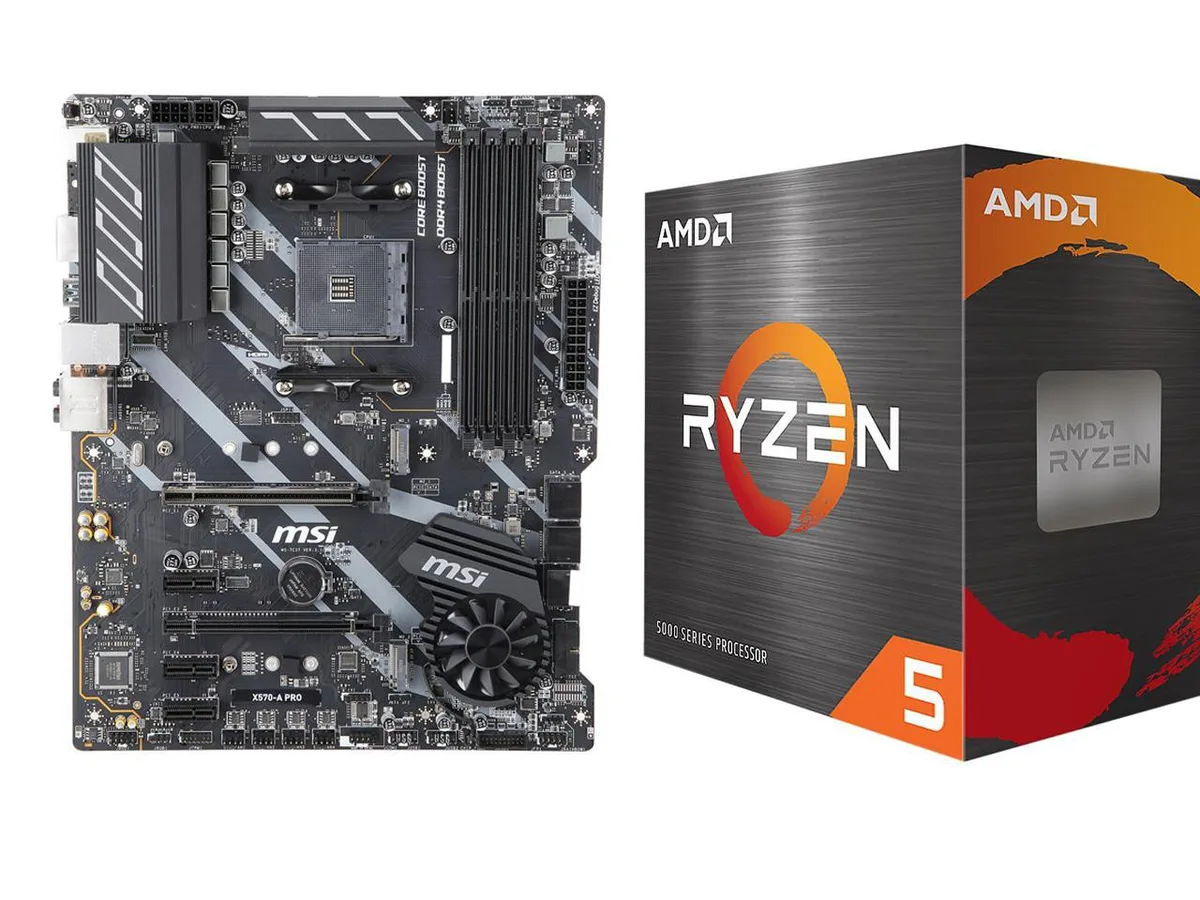

ATX motherboard with black PCB and silver heatsinks, bundled with Ryzen 5 5600G processor

MSI

MSI X570-A PRO AMD motherboard with Ryzen 5 5600G

SKU CH-AZSY-4678K

ATX board with X570 chipset, four DDR4 slots up to 128 GB, PCIe 4.0 x16, two M.2 sockets, six SATA 6Gb/s ports, HDMI 1.4, Realtek ALC1220 7.1 audio, 1 Gbps LAN.

  • CPU TypeRyzen 5000G Series
  • ChipsetAMD X570
  • Number of Memory Slots4x288pin (DDR4)
  • Memory Standard3rd Gen AMD Ryzen Processors support DDR4 4400/ 4266/ 4133/
  • Maximum Memory Supported128GB
  • Channel SupportedDual Channel
  • 6-core Ryzen 5 5600G at 3.9 GHz handles multi-threaded workloads
  • 16 MB L3 cache speeds up data access for demanding applications
  • AMD Radeon graphics built into the CPU drives a display without a discrete card
  • X570 chipset enables PCIe 4.0 on the primary x16 slot and first M.2
  • Four DDR4 slots support up to 128 GB for large memory configurations

Ready AM4 platform

The bundle pairs an X570 chipset board with a Ryzen 5 5600G processor so the system boots without a discrete graphics card. It targets builders who want a complete AM4 foundation for office work, light content creation or a starter gaming rig.

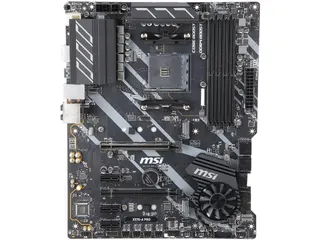

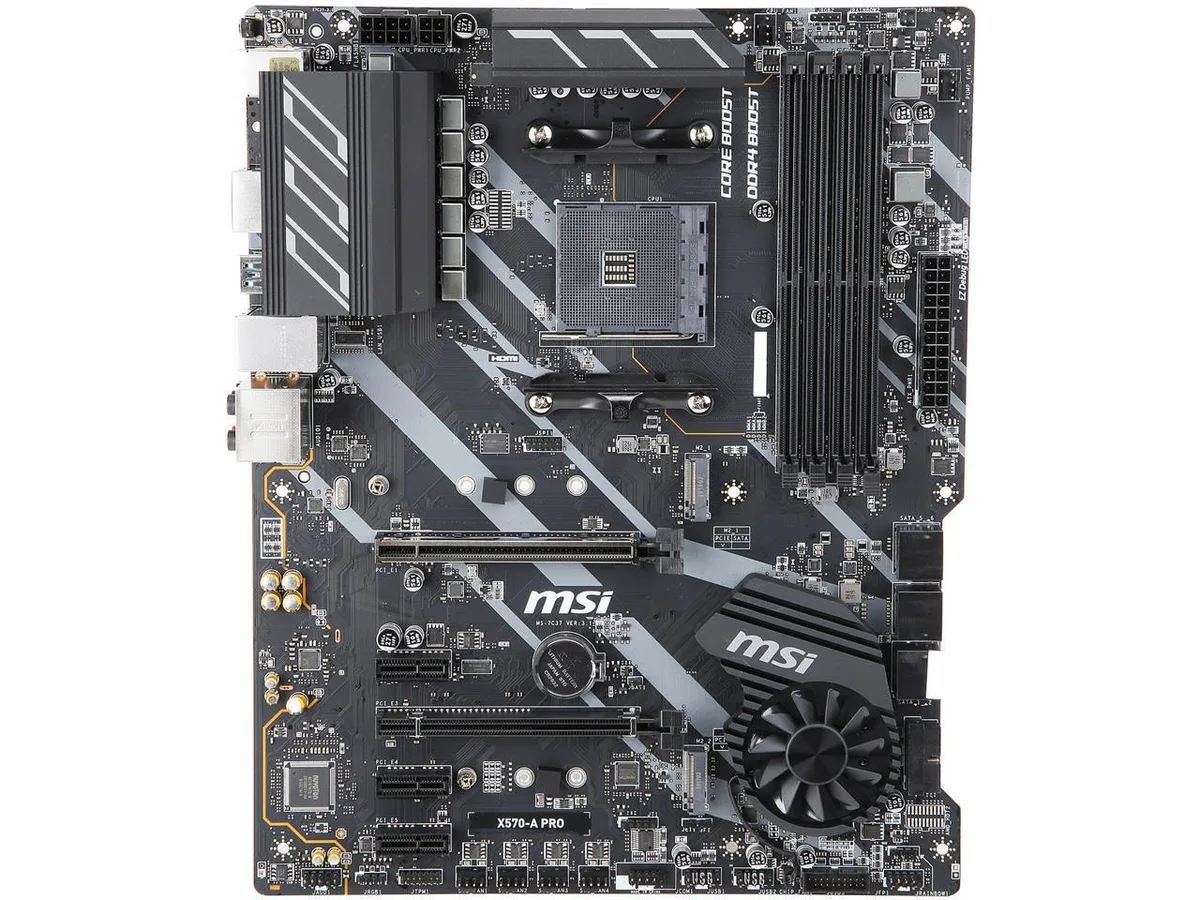

Board layout and I/O

Four DDR4 slots accept up to 128 GB in dual-channel mode while the CPU’s integrated Radeon graphics drives the HDMI 1.4 output at 4096x2160@24Hz. One PCIe 4.0 x16 slot, three PCIe 3.0 x1 slots, six SATA ports and two M.2 sockets give plenty of expansion room for storage and add-in cards.

Upgrade path from older AM4

Moving from a 1st or 2nd Gen Ryzen gains Zen 3 cores, 16 MB L3 cache and PCIe 4.0 support for both the primary graphics slot and the first M.2 socket. The jump is worth it when faster storage throughput and higher single-thread speed matter for the workload.

Highlights

  • 6-core Ryzen 5 5600G at 3.9 GHz handles multi-threaded workloads
  • 16 MB L3 cache speeds up data access for demanding applications
  • AMD Radeon graphics built into the CPU drives a display without a discrete card
  • X570 chipset enables PCIe 4.0 on the primary x16 slot and first M.2
  • Four DDR4 slots support up to 128 GB for large memory configurations

Specifications

BrandMSI
SeriesPRO
ModelX570-A PRO
CPU TypeRyzen 5000G Series
ChipsetAMD X570
Number of Memory Slots4x288pin (DDR4)
Memory Standard3rd Gen AMD Ryzen Processors support DDR4 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE, and 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC
2nd Gen AMD Ryzen Processors, 1st and 2nd Gen AMD Ryzen with Radeon Vega Graphics Processors support DDR4 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE, and 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC
Maximum Memory Supported128GB
Channel SupportedDual Channel
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
PCI Express 4.0 x161 x PCIe 4.0/3.0 x16 slot (PCIE_1)
- 3rd Gen AMD Ryzen support PCIe 4.0 x16 mode
- 2nd Gen AMD Ryzen support PCIe 3.0 x16 mode
- Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode
1 x PCIe 4.0/3.0 x16 slot (PCIE_3, supports x4 mode)
PCI Express x13 x PCIe 3.0 x1 slots*
* The speeds may vary for different devices
Serial ATA (SATA)6 x SATA 6Gb/s
M.22 x M.2 slot (Key M):
M2_1 slot (from AMD Processor)
Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen)
Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics)
Supports 2242/2260/2280/22110 storage devices
M2_2 slot (from AMD X570 Chipset)
Supports PCIe 3.0 x4 and SATA 6Gb/s
Supports 2242/2260/2280 storage devices
Onboard Video ChipsetSupported only by CPU with integrated graphic:
1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160@24Hz
Only support when using Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Processors
Maximum shared memory of 2048MB
Audio ChipsetRealtek ALC1220
Audio Channels7.1-Channel High Definition Audio
Supports S/PDIF output
LAN ChipsetRealtek RTL8111H
Max LAN Speed1Gbps
Back I/O Ports1 x Flash BIOS Button
1 x PS/2 keyboard/mouse combo port
2 x USB 2.0 ports
1 x HDMI port
4 x USB 3.2 Gen1 ports
1 x LAN (RJ45) port
1 x USB 3.2 Gen2 Type A port
1 x USB 3.2 Gen2 Type C port
5 x OFC audio jacks
1 x Optical S/PDIF OUT connector
Onboard USB2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
2 x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
Other Connectors1 x 4-pin CPU fan connector
1 x 4-pin water-pump connector
4 x 4-pin system fan connectors
1 x Front panel audio connector
2 x System panel connectors
1 x TPM module connector
1 x Serial port connector
1 x Clear CMOS jumper
1 x Chassis Intrusion connector
2 x 4-pin RGB LED connectors
2 x 3-pin RAINBOW LED connectors
4 x EZ Debug LEDs
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
FeaturesMulti-GPU Support:
Supports 2-Way AMD CrossFire Technology
I/O Controller:
NUVOTON NCT6797 Controller Chip
Hardware Monitor:
CPU/System/Chipset temperature detection
CPU/System/Chipset fan speed detection
CPU/System/Chipset fan speed control
BIOS Features:
1 x 256MB flash
UEFI AMI BIOS
ACPI 6.1, SMBIOS 2.8
Multi-language
Special Features:
Audio
- Audio Boost 4
Storage
- Lightning Gen 4 M.2
- Twin M.2
Fan
- Pump Fan
- FROZR Heatsink Design
LED
- Mystic Light 3
- Mystic Light Extension (RGB)
- Mystic Light Extension (RAINBOW)
- Mystic light SYNC
- EZ DEBUG LED
Protection
- PCIe Steel A

Questions about this item

Will the HDMI port work with the included Ryzen 5 5600G processor?

Yes, the HDMI 1.4 port is driven by the processor's integrated Radeon graphics and supports up to 4096x2160@24Hz.

What DDR4 speeds can I run with this CPU and motherboard combination?

The 5600G supports JEDEC speeds up to 3200 MHz and A-XMP OC MODE speeds up to 4400 MHz across the four 288-pin slots.

How many SATA drives and M.2 SSDs can I connect at once?

The board provides six SATA 6Gb/s ports and two M.2 Key M slots, all usable simultaneously.
