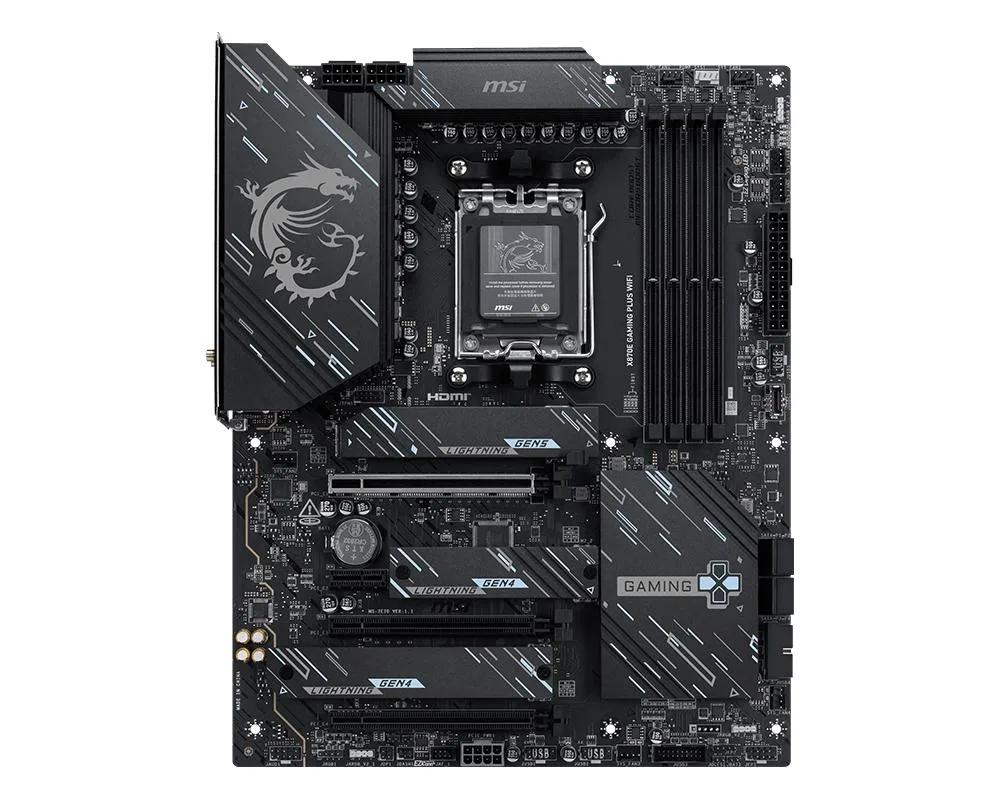

ATX motherboard with black PCB, silver heatsinks and rear I/O shield

MSI

MSI X870E GAMING PLUS WIFI 01 AMD motherboard

SKU CH-4WRC-Q70ZN

AM5 motherboard for Ryzen 9000, 8000 and 7000 CPUs with DDR5 8200 MT/s, PCIe 5.0, USB4, 5G LAN and Wi-Fi 7

  • CPU Socket TypeAM5
  • ChipsetAMD X870E
  • Max LAN Speed5Gbps
  • Ready for AMD Ryzen 9000, 8000 and 7000 series processors
  • DDR5 memory support up to 8200 MT/s overclocked for faster throughput
  • 14+2+1 Duet Rail power with dual 8-pin CPU connectors for stable delivery
  • PCIe 5.0 slot and Gen 5 x4 M.2 for high-speed storage and graphics
  • USB4, 5G LAN and Wi-Fi 7 provide ultra-fast wired and wireless connectivity

AM5 platform for Ryzen 9000 8000 7000

This ATX motherboard uses the AMD X870E chipset and AM5 socket to support Ryzen 9000 8000 7000 series processors. It targets builders who want a current-generation AMD foundation for gaming or workstation tasks. Dual-channel DDR5 memory can reach 8200 MT/s when overclocked. The board delivers a complete feature set in a standard form factor.

14+2+1 Duet Rail power and thermal design

The 14+2+1 Duet Rail power system uses dual 8-pin CPU connectors alongside Core Boost and Memory Boost circuits. An 8-layer PCB with 2oz thickened copper and server-grade material underpins the layout. Extended heatsinks, MOSFET pads rated at 7W/mK, choke pads and the EZ M.2 Shield Frozr II dissipate heat during sustained loads. Tool-free EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna simplify assembly and future upgrades.

USB4 Wi-Fi 7 5G LAN and Audio Boost

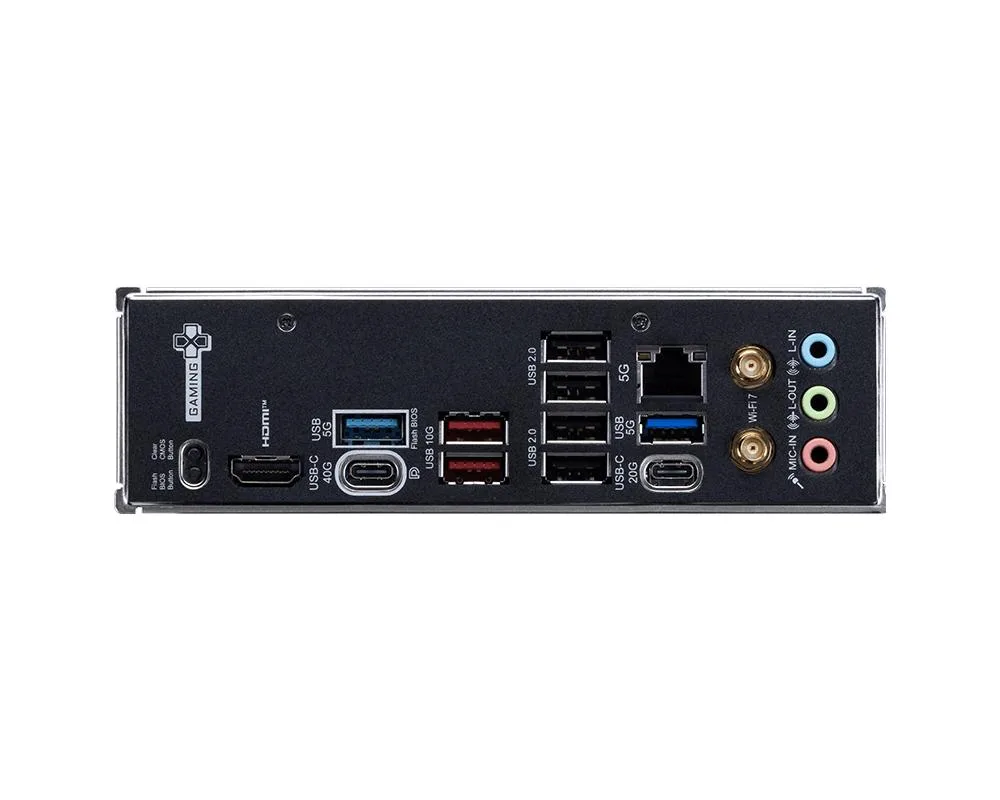

Rear I/O includes USB4 for high-speed peripherals and a 5Gbps LAN port paired with Wi-Fi 7 for low-latency wireless networking. A PCIe 5.0 expansion slot and Lightning Gen 5 x4 M.2 connector provide bandwidth headroom for next-generation GPUs and storage. Audio Boost circuitry delivers studio-grade sound output for gaming and content creation.

Highlights

  • Ready for AMD Ryzen 9000, 8000 and 7000 series processors
  • DDR5 memory support up to 8200 MT/s overclocked for faster throughput
  • 14+2+1 Duet Rail power with dual 8-pin CPU connectors for stable delivery
  • PCIe 5.0 slot and Gen 5 x4 M.2 for high-speed storage and graphics
  • USB4, 5G LAN and Wi-Fi 7 provide ultra-fast wired and wireless connectivity

Specifications

BrandMSI
ModelX870E GAMING PLUS WIFI 01
Part NumberX870E GAMING PLUS WIFI 01
CPU Socket TypeAM5
ChipsetAMD X870E
Max LAN Speed5Gbps

Questions about this item

What PCIe generation does the primary slot use and what speed does it cap at?

The board provides a PCIe 5.0 slot which operates at Gen 5 speeds for graphics cards and compatible add-in cards.

What physical clearance does the extended heatsink and dual 8-pin CPU power require in a case?

The extended heatsink and dual 8-pin CPU power connectors need an ATX case with enough height above the socket and room behind the motherboard tray for cable routing.

How is the EZ M.2 Shield Frozr II installed and which step do builders often miss?

Remove the screw, slide the SSD in at an angle, press it down and secure it with the captive screw; the step often missed is pressing the SSD fully flat before tightening the screw.
