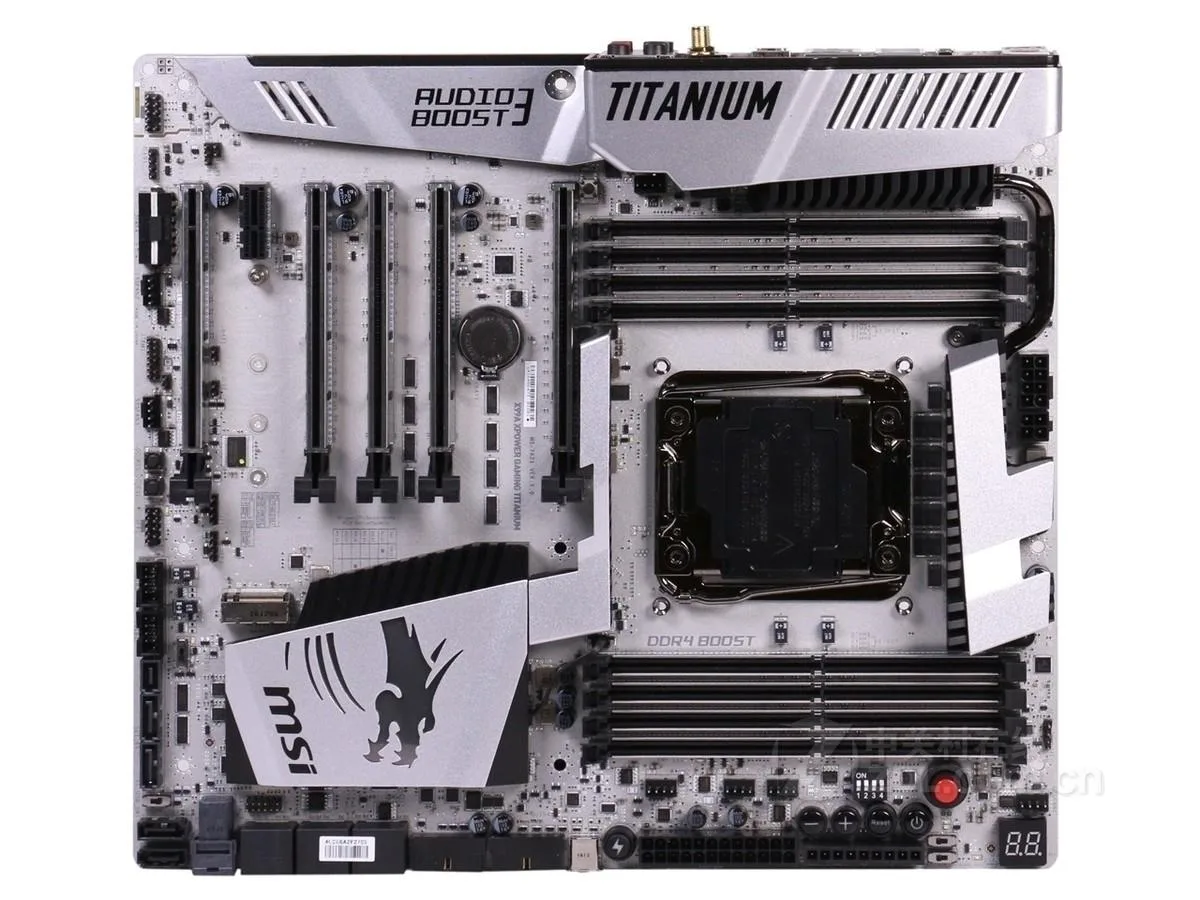

E-ATX motherboard with titanium silver heatsinks and black PCB

MSI

MSI X99A XPOWER GAMING TITANIUM Intel motherboard

SKU CH-MWGS-86D5D

An Intel X99 motherboard for LGA 2011-v3 CPUs with four-channel DDR4 up to 128GB, five PCIe 3.0 x16 slots, ten SATA III ports, 7.1 audio and USB 3.1 Gen2 Type-A and Type-C

  • CPU Socket TypeLGA 2011-v3
  • CPU TypeIntel Core ™ i7 Delicate Edition processor with LGA 2011-3 a
  • ChipsetIntel X99
  • Memory StandardSupport four-channel DDR4 2133/2200 (OC)/2400 (OC)/2600 (OC)
  • Maximum Memory Supported128GB
  • PCI Slots5 PCIe 3.0 x16 slots (PCI_E1~ PCI_E4 & PCI_E6 *), up to 4-wa
  • Supports up to 128GB DDR4 memory capacity
  • Intel X99 chipset with LGA 2011-v3 socket
  • Five PCIe 3.0 x16 slots for multi-GPU
  • Realtek ALC1150 audio with 7.1 channel sound
  • Two USB 3.1 Gen2 ports including Type-C

High-end X99 platform for multi-GPU builds

The MSI X99A XPOWER GAMING TITANIUM motherboard targets enthusiasts who need the LGA 2011-v3 socket and Intel X99 chipset for four-channel DDR4 memory up to 128GB. It provides five PCIe 3.0 x16 slots with lane configurations that support up to four-way multi-GPU operation. Builders who require more than ten SATA III ports or an integrated Wi-Fi radio will not find them on this board.

Sustained throughput across four memory channels

Four-channel DDR4 architecture scales bandwidth from 2133 MT/s through overclocked steps to 3466 MT/s, keeping all cores fed during long rendering or compute sessions. Ten SATA III ports plus one SATA Express and one M.2 connection deliver steady storage throughput without the bottlenecks that appear when fewer lanes are shared. The Intel I218-V Gigabit controller maintains consistent network flow under heavy multi-session loads.

Titanium-grade VRM cooling keeps power phases stable

An oversized heatsink array covers the voltage regulator modules so they stay cool when the CPU draws high current for extended periods. Onboard audio uses the Realtek ALC1150 codec with 7.1-channel output and S/PDIF for clean signal paths. Dual USB 3.1 Gen2 ports at 10Gbps, one Type-A and one Type-C, handle fast peripheral transfers without adding extra controllers that increase system power draw.

Highlights

  • Supports up to 128GB DDR4 memory capacity
  • Intel X99 chipset with LGA 2011-v3 socket
  • Five PCIe 3.0 x16 slots for multi-GPU
  • Realtek ALC1150 audio with 7.1 channel sound
  • Two USB 3.1 Gen2 ports including Type-C

Specifications

BrandMSI
SeriesMSI X99A XPOWER GAMING TITANIUM
ModelMSI X99A XPOWER GAMING TITANIUM
CPU Socket TypeLGA 2011-v3
CPU TypeIntel Core ™ i7 Delicate Edition processor with LGA 2011-3 architecture
Supports Intel Turbo Boost Max 3.0 technology *
ChipsetIntel X99
Memory StandardSupport four-channel DDR4 2133/2200 (OC)/2400 (OC)/2600 (OC)/2666 (OC)/2750 (OC)/3000 (OC)/3110 (OC)/3333 (OC)/3400 (OC)/3466 (OC)
Maximum Memory Supported128GB
PCI Slots5 PCIe 3.0 x16 slots (PCI_E1~ PCI_E4 & PCI_E6 *), up to 4-way mode
- 1- Mode: x16/x0/x0/x0/x0
2- Mode: x16/x0/x0/x16/x0 **, x16/x0/x0/x8/x0 ** *
- 3- Mode: x16/x0/x0/x16/x8 ** x8/x8/x0/x8/x0 ** *
- 4- mode: x8/x8/x0/x16/x8 **, x8/x8/x0/x8/x4 ** *
1 PCIe 2.0 x1 slot (PCI_E5)
SATA RAID1XM.2 interface, 1xSATA Express interface, 10xSATA III interface
Audio ChipsetRealtek ALC1150 Decoder Chip
- 7.1 channel high-quality sound effects
- Supports S/PDIF output
LAN Chipset1 Intel I218-V Gigabit network interface card
Onboard USBASMedia ASM1142 Chipset
- 2 USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port and 1 Type-C port on the backplane)
- 2 USB 3.1 Gen1 (SuperSpeed USB) ports are provided via the onboard JUSB4 interface
VIA VL805 Chipset
- 4 USB 3.1 Gen1 (SuperSpeed USB) ports located on the back panel
Intel X99 chipset
- 5 USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the backplane, 1 onboard Type-C port, 2 via the onboard JUSB3 port)
- 7 USB 2.0 (High-speed USB) ports (3 on the backplane, 4 via onboard USB ports)

Questions about this item

How much heat or fan noise should I expect from the X99 chipset and ten SATA III ports running 24/7?

The X99 chipset and ten SATA III ports are designed for continuous operation; thermal output depends on your CPU cooler and case airflow rather than the board itself.

Which CPU cooler mounting pattern and DDR4 kit do I need to pair with the LGA 2011-v3 socket and quad-channel memory controller?

You need an LGA 2011-v3 compatible cooler and a quad-channel DDR4 kit rated for 2133 MT/s or higher to reach the 128 GB maximum.

Will my PCIe 3.0 x16 graphics card and existing SATA III SSDs work at full speed in the five x16 slots and ten SATA III ports?

Yes — the five PCIe 3.0 x16 slots and ten SATA III ports both run at the native 3.0 and 6 Gb/s speeds your current hardware expects.
