E-ATX motherboard, black PCB with silver heatsinks and red accents

MSI

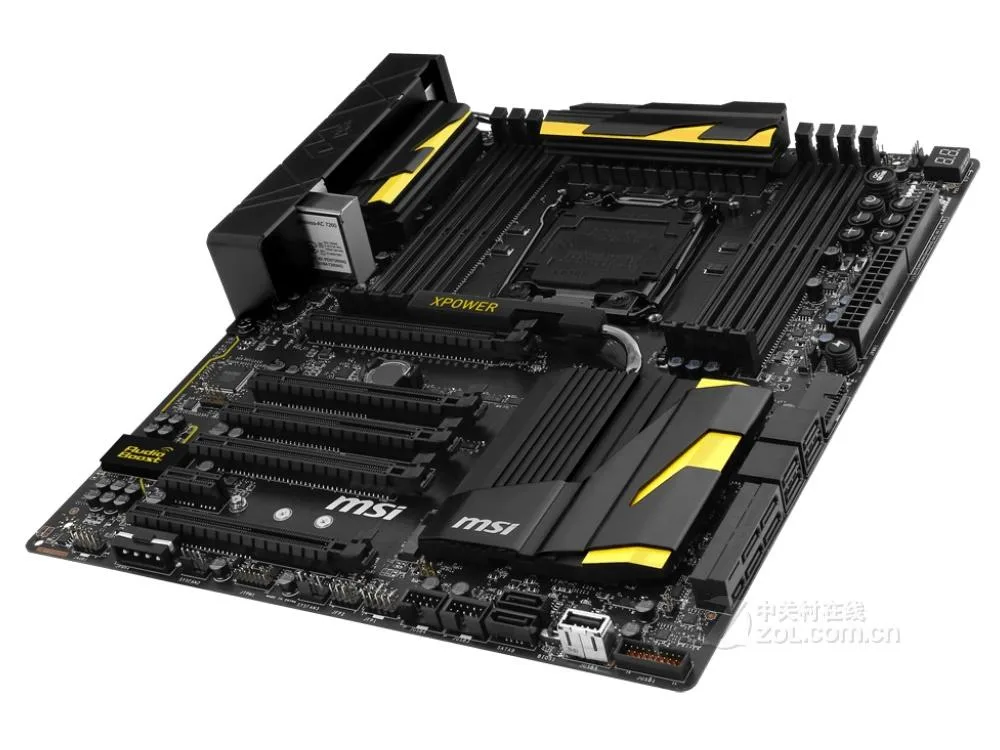

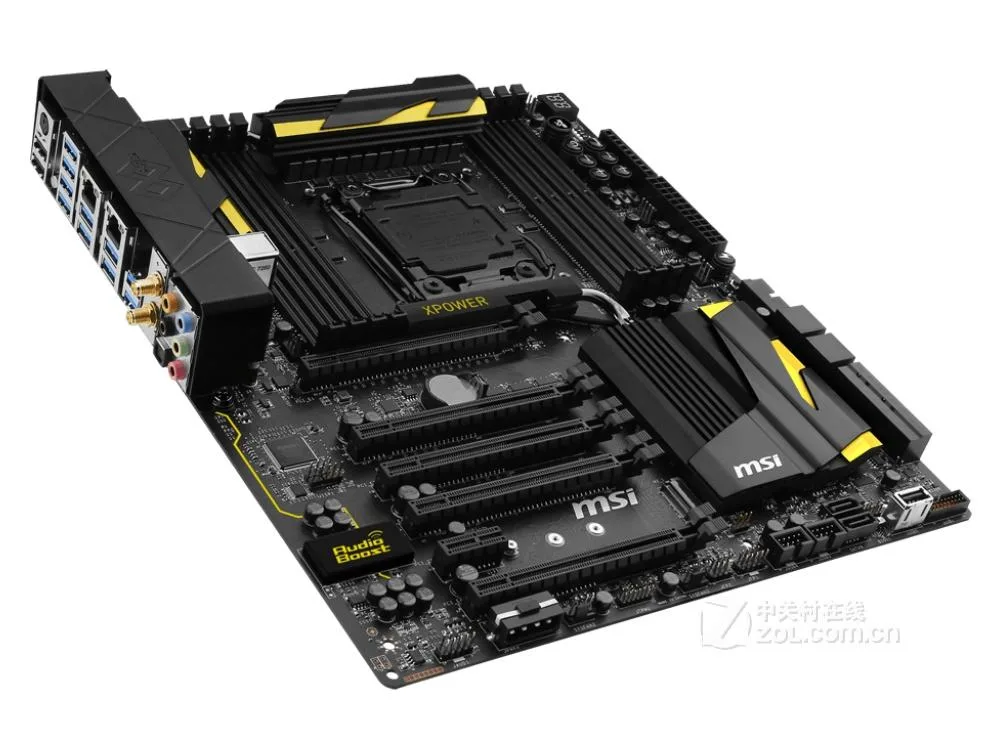

MSI X99S XPOWER AC LGA 2011-v3 Intel X99 motherboard

SKU CH-G49R-KDX1W

An E-ATX X99 board with LGA 2011-v3 socket, quad-channel DDR4 up to 128 GB, five PCIe 3.0 x16 slots, dual Intel Gigabit LAN, Realtek ALC1150 7.1 audio, ten SATA III plus SATA Express and M.2.

  • CPU Socket TypeLGA 2011-v3
  • CPU TypeIntel Core ™ i7 Delicate Edition processor with new LGA 2011
  • ChipsetIntel X99
  • Memory StandardSupports four-channel DDR4 2133/2200 (OC)/2400 (OC)/2600 (OC
  • Maximum Memory Supported128GB
  • PCI Slots5 PCIe 3.0 x16 slots (PCI_E1~ E4, PCI_E6) for 4-way mode - 1
  • Supports 128GB DDR4 for heavy multitasking
  • Four-channel DDR4 up to 3333 MHz OC for fast memory throughput
  • Five PCIe 3.0 x16 slots enable 4-way GPU configurations
  • Dual Intel Gigabit LAN plus 7.1 audio for wired networking and surround sound
  • 12 USB 3.0 ports backed by X99 and ASM1074 controllers

Platform Overview

The MSI X99S XPOWER AC is an Intel X99 chipset motherboard built for the LGA 2011-v3 socket. It targets enthusiasts and workstation users who need four-channel DDR4 memory and multi-GPU expansion in an E-ATX layout.

Suitability

This board suits builders running Intel Core i7 processors on the 2011-v3 platform who want up to 128GB of DDR4 and flexible PCIe 3.0 lane configurations. Users needing a compact Micro-ATX board or integrated wireless networking should look elsewhere as this is a full-size enthusiast platform.

Deciding Specification

The four-channel DDR4 controller supports memory speeds from 2133 MHz up to 3333 MHz when overclocked, with a maximum capacity of 128GB across eight slots. This memory bandwidth ceiling determines whether the platform can feed high-core-count CPUs and multi-GPU arrays without bottlenecking.

Highlights

  • Supports 128GB DDR4 for heavy multitasking
  • Four-channel DDR4 up to 3333 MHz OC for fast memory throughput
  • Five PCIe 3.0 x16 slots enable 4-way GPU configurations
  • Dual Intel Gigabit LAN plus 7.1 audio for wired networking and surround sound
  • 12 USB 3.0 ports backed by X99 and ASM1074 controllers

Specifications

BrandMSI
SeriesMSI X99S XPOWER AC
ModelMSI X99S XPOWER AC
CPU Socket TypeLGA 2011-v3
CPU TypeIntel Core ™ i7 Delicate Edition processor with new LGA 2011-3 socket support
ChipsetIntel X99
Memory StandardSupports four-channel DDR4 2133/2200 (OC)/2400 (OC)/2600 (OC)/2666 (OC)/2750 (OC)/3000 (OC)/3110 (OC)/3333 (OC) MHz memory
Maximum Memory Supported128GB
PCI Slots5 PCIe 3.0 x16 slots (PCI_E1~ E4, PCI_E6) for 4-way mode
- 1-way mode: x16/x0/x0/x0/x0
- 2-way mode: x16/x0/x0/x16/x0 *, x16/x0/x0/x8/x0 **
- 3-way mode: x16/x0/x0/x16/x8 *, x8/x8/x0/x8/x0 **
- 4-way mode: x8/x8/x0/x16/x8 *, x8/x8/x0/x8/x4 **
1 PCIe 2.0 x1 slot (PCI_E5)
SATA RAID10XSATA III interface; 1xSATA Express interface; 1xM.2 interface (10Gb/s)
Audio ChipsetRealtek ALC1150 Decoder Chip
- 7.1 channel high-quality sound effects
- Supports S/PDIF output
LAN Chipset1 Intel I218-V Gigabit network - bidirectional connected network controller, medium access control (MAC) and physical layer (PHY)
1 Intel I210-AT Gigabit network controller
Onboard USBIntel X99 Express Chipset
- 4 USB 3.0 ports, supported by built-in USB 3.0 connectors
- 7 USB 2.0 ports (2 on the backplane, 5 supported via built-in USB 2.0 connector *)
2 ASMedia ASM1074 chipsets
- 8 USB 3.0 ports located on the backplane
ASMedia ASM1142 Chipset
- 2 USB 3.1 ports located on the backplane
Built-in JUSB1 port supports MSI Super Charger.

Questions about this item

What case clearance does the E-ATX board and its 5 PCIe 3.0 x16 slots require?

The board follows the E-ATX form factor and provides five PCIe 3.0 x16 slots, so the chassis must accept an E-ATX motherboard and have enough expansion slots for the cards you plan to install.

Which power connectors must be seated before the first boot?

Connect the 24-pin ATX cable and the 8-pin CPU power cable; the board will not post if either is missing or only partially inserted.

Which onboard components have a limited lifespan and may need replacement?

The CMOS battery supplied with the board maintains the real-time clock and BIOS settings and will need replacing when it no longer holds charge.
