ATX motherboard in black with silver heatsinks and LGA 1151 socket

MSI

MSI Z170-A PRO Intel motherboard LGA 1151 DDR4 64GB ATX

SKU CH-RZZX-FCAYX

Supports 6th-generation Intel Core processors with dual-channel DDR4 up to 3200MHz, two PCIe 3.0 x16 slots and 64GB maximum memory

  • CPU Socket TypeLGA 1151
  • CPU Type6th generation Intel Core ™ i3/i5/i7, Intel Pentium/Celeron
  • ChipsetIntel Z170
  • Memory StandardSupport dual-channel DDR4 3200 (OC)/3000 (OC)/2800 (OC)/2600
  • Maximum Memory Supported64GB
  • PCI Slots2 PCIe 3.0 x16 slots (supports x16, x16/x4 modes) 3 PCIe 3.0
  • Supports 6th-gen Intel Core i3, i5, i7 CPUs via LGA 1151 socket
  • Dual-channel DDR4 memory up to 64GB with speeds to 3200 MHz
  • Two PCIe 3.0 x16 slots for multi-GPU configurations
  • Realtek ALC887 audio delivers 7.1 channel high-definition sound
  • Realtek RTL8111H provides Gigabit LAN connectivity

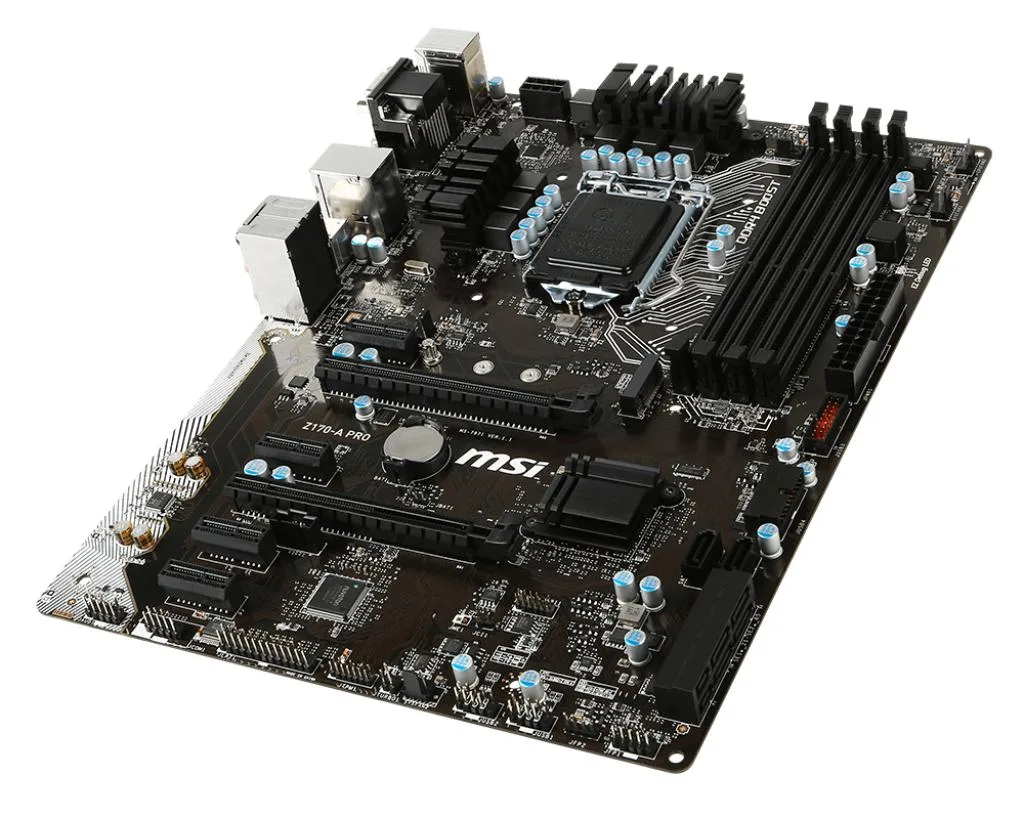

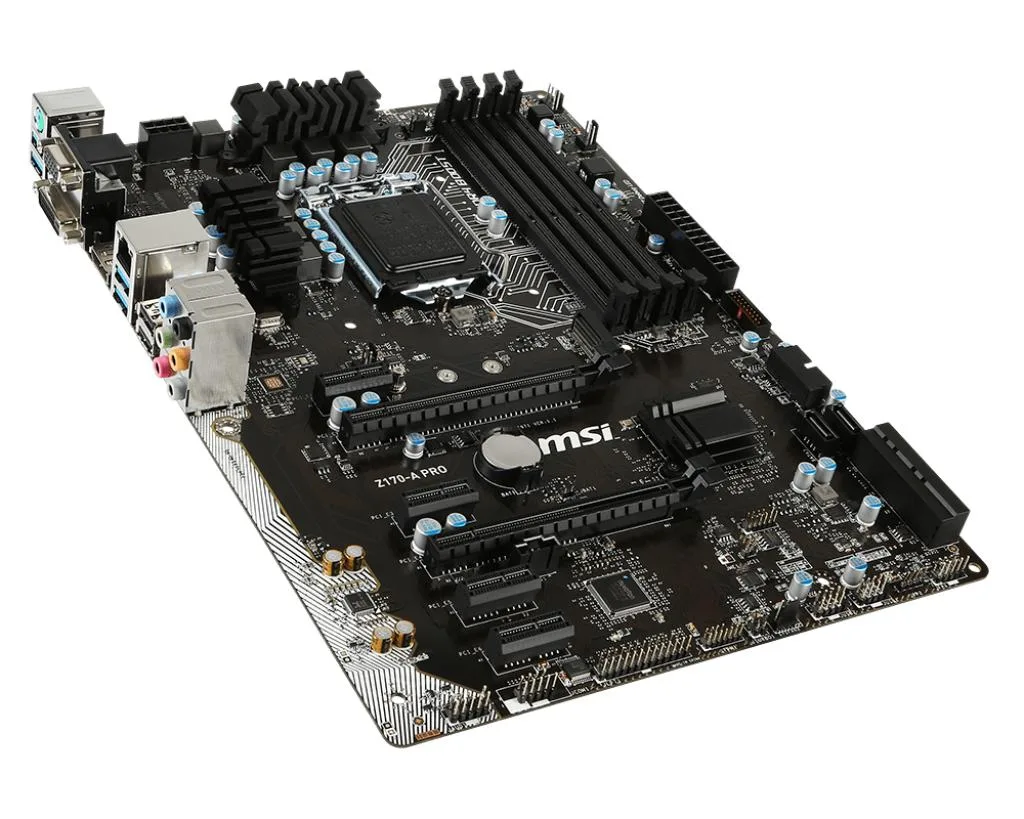

MSI Z170-A PRO Motherboard

The MSI Z170-A PRO is an ATX motherboard built on the Intel Z170 chipset for LGA 1151 processors. It supports 6th generation Intel Core i3, i5 and i7 CPUs as well as Pentium and Celeron models. Dual-channel DDR4 memory runs up to 3200 MHz when overclocked with a maximum capacity of 64 GB.

Expansion Slots and Connectivity

The board provides two PCIe 3.0 x16 slots operating in x16 or x16/x4 modes, three PCIe 3.0 x1 slots and two legacy PCI slots. Storage options include one M.2 interface, one SATA Express interface and six SATA III ports. Rear I/O supplies two USB 3.1 Gen2 ports at 10 Gbps and four USB 3.1 Gen1 ports, with two additional Gen1 headers onboard. Gigabit LAN and 7.1-channel audio complete the feature set.

Target Builder and Limitations

This motherboard suits builders assembling a 6th generation Intel system who need multiple expansion slots and high-speed USB on a standard ATX form factor. It is not for buyers who require a newer socket or chipset, those who need integrated Wi-Fi or Bluetooth, or anyone looking for a smaller micro-ATX board. The refurbished unit ships with an I/O shield and one SATA cable only.

Highlights

  • Supports 6th-gen Intel Core i3, i5, i7 CPUs via LGA 1151 socket
  • Dual-channel DDR4 memory up to 64GB with speeds to 3200 MHz
  • Two PCIe 3.0 x16 slots for multi-GPU configurations
  • Realtek ALC887 audio delivers 7.1 channel high-definition sound
  • Realtek RTL8111H provides Gigabit LAN connectivity

Specifications

BrandMSI
SeriesMSI Z170-A PRO
ModelMSI Z170-A PRO
CPU Socket TypeLGA 1151
CPU Type6th generation Intel Core ™ i3/i5/i7, Intel Pentium/Celeron processors with LGA1151 architecture
ChipsetIntel Z170
Memory StandardSupport dual-channel DDR4 3200 (OC)/3000 (OC)/2800 (OC)/2600 (OC)/2400/2133MHz memory
Maximum Memory Supported64GB
PCI Slots2 PCIe 3.0 x16 slots (supports x16, x16/x4 modes)
3 PCIe 3.0 x1 slots
2 PCI slots
SATA RAID1XM.2 interface, 1xSATA Express interface, 6xSATA III interface,
Audio ChipsetRealtek ALC887 Decoder Chip
7.1 channel high-quality sound effects
LAN Chipset1 Realtek RTL8111H Gigabit network controller
Onboard USBASMedia ASM1142 Chipset
- 2 USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports, located on the backplane
Intel Z170 chipset
- 6 USB 3.1 Gen1 (SuperSpeed USB) ports (4 located on the backplane, 2 provided through the onboard USB 3.1 Gen1 port)
- 4 USB 2.0 (High-speed USB) ports (provided through the onboard USB 2.0 port)

Questions about this item

Will the CMOS battery on the MSI Z170-A PRO need replacing later?

The board ships with a metal battery installed; it powers the real-time clock and BIOS settings and will need replacement when the system loses time or settings after power-off.

What limits sustained performance on the MSI Z170-A PRO?

The Intel Z170 chipset and VRM design set the thermal and power ceiling; prolonged heavy loads will hit those limits before the PCIe 3.0 x16 slots or memory bandwidth saturate.

How much fan noise and heat should I expect from the MSI Z170-A PRO running all day?

The Realtek ALC887 audio, RTL8111H LAN and ASMedia ASM1142 USB controllers run cool; total board power stays modest so case airflow normally keeps temperatures and noise low.
