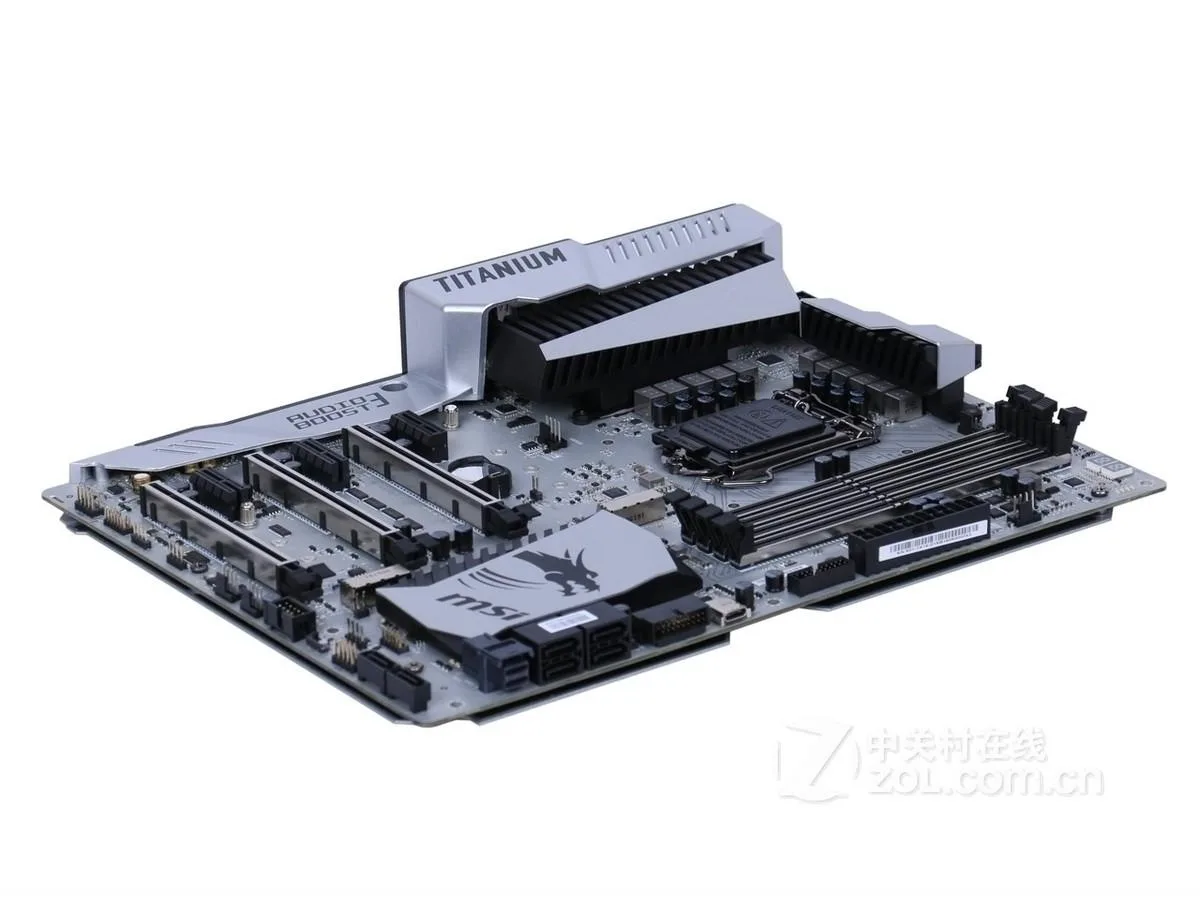

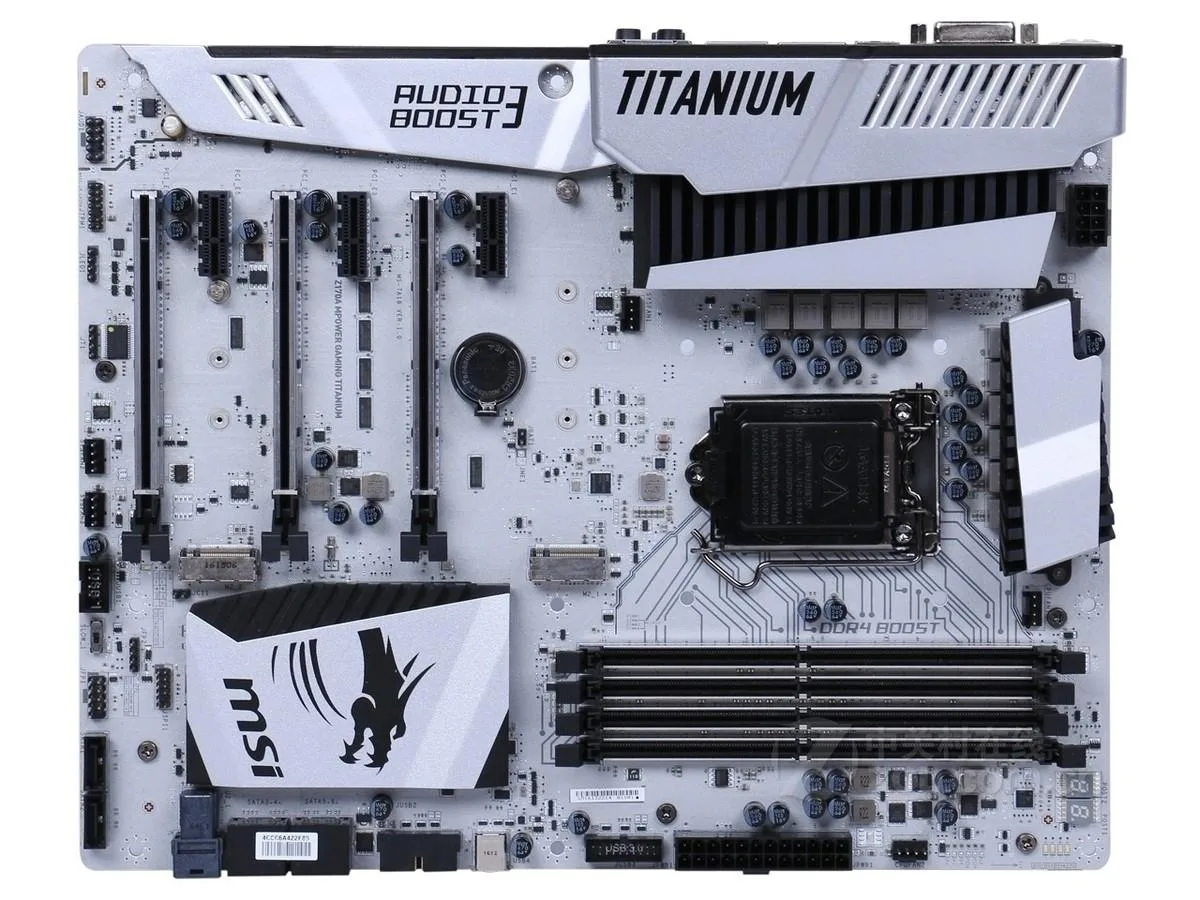

ATX motherboard with titanium silver finish and black heatsinks

MSI

MSI Z170A MPOWER GAMING TITANIUM Intel motherboard

SKU CH-DAHD-V55NJ

Supports 6th Gen Intel Core i3, i5, i7, Pentium and Celeron CPUs on LGA 1151 with Intel Z170 chipset, dual-channel DDR4 up to 3600 MHz and 64 GB maximum memory

  • CPU Socket TypeLGA 1151
  • CPU Type6th Gen Intel Core ™ i3/i5/i7 processors with LGA1151 archit
  • ChipsetIntel Z170
  • Memory StandardSupport dual-channel DDR4 3600 (OC)/3200 (OC)/3000 (OC)/2800
  • Maximum Memory Supported64GB
  • PCI Slots3 PCIe 3.0 x16 slots * 3 PCIe 3.0 x1 slots *
  • Supports 6th Gen Intel Core i3/i5/i7 CPUs via LGA 1151 socket
  • Dual-channel DDR4 memory up to 3600 MHz overclocked with 64 GB maximum capacity
  • Three PCIe 3.0 x16 and three PCIe 3.0 x1 expansion slots for multi-GPU and add-in cards
  • Realtek ALC1150 audio codec with S/PDIF output for high-definition sound
  • Intel I219 Gigabit LAN plus USB 3.1 Gen2 10 Gbps Type-A and Type-C ports

Z170 Titanium ATX board for 6th Gen Intel builds

The MSI Z170A MPOWER GAMING TITANIUM is an ATX motherboard built on the Intel Z170 chipset for LGA 1151 processors. It supports 6th Gen Intel Core i3 i5 i7 Pentium and Celeron CPUs. Dual channel DDR4 memory runs up to 3600 OC with a 64GB maximum capacity.

Suits enthusiasts wanting multi GPU

Three PCIe 3.0 x16 slots and three PCIe 3.0 x1 slots give room for multi graphics card setups and add in cards. Storage includes one U.2 port two M.2 ports and six SATA III connectors. Realtek ALC1150 audio and Intel I219 gigabit LAN handle sound and networking. Buyers needing newer CPU sockets or different chipset features should choose another board.

LGA 1151 socket decides CPU compatibility

Only processors designed for the LGA 1151 socket will fit this motherboard. The Z170 chipset enables overclocking on unlocked 6th Gen Core K series chips. Memory topology supports dual channel DDR4 at speeds from 2133 to 3600 OC. Verify your CPU matches the socket before purchase.

Highlights

  • Supports 6th Gen Intel Core i3/i5/i7 CPUs via LGA 1151 socket
  • Dual-channel DDR4 memory up to 3600 MHz overclocked with 64 GB maximum capacity
  • Three PCIe 3.0 x16 and three PCIe 3.0 x1 expansion slots for multi-GPU and add-in cards
  • Realtek ALC1150 audio codec with S/PDIF output for high-definition sound
  • Intel I219 Gigabit LAN plus USB 3.1 Gen2 10 Gbps Type-A and Type-C ports

Specifications

BrandMSI
SeriesMSI Z170A MPOWER GAMING TITANIUM
ModelMSI Z170A MPOWER GAMING TITANIUM
CPU Socket TypeLGA 1151
CPU Type6th Gen Intel Core ™ i3/i5/i7 processors with LGA1151 architecture, Intel Pentium and Celeron processors
ChipsetIntel Z170
Memory StandardSupport dual-channel DDR4 3600 (OC)/3200 (OC)/3000 (OC)/2800 (OC)/2600 (OC)/2400/2133MHz memory
Maximum Memory Supported64GB
PCI Slots3 PCIe 3.0 x16 slots *
3 PCIe 3.0 x1 slots *
SATA RAID1XU.2 interface, 2xM.2 interface, 6xSATA III interface
Audio ChipsetRealtek ALC1150 Decoder Chip
- Channel high-quality sound effects
- Supports S/PDIF output
LAN Chipset1 Intel I219 Gigabit Network Controller
Onboard USBASMedia ASM1142 Chipset
1 USB 3.1 Gen2 (SuperSpeed USB 10Gbps) interface located on the backplane
1 USB 3.1 Gen2 (Super Speed USB 10Gbps) Type-C interface located on the backplane
Intel Z170 chipset
- 6 USB 3.1 Gen1 (SuperSpeed USB) ports (2 on the backplane, 4 via onboard USB ports) br/> - 1 USB 3.1 Gen1 (SuperSpeed USB) Type-C port
- 6 USB 2.0 (High-speed USB) ports (4 on the backplane, 2 via onboard USB ports)

Questions about this item

What case clearance does the ATX board and its LGA 1151 socket require?

The board follows the standard ATX form factor, so any chassis that accepts ATX motherboards will provide the necessary mounting holes and rear I/O cutout for the LGA 1151 socket area.

Which CPU power connector must be seated for the board to post with a 6th Gen Intel Core processor?

Connect the 8-pin EPS cable from the power supply to the CPU power header near the socket; the system will not start if only the 24-pin ATX connector is fitted.

When should the supplied CMOS battery be swapped out?

Replace the coin cell when the system loses the date and time after power is removed or when BIOS settings revert to defaults on every cold boot.
