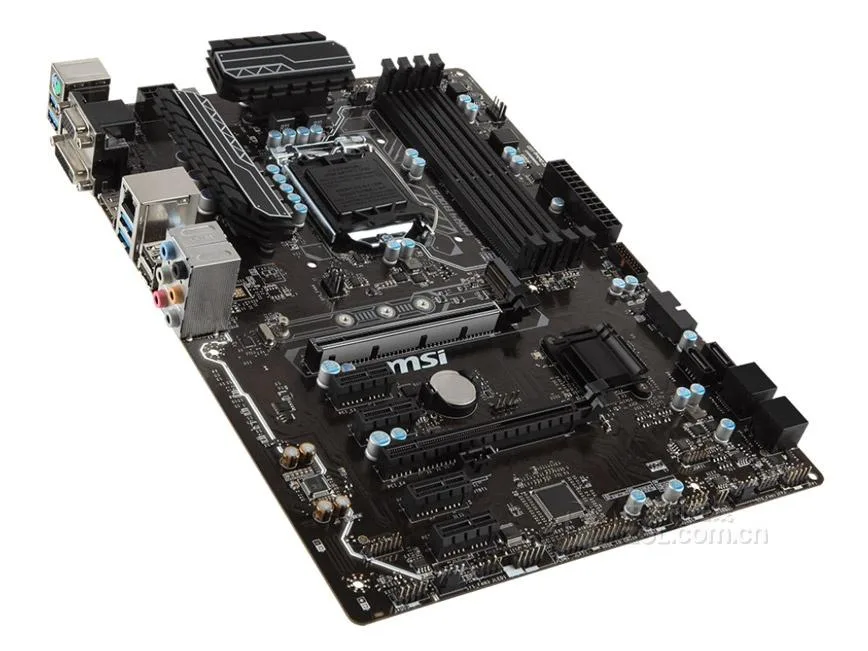

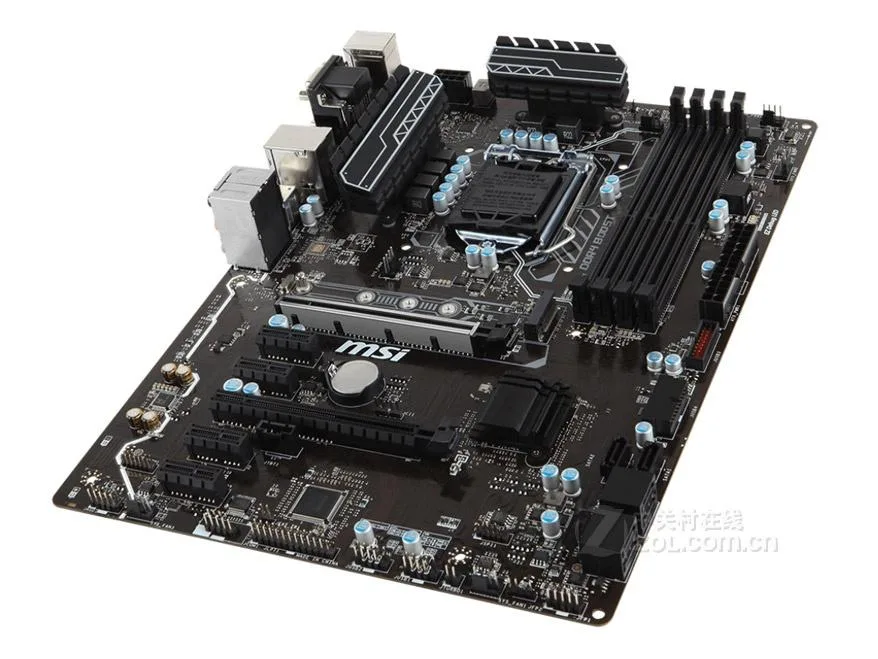

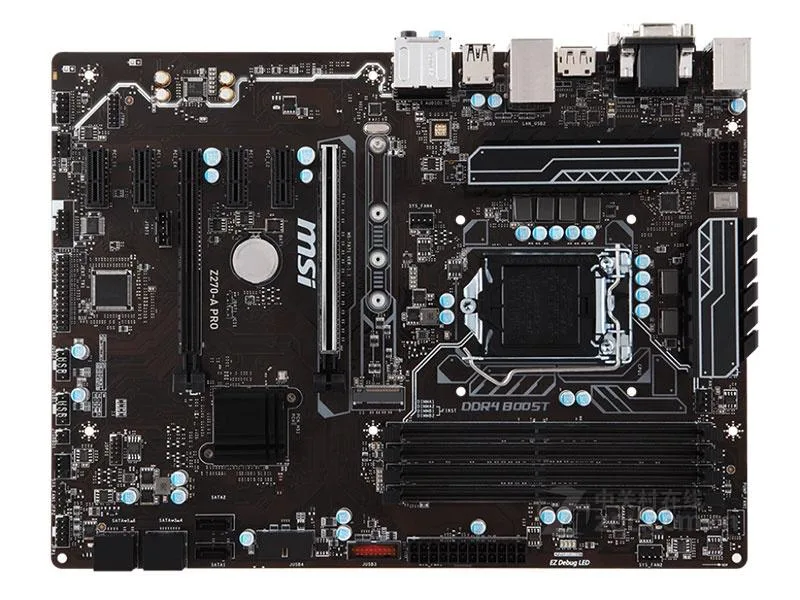

Rectangular ATX motherboard in matte black with silver heatsinks and blue accents

MSI

MSI Z270-A PRO Intel Z270 LGA 1151 DDR4 ATX motherboard

SKU CH-QFAX-W19JZ

ATX board for LGA 1151 CPUs with Intel Z270 chipset, dual-channel DDR4 up to 3800 MHz, 64 GB maximum memory, 7.1 audio and Gigabit LAN

  • CPU Socket TypeLGA 1151
  • CPU TypeSupports 6th/7th generation Intel Core ™ i3/i5/i7 processors
  • ChipsetIntel Z270
  • Memory StandardSupport dual-channel DDR4 3800 (OC)/3600 (OC)/3200 (OC)/3000
  • Maximum Memory Supported64GB
  • PCI Slots2 PCIe 3.0 x16 slots (supports x16/x4 modes) 4 PCIe 3.0 x1 s
  • Supports 6th/7th Gen Intel Core i3/i5/i7 on LGA 1151 socket
  • Dual-channel DDR4 up to 3800 MHz (OC) with 64 GB maximum capacity
  • Two PCIe 3.0 x16 slots running at x16/x4 plus four PCIe 3.0 x1 slots
  • Realtek ALC892 codec delivers 7.1 channel high-definition audio
  • Realtek RTL8111H Gigabit LAN plus eight USB 3.1 Gen1 and six USB 2.0 ports

MSI Z270-A PRO LGA 1151 ATX motherboard

This MSI Z270-A PRO motherboard uses the Intel Z270 chipset and an LGA 1151 socket to support 6th and 7th generation Intel Core i3, i5 and i7 processors plus Pentium and Celeron models. It is an ATX board designed for desktop builders who need a full-size layout with dual-channel DDR4 memory support up to 64GB and a range of expansion slots for graphics and add-in cards.

Suited for 6th or 7th generation Intel Core builds

The board suits users assembling a system around a 6th or 7th generation Intel Core, Pentium or Celeron CPU with an LGA 1151 package who want dual-channel DDR4 memory running at speeds from 2133 up to 3800 OC and multiple PCIe 3.0 slots for graphics or other expansion. Builders planning an 8th generation or newer Intel processor, or a platform requiring a different socket or memory type, should select a motherboard built for that generation.

DDR4 memory support up to 64GB and 3800 OC

The single specification that decides compatibility is the DDR4 memory standard with a maximum capacity of 64GB across dual channels and supported frequencies of 2133, 2400, 2600, 2800, 3000, 3200, 3600 and 3800 OC. Matching the CPU generation to the LGA 1151 socket and pairing memory within this supported range ensures the board will operate as intended.

Highlights

  • Supports 6th/7th Gen Intel Core i3/i5/i7 on LGA 1151 socket
  • Dual-channel DDR4 up to 3800 MHz (OC) with 64 GB maximum capacity
  • Two PCIe 3.0 x16 slots running at x16/x4 plus four PCIe 3.0 x1 slots
  • Realtek ALC892 codec delivers 7.1 channel high-definition audio
  • Realtek RTL8111H Gigabit LAN plus eight USB 3.1 Gen1 and six USB 2.0 ports

Specifications

BrandMSI
SeriesMSI Z270-A PRO
ModelMSI Z270-A PRO
CPU Socket TypeLGA 1151
CPU TypeSupports 6th/7th generation Intel Core ™ i3/i5/i7 processors, as well as Intel Pentium and Celeron processors with pin LGA1151
ChipsetIntel Z270
Memory StandardSupport dual-channel DDR4 3800 (OC)/3600 (OC)/3200 (OC)/3000 (OC)/2800 (OC)/2600 (OC)/2400/2133MHz memory
Maximum Memory Supported64GB
PCI Slots2 PCIe 3.0 x16 slots (supports x16/x4 modes)
4 PCIe 3.0 x1 slots
SATA RAID1XM.2 interface, 6xSATA III interface
Audio ChipsetRealtek ALC892 decoding chip
- 7.1 channel high-quality sound effects
LAN Chipset1 Realtek RTL8111H Gigabit network interface card
Onboard USB- 8 USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the backplane, 4 via onboard USB ports)
- 6 USB 2.0 (High-speed USB) ports (2 Type-A ports on the backplane, 4 via onboard USB ports)

Questions about this item

Will this board run a 7th-generation Core i5 and 64 GB of DDR4?

Yes, the LGA 1151 socket supports 6th and 7th generation Core i3, i5 and i7 processors and the memory controller handles up to 64 GB of DDR4.

How many SATA drives can I connect and is there an M.2 slot?

Six SATA III ports and one M.2 interface are provided for storage devices.

What USB ports are available on the rear panel and through internal headers?

Four USB 3.1 Gen1 Type-A ports on the back panel, four more via internal headers, plus two USB 2.0 Type-A ports on the back panel and four via internal headers.
