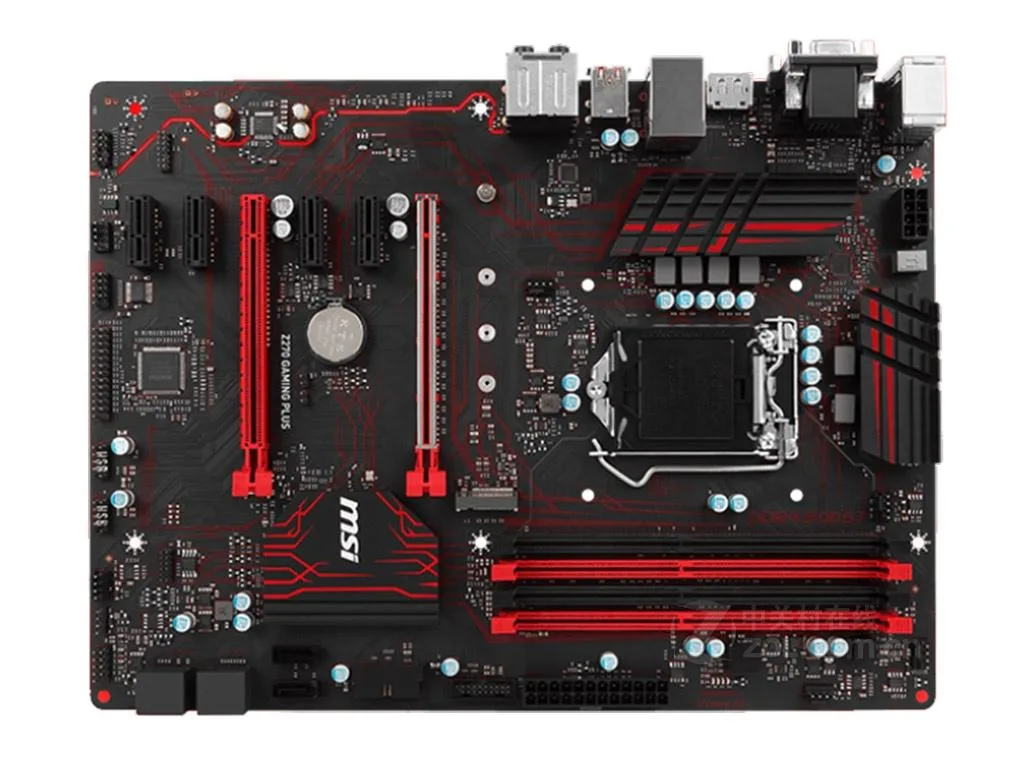

ATX motherboard with black PCB, silver heatsinks and red accents

MSI

MSI Z270 GAMING PLUS LGA 1151 Intel Z270 DDR4 64GB ATX Motherboard

SKU CH-TYAM-EBP4A

Supports 7th and 6th generation Intel Core i3, i5, i7, Pentium and Celeron processors on LGA 1151 with dual-channel DDR4 up to 3800 OC and 64GB maximum memory

  • CPU Socket TypeLGA 1151
  • CPU TypeSupports 7th/6th Gen Intel Core™ i3/i5/i7 processors, and In
  • ChipsetIntel Z270
  • Memory StandardSupport dual-channel DDR4 3800 (OC)/3600 (OC)/3200 (OC)/3000
  • Maximum Memory Supported64GB
  • PCI Slots2 x PCIe 3.0 x16 slots (supports x16/x4 mode) 4 x PCIe 3.0 x
  • Supports 7th and 6th Gen Intel Core i3, i5, i7, Pentium and Celeron CPUs via LGA 1151 socket
  • Up to 64GB dual-channel DDR4 memory at speeds up to 3800 OC for responsive multitasking
  • Realtek ALC892 codec delivers 7.1-channel high-definition audio for immersive sound
  • Intel I219-V Gigabit LAN controller provides reliable wired network connectivity
  • Eight USB 3.1 Gen1 and six USB 2.0 ports give extensive peripheral connection options

Socket LGA 1151 Z270 ATX Board

This MSI Z270 GAMING PLUS motherboard fits LGA 1151 processors from the 6th and 7th generation Intel Core families. It uses the Intel Z270 chipset in an ATX layout. The board supports dual-channel DDR4 memory up to 64 GB and speeds of 3800 MHz when overclocked.

Builders staying on LGA 1151

It suits owners of compatible 6th or 7th generation Intel CPUs who need a replacement Z270 board with six SATA III ports and one M.2 slot. Builders starting a new system on a newer socket, or anyone needing more than two full-length PCIe 3.0 x16 slots, should choose a different platform.

64 GB DDR4 maximum capacity

The four memory slots accept up to 64 GB of DDR4 RAM in total. This ceiling determines whether the board can handle your planned workload or if a platform with higher memory support is required.

Highlights

  • Supports 7th and 6th Gen Intel Core i3, i5, i7, Pentium and Celeron CPUs via LGA 1151 socket
  • Up to 64GB dual-channel DDR4 memory at speeds up to 3800 OC for responsive multitasking
  • Realtek ALC892 codec delivers 7.1-channel high-definition audio for immersive sound
  • Intel I219-V Gigabit LAN controller provides reliable wired network connectivity
  • Eight USB 3.1 Gen1 and six USB 2.0 ports give extensive peripheral connection options

Specifications

BrandMSI
SeriesMSI Z270 GAMING PLUS
ModelMSI Z270 GAMING PLUS
CPU Socket TypeLGA 1151
CPU TypeSupports 7th/6th Gen Intel Core™ i3/i5/i7 processors, and Intel Pentium and Celeron processors for Socket LGA1151
ChipsetIntel Z270
Memory StandardSupport dual-channel DDR4 3800 (OC)/3600 (OC)/3200 (OC)/3000 (OC)/2800 (OC)/2600 (OC)/2400/2133MHz memory
Maximum Memory Supported64GB
PCI Slots2 x PCIe 3.0 x16 slots (supports x16/x4 mode)
4 x PCIe 3.0 x1 slots
SATA RAID1XM.2 interface, 6xSATA III interface
Audio ChipsetRealtek ALC892 Codecr
- 7.1-Channel High Definition Audio
LAN ChipsetIntel I219-V Gigabit LAN controller
Onboard USBIntel Z270 Chipset
- 8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

Questions about this item

What memory speeds does the Z270 chipset support on this board?

The Z270 chipset on this board supports dual-channel DDR4 at 2133, 2400, 2600, 2800, 3000, 3200, 3600 and 3800 MHz, with speeds above 2400 MHz running as overclocked profiles.

What expansion slots and physical space does this ATX motherboard require?

This ATX board fits standard ATX cases and provides two PCIe 3.0 x16 slots that operate at x16/x4, four PCIe 3.0 x1 slots, one M.2 interface and six SATA III ports.

How is the motherboard installed and which step is often missed?

Mount the board on standoffs matching the ATX hole pattern, attach the supplied I/O back panel before securing the board, connect the 24-pin and 8-pin power cables, then install the included CMOS battery — a step many builders forget.
