Black ATX motherboard with silver heatsinks and red accents

MSI

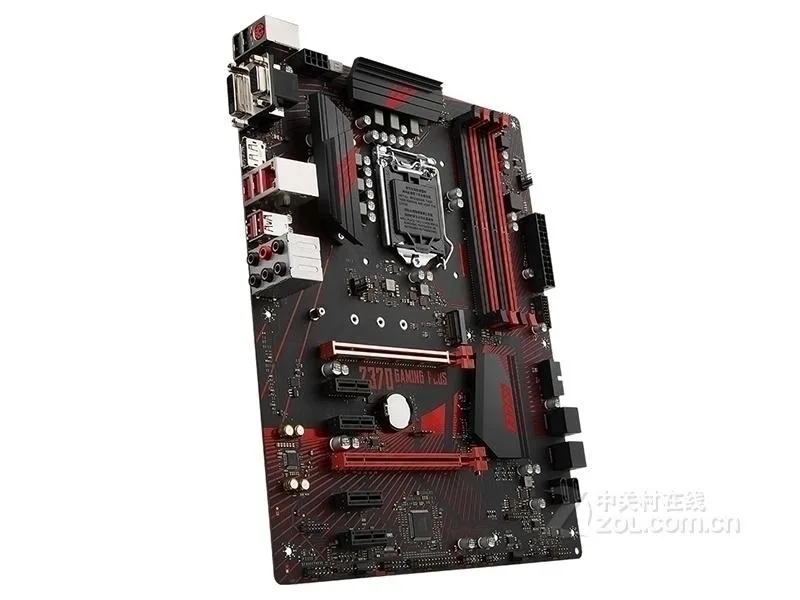

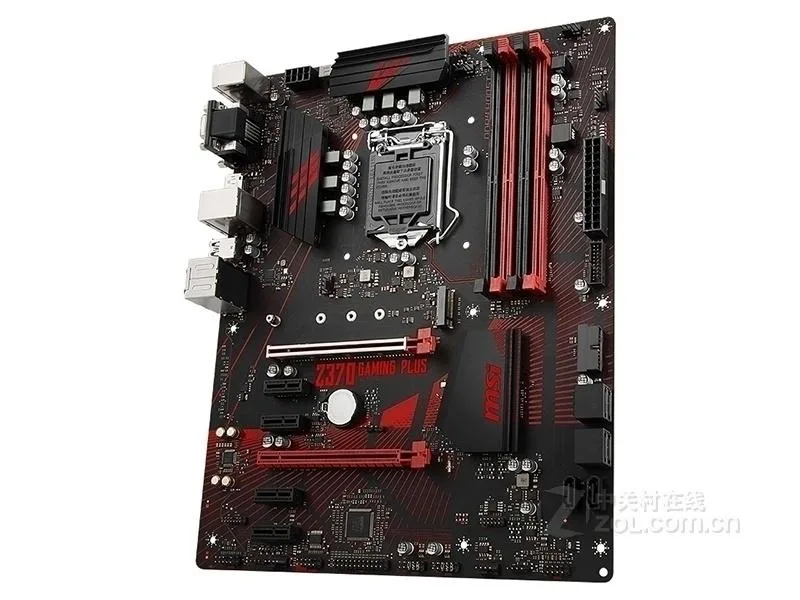

MSI Z370 GAMING PLUS Intel motherboard

SKU CH-CB0G-G0H6D

ATX board for 8th Gen Intel Core, Pentium and Celeron CPUs with dual-channel DDR4 up to 64 GB, two PCIe 3.0 x16 slots, six SATA III ports, Realtek ALC892 7.1 audio and Intel I219-V Gigabit LAN

  • CPU Socket TypeLGA 1151
  • CPU Type8th Gen Intel Core ™ processors with LGA1151 support, as wel
  • ChipsetIntel Z370
  • Memory StandardSupport dual-channel DDR4 4000 + (OC)/3866 (OC)/3733 (OC)/36
  • Maximum Memory Supported64GB
  • PCI Slots2 PCIe 3.0 x16 slots 4 PCIe 3.0 x1 slots
  • Supports 8th Gen Intel Core processors via LGA 1151 socket
  • Intel Z370 chipset enables DDR4 memory up to 4000 MHz overclocked
  • Dual-channel DDR4 architecture scales to 64 GB maximum capacity
  • Realtek ALC892 codec delivers 7.1 channel high-definition audio
  • Intel I219-V Gigabit LAN provides wired network connectivity

ATX Z370 motherboard for 8th Gen Intel Core

The MSI Z370 GAMING PLUS is an ATX motherboard built on the Intel Z370 chipset for LGA 1151 processors. It supports 8th Gen Intel Core, Pentium and Celeron CPUs. Dual-channel DDR4 memory runs up to 4000 MHz when overclocked with a maximum capacity of 64 GB.

Gamers and overclockers on 8th Gen platforms

Enthusiasts who want CPU overclocking on 8th Gen Intel processors will find the Z370 chipset and reinforced PCIe 3.0 x16 slots suitable. Builders using newer 10th Gen or later CPUs, or those needing integrated Wi-Fi, should select a different socket and chipset combination.

LGA 1151 socket defines CPU compatibility

The physical LGA 1151 socket limits this board to 8th and 9th Generation Intel Core processors only. Verify your exact CPU model against this socket before purchase to ensure the motherboard matches your processor.

Highlights

  • Supports 8th Gen Intel Core processors via LGA 1151 socket
  • Intel Z370 chipset enables DDR4 memory up to 4000 MHz overclocked
  • Dual-channel DDR4 architecture scales to 64 GB maximum capacity
  • Realtek ALC892 codec delivers 7.1 channel high-definition audio
  • Intel I219-V Gigabit LAN provides wired network connectivity

Specifications

BrandMSI
SeriesMSI Z370 GAMING PLUS
ModelMSI Z370 GAMING PLUS
CPU Socket TypeLGA 1151
CPU Type8th Gen Intel Core ™ processors with LGA1151 support, as well as Intel Pentium and Celeron processors
ChipsetIntel Z370
Memory StandardSupport dual-channel DDR4 4000 + (OC)/3866 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3400 (OC)/3333 (OC)/3300 (OC)/3200 (OC)/3000 (OC)/2800 (OC)/2667/2400/2133 MHz memory
Maximum Memory Supported64GB
PCI Slots2 PCIe 3.0 x16 slots
4 PCIe 3.0 x1 slots
SATA RAID1XM.2 interface, 6xSATA III interface
Audio ChipsetRealtek ALC892 decoding chip
- 7.1 channel high-quality sound effects
LAN Chipset1 Intel I219-V Gigabit L network interface card
Onboard USBIntel Z370 chipset
- 8 USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the backplane, 4 via onboard USB ports)
- 6 USB 2.0 (High-speed USB) ports (2 Type-A ports on the backplane, 4 via onboard USB ports)

Questions about this item

What clearance does the ATX board need inside the case?

The board follows the standard ATX footprint, so any case that lists ATX support will accommodate it; verify the rear I/O shield aligns with the supplied back-panel plate.

Which CPU power connector must be seated for the board to post?

An 8-pin EPS connector near the socket is required; the system will not start if only a 4-pin plug is inserted.

What replaceable component keeps BIOS settings when the PC is unplugged?

A socketed coin cell on the board maintains the real-time clock and CMOS data; replace it when the system starts losing time or reverting to default BIOS settings.
