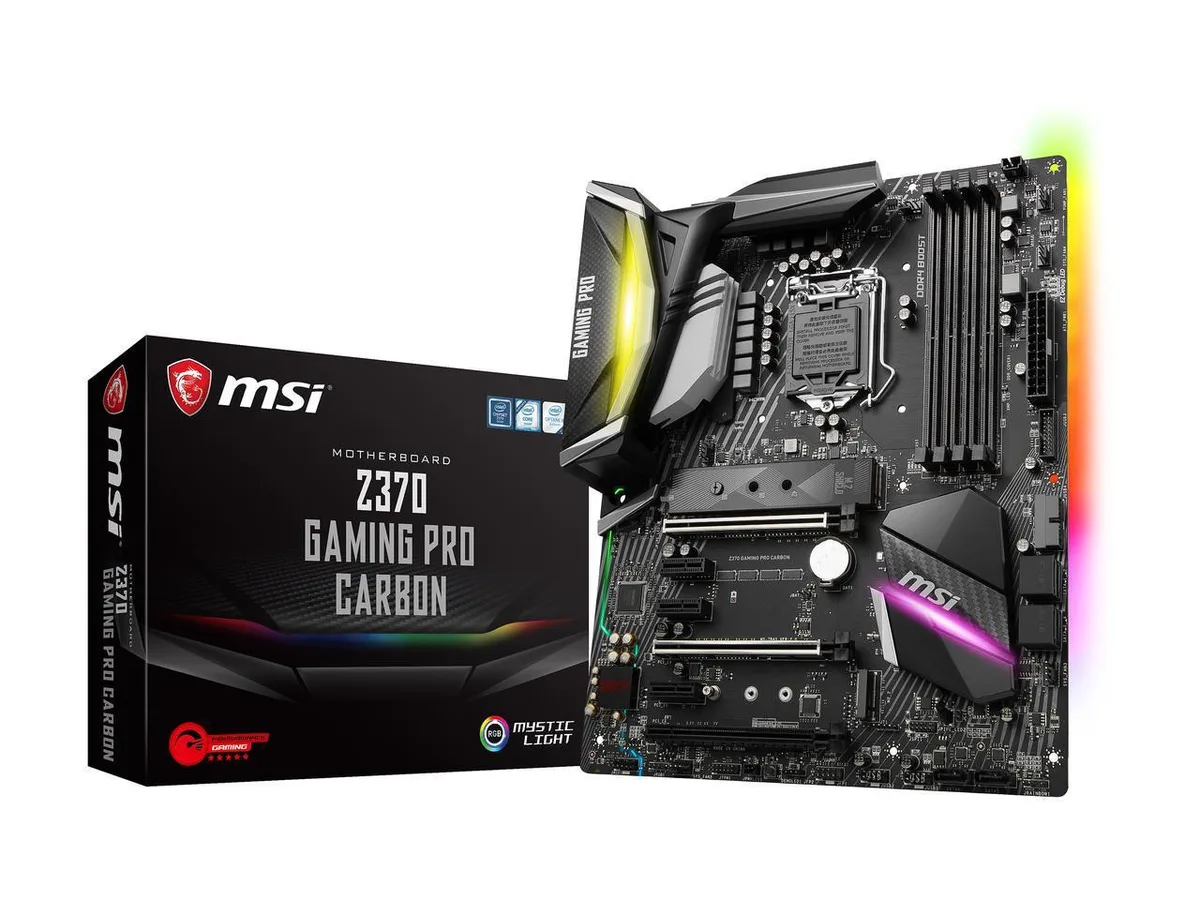

Black ATX motherboard with carbon-fibre pattern heatsinks and RGB lighting

MSI

MSI Z370 GAMING PRO CARB Intel motherboard

SKU CH-CG8Z-1S9ND MPN Z370 GAMING PRO CARB

Supports 9th and 8th Gen Intel Core, Pentium Gold and Celeron CPUs on LGA 1151 with Z370 chipset, four DDR4 slots up to 64 GB, dual M.2, three PCIe 3.0 x16, six SATA 6Gb/s, Intel I219-V LAN.

  • CPU Socket TypeLGA 1151 (300 Series)
  • CPU TypeSupports 9th/8th Gen Intel Core / Pentium Gold / Celeron pro
  • ChipsetIntel Z370
  • Onboard Video ChipsetSupported only by CPU with integrated graphic: 1 x HDMI port
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400
  • Supports 9th and 8th generation Intel Core processors via LGA 1151 socket
  • Four DDR4 slots deliver up to 64 GB dual-channel memory capacity
  • Dual M.2 slots with M.2 Shield for PCIe 3.0 x4 and SATA 6 Gb/s drives
  • Realtek ALC1220 codec provides 7.1-channel high-definition audio with S/PDIF output
  • Intel I219-V LAN plus Mystic Light RGB with 16.8 million colours and 17 effects

Intel LGA 1151 ATX motherboard

This refurbished MSI Z370 GAMING PRO CARBON uses the Intel Z370 chipset and accepts 9th and 8th generation Intel Core, Pentium Gold and Celeron CPUs. Four DDR4 slots support up to 64GB in dual-channel mode. Three PCIe 3.0 x16 slots and three PCIe 3.0 x1 slots give room for multi-GPU and add-in cards.

Builders wanting dual M.2 and six SATA ports

The board suits builds that need two M.2 Key M slots — one supporting lengths up to 22110 — plus six SATA 6Gb/s ports with RAID 0/1/5/10. It does not suit systems that require onboard Wi-Fi or support for older LGA 1151 processors.

Dual M.2 Key M slots with PCIe 3.0 x4 and SATA

Two M.2 slots accept PCIe 3.0 x4 NVMe and SATA SSDs; the first slot takes 2242, 2260, 2280 and 22110 lengths while the second takes 2242, 2260 and 2280. This layout decides whether your storage plan fits the board.

Highlights

  • Supports 9th and 8th generation Intel Core processors via LGA 1151 socket
  • Four DDR4 slots deliver up to 64 GB dual-channel memory capacity
  • Dual M.2 slots with M.2 Shield for PCIe 3.0 x4 and SATA 6 Gb/s drives
  • Realtek ALC1220 codec provides 7.1-channel high-definition audio with S/PDIF output
  • Intel I219-V LAN plus Mystic Light RGB with 16.8 million colours and 17 effects

Specifications

BrandMSI
SeriesPERFORMANCE GAMING
ModelZ370 GAMING PRO CARBON
CPU Socket TypeLGA 1151 (300 Series)
CPU TypeSupports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
* Not backward compatible with older generation of LGA 1151 CPUs
ChipsetIntel Z370
Onboard Video ChipsetSupported only by CPU with integrated graphic:
1 x HDMI port, supports a maximum resolution of 4096x2160@24Hz
1 x DisplayPort port 1.2, supports a maximum resolution of 4096x2304@60Hz
* No Display support when using the Processor model with suffix "F"
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2667/ 2400/ 2133
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x163 x PCIe 3.0 x16 slots (support x16/x0/x4, x8/x8/x4 modes)
PCI Express x13 x PCIe 3.0 x1 slots
Serial ATA (SATA)6 x SATA 6Gb/s ports*
* M.2 and SATA ports maximum support 1 x M.2 PCIe SSD + 1 x M.2 SATA SSD + 5 x SATA HDDs.
M.22 x M.2 slots (Key M)
Support up to PCIe 3.0 x4 and SATA 6Gb/s
Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host Card*
M2_1 slot supports 2242/2260/2280/22110 storage devices
M2_2 slot supports 2242/2260/2280 storage devices
Intel Optane Memory Ready for all M.2 slots**
* The Turbo U.2 Host Card is not included, please purchase separately.
** Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
Intel Optane ReadyYes
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC1220
Audio Channels7.1-Channel High Definition Audio
Supports S/PDIF output
LAN ChipsetIntel I219-V
Max LAN Speed1Gbps

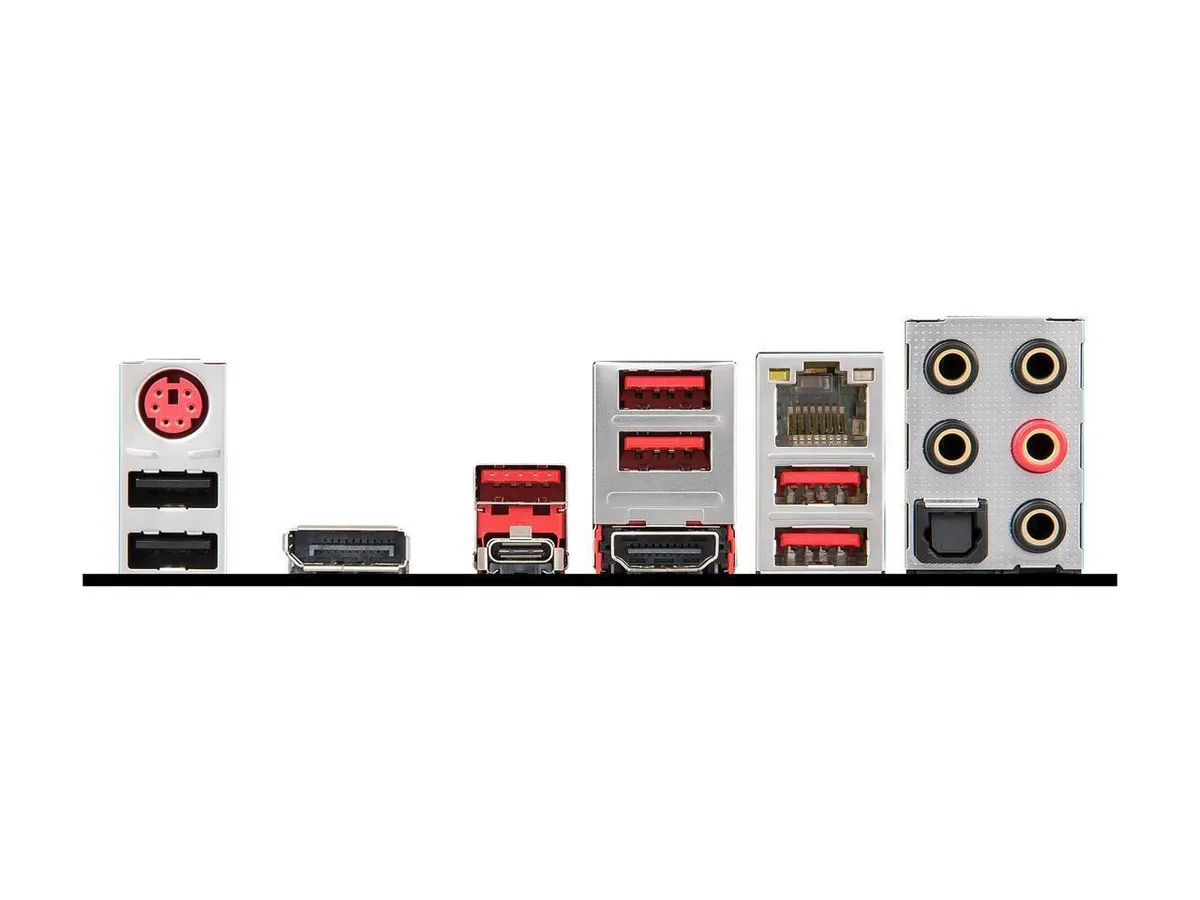

PS/21 x PS/2 keyboard/mouse port
HDMI1 x HDMI
RJ451 x RJ45
DisplayPort1 x DisplayPort
USB 3.11 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port
4 x USB 3.1 Gen1 (SuperSpeed USB) ports (Type-A)
USB 1.1/2.02 x USB 2.0
USB Type-C1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port
S/PDIF Out1 x Optical
Audio Ports5 Ports
Onboard USB2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors1 x 4-pin CPU fan connector
1 x 4-pin water pump fan connector
4 x 4-pin system fan connectors
1 x Front panel audio connector
2 x Front panel connectors
2 x 5050 RGB LED strip 12V connectors
1 x WS2812B Individually Addressable RGB LED strip 5V connector
1 x CORSAIR Individually Addressable RGB LED strip 5V connector
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
FeaturesSupports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket.
Supports DDR4 Memory, up to 4000+(OC) MHz.
MYSTIC LIGHT: 16.8 million colors / 17 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
Lightning Fast Game experience: 2 x TURBO M.2, Intel Optane Memory Ready. M.2 Shield, LIGHTNING USB 3.1 GEN2.
AUDIO BOOST 4 with NAHIMIC 2+: Reward your ears with studio grade sound quality for the most immersive gaming experience.
DDR4 Boost: Fully isolated, shielded and optimized DDR4 PCB design to give your DDR4 memor
Shipping weight1.79 kg
Package size343 × 274 × 94 mm

Questions about this item

Does the MSI Z370 GAMING PRO CARBON come with mounting screws for the two M.2 slots or do I need to supply my own?

The motherboard includes the required M.2 standoffs and screws in the box; no separate mounting hardware is needed for either slot.

Should I choose DDR4 3200 or DDR4 3600 modules for this Z370 board to match the validated overclocked speeds?

Both speeds appear in the validated overclocked list; 3600 MHz modules will run at that frequency when XMP is enabled and a compatible CPU is installed.

What resolution can I actually get from the onboard HDMI port when using a 9th Gen Intel Core processor with integrated graphics?

The HDMI output supports up to 4096x2160 at 24 Hz, so 4K at 60 Hz is not possible over this port.
