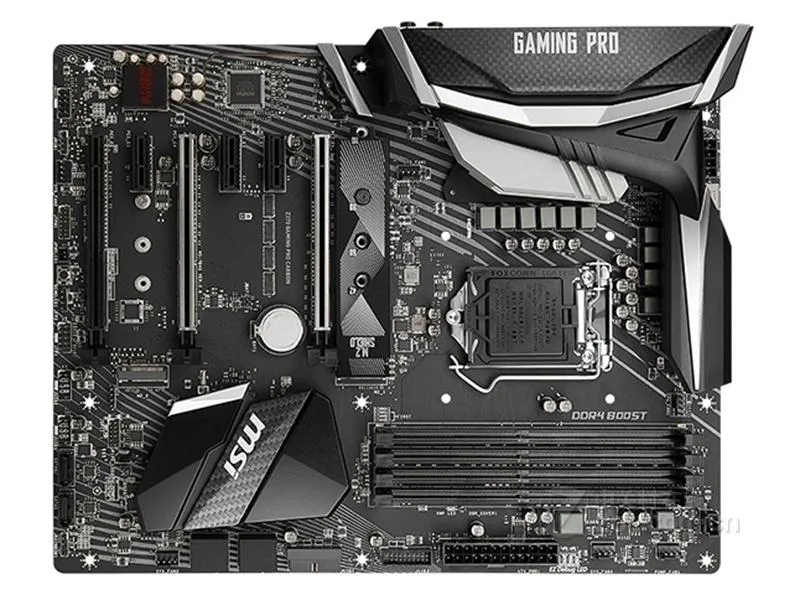

Black ATX motherboard with carbon-fibre pattern heatsinks and silver I/O shield

MSI

MSI Z370 GAMING PRO CARBON Intel motherboard

SKU CH-JWE2-50V7A

Supports 8th Gen Intel Core processors on LGA 1151 with Z370 chipset, dual-channel DDR4 up to 64GB, three PCIe 3.0 x16 slots, six SATA ports, Realtek ALC1220 7.1 audio and Intel I219-V Gigabit LAN

  • CPU Socket TypeLGA 1151
  • CPU Type8th Gen Intel Core ™ processors with LGA1151 support, as wel
  • ChipsetIntel Z370
  • Memory StandardSupport dual-channel DDR4 4000 + (OC)/3866 (OC)/3733 (OC)/36
  • Maximum Memory Supported64GB
  • PCI Slots3 PCIe 3.0 x16 slots (supports x16/x0/x4, x8/x8/x4 modes) 3
  • Supports 8th Gen Intel Core processors on LGA 1151 socket
  • Dual-channel DDR4 memory up to 64GB with speeds to 4000 MHz
  • Three PCIe 3.0 x16 slots for multi-GPU configurations
  • Realtek ALC1220 audio delivers 7.1 channel high-quality sound
  • Intel I219-V Gigabit LAN plus USB 3.1 Gen2 Type-C and Type-A ports

Socket LGA 1151 ATX Motherboard

The MSI Z370 GAMING PRO CARBON is an ATX motherboard built around the Intel Z370 chipset for LGA 1151 processors. It supports 8th Generation Intel Core, Pentium and Celeron CPUs. Four DDR4 slots accept up to 64GB of memory running at speeds from 2133 MHz to 4000 MHz when overclocked. The board provides three PCIe 3.0 x16 slots and three PCIe 3.0 x1 slots for expansion cards.

Verify CPU Cooler Clearance and Power Phases

Confirm that your chosen LGA 1151 processor matches the 8th Generation support list before ordering. Check that your CPU cooler mounting hardware fits the LGA 1151 socket layout and does not interfere with the VRM heatsinks. Ensure your power supply delivers the required 24-pin ATX and 8-pin EPS connectors for the board. Verify that your chassis accommodates a standard ATX form factor and the rear I/O shield dimensions.

Dual M.2 and Six SATA III Ports for Storage

Two M.2 slots and six SATA III ports give multiple options for SSDs and hard drives without using PCIe lanes needed for graphics cards. The Realtek ALC1220 codec provides 7.1 channel audio with S/PDIF output for home-theatre setups. A single Intel I219-V Gigabit LAN controller handles wired networking. Rear I/O includes one USB 3.1 Gen2 Type-C port, one USB 3.1 Gen2 Type-A port and eight USB 3.1 Gen1 ports driven by the chipset and an ASMedia ASM3142 controller.

Highlights

  • Supports 8th Gen Intel Core processors on LGA 1151 socket
  • Dual-channel DDR4 memory up to 64GB with speeds to 4000 MHz
  • Three PCIe 3.0 x16 slots for multi-GPU configurations
  • Realtek ALC1220 audio delivers 7.1 channel high-quality sound
  • Intel I219-V Gigabit LAN plus USB 3.1 Gen2 Type-C and Type-A ports

Specifications

BrandMSI
SeriesMSI Z370 GAMING PRO CARBON
ModelMSI Z370 GAMING PRO CARBON
CPU Socket TypeLGA 1151
CPU Type8th Gen Intel Core ™ processors with LGA1151 support, as well as Intel Pentium and Celeron processors
ChipsetIntel Z370
Memory StandardSupport dual-channel DDR4 4000 + (OC)/3866 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3400 (OC)/3333 (OC)/3300 (OC)/3200 (OC)/3000 (OC)/2800 (OC)/2667/2400/2133 MHz memory
Maximum Memory Supported64GB
PCI Slots3 PCIe 3.0 x16 slots (supports x16/x0/x4, x8/x8/x4 modes)
3 PCIe 3.0 x1 slots
SATA RAID2XM.2 interface, 6xSATA III interface
Audio ChipsetRealtek ALC1220 Decoder Chip
- 7.1 channel high-quality sound effects
- Supports S/PDIF output
LAN Chipset1 Intel I219-V Gigabit network controller
Onboard USBASMedia ASM3142 Chipset
- 1 USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port located on the backplane
- 1 USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port located on the backplane
Intel Z370 Chipset
- 8 USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the backplane, 4 provided via onboard USB connectors)
- 6 USB 2.0 (High-speed USB) ports (2 Type-A ports on the backplane, 4 via onboard USB connectors)

Questions about this item

What comes with the motherboard and what must I buy separately?

The box includes the motherboard, a CMOS battery, one SATA cable and the rear I/O panel. You will need to purchase a CPU, DDR4 memory, storage drives, a power supply and a chassis separately.

How do I decide which DDR4 speed to choose for this board?

The board supports dual-channel DDR4 from 2133 MHz up to 4000 MHz when overclocked; pick a kit that matches your budget and the CPU’s memory controller, knowing 2667 MHz runs without overclocking.

What does the 64 GB maximum memory figure mean once the board is in a system?

You can install up to 64 GB of DDR4 across the four slots, giving headroom for heavy multitasking and content-creation workloads with 8th-gen Intel Core, Pentium or Celeron processors.
