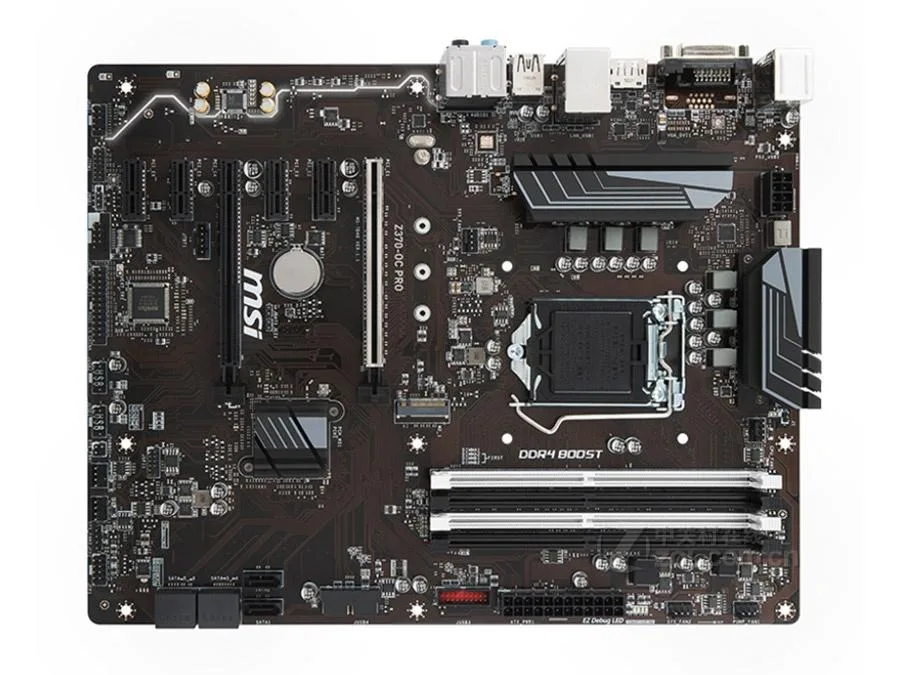

Black ATX motherboard with silver heatsinks and LGA 1151 socket

MSI

MSI Z370-OC PRO LGA 1151 Z370 ATX DDR4 64GB Intel motherboard

SKU CH-T2C2-9PZC4

ATX board for LGA 1151 CPUs with Z370 chipset, 64GB DDR4 max, 7.1 audio and Gigabit LAN

  • CPU Socket TypeLGA 1151
  • CPU Type8th Gen Intel Core ™ processors with LGA1151 support, as wel
  • ChipsetIntel Z370
  • Memory StandardSupport dual-channel DDR4 4000 + (OC)/3866 (OC)/3733 (OC)/36
  • Maximum Memory Supported64GB
  • PCI Slots1 PCIe 3.0 x16 slot (PCI_E1, x16 mode supported) 1 PCIe 3.0
  • Supports 8th Gen Intel Core and Pentium CPUs via LGA 1151 socket
  • Dual-channel DDR4 memory up to 64GB with overclocked speeds to 4000 MHz
  • One PCIe 3.0 x16 and one x4 slot plus four x1 slots for expansion
  • Realtek ALC892 codec delivers 7.1 channel high-definition audio
  • Intel Z370 chipset provides eight USB 3.1 Gen1 and six USB 2.0 ports

Z370-OC PRO LGA 1151 ATX

This motherboard uses the Intel Z370 chipset and fits an LGA 1151 socket for 8th Gen Intel Core, Pentium and Celeron processors. It follows the ATX form factor and provides dual-channel DDR4 memory slots with a maximum capacity of 64GB. The board targets enthusiasts building a high-performance desktop platform.

Suits overclockers needing 4000+ MHz DDR4

Memory support reaches 4000 MHz and multiple intermediate overclocked steps down to 2133 MHz, giving headroom for tuned kits. Only one PCIe 3.0 x16 slot runs at full x16 speed; a second x16 slot operates at x4. Builders requiring multiple full-speed graphics cards should consider a different chipset.

64GB dual-channel DDR4 ceiling

Four DIMM slots accept up to 64GB total across the supported frequency range from 2133 to 4000 MHz. This limit defines whether the board can host the memory kit you plan to install.

Highlights

  • Supports 8th Gen Intel Core and Pentium CPUs via LGA 1151 socket
  • Dual-channel DDR4 memory up to 64GB with overclocked speeds to 4000 MHz
  • One PCIe 3.0 x16 and one x4 slot plus four x1 slots for expansion
  • Realtek ALC892 codec delivers 7.1 channel high-definition audio
  • Intel Z370 chipset provides eight USB 3.1 Gen1 and six USB 2.0 ports

Specifications

BrandMSI
SeriesMSI Z370-OC PRO
ModelMSI Z370-OC PRO
CPU Socket TypeLGA 1151
CPU Type8th Gen Intel Core ™ processors with LGA1151 support, as well as Intel Pentium and Celeron processors
ChipsetIntel Z370
Memory StandardSupport dual-channel DDR4 4000 + (OC)/3866 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3400 (OC)/3333 (OC)/3300 (OC)/3200 (OC)/3000 (OC)/2800 (OC)/2667/2400/2133 MHz memory
Maximum Memory Supported64GB
PCI Slots1 PCIe 3.0 x16 slot (PCI_E1, x16 mode supported)
1 PCIe 3.0 x16 slot (PCI_E4, supports x4 mode)
4 PCIe 3.0 x1 slots
SATA RAID1XM.2 interface, 6xSATA III interface
Audio ChipsetRealtek ALC892 decoding chip
- 7.1 channel high-quality sound effects
LAN Chipset1 RTL8111H Gigabit network interface card
Onboard USBIntel Z370 chipset
- 8 USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the backplane, 4 via onboard USB ports)
- 6 USB 2.0 (High-speed USB) ports (2 Type-A ports on the backplane, 4 via onboard USB ports)

Questions about this item

How do I verify the board is posting with the 8th Gen Intel Core CPU I installed?

Connect the 24-pin and 8-pin power cables, install one DDR4 stick in the first slot, attach a monitor to the GPU in the top PCIe 3.0 x16 slot, power on and watch for the BIOS splash screen on the display.

Which accessories are included and what must I source separately?

The box contains the motherboard, a CMOS battery, one SATA cable and the rear I/O shield; you still need a compatible LGA 1151 CPU, DDR4 memory modules, storage drives, a chassis, PSU and CPU cooler.

Which memory speed should I target for a stable dual-channel 64 GB kit?

The board validates DDR4 up to 4000 MHz when overclocked and runs 2133/2400/2667 MHz at JEDEC defaults; pick a 2 × 32 GB kit rated at 3200 MHz or 3600 MHz for a balance of compatibility and headroom.
