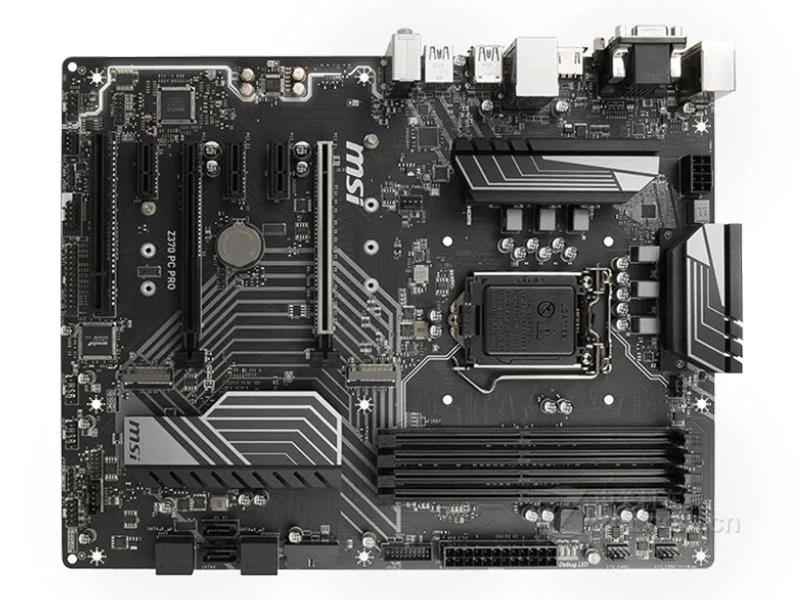

Black ATX motherboard with silver heatsinks and LGA 1151 socket

MSI

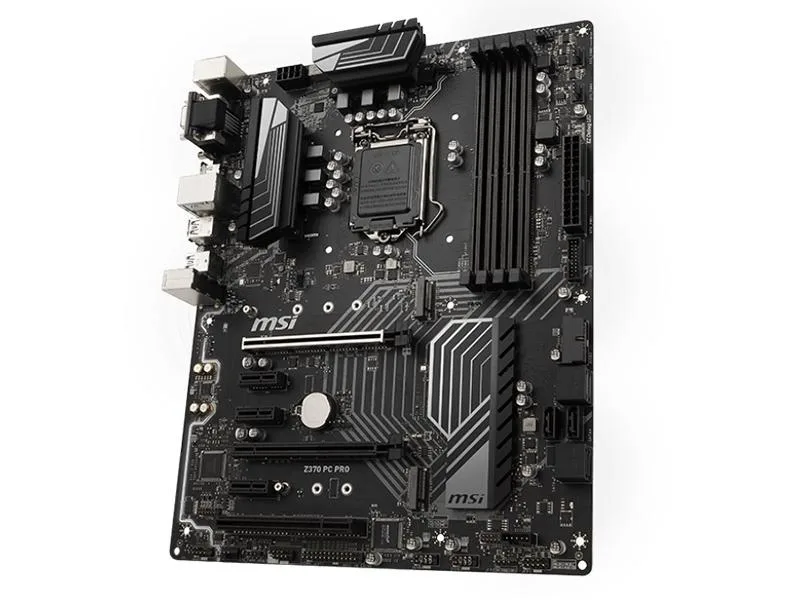

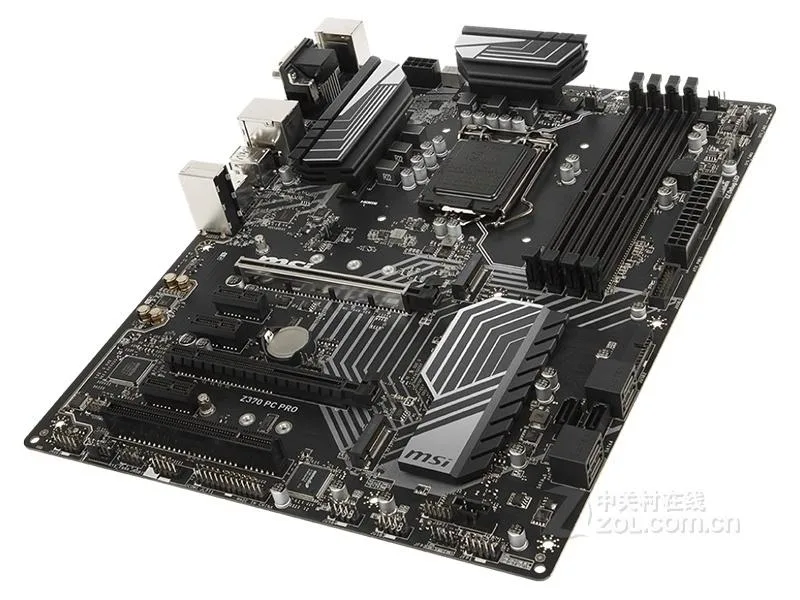

MSI Z370 PC PRO Intel motherboard

SKU CH-G9S2-1XJF9

ATX board for 8th Gen Intel Core, Pentium and Celeron CPUs with dual-channel DDR4 up to 64GB, two PCIe 3.0 x16 slots, six SATA ports, Realtek ALC887 7.1 audio and Intel I219-V Gigabit LAN

  • CPU Socket TypeLGA 1151
  • CPU Type8th Gen Intel Core ™ processors with LGA1151 support, as wel
  • ChipsetIntel Z370
  • Memory StandardSupport dual-channel DDR4 4000 + (OC)/3866 (OC)/3733 (OC)/36
  • Maximum Memory Supported64GB
  • PCI Slots2 PCIe 3.0 x16 slots (x16/x4 mode supported) * 3 PCIe 3.0 x1
  • Supports 8th Gen Intel Core processors on LGA 1151 socket
  • Dual-channel DDR4 memory up to 64 GB with speeds to 4000 MHz OC
  • Two PCIe 3.0 x16 slots plus three PCIe 3.0 x1 slots for expansion
  • Realtek ALC887 codec delivers 7.1 channel high-quality audio
  • Intel I219-V Gigabit LAN plus USB 3.1 Gen2 Type-C and Type-A at 10 Gbps

Socket and chipset

The MSI Z370 PC PRO is an ATX motherboard built on the Intel Z370 chipset for LGA 1151 processors. It supports 8th Generation Intel Core, Pentium and Celeron CPUs. Dual-channel DDR4 memory runs at speeds up to 4000 MHz when overclocked with a maximum capacity of 64GB. The board provides a foundation for a mainstream desktop build.

Expansion and connectivity

Two PCIe 3.0 x16 slots operate in x16 or x4 mode alongside three PCIe 3.0 x1 slots and 31 PCI slots for legacy cards. Storage connects through two M.2 interfaces and six SATA III ports. Rear I/O includes one USB 3.1 Gen2 Type-C port, one USB 3.1 Gen2 Type-A port and an Intel I219-V Gigabit LAN connection. Realtek ALC887 audio delivers 7.1 channel output.

Compatibility checks

Verify that your processor is an 8th Generation Intel Core, Pentium or Celeron model with LGA 1151 packaging. Confirm the CPU cooler mounting holes match the LGA 1151 pattern. Ensure the power supply provides the required ATX and CPU power connectors for the Z370 chipset. Check that your chassis accommodates a standard ATX form factor motherboard.

Highlights

  • Supports 8th Gen Intel Core processors on LGA 1151 socket
  • Dual-channel DDR4 memory up to 64 GB with speeds to 4000 MHz OC
  • Two PCIe 3.0 x16 slots plus three PCIe 3.0 x1 slots for expansion
  • Realtek ALC887 codec delivers 7.1 channel high-quality audio
  • Intel I219-V Gigabit LAN plus USB 3.1 Gen2 Type-C and Type-A at 10 Gbps

Specifications

BrandMSI
SeriesMSI Z370 PC PRO
ModelMSI Z370 PC PRO
CPU Socket TypeLGA 1151
CPU Type8th Gen Intel Core ™ processors with LGA1151 support, as well as Intel Pentium and Celeron processors
ChipsetIntel Z370
Memory StandardSupport dual-channel DDR4 4000 + (OC)/3866 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3400 (OC)/3333 (OC)/3300 (OC)/3200 (OC)/3000 (OC)/2800 (OC)/2667/2400/2133 MHz memory
Maximum Memory Supported64GB
PCI Slots2 PCIe 3.0 x16 slots (x16/x4 mode supported) *
3 PCIe 3.0 x1 slots **
31 PCI slots
SATA RAID2XM.2 interface, 6xSATA III interface
Audio ChipsetRealtek ALC887 decoding chip
- 7.1 channel high-quality sound effects
LAN Chipset1 x Intel I219-V Gigabit network interface card
Onboard USBASMedia ASM3142 Chipset
- 1 USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C interface located on the backplane
- 1 USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A interface located on the backplane
Intel Z370 chipset
- 8 USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the backplane, 4 via onboard USB ports)
- 6 USB 2.0 (High-speed USB) ports (2 ports on the backplane, 4 via onboard USB ports)

Questions about this item

What 8th Gen Intel processor socket does this motherboard require?

The board uses the LGA 1151 socket, so a compatible 8th Gen Intel Core, Pentium or Celeron CPU is needed.

Will my existing DDR4-2400 memory run at its rated speed on this board?

Yes, DDR4-2400 is a supported JEDEC speed; the board also handles higher overclocked frequencies up to DDR4-4000.

How can I confirm the Realtek ALC887 audio is working after assembly?

Connect speakers to the rear panel, install the Realtek driver, then verify 7.1-channel output in Windows Sound settings.
