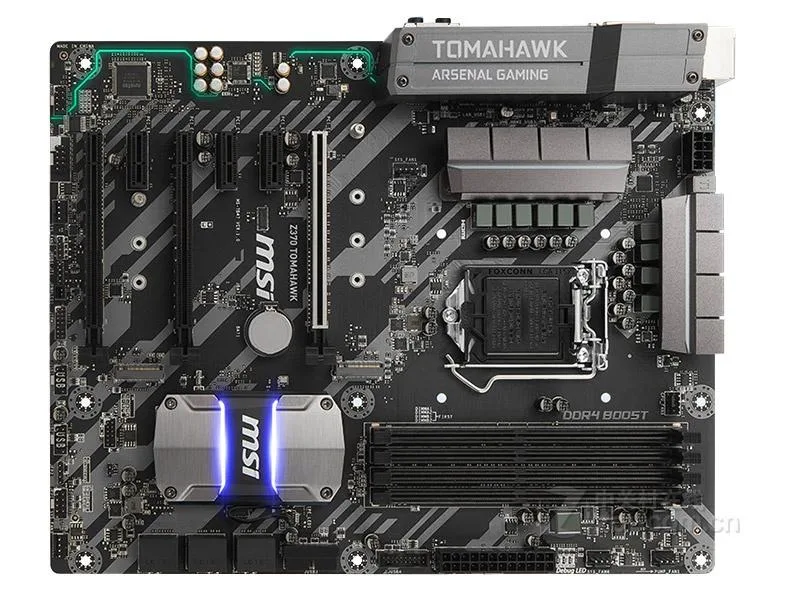

ATX motherboard dark PCB black heatsinks silver I/O shield

MSI

MSI Z370 TOMAHAWK Intel motherboard

SKU CH-5V35-EH6XG

Supports 8th Gen Intel Core CPUs, up to 64GB DDR4 and dual M.2 slots with 7.1 audio and Intel Gigabit LAN

  • CPU Socket TypeLGA 1151
  • CPU Type8th Gen Intel Core ™ processors with LGA1151 support, as wel
  • ChipsetIntel Z370
  • Memory StandardSupport dual-channel DDR4 4000 + (OC)/3866 (OC)/3733 (OC)/36
  • Maximum Memory Supported64GB
  • PCI Slots3 PCIe 3.0 x16 slots (supports x16/x4/x1 modes) * 3 PCIe 3.0
  • Supports 8th Gen Intel Core processors via LGA 1151 socket
  • Dual-channel DDR4 up to 4000 MHz overclocked with 64 GB maximum capacity
  • Three PCIe 3.0 x16 slots plus three PCIe 3.0 x1 slots for expansion
  • Realtek ALC892 audio delivers 7.1 channel sound with S/PDIF output
  • Intel I219-V Gigabit LAN plus USB 3.1 Gen2 Type-C and Type-A at 10 Gbps

Z370 ATX Motherboard for 8th Gen Intel

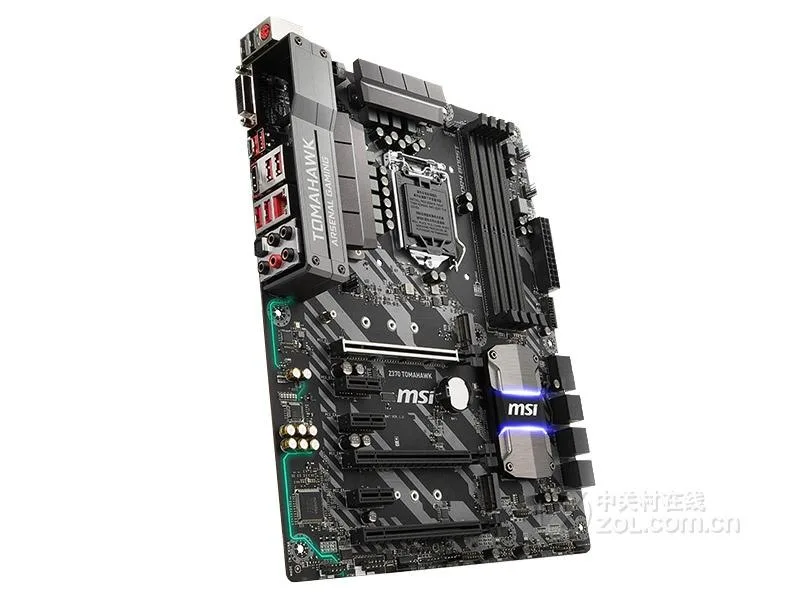

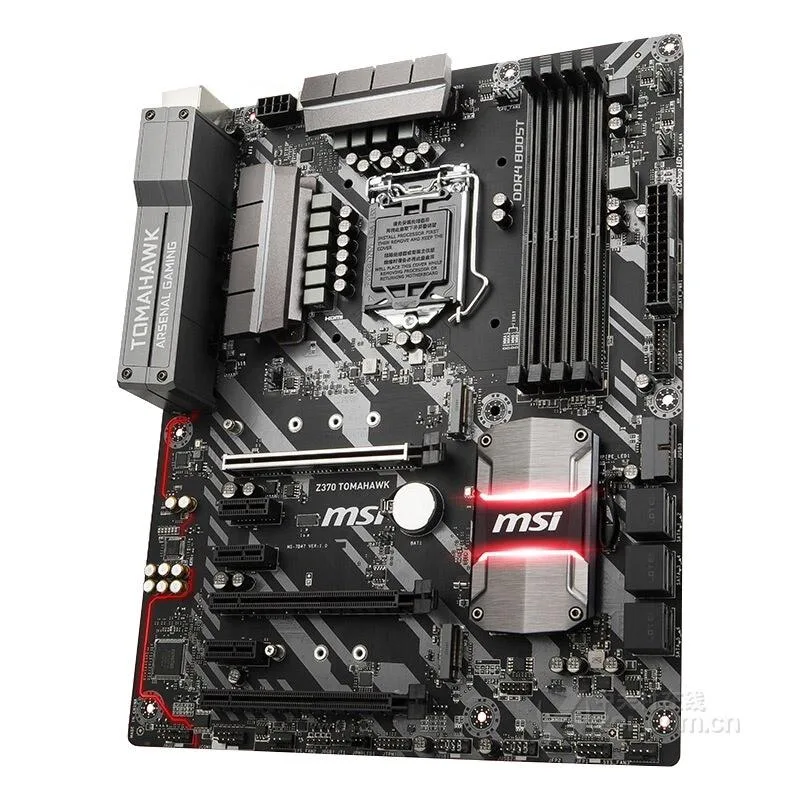

The MSI Z370 TOMAHAWK is an ATX motherboard built around the Intel Z370 chipset with an LGA 1151 socket. It supports 8th Generation Intel Core processors along with Pentium and Celeron CPUs. The board provides a foundation for desktop builds that need mainstream platform features.

Dual-channel DDR4 up to 64 GB capacity

Four memory slots accept dual-channel DDR4 kits up to a maximum of 64 GB. Overclocked speeds up to 4000 MHz are listed alongside standard JEDEC frequencies down to 2133 MHz. Builders needing more than 64 GB or a different socket should consider another platform.

Three PCIe 3.0 x16 slots and six SATA III ports

The layout includes three PCIe 3.0 x16 slots that operate in x16, x4 or x1 modes depending on population. Six SATA III connectors and two M.2 interfaces handle storage expansion. Realtek ALC892 audio delivers 7.1 channel output and an Intel I219-V controller provides gigabit networking.

Highlights

  • Supports 8th Gen Intel Core processors via LGA 1151 socket
  • Dual-channel DDR4 up to 4000 MHz overclocked with 64 GB maximum capacity
  • Three PCIe 3.0 x16 slots plus three PCIe 3.0 x1 slots for expansion
  • Realtek ALC892 audio delivers 7.1 channel sound with S/PDIF output
  • Intel I219-V Gigabit LAN plus USB 3.1 Gen2 Type-C and Type-A at 10 Gbps

Specifications

BrandMSI
SeriesMSI Z370 TOMAHAWK
ModelMSI Z370 TOMAHAWK
CPU Socket TypeLGA 1151
CPU Type8th Gen Intel Core ™ processors with LGA1151 support, as well as Intel Pentium and Celeron processors
ChipsetIntel Z370
Memory StandardSupport dual-channel DDR4 4000 + (OC)/3866 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3400 (OC)/3333 (OC)/3300 (OC)/3200 (OC)/3000 (OC)/2800 (OC)/2667/2400/2133 MHz memory
Maximum Memory Supported64GB
PCI Slots3 PCIe 3.0 x16 slots (supports x16/x4/x1 modes) *
3 PCIe 3.0 x1 slots **
SATA RAID2XM.2 interface, 6xSATA III interface
Audio ChipsetRealtek ALC892 decoding chip
- 7.1 channel high-quality sound effects
- Supports S/PDIF output
LAN Chipset1 Intel I219-V Gigabit network interface card
Onboard USBASMedia ASM3142 Chipset
- 1 USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C interface located on the backplane
- 1 USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A interface located on the backplane
Intel Z270 chipset
- 8 USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the backplane, 4 via onboard USB ports)
- 6 USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 via onboard USB ports)

Questions about this item

What CPU socket must my processor use to fit this board?

The board uses an LGA 1151 socket, so only 8th Gen Intel Core, Pentium or Celeron CPUs with that socket will install.

Can I keep my existing DDR4 memory and what speeds will it run at?

The board supports dual-channel DDR4 up to 64 GB, with native speeds of 2133 and 2400 MHz and overclocked profiles up to 4000 MHz.

How can I confirm the board is operating correctly after assembly?

Power on the system, enter the BIOS to verify CPU and memory detection, then boot into the OS and check that the Intel I219-V LAN and Realtek ALC892 audio appear in Device Manager.
