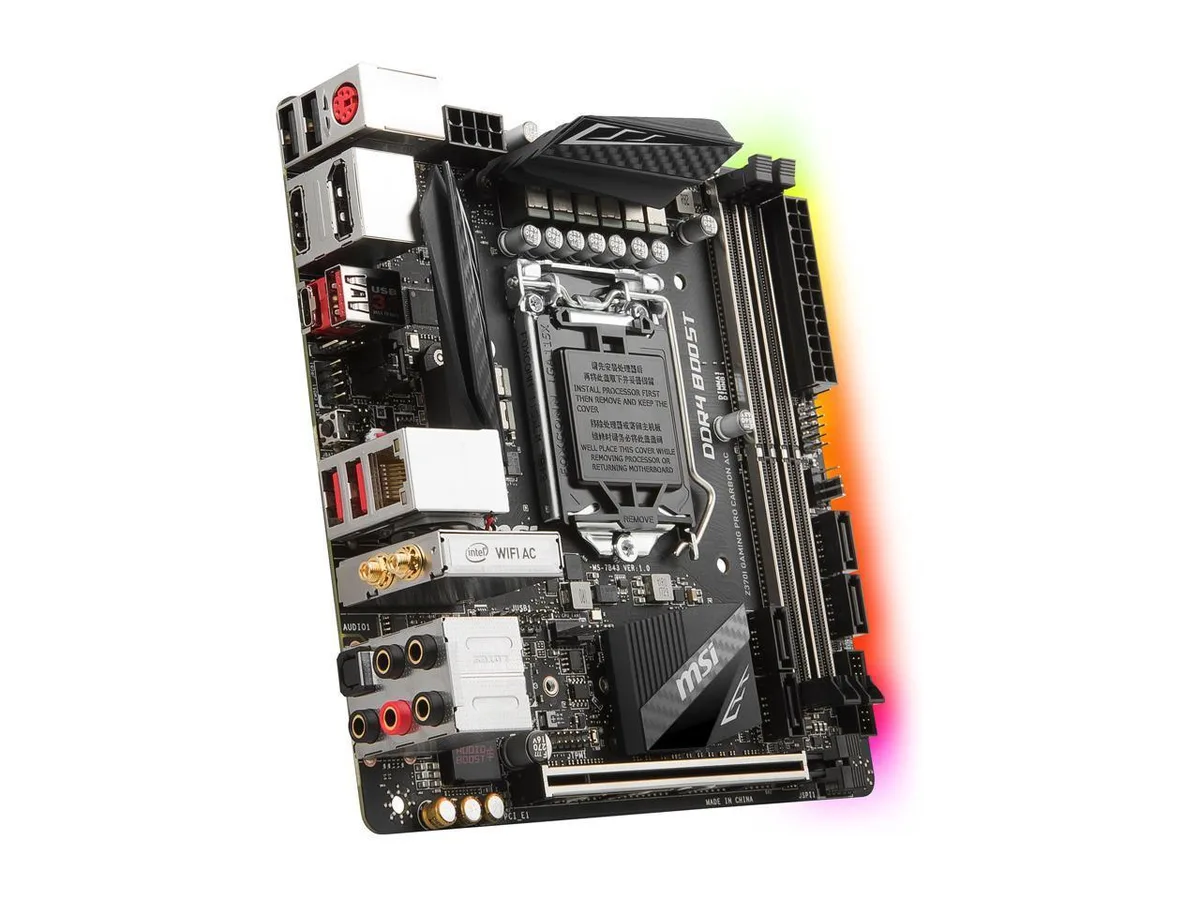

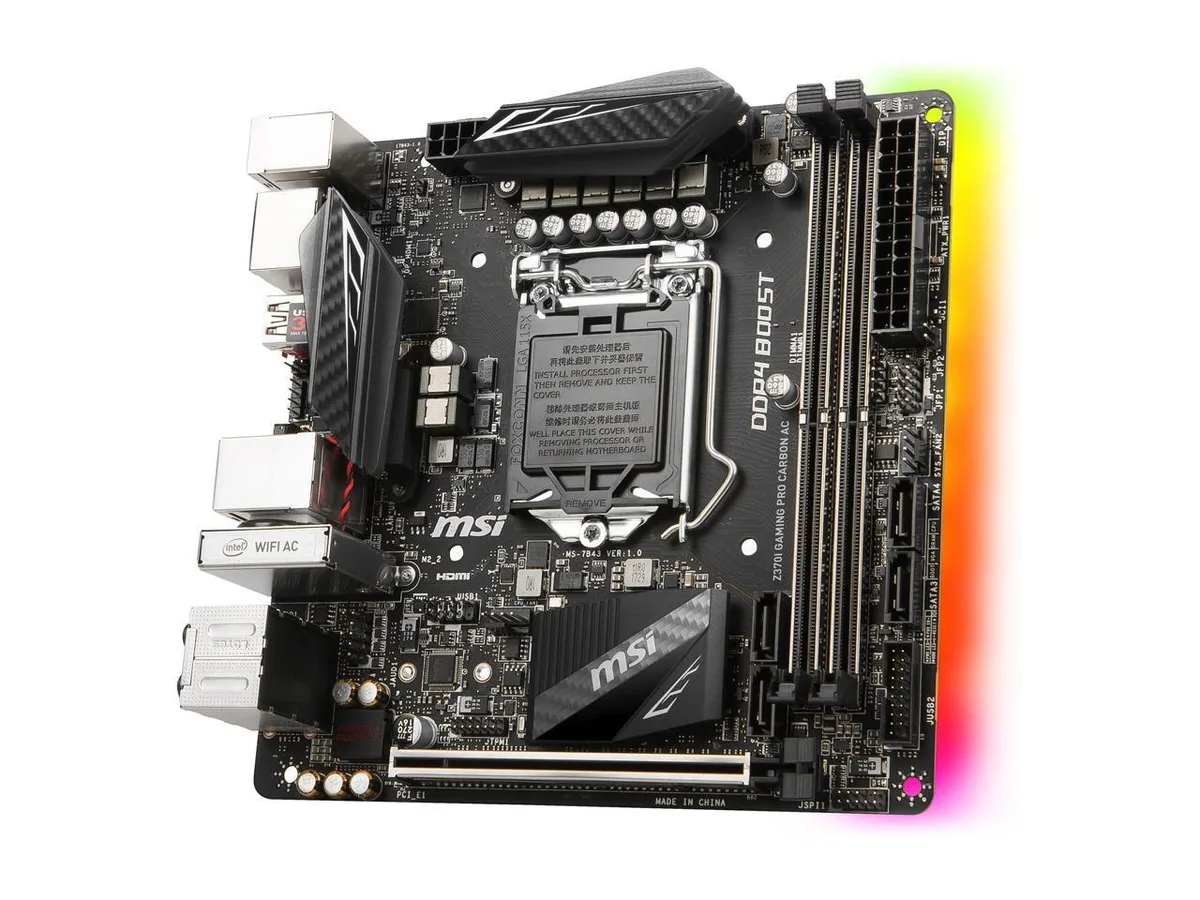

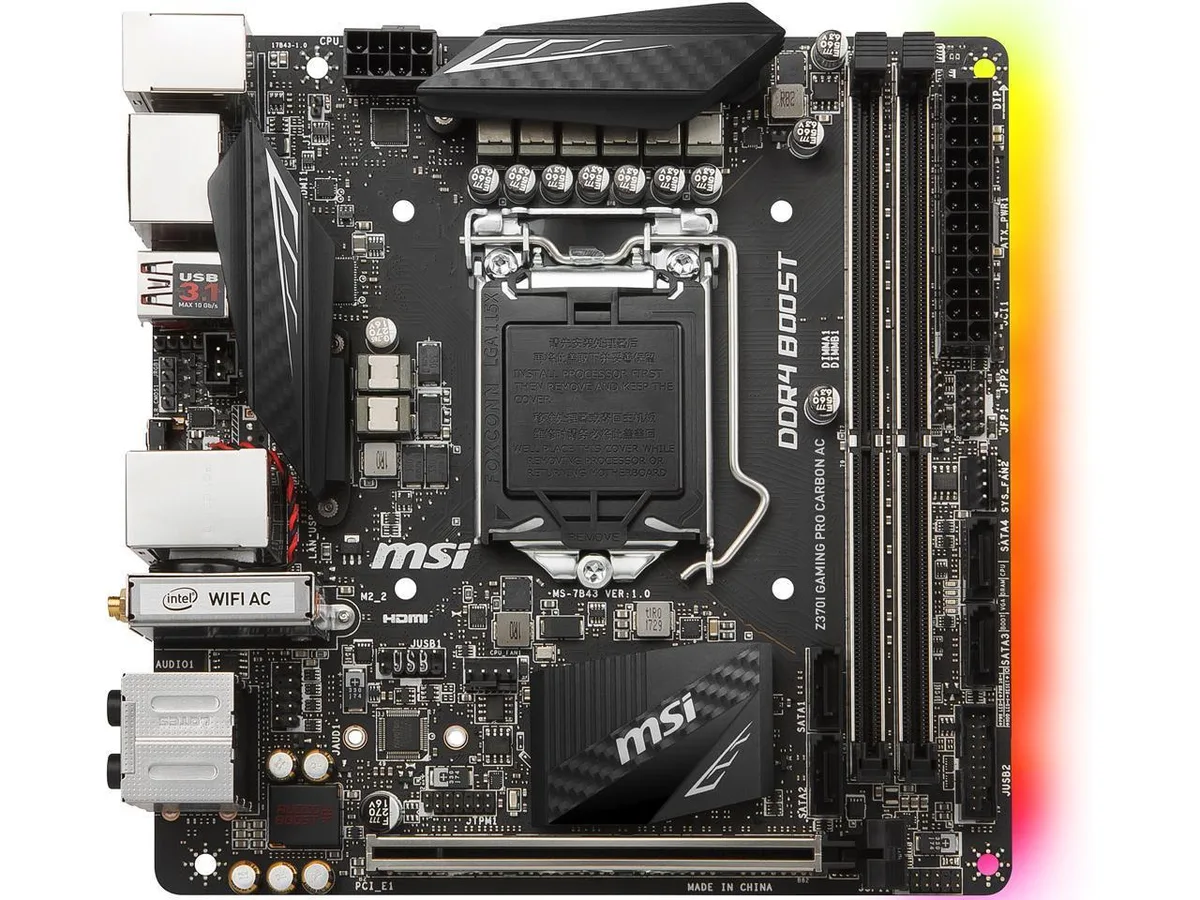

Mini-ITX motherboard, dark carbon-finish PCB with silver heatsinks and rear I/O shield

MSI

MSI Z370I Gaming Pro Carbon AC Intel motherboard

SKU CH-5HAM-KRT4S

Mini ITX Intel Z370 board with dual-channel DDR4 up to 32 GB, one PCIe 3.0 x16 slot, four SATA 6Gb/s ports, one M.2 Key M slot, 7.1 audio, Intel 1 GbE LAN.

  • CPU Socket TypeLGA 1151 (300 Series)
  • CPU TypeSupports 8th Generation Intel Core Processors, and Intel Pen
  • ChipsetIntel Z370
  • Number of Memory Slots2x288pin (DDR4)
  • Memory StandardSupports DDR4 4500(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4133(O
  • Maximum Memory Supported32GB
  • Supports 8th Gen Intel Core, Pentium and Celeron CPUs on LGA 1151 socket
  • DDR4 memory up to 4500 MHz overclocked across two slots with 32 GB maximum
  • Intel I219-V Gigabit LAN plus Intel Dual Band Wireless-AC 8265 for 867 Mbps Wi-Fi
  • Realtek ALC1220 codec delivers 7.1-channel high-definition audio with S/PDIF output
  • One full-length PCIe 3.0 x16 slot and four SATA 6 Gb/s ports for expansion

Compact Z370 platform for 8th-generation Intel CPUs

This Mini-ITX motherboard uses the Intel Z370 chipset and an LGA 1151 socket for 300-series processors. It targets builders who need a small-form-factor board that still supports unlocked 8th-generation Core CPUs, plus compatible Pentium and Celeron models. The layout provides two DDR4 memory slots and a single full-length PCI Express 3.0 x16 slot for a discrete graphics card. Integrated Intel I219-V Gigabit LAN and a pre-installed Intel Dual Band Wireless-AC 8265 module add wired and wireless networking without extra cards.

Carbon-themed board with reinforced slots

The black carbon-fibre finish extends across the PCB and I/O shield, while steel armour on the primary PCIe slot protects heavy graphics cards during transport. Four SATA 6Gb/s ports and one M.2 Key M slot accept 2242, 2260 or 2280 drives running at PCIe 3.0 x4 or SATA speeds, with RAID 0, 1, 5 and 10 available across the SATA array. Rear I/O includes HDMI video, a PS/2 combo port and USB 3.1 connectors for fast peripheral access. The wireless module occupies the M.2 Key E slot, leaving the Key M slot free for storage.

Low-profile cooling design keeps VRM temperatures

Heatsinks on the power-delivery area and chipset dissipate heat passively, suiting compact cases with restricted airflow. The Realtek ALC1220 codec drives 7.1-channel audio with S/PDIF output for home-theatre setups. Bluetooth 2.1, 3.0, 4.0 and 4.2 support covers legacy and modern peripherals alike. With a maximum memory capacity of 32 GB across two slots in dual-channel mode, the board balances capacity and overclocking headroom for everyday gaming and productivity workloads.

Highlights

  • Supports 8th Gen Intel Core, Pentium and Celeron CPUs on LGA 1151 socket
  • DDR4 memory up to 4500 MHz overclocked across two slots with 32 GB maximum
  • Intel I219-V Gigabit LAN plus Intel Dual Band Wireless-AC 8265 for 867 Mbps Wi-Fi
  • Realtek ALC1220 codec delivers 7.1-channel high-definition audio with S/PDIF output
  • One full-length PCIe 3.0 x16 slot and four SATA 6 Gb/s ports for expansion

Specifications

BrandMSI
ModelZ370I GAMING PRO CARBON AC
CPU Socket TypeLGA 1151 (300 Series)
CPU TypeSupports 8th Generation Intel Core Processors, and Intel Pentium and Celeron Processors for Socket LGA1151
* Not backward compatible with older generation of LGA 1151 CPUs
ChipsetIntel Z370
Number of Memory Slots2x288pin (DDR4)
Memory StandardSupports DDR4 4500(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2667/ 2400/ 2133
Maximum Memory Supported32GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express 3.0 x16
Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x M.2 slot (M2_1, Key M)
- Support up to PCIe 3.0 x4 and SATA 6Gb/s
- Supports 2242/2260/2280 storage devices
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC1220
Audio Channels7.1-Channel High Definition Audio
Supports S/PDIF output
LAN ChipsetIntel I219-V
Max LAN Speed1Gbps
Wireless LANIntel Dual Band Wireless-AC 8265 card
- The Wireless module is pre-install in the M2_2 (M.2 Key E) slot.
- Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4 GHz, 5 GHz) up to 867 Mbps speed.
BluetoothSupports Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2
PS/21 x PS/2 keyboard/mouse port
HDMI1 x HDMI
RJ451 x RJ45
DisplayPort1 x DisplayPort
USB 3.11 x USB 3.1 Gen2 Type-A port
2 x USB 3.1 Gen1 Type-A ports
USB 1.1/2.02 x USB 2.0 Type-A ports
USB Type-C1 x USB 3.1 Gen2 Type-C port
S/PDIF Out1 x Optical
Audio Ports5 x OFC audio jacks
Antenna Connectors2 x Wi-Fi Antenna connectors
Onboard USB1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
Other Connectors1 x 4-pin CPU fan connector
1 x 4-pin system fan connector
1 x Front panel audio connector
2 x Front panel connectors
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
1 x 5050 RGB LED strip 12V connector
1 x CORSAIR Individually Addressable RGB LED strip 5V connector
Form FactorMini ITX
LED LightingRGB
Dimensions (W x L)6.7" x 6.7"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
FeaturesSupports 8th Gen Intel Core / Pentium Celeron processors for LGA 1151 socket
Supports DDR4 Memory, up to 4600+(OC) MHz
Lightning Fast Game experience: 1x TURBO M.2, Intel Optane Memory Ready. LIGHTNING USB 3.1 GEN2
AUDIO BOOST 4 with Nahimic 2+: Reward your ears with studio grade sound quality for the most immersive gaming experience
DDR4 Boost with STEEL ARMOR: Fully isolated, shielded and optimized DDR4 PCB design to give your DDR4 memory a performance boost
GAMING LAN and Wireless support, powered by Intel: The best online gaming experience with lowest latency and bandwidth manage

Questions about this item

Will this board accept my 8th-generation Intel Core i5 and two DDR4 sticks?

Yes, the LGA 1151 (300 Series) socket supports 8th-generation Core, Pentium and Celeron CPUs, and the two 288-pin slots run dual-channel DDR4 up to 32 GB total.

What M.2 drive lengths fit the storage slot and does it take SATA or PCIe?

The single M.2 Key M slot accepts 2242, 2260 and 2280 drives and supports both PCIe 3.0 x4 and SATA 6 Gb/s signalling.

Is Wi-Fi and Bluetooth already on the board or do I need a separate card?

An Intel Dual Band Wireless-AC 8265 module is pre-installed in the M.2 Key E slot, giving 802.11 a/b/g/n/ac up to 867 Mbps and Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, BLE and 4.2.
