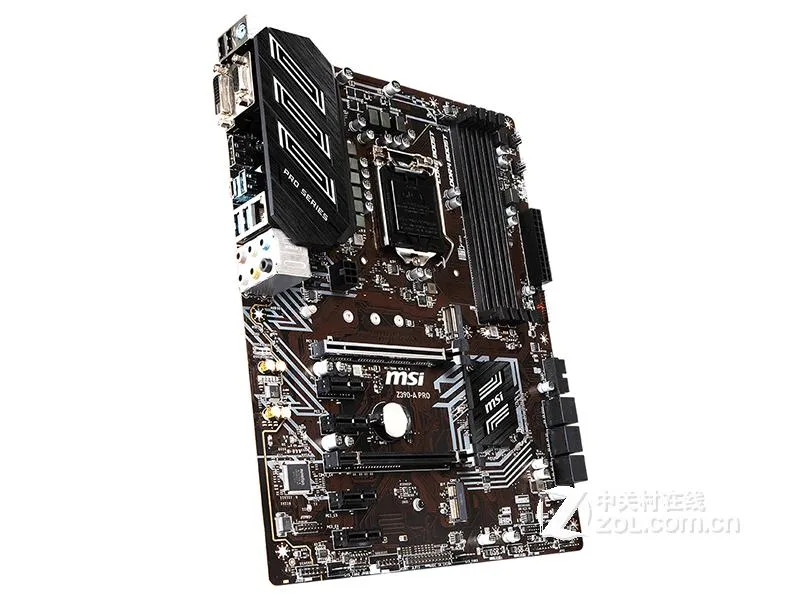

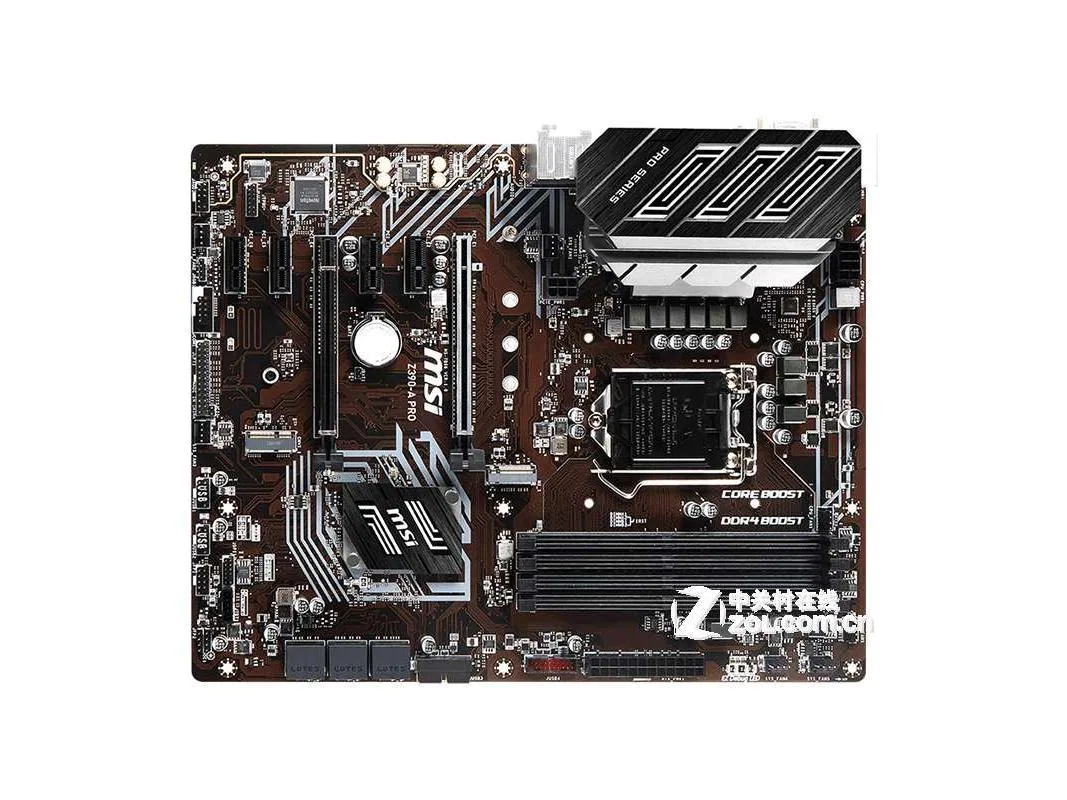

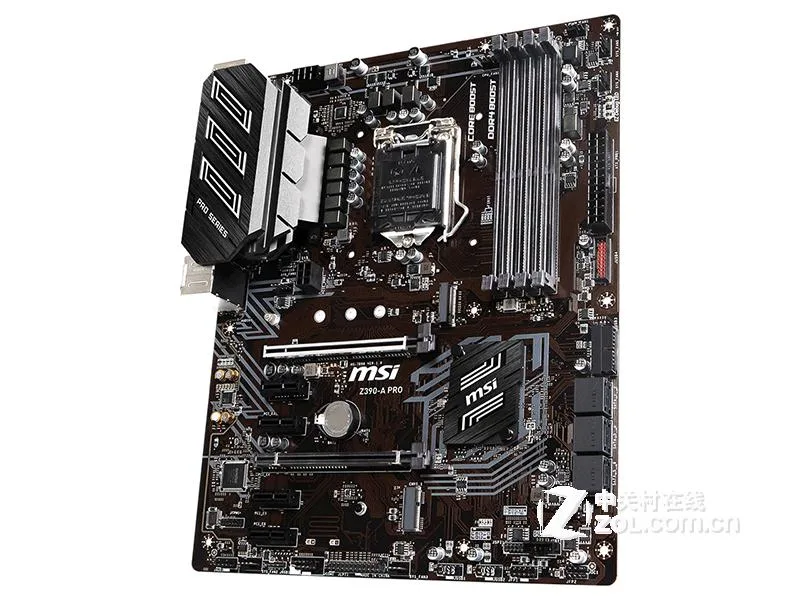

Black ATX motherboard with silver heatsinks, LGA 1151 socket and multiple PCIe slots

MSI

MSI Z390-A PRO LGA 1151 Intel Z390 ATX Motherboard

SKU CH-D5CJ-FC9Z9

ATX board for LGA 1151 CPUs with Intel Z390 chipset, 128 GB DDR4 4400 MHz support, 2 PCIe 3.0 x16 slots, 6 SATA III ports, Realtek ALC892 7.1 audio and Intel I219-V Gigabit LAN

  • CPU Socket TypeLGA 1151
  • CPU Type9th Gen Intel Core ™, Pentium and Celeron processors with LG
  • ChipsetIntel Z390
  • Memory StandardSupports dual-channel DDR4 4400MHz memory
  • Maximum Memory Supported128GB
  • PCI Slots2 PCIe 3.0 x16 slots 4 PCIe 3.0 x1 slots 1 M.2 slot with E k
  • Supports 128GB DDR4 memory for heavy multitasking
  • Dual-channel DDR4 4400MHz delivers high bandwidth
  • Intel Z390 chipset enables 9th Gen Core processors
  • Realtek ALC892 provides 7.1 channel audio
  • Intel I219-V gives Gigabit LAN connectivity

LGA 1151 Intel Z390 ATX motherboard

The MSI Z390-A PRO fits 9th Generation Intel Core, Pentium and Celeron processors in an LGA 1151 socket. It is built for system builders who want a standard ATX board with the Z390 chipset. Dual-channel DDR4 memory support and a full set of rear I/O make it a practical foundation for everyday workstations or gaming rigs.

128 GB DDR4 4400 MHz capacity

Four DIMM slots accept up to 128 GB of dual-channel DDR4 memory at speeds up to 4400 MHz. That headroom handles heavy multitasking and large content-creation projects without paging. The two PCIe 3.0 x16 slots and four x1 slots give room for a graphics card plus add-in cards, while the single M.2 E-key slot is limited to an Intel CNVi wireless module only.

Realtek ALC892 audio and Intel I219-V LAN

The onboard Realtek ALC892 codec delivers 7.1 channel audio through standard analogue jacks. A single Intel I219-V controller provides a wired Gigabit Ethernet connection. Rear USB includes two USB 3.1 Gen2 ports — one Type-A and one Type-C — plus two USB 3.1 Gen1 Type-A ports; four more Gen1 ports are available via internal headers. Six SATA III ports support RAID arrays for storage redundancy or speed.

Highlights

  • Supports 128GB DDR4 memory for heavy multitasking
  • Dual-channel DDR4 4400MHz delivers high bandwidth
  • Intel Z390 chipset enables 9th Gen Core processors
  • Realtek ALC892 provides 7.1 channel audio
  • Intel I219-V gives Gigabit LAN connectivity

Specifications

BrandMSI
SeriesMSI Z390-A PRO
ModelMSI Z390-A PRO
CPU Socket TypeLGA 1151
CPU Type9th Gen Intel Core ™, Pentium and Celeron processors with LGA1151 pin support
ChipsetIntel Z390
Memory StandardSupports dual-channel DDR4 4400MHz memory
Maximum Memory Supported128GB
PCI Slots2 PCIe 3.0 x16 slots
4 PCIe 3.0 x1 slots
1 M.2 slot with E key for Integrated Intel Wireless-AC (CNVi) module only
SATA RAIDM.2 interface, 6xSATA III interface
Audio ChipsetRealtek ALC892 decoding chip
7.1 channel high-quality sound effects
LAN Chipset1 Intel I219-V Gigabit network interface card
Onboard USBIntel Z390 chipset
2 USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port and 1 Type-C port on the backplane)
6 USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the backplane, 4 via onboard USB 3.1 ports)
6 USB 2.0 (High-speed USB) ports (2 Type-A ports on the backplane, 4 via onboard ports)

Questions about this item

Will the 4400 MHz DDR4 memory standard work with the slower DDR4 modules I already have?

The board supports dual-channel DDR4 up to 4400 MHz and will run existing DDR4 DIMMs at their rated speeds.

How can I confirm the Realtek ALC892 7.1 channel audio is functioning after assembly?

Play a multichannel test file in Windows Sound settings and verify output from all eight channels.

Does the package include the Wi-Fi antenna or must I buy it separately?

The box contains the motherboard, a CMOS battery, one SATA cable and the rear I/O shield; a Wi-Fi antenna is only supplied if the board has a built-in wireless module.
