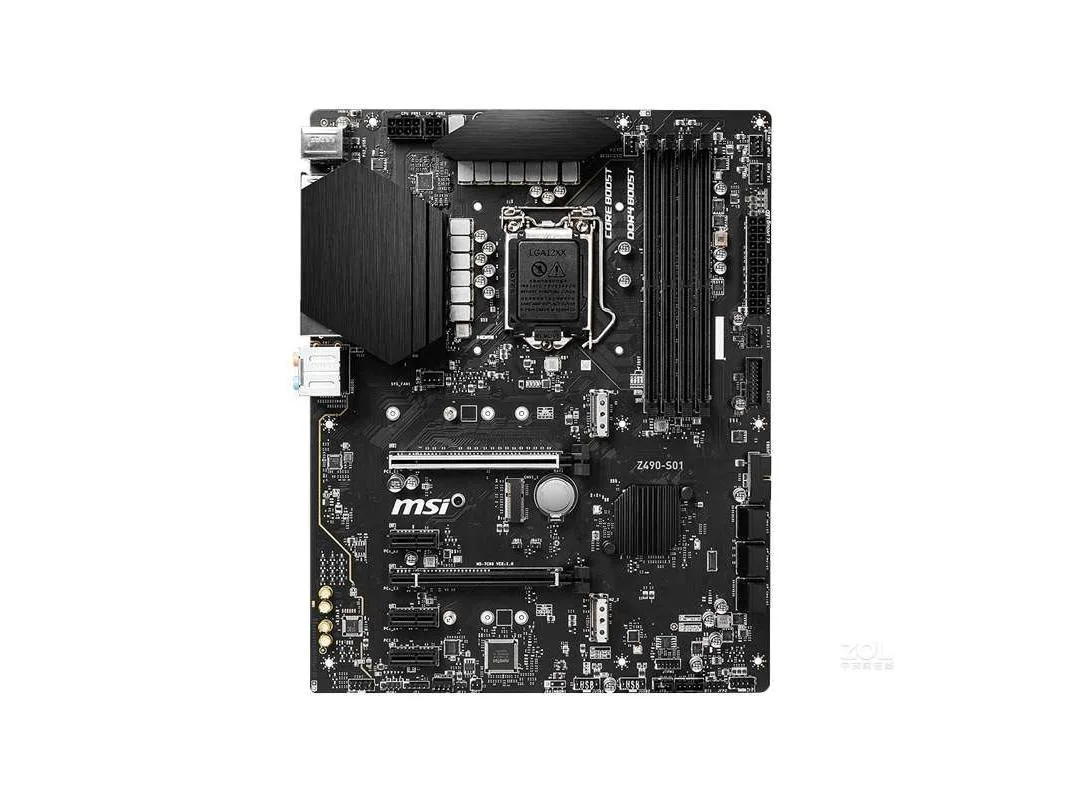

Rectangular ATX motherboard with black PCB, silver heatsinks and LGA 1200 socket

MSI

MSI Z490-S01 LGA 1200 Intel Z490 DDR4 128GB ATX Motherboard

SKU CH-APPY-TH4ZY

ATX board for 10th Gen Intel Core LGA 1200 CPUs with dual-channel DDR4 up to 4000 MHz, 128 GB max, one PCIe 3.0 x16 slot, six SATA III ports, 7.1-channel audio.

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 10th Gen Intel Core™ and Pentium Gold / Celeron pro
  • ChipsetIntel Z490
  • Memory StandardSupport dual-channel DDR4 2133/2200/2400/2666/2800/3000/3200
  • Maximum Memory Supported128GB
  • PCI Slots1x PCIe 3.0 x16 slot (from CPU) 1x PCIe 3.0 x16 slot (from P
  • Supports 10th Gen Intel Core and Pentium Gold / Celeron processors via LGA 1200 socket
  • Intel Z490 chipset enables dual-channel DDR4 up to 4000 MHz with 128 GB maximum capacity
  • One PCIe 3.0 x16 slot from CPU plus a second x16 slot from PCH running at x4 mode for flexible GPU configurations
  • Realtek ALC892/ALC897 codec delivers 7.1-channel high-definition audio for immersive sound
  • Intel I219-V Gigabit LAN provides reliable wired network connectivity

Z490 platform for 10th Gen Intel builds

The MSI Z490-S01 is an ATX motherboard built around the Intel Z490 chipset and LGA 1200 socket. It supports 10th Generation Intel Core, Pentium Gold and Celeron processors for desktop systems. Dual-channel DDR4 memory runs at speeds from 2133 up to 4000 MHz with a maximum capacity of 128 GB.

PCIe 3.0 lanes and storage limits

The board provides one PCIe 3.0 x16 slot from the CPU and a second PCIe 3.0 x16 slot from the chipset that operates in x4 mode. Three additional PCIe x1 slots are available from the chipset. Storage connectivity includes two M.2 interfaces and six SATA III ports for mixed drive configurations.

Replaces older Intel 300-series boards

Moving from a 300-series chipset to Z490 adds native USB 3.2 Gen 2 10 Gbps ports on the rear panel, including one Type-A and one Type-C connector. Eight USB 3.2 Gen 1 5 Gbps ports are also provided across rear and internal headers. The upgrade is worthwhile when faster USB throughput and 10th Gen processor support are required.

Highlights

  • Supports 10th Gen Intel Core and Pentium Gold / Celeron processors via LGA 1200 socket
  • Intel Z490 chipset enables dual-channel DDR4 up to 4000 MHz with 128 GB maximum capacity
  • One PCIe 3.0 x16 slot from CPU plus a second x16 slot from PCH running at x4 mode for flexible GPU configurations
  • Realtek ALC892/ALC897 codec delivers 7.1-channel high-definition audio for immersive sound
  • Intel I219-V Gigabit LAN provides reliable wired network connectivity

Specifications

BrandMSI
SeriesMSI Z490-S01
ModelMSI Z490-S01
CPU Socket TypeLGA 1200
CPU TypeSupports 10th Gen Intel Core™ and Pentium Gold / Celeron processors for LGA1200 socket
ChipsetIntel Z490
Memory StandardSupport dual-channel DDR4 2133/2200/2400/2666/2800/3000/3200/3400/3600/3800/4000 + MHz memory
Maximum Memory Supported128GB
PCI Slots1x PCIe 3.0 x16 slot (from CPU)
1x PCIe 3.0 x16 slot (from PCH, supports x4 mode)
3x PCIe x1 slots (from PCH)
SATA RAID2XM.2 interface, 6xSATA III interface
Audio ChipsetRealtek ALC892/ALC897 Codec
7.1-Channel High Definition Audio
LAN Chipset1x Intel I219-V Gigabit LAN
Onboard USBIntel Z490 Chipset
2x USB 3.2 Gen 2 10Gbps ports (1 Type-A port and 1 Type-C port on the back panel)
8x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 4 ports through the internal USB connectors, 1 Type-C internal connector)
4x USB 2.0 ports (4 ports through the internal USB 2.0 connectors)

Questions about this item

Which DDR4 speed should I pick for the MSI Z490-S01?

The board supports dual-channel DDR4 from 2133MHz up to 4000MHz+, so choose a kit that matches your CPU's rated speed and your budget.

What does the 128GB maximum memory mean for my build?

You can install up to 128GB of DDR4 across the four slots, allowing large-capacity kits for heavy multitasking or content creation.

What bandwidth does the Intel I219-V Gigabit LAN provide?

The onboard Intel I219-V controller delivers 1Gbps wired networking for stable internet and local file transfers.
