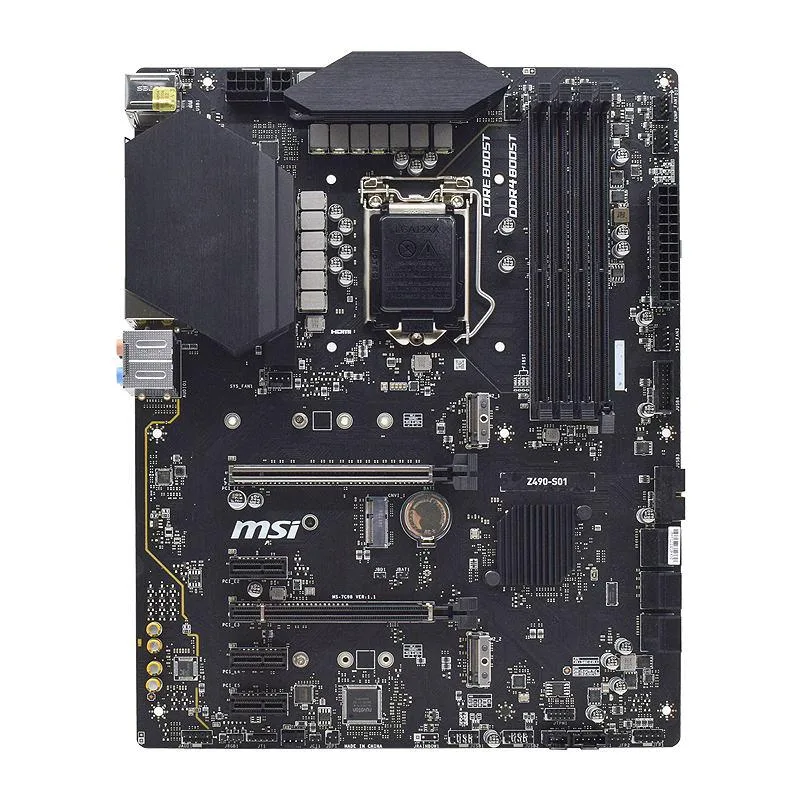

ATX motherboard with black PCB, silver heatsinks, LGA 1200 socket, four DDR4 slots, two M.2 slots, six SATA ports, HDMI

MSI

MSI Z490-S01 LGA 1200 Intel Z490 motherboard ddr4 128G

SKU CH-B1VA-KMEDD

An LGA 1200 ATX board with Intel Z490 chipset supporting dual-channel DDR4 up to 4000 MHz and 128 GB maximum memory

  • CPU Socket TypeLGA 1200
  • CPU Type4th-generation Core i5, i7 (LGA1150)
  • ChipsetIntel Z490
  • Memory StandardSupport dual-channel DDR4 2133/2200/2400/2666/2800/3000/3200
  • Maximum Memory Supported128GB
  • PCI Slots1x PCIe 3.0 x16 slot (from CPU) 1x PCIe 3.0 x16 slot (from P
  • Supports up to 128GB ddr4 memory
  • Dual M.2 slots plus six SATA ports
  • Intel I219-V Gigabit LAN for wired networking
  • Realtek ALC892/897 7.1-channel audio
  • Two USB 3.2 Gen 2 10Gbps ports (Type-A and Type-C)

Socket LGA 1200 Z490 board

The MSI Z490-S01 is an ATX motherboard built around the Intel Z490 chipset for LGA 1200 processors. It supports dual-channel DDR4 memory up to 128GB across a wide range of speeds from 2133 to 4000 MHz. The board targets builders pairing 10th-generation Core i7 or i9 CPUs with high-speed memory kits.

Installation notes

The package contains the motherboard, an I/O shield and one SATA cable; no CMOS battery or extra accessories are supplied. A CR2032 cell must be sourced separately before first boot. Standard ATX standoff alignment applies and the 24-pin plus 8-pin power connectors sit in familiar positions for straightforward assembly.

Interface limits

Two M.2 sockets and six SATA III ports share bandwidth with the chipset-linked PCIe 3.0 x4 slot, so populating every drive can reduce that slot to x1 speeds. The primary PCIe 3.0 x16 slot connects directly to the CPU and is unaffected. Rear I/O includes two USB 3.2 Gen 2 ports at 10Gbps and eight USB 3.2 Gen 1 ports at 5Gbps.

Highlights

  • Supports up to 128GB ddr4 memory
  • Dual M.2 slots plus six SATA ports
  • Intel I219-V Gigabit LAN for wired networking
  • Realtek ALC892/897 7.1-channel audio
  • Two USB 3.2 Gen 2 10Gbps ports (Type-A and Type-C)

Specifications

BrandMSI
SeriesMSI Z490-S01
ModelMSI Z490-S01
CPU Socket TypeLGA 1200
CPU Type4th-generation Core i5, i7 (LGA1150)
ChipsetIntel Z490
Memory StandardSupport dual-channel DDR4 2133/2200/2400/2666/2800/3000/3200/3400/3600/3800/4000 + MHz memory
Maximum Memory Supported128GB
PCI Slots1x PCIe 3.0 x16 slot (from CPU)
1x PCIe 3.0 x16 slot (from PCH, supports x4 mode)
3x PCIe x1 slots (from PCH)
SATA RAID2XM.2 interface, 6xSATA III interface
Audio ChipsetRealtek ALC892/ALC897 Codec
7.1-Channel High Definition Audio
LAN Chipset1x Intel I219-V Gigabit LAN
Onboard USBIntel Z490 Chipset
2x USB 3.2 Gen 2 10Gbps ports (1 Type-A port and 1 Type-C port on the back panel)
8x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 4 ports through the internal USB connectors, 1 Type-C internal connector)
4x USB 2.0 ports (4 ports through the internal USB 2.0 connectors)

Questions about this item

Will this board accept 10th-generation Intel Core i9 10900K or i7 10700K processors?

The LGA 1200 socket and Z490 chipset support 10th-generation Intel Core i9 10900K and i7 10700K CPUs.

What DDR4 memory speeds are validated and what is the maximum capacity?

Dual-channel DDR4 is validated at 2133, 2200, 2400, 2666, 2800, 3000, 3200, 3400, 3600, 3800 and 4000 MHz up to 128 GB total.

Does the package include a CMOS battery and rear I/O shield?

The package includes the motherboard, a metal rear I/O shield, one SATA cable and a CR2032 CMOS battery.
