MSI
MSI Z590-A PRO Intel motherboard
An ATX board with the Intel Z590 chipset and LGA 1200 socket that supports 10th and 11th Gen Core CPUs, up to 128 GB DDR4 and 2.5 Gbps LAN
- CPU Socket TypeLGA 1200
- CPU TypeSupports 10th Gen Intel Core™ Processors, 11th Gen Intel Cor
- ChipsetIntel Z590
- Memory StandardSupport dual channel DDR4 5333 (OC)/5200 (OC)/5000 (OC)/4800
- Maximum Memory Supported128GB
- PCI Slots2x PCIe x16 slots Support x16/ x4 PCI_E1 (from CPU) Supports
- Supports 10th and 11th Gen Intel Core processors on LGA 1200 socket
- Dual-channel DDR4 memory up to 128 GB with overclocked speeds to 5333
- Primary PCIe x16 slot runs at 4.0 with 11th Gen CPUs and 3.0 with 10th Gen CPUs
- 5 Gbps Intel I225-V LAN plus 7.1-channel Realtek ALC897 audio
- Rear USB 3.2 Gen 2x2 Type-C at 20 Gbps alongside multiple 10 Gbps and 5 Gbps ports
Z590 chipset ATX motherboard

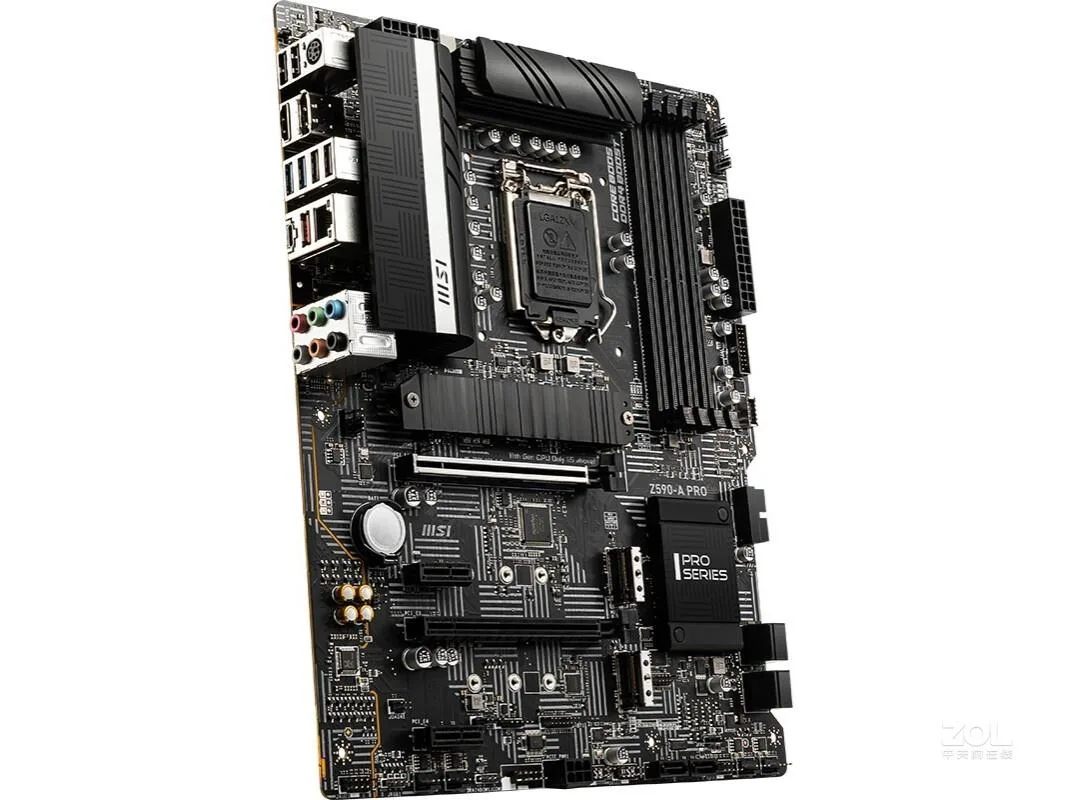

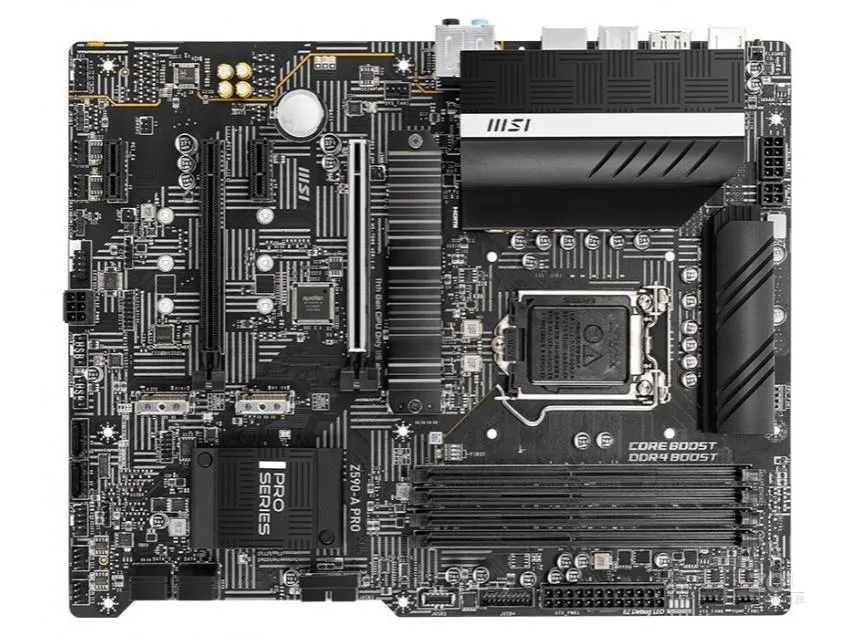

The MSI Z590-A PRO is an ATX motherboard built around the Intel Z590 chipset and the LGA 1200 socket. It accepts 10th and 11th generation Intel Core processors along with Pentium Gold and Celeron CPUs. The board supports dual-channel DDR4 memory up to 128 GB and provides PCIe 4.0 on the primary slot when paired with an 11th generation CPU.
Builders needing PCIe 4.0 and 2.5 Gbps LAN
This board suits builders who want PCIe 4.0 graphics support with an 11th generation processor and a 2.5 Gbps Intel I225-V network controller. It also provides a rear USB 3.2 Gen 2x2 Type-C port running at 20 Gbps. Systems staying with a 10th generation CPU will be limited to PCIe 3.0 on the primary slot, so those builders may prefer a different platform.
Primary PCIe slot generation depends on CPU
The top PCIe x16 slot runs at PCIe 4.0 with an 11th generation Intel Core processor and falls back to PCIe 3.0 with a 10th generation processor. This single specification decides whether the board delivers the full bandwidth potential of current graphics cards and high-speed add-in cards.
Highlights
- Supports 10th and 11th Gen Intel Core processors on LGA 1200 socket
- Dual-channel DDR4 memory up to 128 GB with overclocked speeds to 5333
- Primary PCIe x16 slot runs at 4.0 with 11th Gen CPUs and 3.0 with 10th Gen CPUs
- 5 Gbps Intel I225-V LAN plus 7.1-channel Realtek ALC897 audio
- Rear USB 3.2 Gen 2x2 Type-C at 20 Gbps alongside multiple 10 Gbps and 5 Gbps ports
Specifications
| Brand | MSI |
|---|---|
| Series | MSI Z590-A PRO |
| Model | MSI Z590-A PRO |
| CPU Socket Type | LGA 1200 |
| CPU Type | Supports 10th Gen Intel Core™ Processors, 11th Gen Intel Core™ Processors, Pentium Gold and Celeron Processors Processor socket LGA1200 |
| Chipset | Intel Z590 |
| Memory Standard | Support dual channel DDR4 5333 (OC)/5200 (OC)/5000 (OC)/4800 (OC)/4600 (OC)/4533 (OC)/4400 (OC)/4300 (OC)/4266 (OC)/4200 (OC)/4133 (OC)/4000 (OC)/3866 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3400 (OC)/3333 (OC)/3300 (OC)/3200 (OC)/3000 (OC)/2933 (JEDEC)/2666 (JEDEC)/2400 (JEDEC)/2133 (JEDEC) MHz memory |
| Maximum Memory Supported | 128GB |
| PCI Slots | 2x PCIe x16 slots Support x16/ x4 PCI_E1 (from CPU) Supports up to PCIe 4.0 for 11th Gen Intel CPU Supports up to PCIe 3.0 for 10th Gen Intel CPU PCI_E3 (from Z590 chipset) Supports up to PCIe 3.0 2x PCIe 3.0 x1 slots (from Z590 chipset) |
| SATA RAID | 3XM.2 interface, 6xSATA III interface |
| Audio Chipset | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| LAN Chipset | 1x Intel I225-V 2.5Gbps LAN controller |
| Onboard USB | Intel Z590 Chipset 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel) 6x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 4 ports are available through the internal USB 3.2 Gen 1 5Gbps connectors) USB 2.0 Hubs GL850G 4x USB 2.0 Type-A ports on the back panel 4x USB 2.0 ports are available through the internal USB 2.0 connectors |
Questions about this item
Will this board run an 11th Gen Core i7 with PCIe 4.0 graphics?
Yes, PCI_E1 from the CPU runs at PCIe 4.0 with an 11th Gen processor.
How much DDR4 can I install and at what speeds?
Four slots support up to 128 GB; the board validates speeds from 3300 to 5333 MT/s when overclocked.

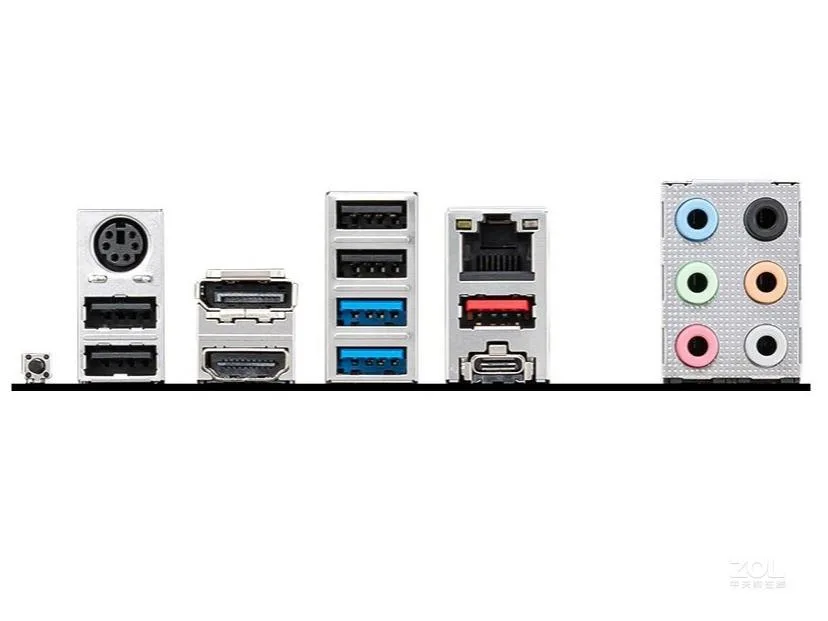

Which high-speed USB ports are on the rear I/O?
One USB 3.2 Gen 2x2 20 Gbps Type-C and two USB 3.2 Gen 2 10 Gbps Type-A ports.
