Green Micro ATX motherboard with black heatsinks and reinforced PCIe slot

MSI

MSI Z590M BOMBER Intel motherboard

SKU CH-4AY7-PEKCY

Supports 10th and 11th Gen Intel Core processors on LGA 1200 with Z590 chipset, up to 128 GB DDR4, 2.5 Gbps LAN and 7.1 audio

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 10th Gen Intel Core™ Processors, 11th Gen Intel Cor
  • ChipsetIntel Z590
  • Memory StandardSupport dual channel DDR4 5333 (OC)/5200 (OC)/5000 (OC)/4800
  • Maximum Memory Supported128GB
  • PCI Slots1x PCIe x16 slot (From CPU) PCI_E1 (From CPU) Support up to
  • Supports 10th and 11th Gen Intel Core CPUs with LGA 1200 socket
  • Dual-channel DDR4 up to 5333 MHz OC with 128 GB maximum capacity
  • PCIe 4.0 x16 slot for 11th Gen CPUs and PCIe 3.0 x16 for 10th Gen CPUs
  • Six SATA III ports plus two M.2 interfaces for storage expansion
  • Realtek 8125B 2.5 Gbps LAN and Realtek ALC897 7.1-channel audio

Target platform

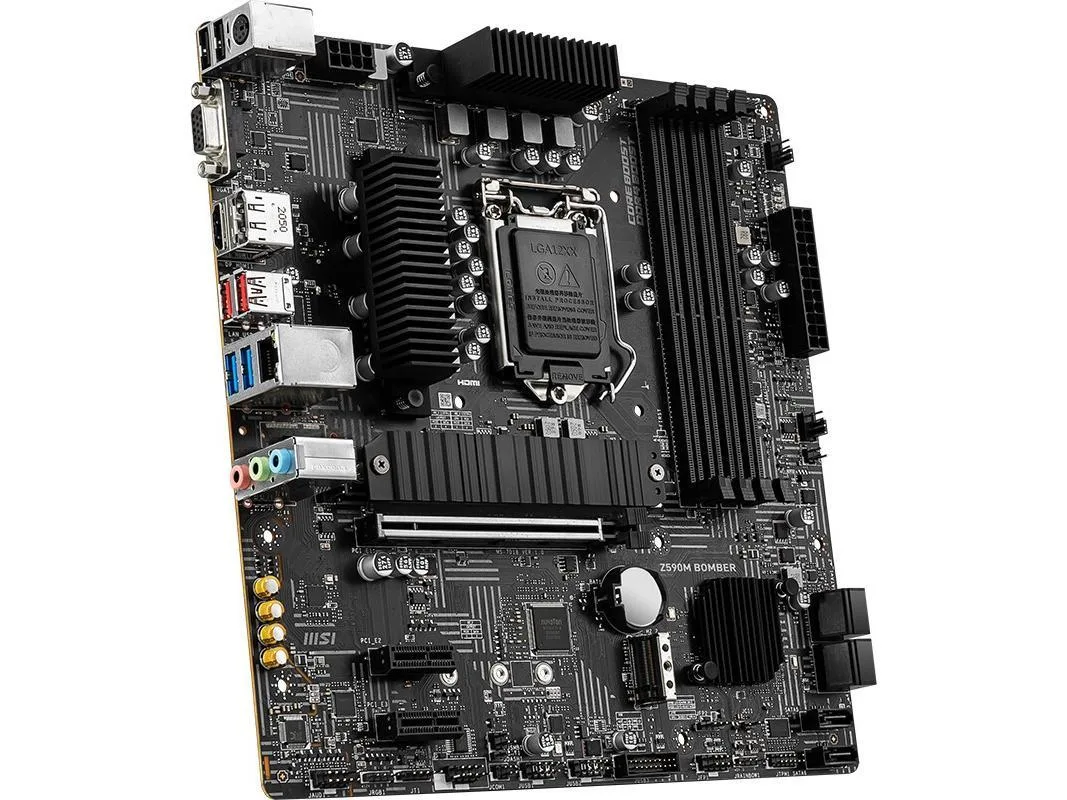

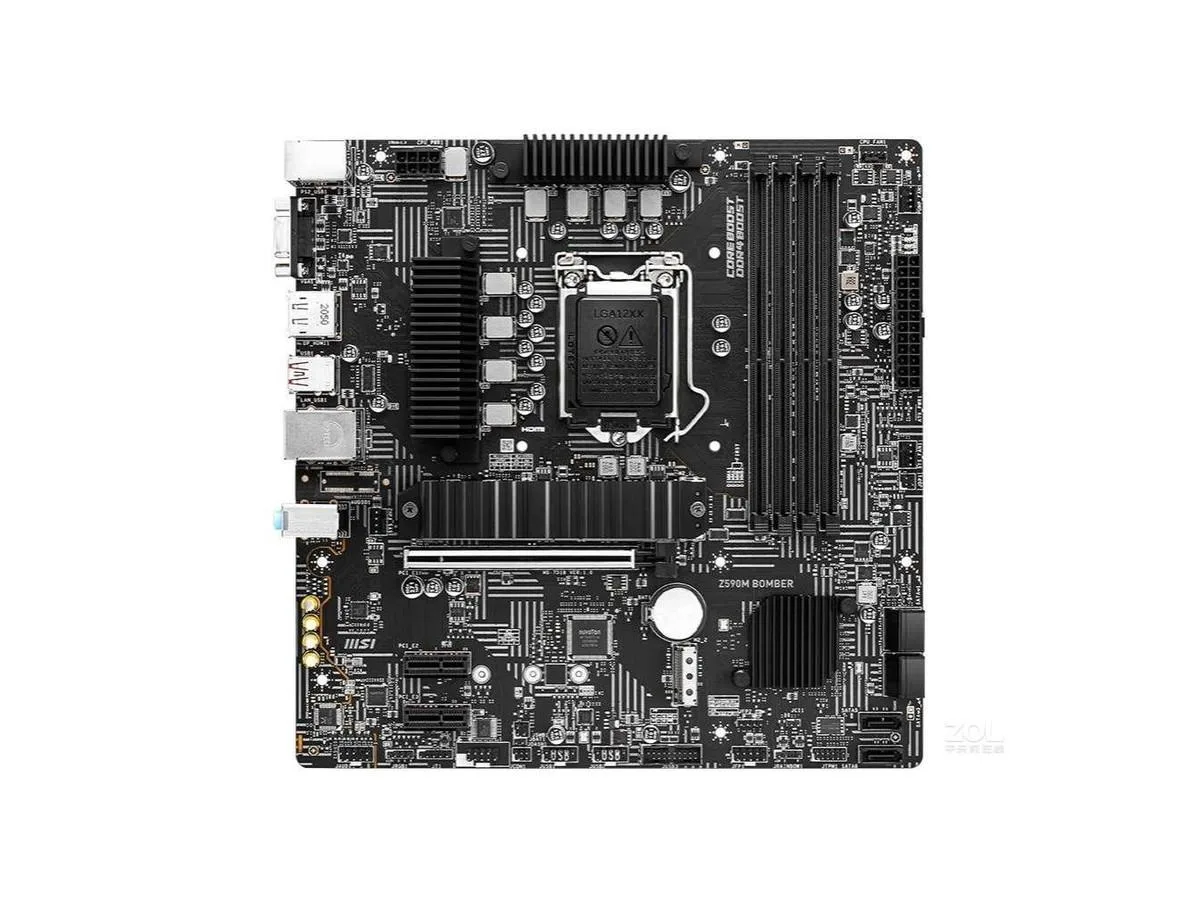

This MSI Z590M BOMBER motherboard uses the Intel Z590 chipset and an LGA 1200 socket for 10th and 11th Gen Intel Core, Pentium Gold and Celeron processors. The Micro ATX board measures 23.6 by 20.0 cm and provides dual channel DDR4 support up to 128 GB with a long list of overclocked speeds from 3300 to 5333 MT/s.

Ideal builder profile

The single PCIe 4.0 x16 slot from the CPU and two chipset PCIe 3.0 x1 slots suit a compact gaming or workstation build that needs one graphics card and a couple of add-in cards. Six SATA III ports and two M.2 interfaces give plenty of drive options. Buyers needing Wi-Fi, multiple graphics cards or support for newer LGA 1200 processors should consider other models.

Deciding specification

The onboard 2.5 Gbps LAN from the Realtek 8125B controller is the standout connectivity feature that separates this board from basic Z590 alternatives. If your network infrastructure can use 2.5 Gbps wiring the extra throughput is valuable; otherwise a board with standard gigabit LAN may meet the same needs.

Highlights

  • Supports 10th and 11th Gen Intel Core CPUs with LGA 1200 socket
  • Dual-channel DDR4 up to 5333 MHz OC with 128 GB maximum capacity
  • PCIe 4.0 x16 slot for 11th Gen CPUs and PCIe 3.0 x16 for 10th Gen CPUs
  • Six SATA III ports plus two M.2 interfaces for storage expansion
  • Realtek 8125B 2.5 Gbps LAN and Realtek ALC897 7.1-channel audio

Specifications

BrandMSI
SeriesMSI Z590M BOMBER
ModelMSI Z590M BOMBER
CPU Socket TypeLGA 1200
CPU TypeSupports 10th Gen Intel Core™ Processors, 11th Gen Intel Core™ Processors, Pentium Gold and Celeron Processors
Processor socket LGA1200
ChipsetIntel Z590
Memory StandardSupport dual channel DDR4 5333 (OC)/5200 (OC)/5000 (OC)/4800 (OC)/4600 (OC)/4533 (OC)/4400 (OC)/4300 (OC)/4266 (OC)/4200 (OC)/4133 (OC)/4000 (OC)/3866 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3400 (OC)/3333 (OC)/3300 (OC)/3200 (OC)/3000 (OC)/2933 (JEDEC)/2666 (JEDEC)/2400 (JEDEC)/2133 (JEDEC) MHz memory
Maximum Memory Supported128GB
PCI Slots1x PCIe x16 slot (From CPU)
PCI_E1 (From CPU)
Support up to PCIe 4.0 for 11th Gen Intel CPU
Support up to PCIe 3.0 for 10th Gen Intel CPU
2x PCIe 3.0 x1 slots (From Z590 chpiset)
SATA RAID2XM.2 interface, 6xSATA III interface
Audio ChipsetRealtek AL897 Codec
7.1-Channel High Definition Audio
LAN Chipset1x Realtek 8125B 2.5Gbps LAN controller
Onboard USBIntel Z590 Chipset
2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
2x USB 2.0 Type-A ports on the back panel
USB Hubs GL850G
4x USB 2.0 ports are available through the internal USB 2.0 connectors

Questions about this item

What is included in the box with the MSI Z590M BOMBER motherboard?

The package contains the motherboard, one SATA cable and the chassis I/O back panel.

Which memory capacity should I choose for this Z590 Micro ATX board?

The board supports up to 128 GB of dual-channel DDR4 across two slots, so two 64 GB modules will reach the maximum.

What does the 2.5 Gbps LAN figure mean for everyday use?

The Realtek 8125B controller provides wired network speeds up to 2.5 Gbps, faster than standard Gigabit Ethernet.
