ATX motherboard with black PCB and silver heatsinks

MSI

MSI Z77A-G43 Intel motherboard LGA 1155

SKU CH-AZKY-0EHRD

ATX board for LGA 1155 CPUs with Intel Z77 chipset, four DDR3 slots up to 32 GB, one PCIe 3.0 x16 slot, two SATA 6 Gb/s ports, Realtek 8111E gigabit LAN and Realtek ALC892 8-channel audio

  • CPU Socket TypeLGA 1155
  • CPU TypeCore i7 / i5 / i3 (LGA1155)
  • ChipsetIntel Z77
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots4x240pin
  • Memory StandardDDR3 2667*(OC)/ 2400*(OC)/ 2133*(OC)/ 1866*(OC)/ 1600/ 1333/
  • Supports 2nd and 3rd Gen Intel Core processors via LGA 1155 socket
  • Four DDR3 slots accept up to 32 GB at speeds up to 2667 MHz when overclocked
  • PCI Express 3.0 x16 slot delivers full bandwidth for modern graphics cards
  • Two SATA 6Gb/s ports with RAID 0, 1, 5, 10 for fast, protected storage
  • Realtek ALC892 8-channel audio and Gigabit LAN for clear sound and wired networking

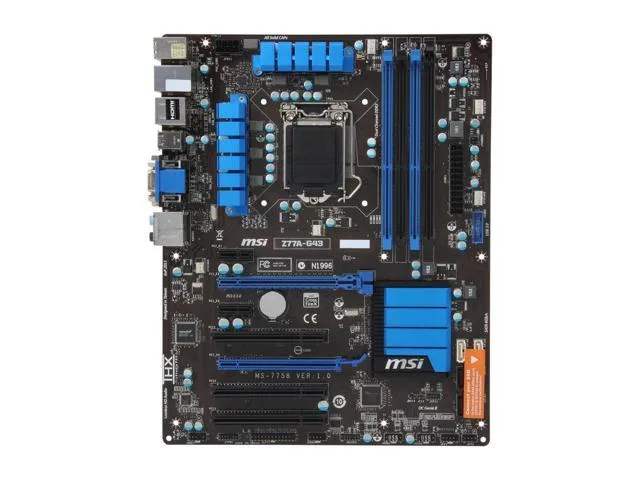

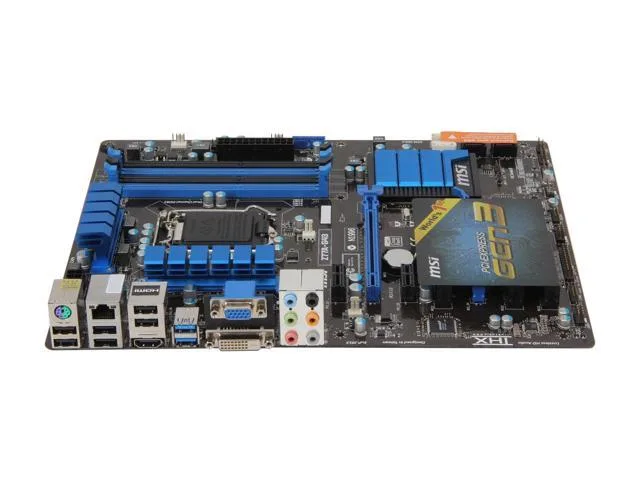

Z77 Chipset LGA 1155 ATX Motherboard

The MSI Z77A-G43 is an ATX motherboard built on the Intel Z77 chipset for LGA 1155 processors. It supports Core i7, i5 and i3 CPUs with integrated graphics. Four 240-pin slots accept DDR3 memory up to 2667 MT/s when overclocked, with a maximum capacity of 32 GB in dual-channel mode.

Suits Legacy Builds and Upgrades

This board suits builders repairing or upgrading an existing LGA 1155 system who need SATA 6 Gb/s and USB 3.0 connectivity. It provides one PCI Express 3.0 x16 slot, one PCI Express 2.0 x16 slot running at x4, two PCI Express x1 slots and three legacy PCI slots. Users requiring a newer CPU socket, different memory type or M.2 storage should select a different motherboard.

LGA 1155 Socket Defines Compatibility

The LGA 1155 socket is the single specification that decides whether this is the right part. Only Intel Core i7, i5 and i3 processors designed for this socket will install and operate. Chipset features such as SATA RAID 0, 1, 5, 10, 8-channel Realtek ALC892 audio and Realtek 8111E Gigabit LAN are secondary to the socket requirement.

Highlights

  • Supports 2nd and 3rd Gen Intel Core processors via LGA 1155 socket
  • Four DDR3 slots accept up to 32 GB at speeds up to 2667 MHz when overclocked
  • PCI Express 3.0 x16 slot delivers full bandwidth for modern graphics cards
  • Two SATA 6Gb/s ports with RAID 0, 1, 5, 10 for fast, protected storage
  • Realtek ALC892 8-channel audio and Gigabit LAN for clear sound and wired networking

Specifications

BrandMSI
ModelZ77A-G43
CPU Socket TypeLGA 1155
CPU TypeCore i7 / i5 / i3 (LGA1155)
ChipsetIntel Z77
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots4x240pin
Memory StandardDDR3 2667*(OC)/ 2400*(OC)/ 2133*(OC)/ 1866*(OC)/ 1600/ 1333/ 1066
Maximum Memory Supported32GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI Express 2.0 x161 @x4
PCI Express x12 x PCI Express x1
PCI Slots3 x PCI Slots
Serial ATA (SATA)2 x SATA 6Gb/s
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC892
Audio Channels8 Channels
LAN ChipsetRealtek 8111E
Max LAN Speed1Gbps
Back I/O Ports1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 3.0 / 6 x USB 2.0/1.1
PS/21 x PS/2 keyboard/mouse port
Video PortsD-Sub + DVI
HDMI1 x HDMI
USB 3.02 x USB 3.0
USB 1.1/2.06 x USB 2.0
Audio Ports6 Ports
Onboard USB2 x USB 3.0 + 4 x USB 2.0
Other ConnectorsATX 24-Pin power connector8-pin ATX 12V power connectorCPU x 1 / System x 4 FAN connectors1 x Clear CMOS jumper1 x Serial port connector1 x Parallel port connector1 x TPM Module connector1 x Front Panel Audio connector1 x Front Panel connector1 x Chassis Intrusion connector1 x Voice Genie connector (optional)1 x MultiConnect Panel connector (optional)
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin24 Pin
FeaturesMilitary Class III components: Top quality & stabilityOC Genie II: Auto OC to boost performance in 1 secClickBIOS II: Easy-to-use UEFI BIOS interfaceTHX TruStudio PRO: deliver the fullest audio experienceSupport USB 3.0 & SATA 6Gb/sSupport CrossFireX Technology

Questions about this item

Will this board run a Core i5 or i7 at stock speed?

Yes, the socket is LGA 1155 and the chipset supports Core i7, i5 and i3 processors

Can I use DDR3 memory faster than 1600?

Speeds up to 2667 are supported when overclocked; 1600 runs without overclocking

How many SATA 6Gb/s ports are available?

Two SATA 6Gb/s ports are provided, with RAID 0, 1, 5 and 10 support
