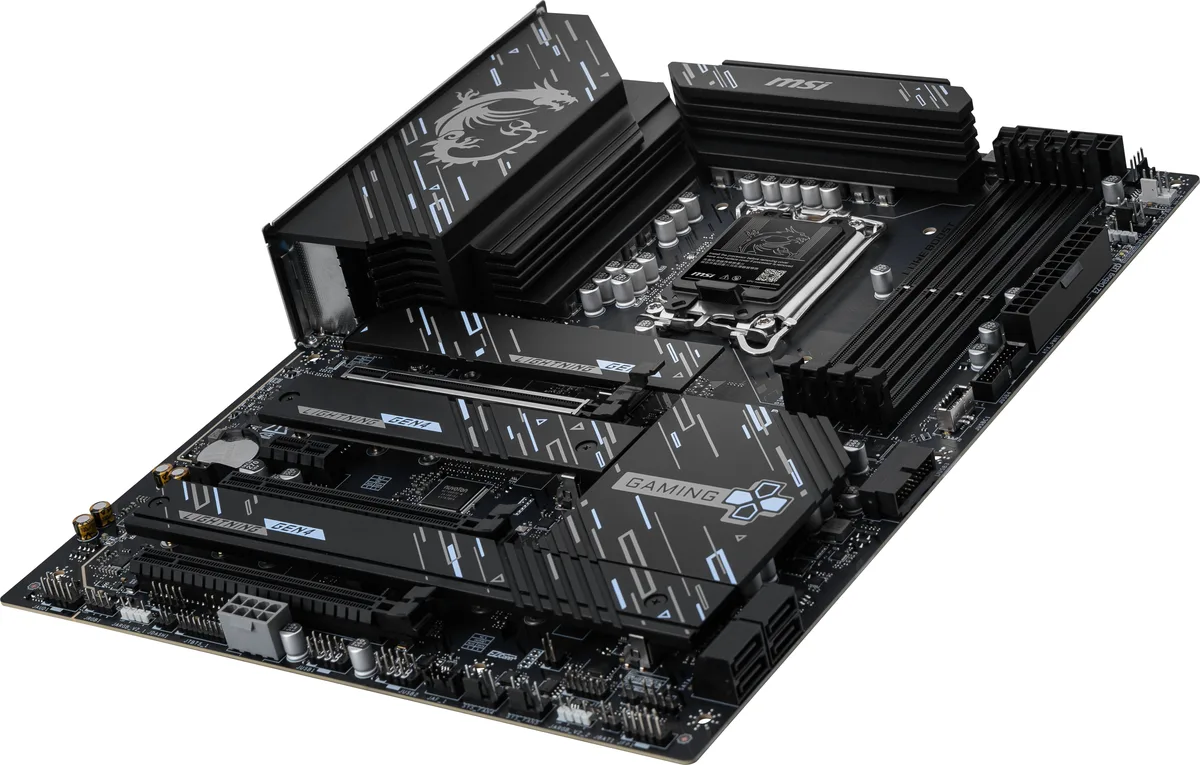

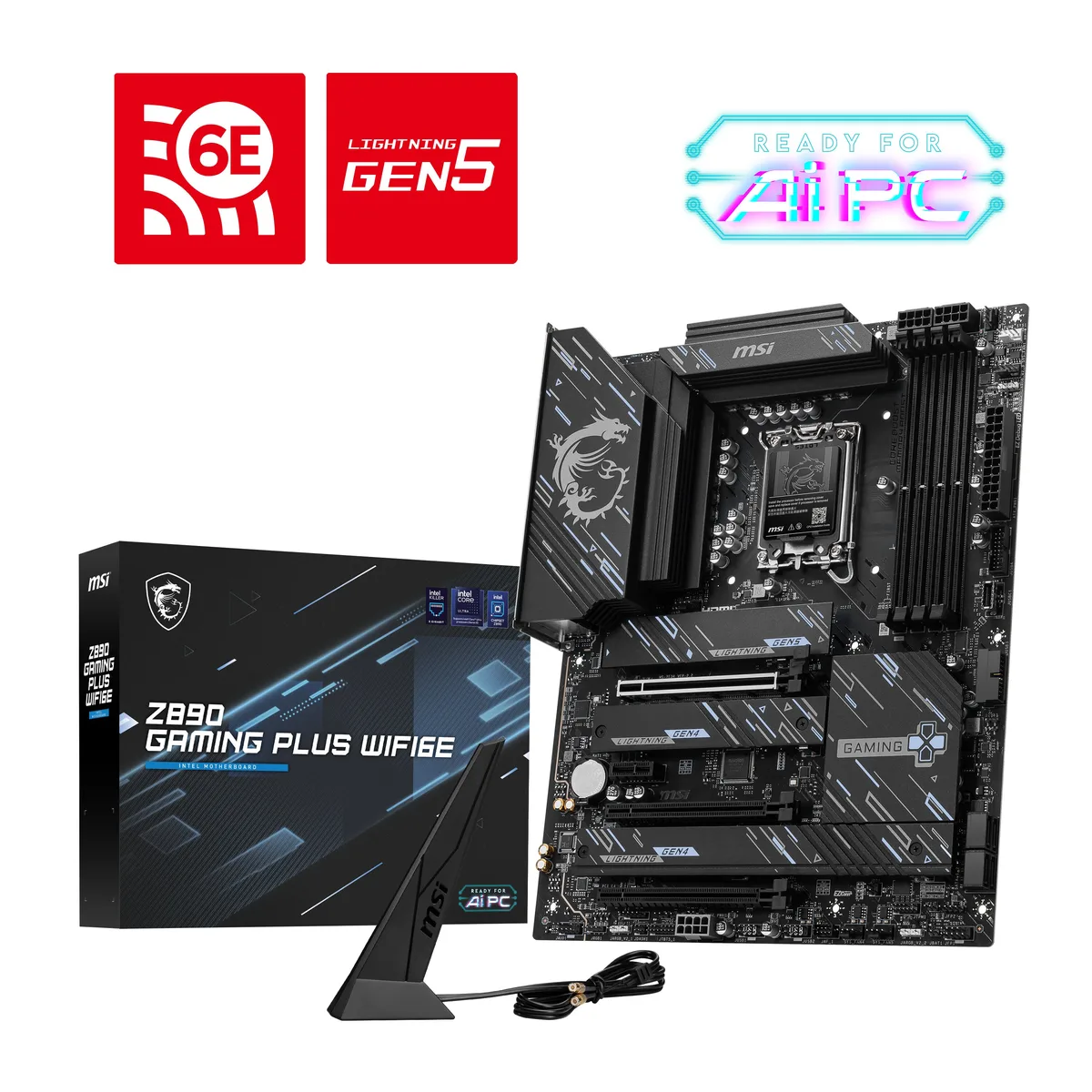

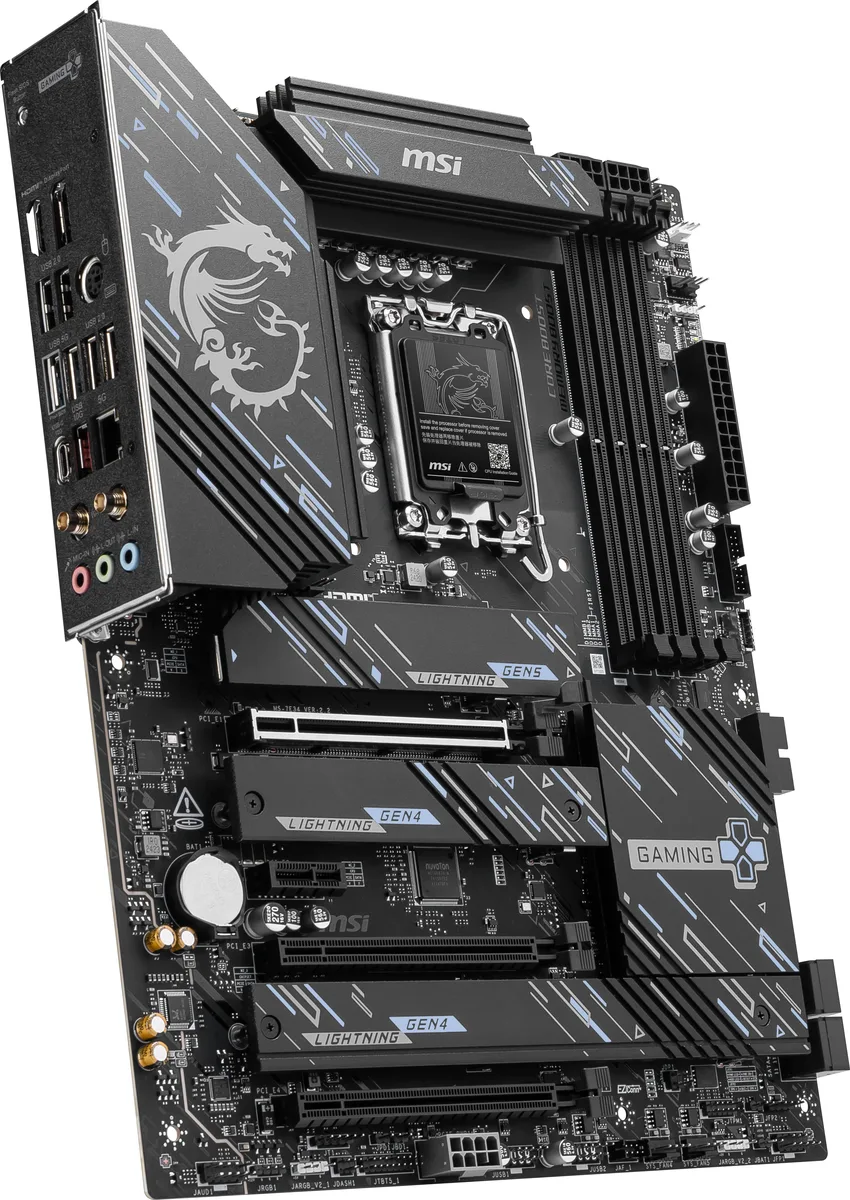

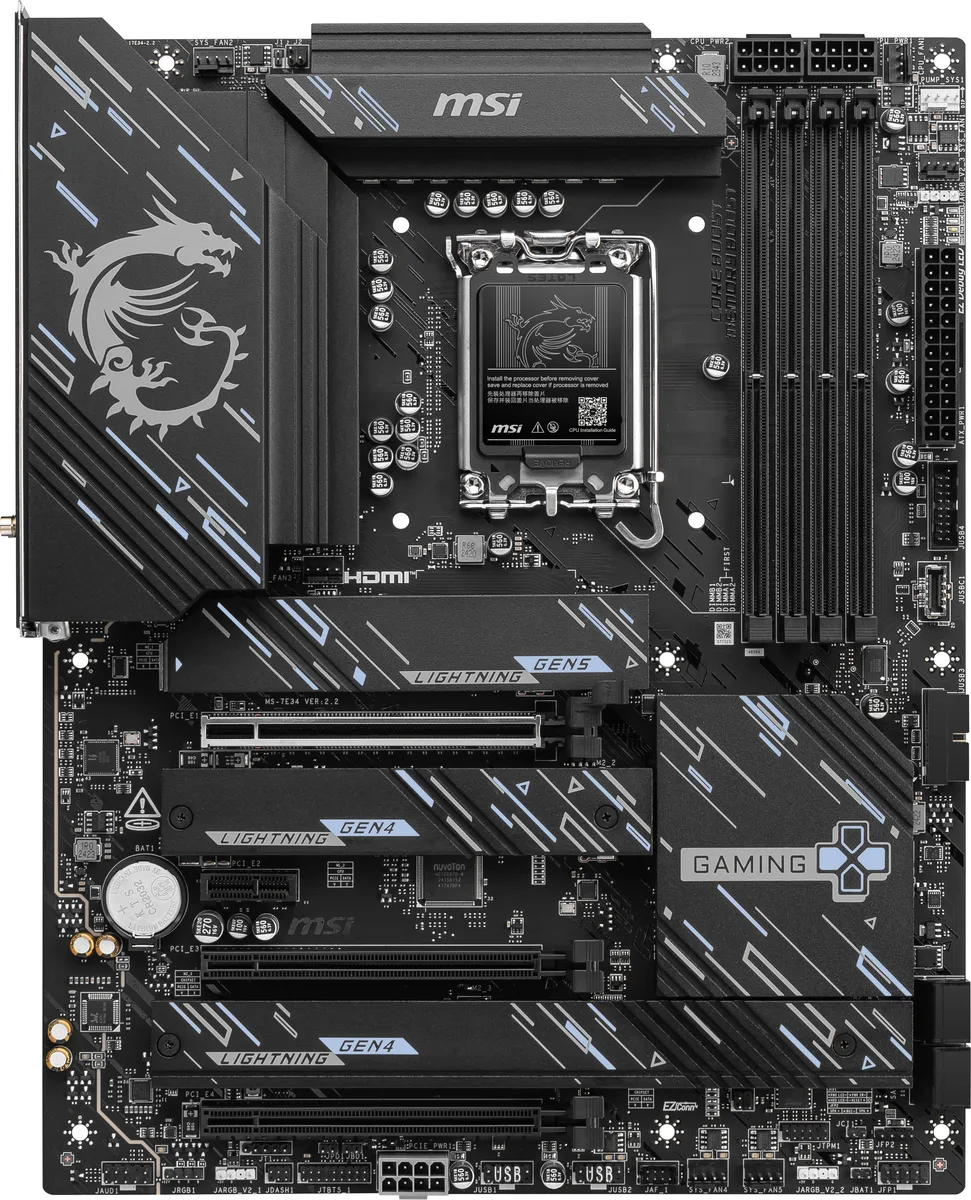

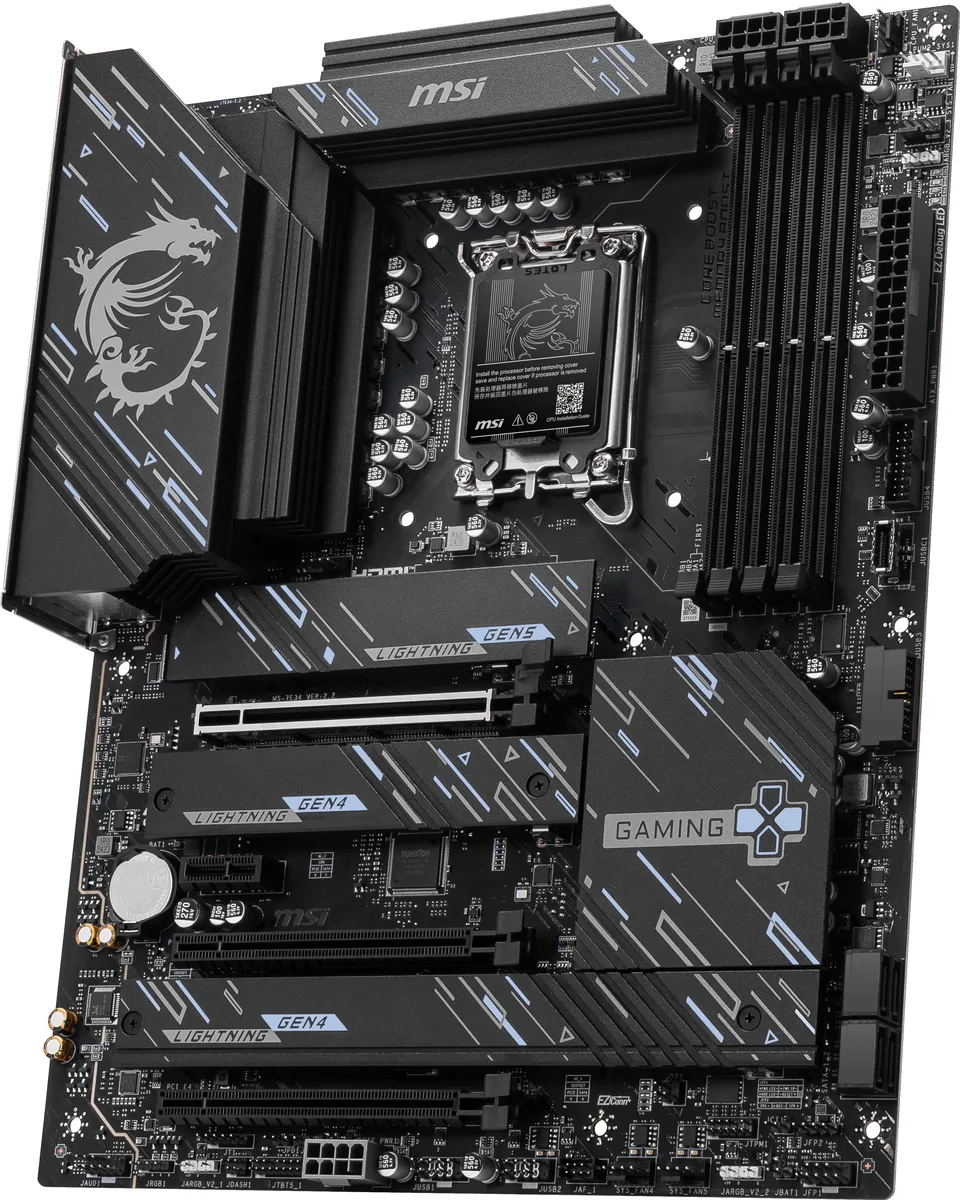

ATX motherboard in dark finish with large heatsinks and rear I/O shield

MSI

MSI Z890 GAMING PLUS WIFI6E Intel motherboard

SKU CH-P15Z-M9A1X MPN Z890 GAMING PLUS WIFI6E

ATX motherboard for Intel Core Ultra Series 2 processors with DDR5 support up to 9200 MT/s, PCIe 5.0 graphics slot, Gen5 M.2, Intel Killer 5G LAN and Wi-Fi 6E

  • CPU Socket TypeLGA 1851
  • CPU TypeIntel Core Ultra Processors (Series 2) (LGA 1851)
  • ChipsetIntel Z890
  • Channel SupportedDual Channel
  • ECC SupportedNon-ECC
  • Buffer SupportedUn-buffered
  • Ready for Intel Core Ultra Series 2 processors on LGA 1851 socket
  • DDR5 memory overclocked to 9200 MT/s for high bandwidth
  • PCIe 5.0 x16 slot and Gen5 M.2 for fastest storage and graphics
  • Intel Killer 5G LAN plus Wi-Fi 6E for low-latency networking
  • 14+1+1+1 Duet Rail power with 55A DrMOS for stable CPU delivery

Z890 ATX motherboard for Intel Core Ultra Series 2

The MSI Z890 GAMING PLUS WIFI6E is an ATX board built around the Intel Z890 chipset and LGA 1851 socket. It supports Intel Core Ultra Processors (Series 2) and dual-channel DDR5 memory with Memory Boost up to 9200+ MT/s when overclocked. A 14+1+1+1 Duet Rail power system with 55A DrMOS and dual 8-pin CPU connectors delivers stable power for demanding workloads.

Suits builders who want PCIe 5.0 graphics

This board fits users who need a single PCIe 5.0 x16 slot for a graphics card and one CPU-attached M.2 Gen5 slot for the fastest storage. Two additional chipset M.2 slots run at PCIe 4.0 x4. Intel Killer 5G LAN and Wi-Fi 6E handle high-speed networking. Systems requiring ECC memory or more than one full-length PCIe 5.0 slot should look at a different platform.

DDR5 9200 MT/s headroom.

Dual-channel DDR5 scales to 9200+ MT/s OC for memory-intensive tasks. The primary M.2_1 slot supports 2280 and 2260 drives at PCIe 5.0 x4, while M.2_2 adds 22110 support at PCIe 4.0. Rear I/O includes one USB 10Gbps Type-C and one USB 10Gbps Type-A for fast peripherals. Bandwidth limits appear when populating multiple high-speed chipset devices simultaneously.

Highlights

  • Ready for Intel Core Ultra Series 2 processors on LGA 1851 socket
  • DDR5 memory overclocked to 9200 MT/s for high bandwidth
  • PCIe 5.0 x16 slot and Gen5 M.2 for fastest storage and graphics
  • Intel Killer 5G LAN plus Wi-Fi 6E for low-latency networking
  • 14+1+1+1 Duet Rail power with 55A DrMOS for stable CPU delivery

Specifications

BrandMSI
CPU Socket TypeLGA 1851
CPU TypeIntel Core Ultra Processors (Series 2) (LGA 1851)
ChipsetIntel Z890
Channel SupportedDual Channel
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
M.2M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
Audio ChipsetRealtek ALC897
Audio Channels7.1 Channels
BluetoothYes

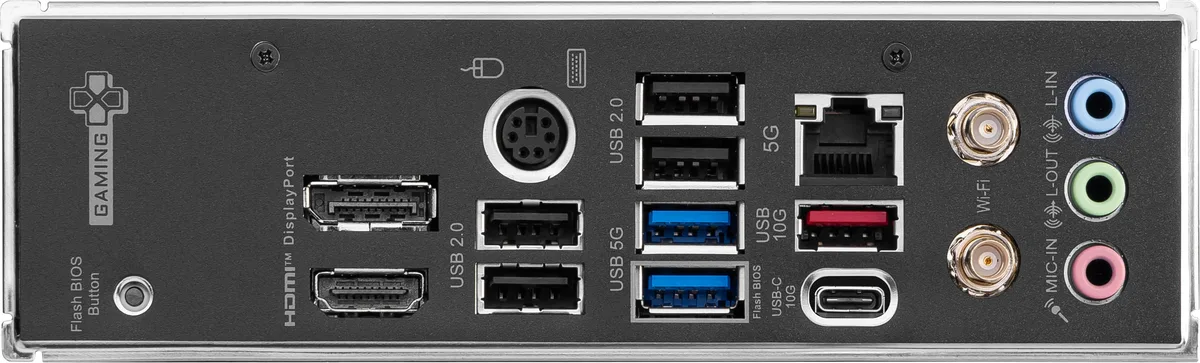

Back I/O Ports4 x USB 2.0
2 x USB 5Gbps Type A
1 x USB 10Gbps Type A
1 x USB 10Gbps Type C
HDMI1 x HDMI
DisplayPort1 x DisplayPort
Form FactorATX
Dimensions (W x L)243.84mm x 304.8mm
Shipping weight2.00 kg
Package size343 × 269 × 76 mm

Questions about this item

What Intel processors fit this motherboard?

The board uses the LGA 1851 socket and is built for Intel Core Ultra Processors (Series 2) on the Z890 chipset.

What is the fastest M.2 slot and which drive sizes does it accept?

The top M.2 slot runs at PCIe 5.0 x4 from the CPU and supports 2280 and 2260 form-factor drives.

How many memory channels are available and what DDR5 speed can be reached?

Dual-channel DDR5 is supported with an overclocked ceiling of 9200 MT/s.
