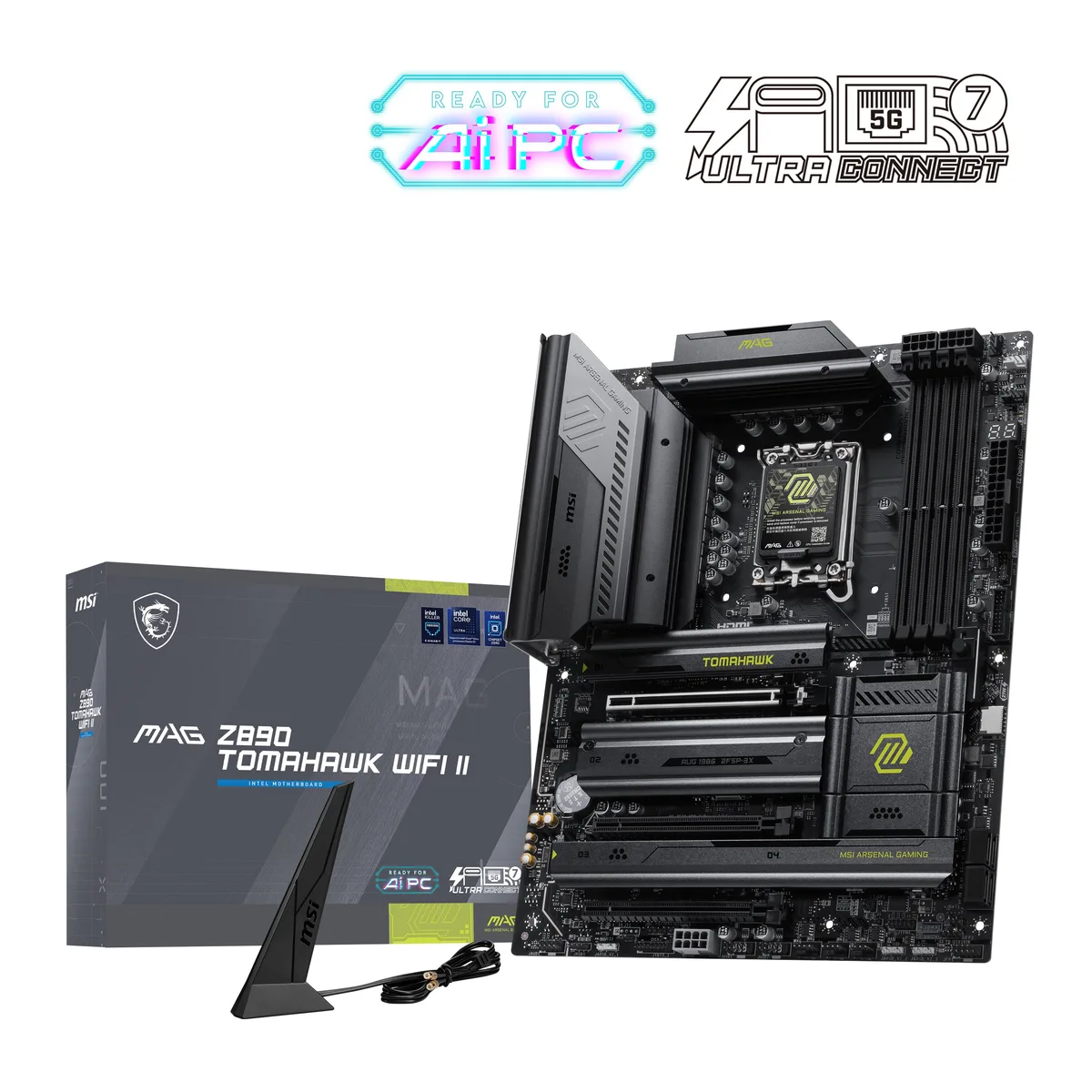

ATX motherboard with dark heatsinks and silver accents

MSI

MSI Z890 TOMAHAWK WIFI II Intel motherboard

SKU CH-DDYW-NKD3E MPN Z890 TOMAHAWK WIFI II

ATX board for Intel Core Ultra Series 2 CPUs with DDR5 9200 support, Wi-Fi 7, Bluetooth 5.4, Thunderbolt 4, 5G LAN, PCIe 5.0 graphics slot and Gen5 M.2, plus 16-phase 90A power and extended heatsinks

  • CPU Socket TypeLGA 1851
  • CPU TypeIntel Core Ultra Processors (Series 2)
  • ChipsetIntel Z890
  • South BridgeIntel Z890
  • Onboard Video ChipsetIntegrated Graphics (CPU dependent)
  • Number of Memory Slots4x288pin (DDR5)
  • Supports Intel Core Ultra Series 2 processors on LGA 1851 socket
  • DDR5 memory up to 9200 MT/s with XMP 3.0 profiles and 256 GB capacity
  • 16-phase duet rail power system with 90 A smart power stages for stable delivery
  • Frozr Guard heatsinks with 7W/mK thermal pads and EZ M.2 Shield Frozr II cooling
  • Wi-Fi 7, Bluetooth 5.4, 5G LAN and Thunderbolt 4 for high-speed connectivity

Socket LGA 1851 ATX board

This Z890 motherboard fits Intel Core Ultra Series 2 processors and uses four DDR5 slots. It targets builders who want a stable platform for gaming or AI workloads without exotic cooling. The 16-phase Duet Rail power system with 90A stages feeds the CPU through dual 8-pin connectors.

EZ DIY installation features

EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and an EZ Antenna simplify assembly. The M.2 shield uses 7W/mK thermal pads and extra choke pads for heat transfer. Frozr Sync headers let you connect CPU, pump and system fans in one place.

256 GB DDR5 headroom

Dual-channel memory runs up to 9200 MT/s with XMP 3.0 profiles on 288-pin modules. Four SATA 6Gb/s ports handle bulk storage while the PCIe 5.0 x16 slot and Lightning Gen 5 x4 M.2 serve the fastest GPUs and drives. Wi-Fi 7, Bluetooth 5.4, 5G LAN and Thunderbolt 4 cover networking.

Highlights

  • Supports Intel Core Ultra Series 2 processors on LGA 1851 socket
  • DDR5 memory up to 9200 MT/s with XMP 3.0 profiles and 256 GB capacity
  • 16-phase duet rail power system with 90 A smart power stages for stable delivery
  • Frozr Guard heatsinks with 7W/mK thermal pads and EZ M.2 Shield Frozr II cooling
  • Wi-Fi 7, Bluetooth 5.4, 5G LAN and Thunderbolt 4 for high-speed connectivity

Specifications

BrandMSI
SeriesARSENAL GAMING
CPU Socket TypeLGA 1851
CPU TypeIntel Core Ultra Processors (Series 2)
ChipsetIntel Z890
South BridgeIntel Z890
Onboard Video ChipsetIntegrated Graphics (CPU dependent)
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 9200
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express 4.0 x162 x PCI Express 4.0 x16
PCI Express x163 x PCI Express x16
PCI Express x42 x PCI Express x4
PCI Slots3 x PCI Slots
Serial ATA (SATA)4 x SATA 6Gb/s
M.24 x M.2 (Support PCIe 5.0 x4 & PCIe 4.0 x4 & SATA)
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC1220P
Audio Channels7.1 Channels
LAN ChipsetIntel Killer E5000
Max LAN Speed5Gbps
Wireless LANWiFi IEEE 802.11 a / b / g / n / ac / ax / be
BluetoothYes

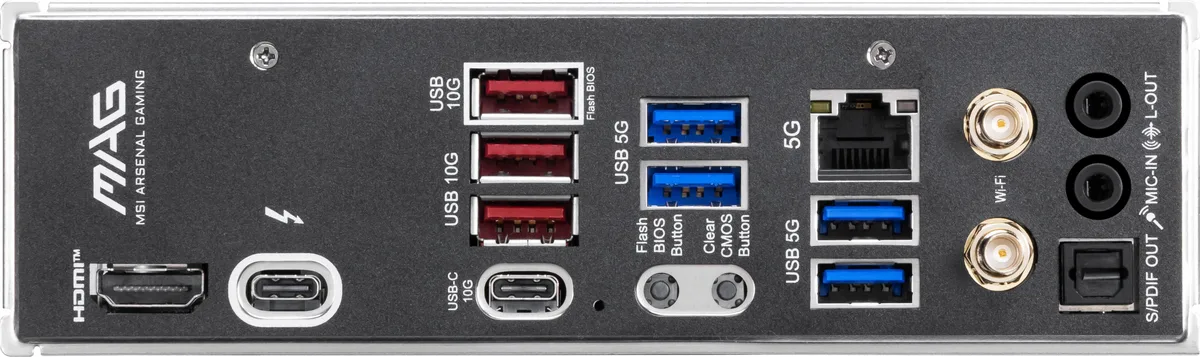

Back I/O Ports4 x USB 5Gbps Type A, 3 x USB 10Gbps Type A, 1 x USB 10Gbps Type C, 1 x Thunderbolt4 port, 1 x HDMI
Video PortsHDMI + Display Port
HDMI1 x HDMI
RJ451 x RJ45
DisplayPort1 x DisplayPort
Thunderbolt Ports1 x Thunderbolt Port
USB 3.17 x USB 3.1
USB 3.07 x USB 3.0
USB 1.1/2.04 x USB 2.0
USB Type-C1 x USB 10Gbps Type-C port, 1 x USB 20Gbps Type-C port
S/PDIF OutYes
Onboard USB4 x USB 2.0 + 2 x USB 3.2 + 1 x USB Type-C® header, with USB 3.2 Gen 2x2
Windows 11Supported
Form FactorATX
LED LightingNone RGB
Dimensions (W x L)243.84mm x 304.8mm
Power Pin24 Pin
Shipping weight2.27 kg
Package size343 × 270 × 70 mm

Questions about this item

How do I confirm the board is running at DDR5 9200 MT/s after enabling XMP 3.0?

Enter the BIOS, load the Intel XMP 3.0 profile, save and restart, then verify the memory frequency reads 9200 MT/s on the POST screen or in the BIOS memory information page.

Which components are included and which must be purchased separately?

The motherboard, I/O shield, EZ Antenna, SATA cables, M.2 screws and documentation are in the box; the Intel Core Ultra Series 2 processor, DDR5 memory modules, graphics card, storage drives and CPU cooler are not included.

Which version of this motherboard should I choose for a build that needs Thunderbolt 4 and Wi-Fi 7?

The single Z890 TOMAHAWK WIFI II model already provides Thunderbolt 4, Intel Killer 5G LAN and Wi-Fi 7 with Bluetooth 5.4, so no alternative version is required for those features.
