MSI

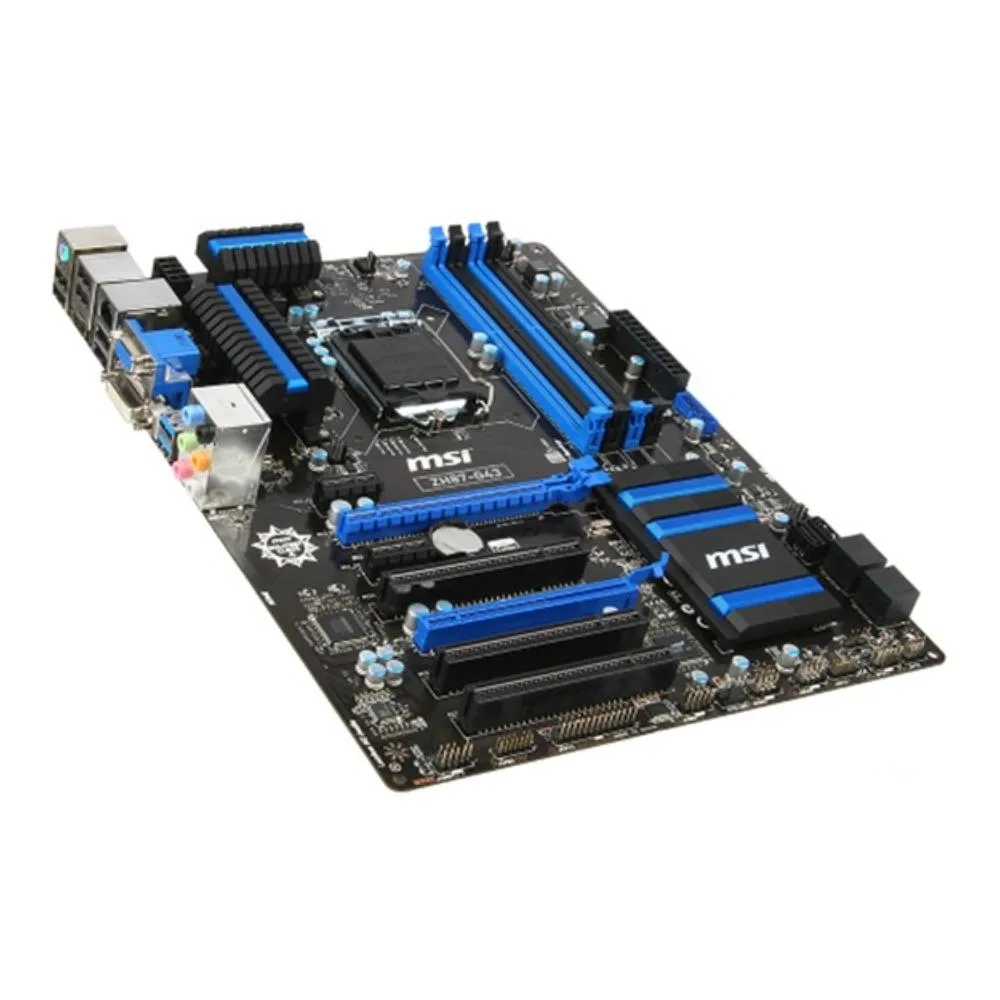

MSI ZH87-G43 Intel H87 LGA 1150 DDR3 32GB ATX Intel motherboard
ATX board with LGA 1150 socket, Intel H87 chipset, 32GB DDR3 max, 7.1 audio, and 10 USB ports
- CPU Socket TypeLGA 1150
- CPU Type4th Generation Intel Core ™ i7/Core ™ i5/Core ™ i3/Pentium/C
- ChipsetIntel H87
- Memory StandardSupport dual-channel DDR3 3000 (overclocking)/2800/2666/2600
- Maximum Memory Supported32GB
- PCI Slots1 PCIe 3.0 x16 slot 1 PCIe 2.0 x16 slot PCI_E4 supports PCIe
- Supports up to 32GB dual-channel DDR3 memory
- PCIe 3.0 x16 slot for high-bandwidth graphics
- Six SATA III ports for fast storage arrays
- 1-channel audio via Realtek ALC892 codec
- Gigabit Ethernet through Realtek 8111E controller
Socket LGA 1150 motherboard for 4th generation
The MSI ZH87-G43 uses the Intel H87 chipset and fits processors with LGA 1150 packaging. It accepts dual-channel DDR3 modules up to a maximum of 32 GB and runs at speeds from 1066 MHz to 3000 MHz with overclocking. The ATX form factor provides expansion room for a full desktop build.
Suits legacy DDR3 systems, not modern platforms
This board fits owners of 4th generation Intel Core i7, i5, i3, Pentium or Celeron CPUs who need to replace or assemble an LGA 1150 system. It provides six SATA III ports, 7.1-channel audio through the Realtek ALC892 codec and Gigabit Ethernet via the Realtek 8111E controller. Users requiring a newer socket or different memory type should select a different motherboard.
Maximum 32 GB DDR3 capacity
Four memory slots support a total of 32 GB of DDR3, which is the hard limit for this platform. Populating all slots with compatible modules reaches that ceiling and determines whether the board meets the memory needs of the intended workload.
Highlights
- Supports up to 32GB dual-channel DDR3 memory
- PCIe 3.0 x16 slot for high-bandwidth graphics
- Six SATA III ports for fast storage arrays
- 1-channel audio via Realtek ALC892 codec
- Gigabit Ethernet through Realtek 8111E controller
Specifications
| Brand | MSI |
|---|---|
| Series | MSI ZH87-G43 |
| Model | MSI ZH87-G43 |
| CPU Socket Type | LGA 1150 |
| CPU Type | 4th Generation Intel Core ™ i7/Core ™ i5/Core ™ i3/Pentium/Celeron processors with Socket 1150 architecture |
| Chipset | Intel H87 |
| Memory Standard | Support dual-channel DDR3 3000 (overclocking)/2800/2666/2600/2400/2133/1866/1600/1333/1066MHz memory |
| Maximum Memory Supported | 32GB |
| PCI Slots | 1 PCIe 3.0 x16 slot 1 PCIe 2.0 x16 slot PCI_E4 supports PCIe 2.0 x4 speeds 2 PCIe 2.0 x1 slots 3 PCI slots |
| SATA RAID | 6XSATA III interface |
| Audio Chipset | Realtek ALC892 Codec - 7.1-channel high-quality sound effects |
| LAN Chipset | 1 PCI Express network port supports 10/100/1000 Fast Ethernet provided by Realtek 8111E |
| Onboard USB | Intel H87 Express Chipset - 4 USB 3.0 ports (2 on the backplane, 2 built-in) - 10 USB 2.0 ports (6 on the backplane, 4 built-in) |
Questions about this item
How do I install the MSI ZH87-G43 into an ATX case without bending the I/O shield?
Mount the supplied chassis I/O back panel into the case cutout first, then lower the board onto the standoffs so the ports slide through the shield; the step people miss is fitting the shield before the board.
What maintenance will the board need after a few years of use?
The included CMOS battery maintains BIOS settings and system time; when the clock drifts or settings reset on cold boot, replace the battery.
What limit appears first when the primary PCIe 3.0 x16 slot runs at full load for long periods?
The single PCIe 3.0 x16 slot shares bandwidth with the chipset; sustained heavy GPU traffic can saturate the link before thermal throttling occurs.
