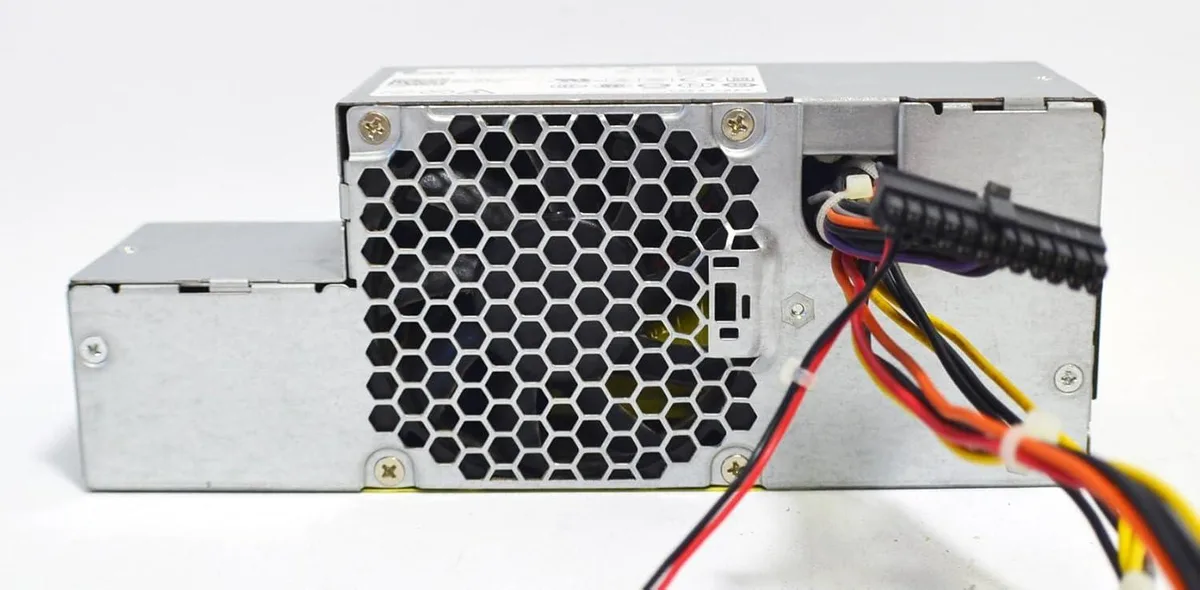

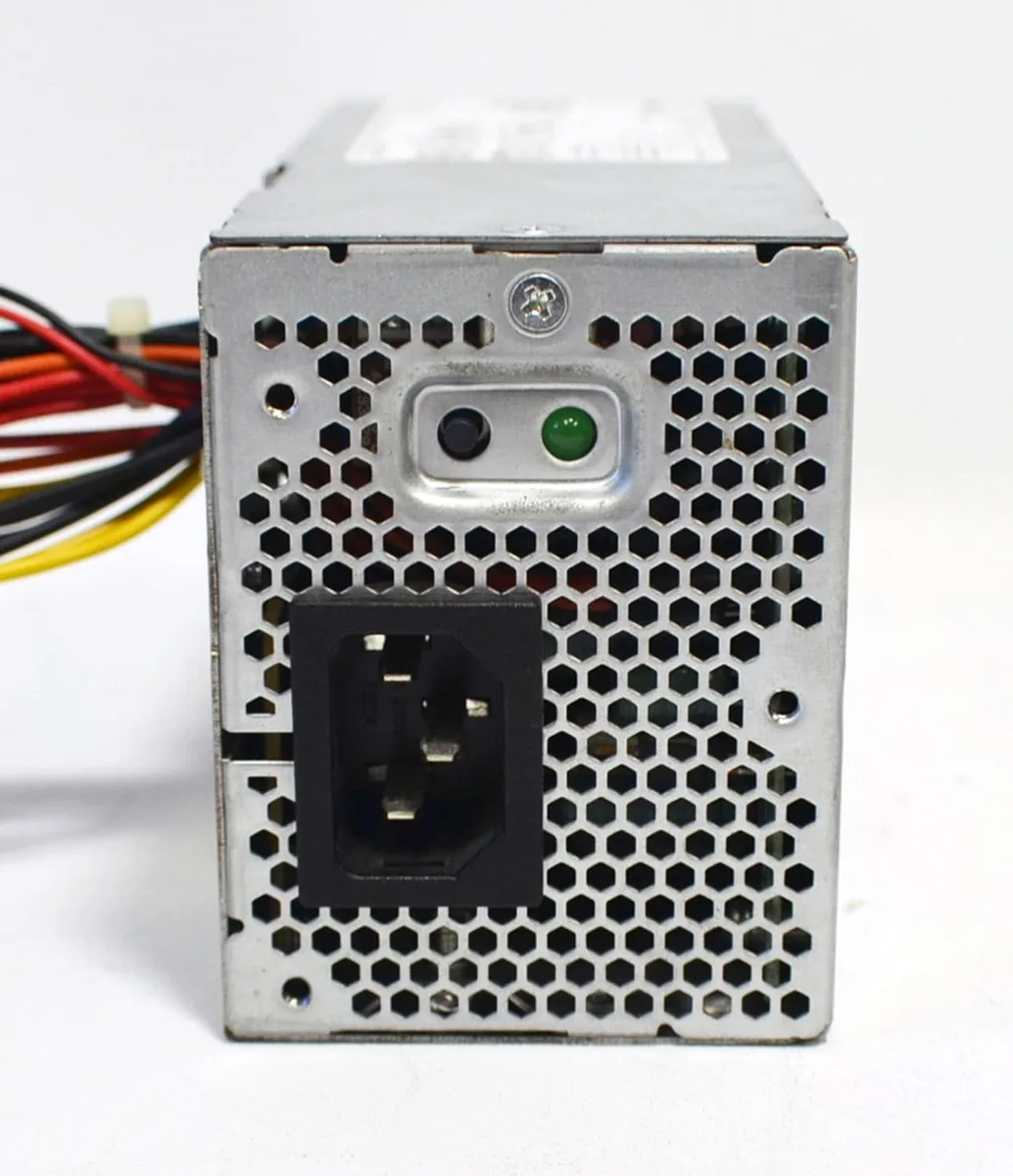

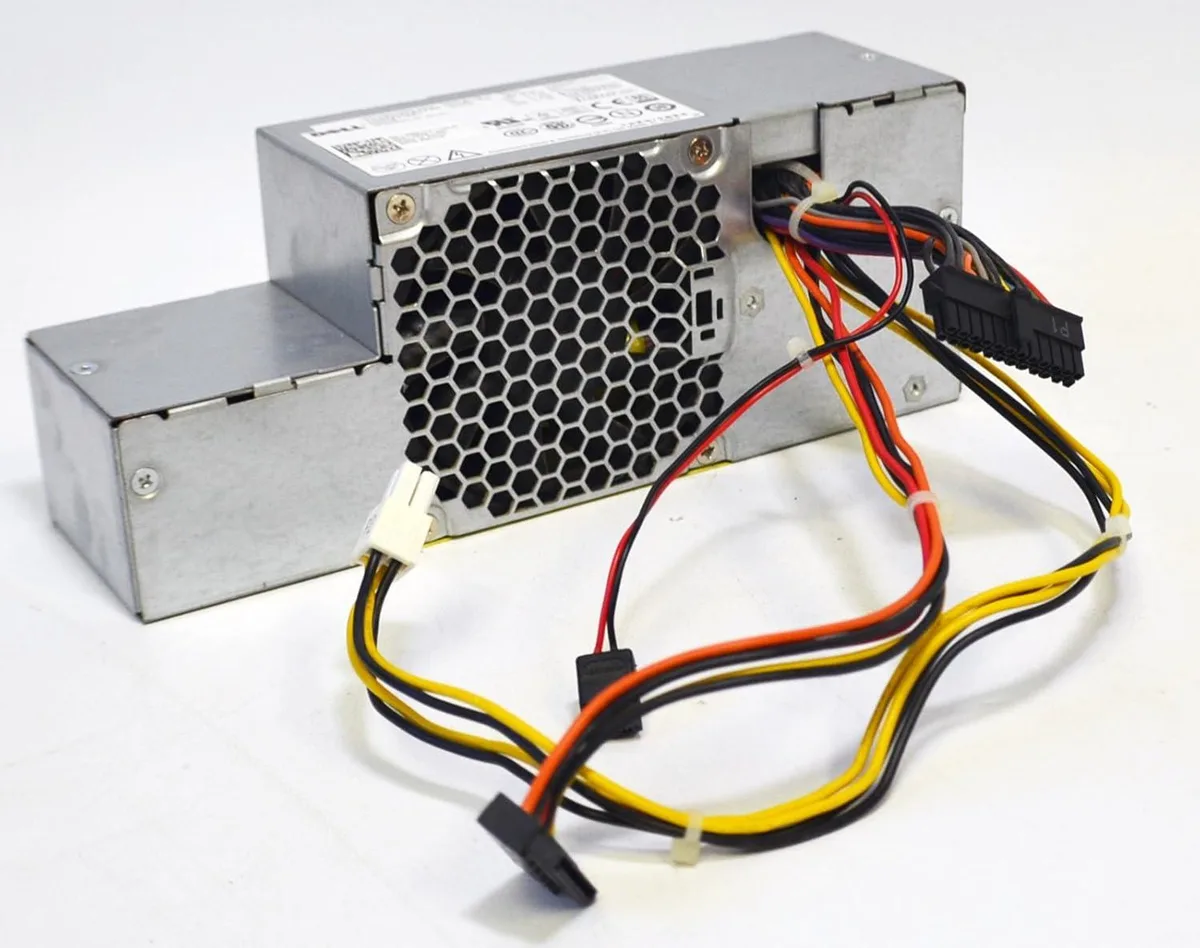

Rectangular metal power supply unit with multiple cable connectors visible

myVolts

myVolts 235W Power Supply for Dell Optiplex 380 760 780 960 SFF

SKU CH-QRX3-9NN3W

235W replacement PSU fits Dell Optiplex 380, 760, 780 and 960 SFF systems with Mini ATX and SATA connectors

  • TypeAT
  • 235W output powers Dell Optiplex 380, 760, 780, 960 SFF systems
  • 100-240V input works worldwide without a voltage switch
  • Six connectors include 24-pin mini ATX, 4-pin ATX, SATA, slimline SATA, 4-pin floppy, 6-pin AUX ATX
  • Replaces Dell part numbers FR610, 6RG54, MPF5F, N6D7N, PW116, RM112, 67T67, R225M, R224M, WU136, H255T, G185T, GPGDV
  • Replaces model numbers F235E-00, L235P-01, H235P-00, H235E-00, D235ES-00

Direct Replacement for Optiplex SFF

This 235W power supply fits Dell Optiplex 380, 760, 780 and 960 Small Form Factor chassis. It delivers 100-240V input and 235W output through a Mini ATX form factor. The unit is new and built to match the original electrical specification.

Replaces Failed OEM Units

It substitutes original part numbers F235E-00, L235P-01, H235P-00, H235E-00 and D235ES-00 plus service codes FR610, 6RG54, MPF5F, N6D7N, PW116, RM112, 67T67, R225M, R224M, WU136, H255T, G185T and GPGDV. The swap is worthwhile when the factory supply no longer holds voltage under load or has developed coil whine.

Connectors for Legacy Builds

The harness provides 1x 24-Pin Mini ATX, 1x 4-Pin ATX, 1x 6-Pin AUX ATX, 1x SATA, 1x Slimline SATA and 1x 4-Pin floppy drive connector. This covers the motherboard, one SATA drive, one slimline optical drive and a legacy floppy device. Builds needing additional SATA power or PCIe graphics connectors cannot use this unit.

Highlights

  • 235W output powers Dell Optiplex 380, 760, 780, 960 SFF systems
  • 100-240V input works worldwide without a voltage switch
  • Six connectors include 24-pin mini ATX, 4-pin ATX, SATA, slimline SATA, 4-pin floppy, 6-pin AUX ATX
  • Replaces Dell part numbers FR610, 6RG54, MPF5F, N6D7N, PW116, RM112, 67T67, R225M, R224M, WU136, H255T, G185T, GPGDV
  • Replaces model numbers F235E-00, L235P-01, H235P-00, H235E-00, D235ES-00

Specifications

TypeAT

Questions about this item

Will the 24-pin mini ATX connector fit my Optiplex 760 SFF?

Yes, the 24-pin mini ATX connector matches the motherboard socket on Optiplex 380, 760, 780 and 960 SFF chassis.

Which screw holes line up when I slide the unit into the 380 SFF bay?

The supply uses the standard Dell SFF mounting tabs; align the rear flange first, then press until the side latch clicks.

Does the 6-pin AUX ATX lead need periodic inspection?

Check the 6-pin AUX ATX connector for dust buildup during routine cleaning; replace the whole unit if voltages drift under load.
