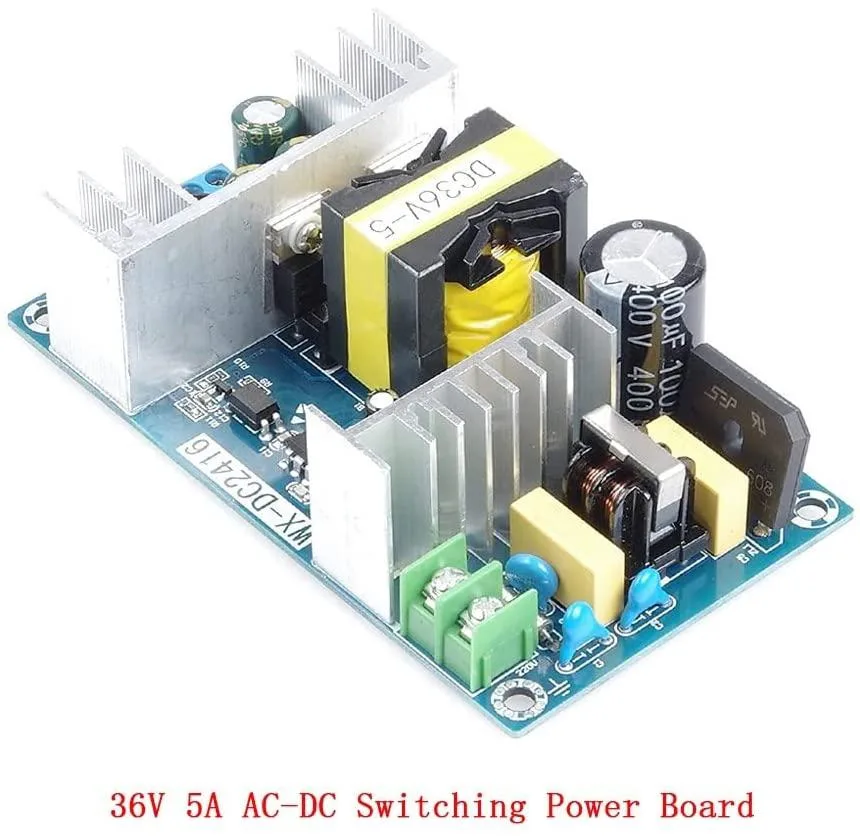

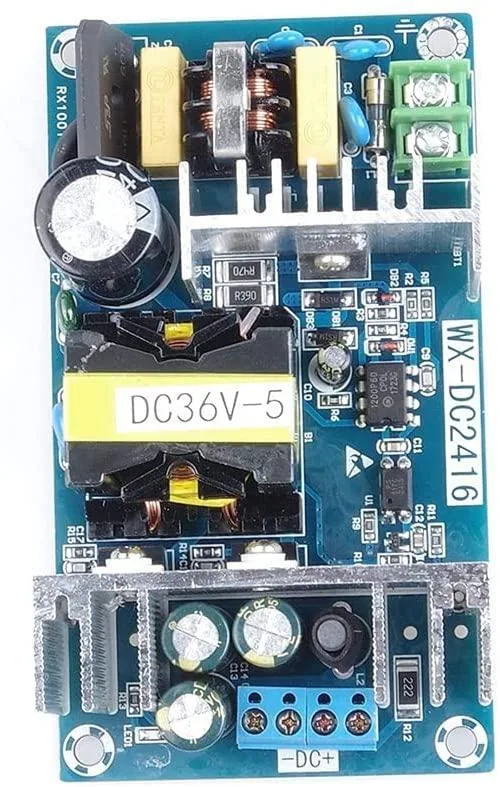

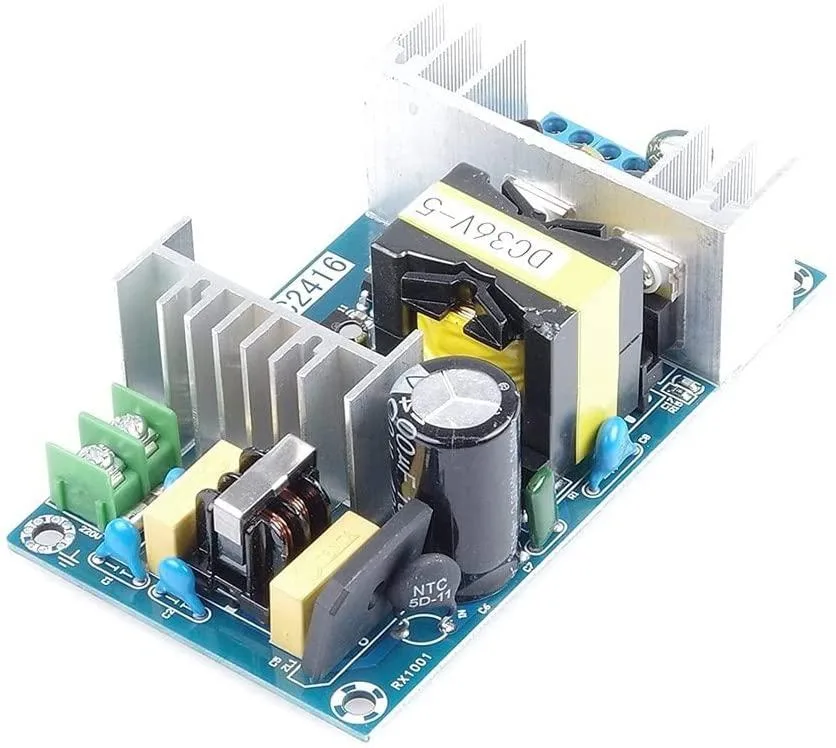

Open-frame switching power supply board with exposed components and screw terminals

myVolts

myVolts 36V 5A 180W AC-DC Power Supply

SKU CH-XHQ4-CT9JG

Converts 85 to 265 V AC at 50 or 60 Hz into 36 V DC at up to 5 A with over-voltage and over-current protection

  • TypeAT
  • Delivers 36 V DC at up to 5 A for demanding loads
  • Wide AC 85–265 V input works on global mains without adapters
  • Pulse-width modulation keeps output stable across 50 Hz and 60 Hz supplies
  • Over-voltage and over-current protection guards connected equipment from faults
  • Pure copper transformer and low-resistance transistors cut heat for reliable continuous operation

36 V 5 A power supply for industrial and lab use

This AC-DC module converts mains input from 85 V to 265 V at 50 Hz or 60 Hz into a regulated 36 V DC output rated at 5 A. It suits engineers, technicians and hobbyists who need a compact switched-mode source for automation rigs, test benches or LED installations. Average output is 150 W with a 220 W peak capability.

Continuous 180 W limit and thermal design

The unit delivers 180 W continuously and can reach 220 W for short periods, so sustained loads above 180 W will trigger protection or reduce lifespan. Pulse-width modulation keeps ripple low, but the board has no fan; adequate airflow around the copper transformer is required to maintain the stated stability and low failure rate.

Check mains voltage range and protection needs

Verify that your local supply sits within the 85 V to 265 V window and that the 36 V 5 A rating matches the device you intend to power. The built-in over-voltage and over-current circuits protect the module, yet downstream equipment may still need its own fusing or crowbar circuit for full safety compliance.

Highlights

  • Delivers 36 V DC at up to 5 A for demanding loads
  • Wide AC 85–265 V input works on global mains without adapters
  • Pulse-width modulation keeps output stable across 50 Hz and 60 Hz supplies
  • Over-voltage and over-current protection guards connected equipment from faults
  • Pure copper transformer and low-resistance transistors cut heat for reliable continuous operation

Specifications

TypeAT

Questions about this item

Which power rating should I pick — the 150 W average or the 220 W peak?

The unit delivers a continuous 150 W average load; the 220 W figure is a short-term maximum, so size your build for the 150 W rating.

What does the 180 W output mean when the supply is installed in a system?

It provides a steady 36 V at up to 5 A, giving 180 W of usable DC power for your connected equipment.

How does the AC 85–265 V input range affect real-world use?

The wide 85–265 V input at 50/60 Hz lets the supply run on mains voltages worldwide without manual switching.
