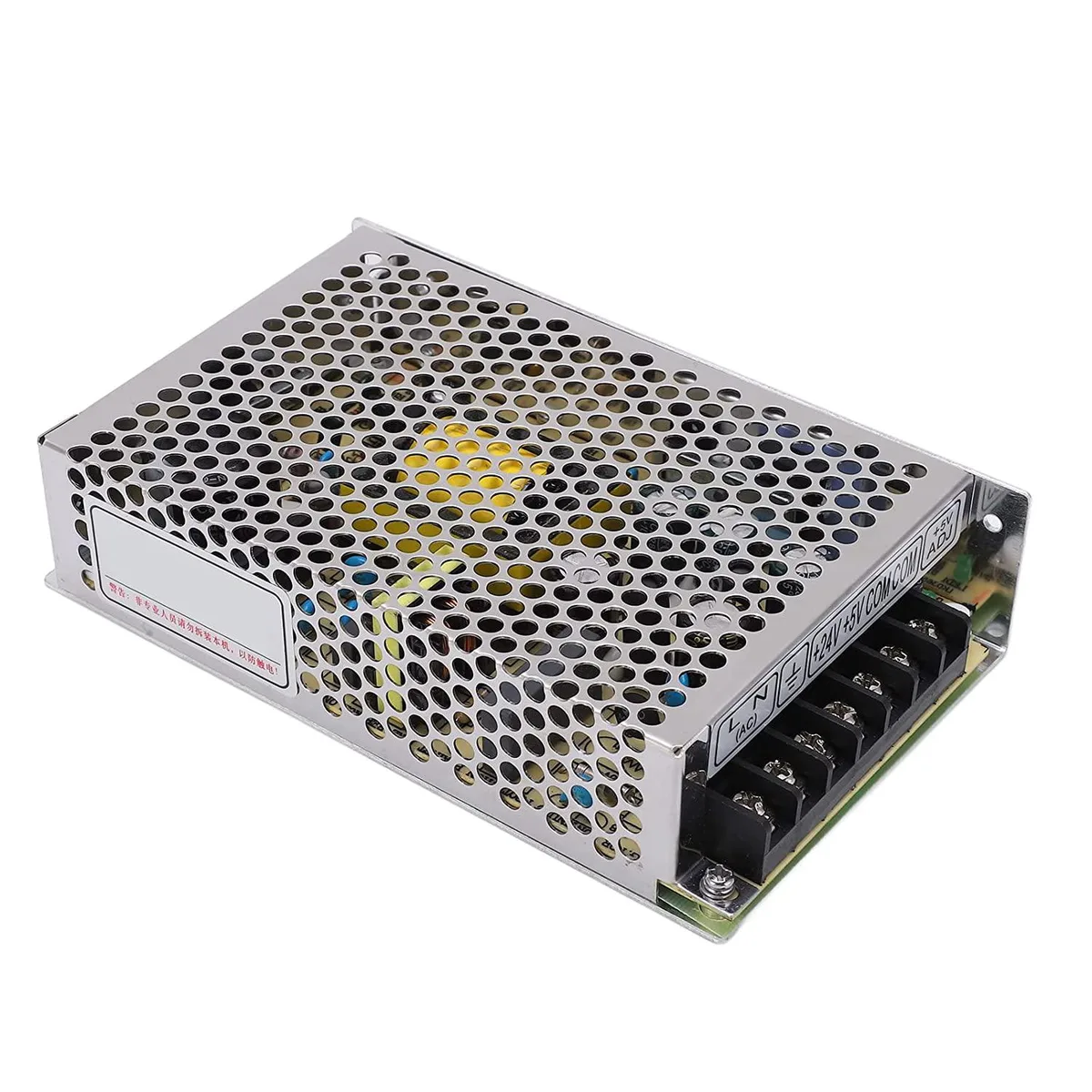

Silver aluminium box with two output terminals and protective cover

myVolts

myVolts D-60B 5V 24V double-output power supply

SKU CH-RC70-6BVBD MPN D-60B

A dual-output switching power supply delivering 5V up to 3A and 24V up to 1.8A from 100-240V AC input, with overload protection and an aluminum alloy case for heat dissipation

  • TypeAT
  • Dual 5 V and 24 V outputs power mixed-voltage gear
  • 100–240 V input works on mains worldwide
  • Overload cut-off at 105–150 % protects connected devices
  • Aluminium alloy shell resists wear and speeds heat dissipation
  • Junction-box cover blocks dust and prevents accidental contact

Dual-output DC supply for machinery

The myVolts D-60B delivers 5V at up to 3A and 24V at up to 1.8A from a 100V to 240V AC input. It is built for electronic machinery that requires two separate DC rails in a single unit. The aluminium-alloy housing provides structural rigidity and passive cooling through its vented design. A fitted junction-box cover reduces dust ingress and guards against accidental contact.

Sustained-load behaviour and protection

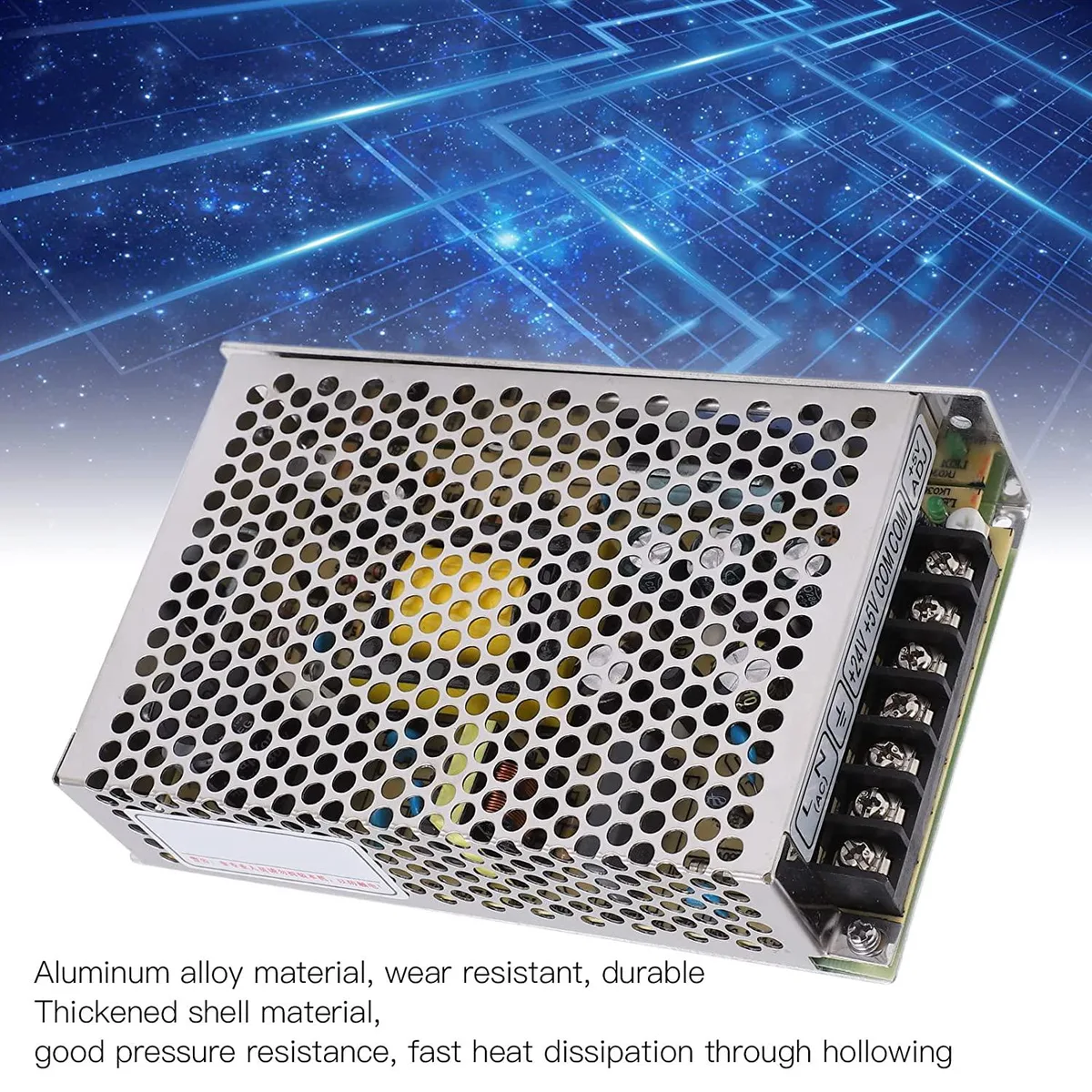

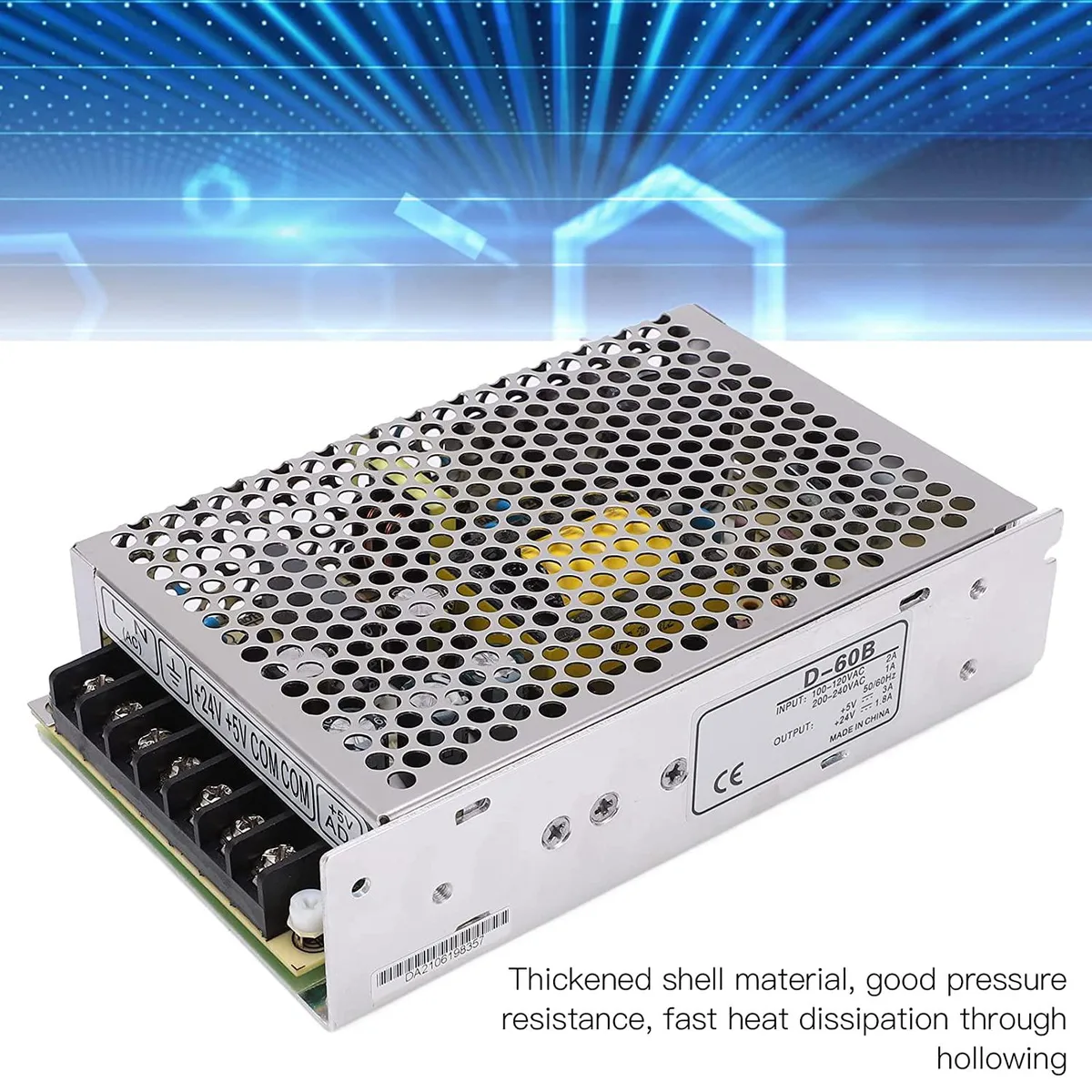

Overload protection trips between 105% and 150% of rated output and recovers automatically once the fault clears. The supply is rated for continuous operation from -10°C to +50°C, so it maintains output during extended shifts in industrial environments. Thickened casing material and hollowed ventilation channels dissipate heat without forced airflow. Stable regulation is preserved across the full temperature range.

Replaces legacy AT-style units

This unit replaces older AT-type DC supplies that have failed or drifted out of specification. The dual-voltage layout lets one device substitute for two separate adapters, simplifying wiring in retrofit projects. The upgrade is worthwhile when equipment demands both 5V and 24V rails with automatic overload recovery. Buyers who need a single-voltage source or higher current on either rail should look elsewhere.

Highlights

  • Dual 5 V and 24 V outputs power mixed-voltage gear
  • 100–240 V input works on mains worldwide
  • Overload cut-off at 105–150 % protects connected devices
  • Aluminium alloy shell resists wear and speeds heat dissipation
  • Junction-box cover blocks dust and prevents accidental contact

Specifications

TypeAT

Questions about this item

How much heat does the D-60B produce when running continuously at full load?

The aluminium-alloy chassis uses a hollowed design for fast heat dissipation and operates reliably from -10 °C to +50 °C ambient temperature.

What mains cable do I need to connect the D-60B to a wall socket?

The supply accepts 100 V–240 V AC input; a suitable mains lead for your region is required but not supplied.

Can the 5 V and 24 V outputs of the D-60B power legacy 5 V logic boards and 24 V industrial modules at the same time?

Yes, the dual-output design delivers up to 3 A at 5 V and 1.8 A at 24 V simultaneously with automatic overload recovery.
