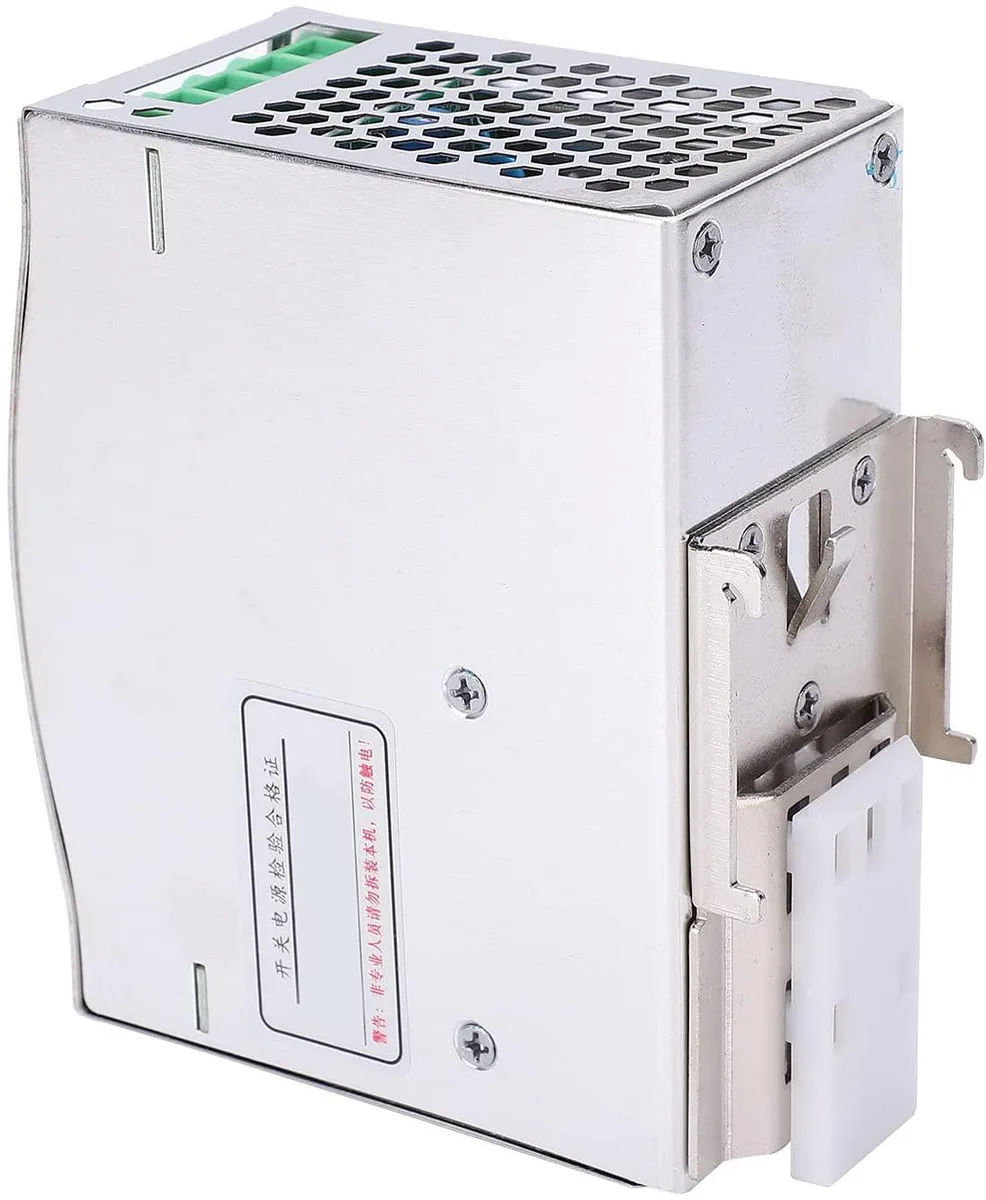

Rectangular silver aluminium DIN-rail power supply with ventilation slots, 55.5 by 125.2 by 100mm

myVolts

myVolts DR-75-12 12V 6.3A DIN-Rail Power Supply

SKU CH-9YCY-ZCNT5 MPN DR-75-12

Compact DIN-rail switching supply delivers 12 V at 6.3 A from 100-240 VAC input with overload, overvoltage and short-circuit protection in a 55.5 x 125.2 x 100 mm aluminium alloy housing

  • TypeAT
  • Delivers 12V at 6.3A for reliable equipment power
  • Wide 100-240VAC input suits global mains supplies
  • Aluminium alloy housing resists impact and aids heat dissipation
  • Built-in overload, overvoltage and short-circuit protection safeguards connected loads
  • Compact 55.5 x 125.2 x 100mm DIN-rail form factor fits tight cabinets

12V DIN-Rail Supply for Industrial Panels

The myVolts DR-75-12 is a regulated switching power supply that delivers 12V at 6.3A from a 100-240VAC input. It mounts on a standard DIN rail and fits inside small chassis or narrow enclosures. The aluminium alloy housing provides mechanical strength and flame-retardant insulation for control cabinets and automation equipment.

Continuous 75W Output with Triple Protection

Under sustained load the unit maintains its rated 12V output while built-in overload, overvoltage and short-circuit circuits protect connected devices. Ventilation holes on the top cover promote airflow so the supply runs at a low working temperature for long operating periods. The aluminium shell adds heat dissipation without external heatsinks.

Snap-On Rail Mount for Tight Spaces

The compact 55.5 x 125.2 x 100mm body clips onto the rail in seconds and leaves ample wiring room in crowded panels. Installers should verify that the 2A input current matches the upstream breaker and that the 12V 6.3A limit covers every connected load. No tools are required beyond a screwdriver for the terminal blocks.

Highlights

  • Delivers 12V at 6.3A for reliable equipment power
  • Wide 100-240VAC input suits global mains supplies
  • Aluminium alloy housing resists impact and aids heat dissipation
  • Built-in overload, overvoltage and short-circuit protection safeguards connected loads
  • Compact 55.5 x 125.2 x 100mm DIN-rail form factor fits tight cabinets

Specifications

TypeAT

Questions about this item

How much heat or noise does the 12 V 6.3 A supply produce when it runs continuously?

The aluminium-alloy case has small ventilation holes and a hollow design that dissipates heat so the unit stays at a low working temperature during 24-hour operation; no fan is mentioned, so running noise is minimal.

What additional items are required before the DR-75-12 can power a load?

You need a DIN rail that matches the unit’s 55.5 x 125.2 x 100 mm footprint and an AC mains cable suitable for the 100-240 VAC input rated at 2 A.

Will the 12 V output work reliably with older 12 V equipment I already own?

Yes — the regulated 12 V 6.3 A output includes overload, over-voltage and short-circuit protection, so legacy 12 V gear receives clean, protected power within the same voltage rail.
