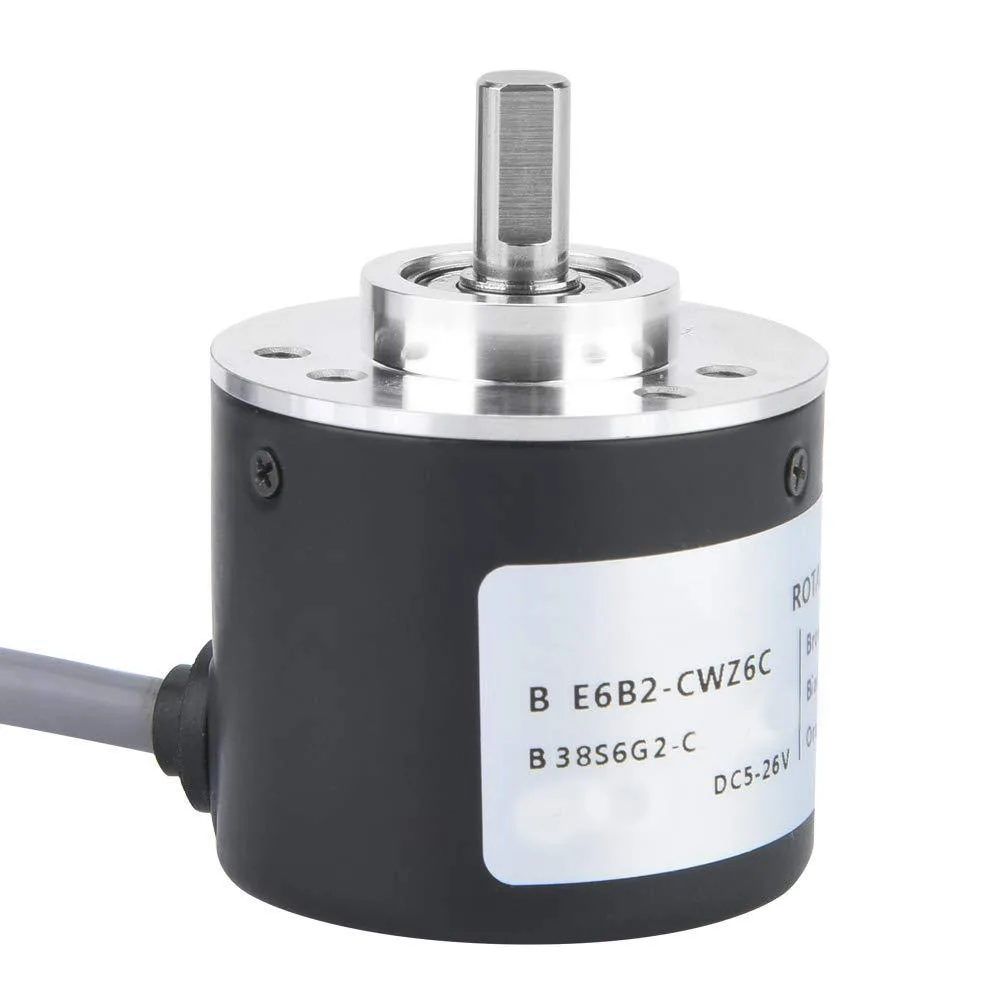

Small metal cylindrical encoder, 38 mm diameter, stainless spindle, 2 m cable

myVolts

myVolts E6B2-CWZ6C 38 mm incremental encoder power supply

SKU CH-YYQB-8V0F1 MPN E6B2-CWZ6C

38 mm incremental encoder with stainless spindle, internal ASIC, DC 5–26 V supply, short-circuit and reverse-wiring protection, and selectable resolution up to 5000 P/R

  • TypeAT
  • 38 mm diameter fits tight machine spaces
  • DC 5–26 V input works with common control voltages

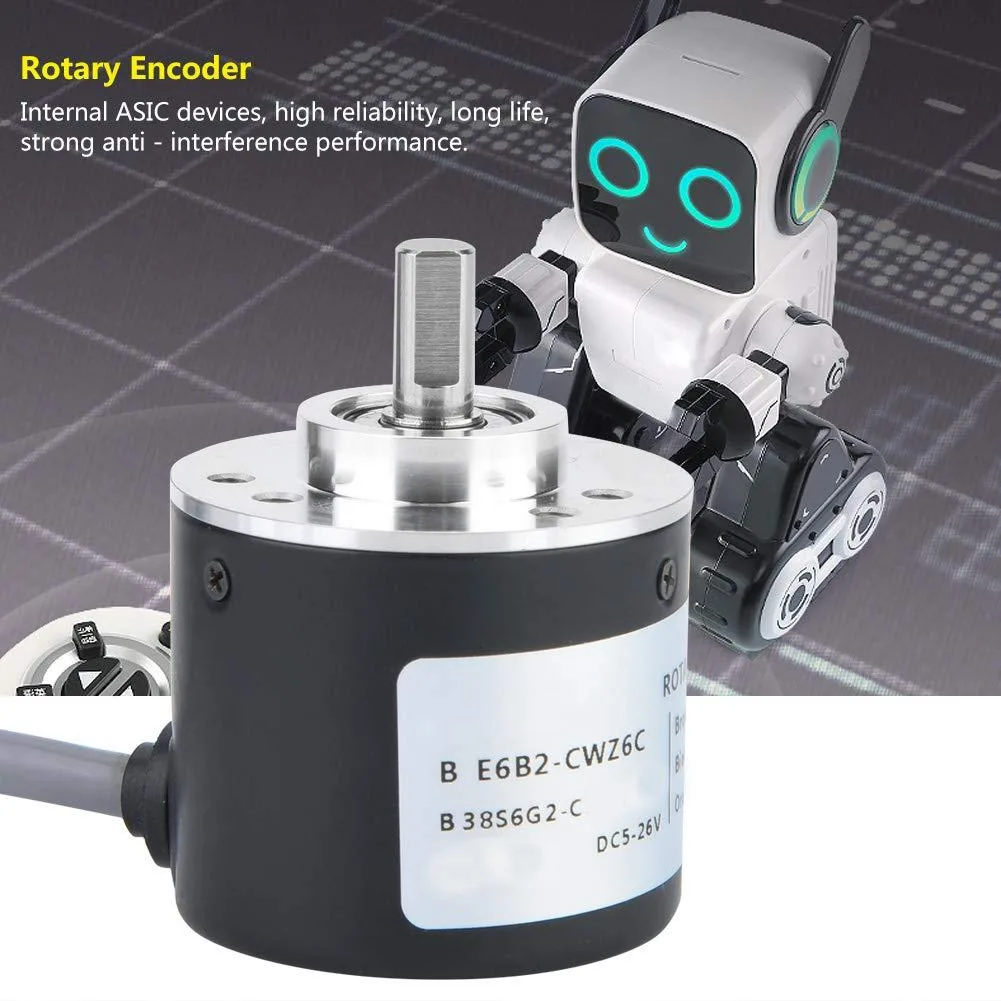

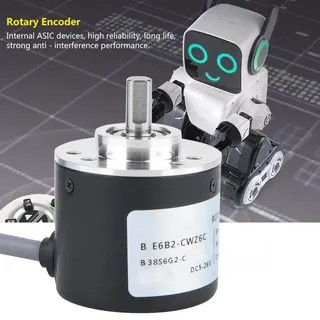

  • ASIC design gives strong noise immunity
  • circuit and reverse-wiring protection prevents damage
  • 100 to 5000 PPR options match motion resolution needs

38 mm Incremental Encoder Power Supply

The myVolts E6B2-CWZ6C is a compact incremental encoder designed for motion control systems that need reliable position feedback. It suits engineers and technicians integrating rotary sensing into automation equipment, robotics, or CNC machinery where a 38 mm diameter housing fits the mechanical envelope.

Installation and Common Issues

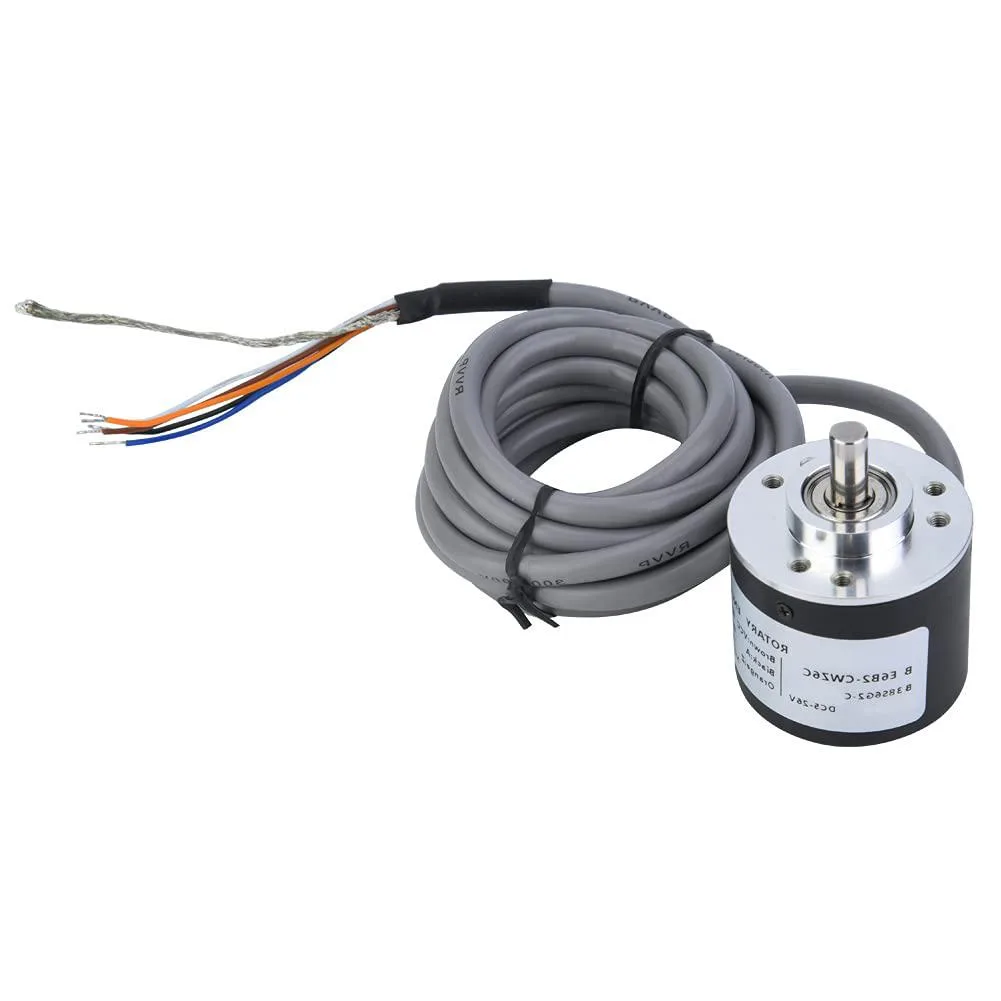

The unit’s small size, light weight, and compact structure allow straightforward mounting in tight spaces. A stainless steel spindle and metal shell provide solid impact resistance during handling. The 2 m wiring harness uses colour-coded leads: brown for DC 5–26 V positive, blue for 0 V negative, and black for signal output. Miswiring the supply polarity is prevented by built-in reverse wiring protection, while load short circuit protection guards the output stage against accidental shorts.

Voltage Range and Output Limits

The encoder operates from a DC 5 V to 26 V supply in open collector output mode. It supports multiple output formats including voltage, collector, complementary, push pull, long line drive, differential, and fork outputs across A, B, and Z phases. Resolution options range from 100 to 5000 pulses per revolution. Mechanical loading is rated at 30 N radial and 20 N axial thrust on the 6 mm shaft diameter.

Highlights

  • 38 mm diameter fits tight machine spaces
  • DC 5–26 V input works with common control voltages
  • ASIC design gives strong noise immunity
  • circuit and reverse-wiring protection prevents damage
  • 100 to 5000 PPR options match motion resolution needs

Specifications

TypeAT

Questions about this item

How do I confirm the encoder is working after wiring the brown and blue lines to a DC supply?

Apply DC5–26V across brown (positive) and blue (negative), rotate the 6 mm shaft and verify clean A, B, Z pulses at the chosen resolution such as 600 or 1024 pulses per revolution.

What comes in the box and what must I source separately?

The encoder body with 2 m flying leads is included; you must supply a DC5–26V power source and any mating connector or terminal block for the wiring.

Which resolution option should I choose for my application?

Select from 100, 200, 300, 360, 400, 500, 600, 1000, 1024, 1200, 2000, 2500, 3600 or 5000 pulses per revolution to match the positional granularity your controller requires.
