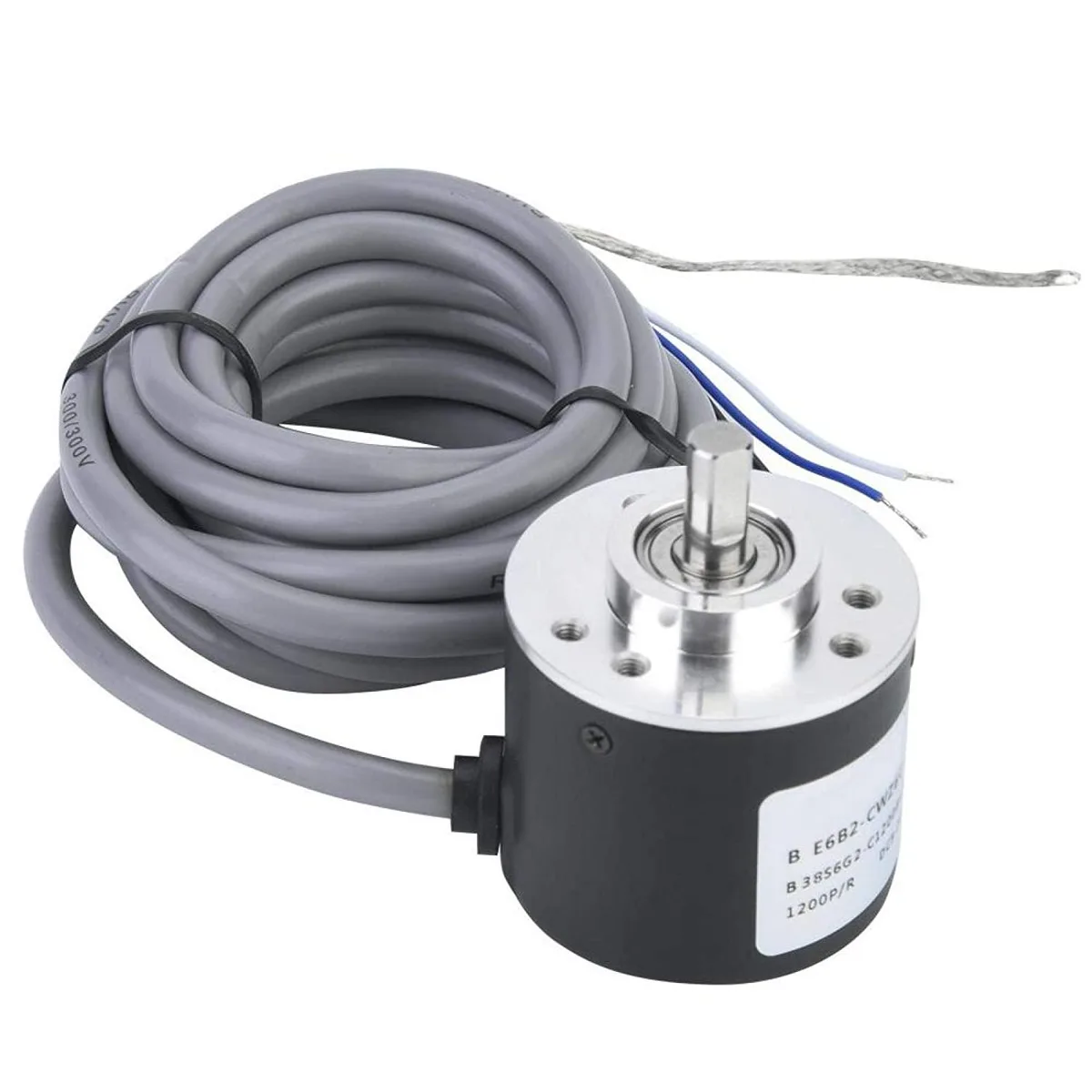

Small 38 mm metal encoder with 2 m cable, stainless spindle, alloy shell

myVolts

myVolts E6B2-CWZ6C 38mm encoder power supply

SKU CH-Q1EM-RGA7T MPN E6B2-CWZ6C

38 mm incremental encoder with 2 m cable, DC 5–26 V supply, and selectable resolution up to 5000 pulses per revolution

  • TypeAT
  • High reliability from internal ASIC devices
  • 38 mm diameter suits tight installations
  • Stainless steel spindle handles 30 N radial load
  • Reverse wiring and short-circuit protection built in
  • 2 m cable with DC 5 – 26 V supply range

What it is

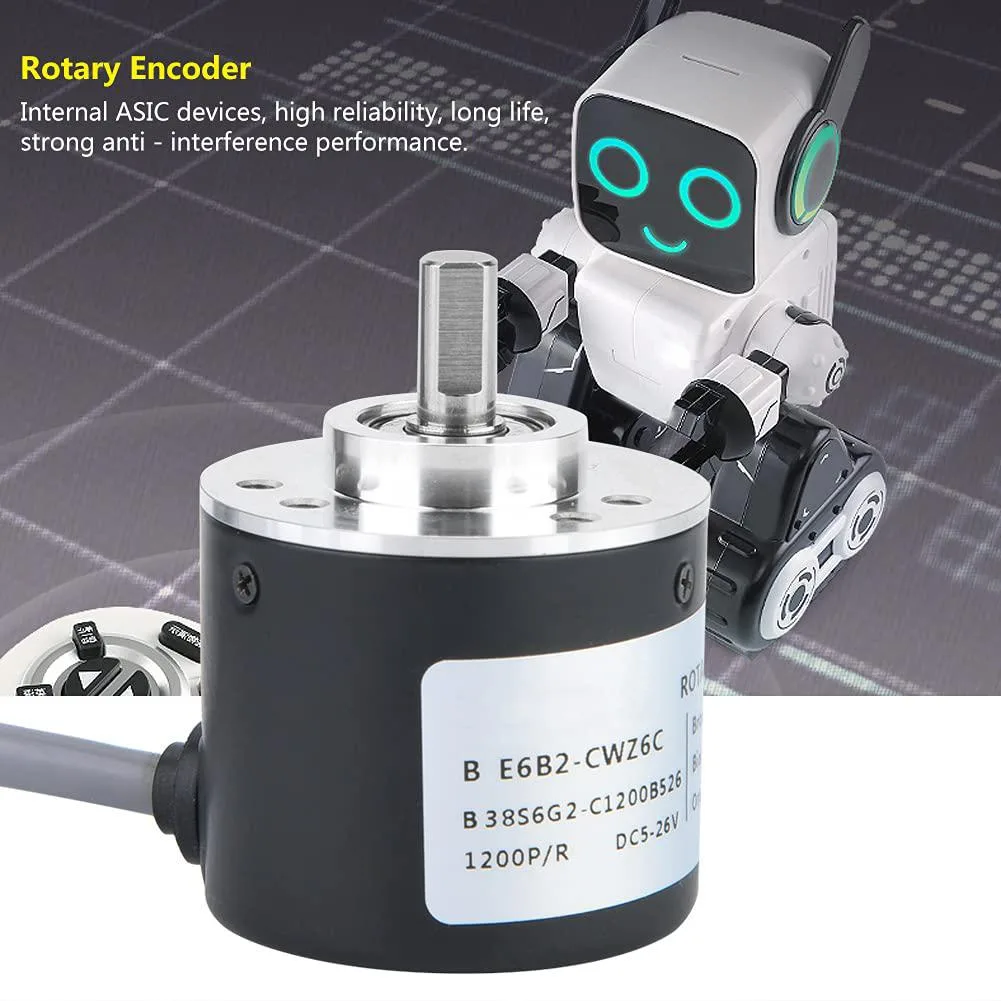

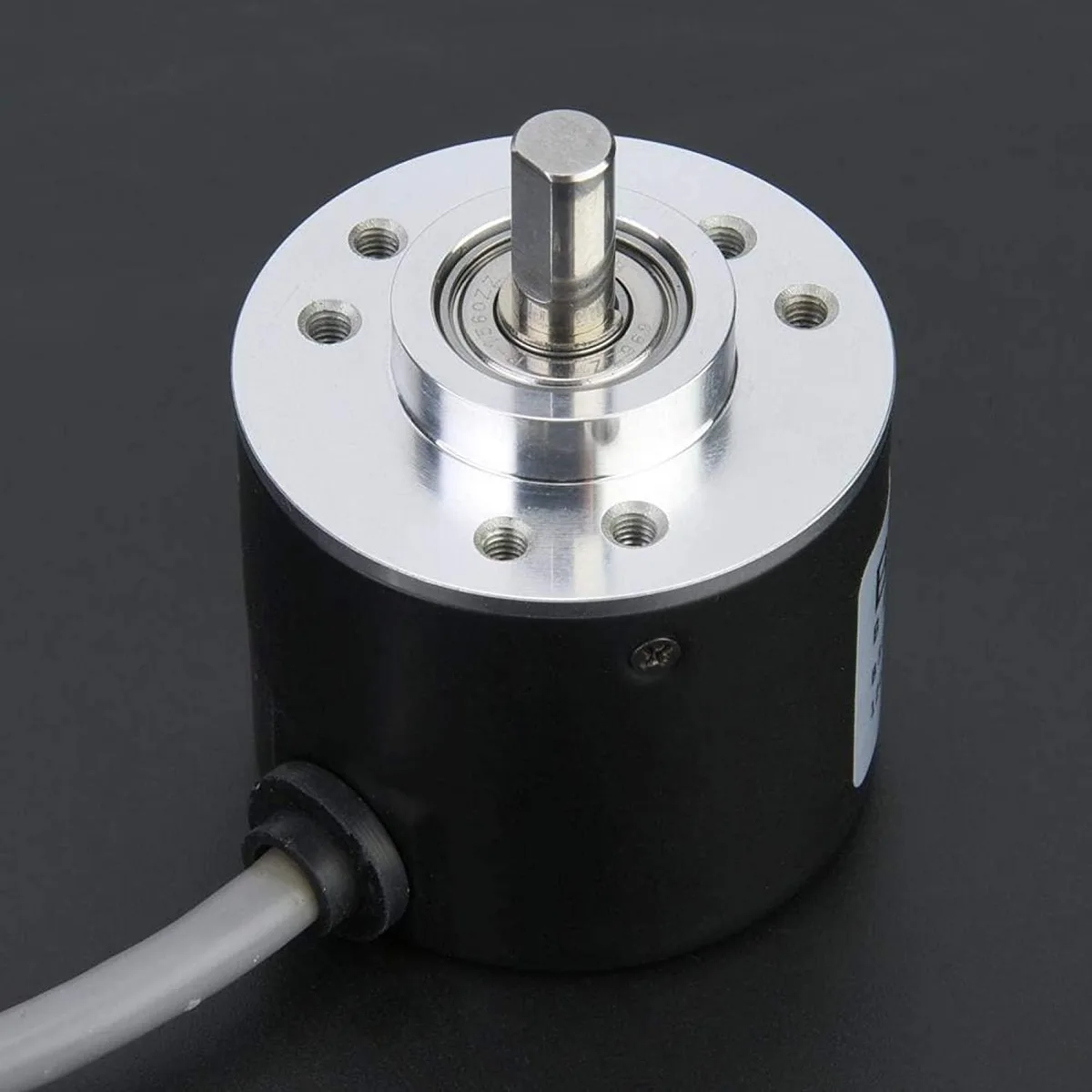

The myVolts E6B2-CWZ6C is a 38 mm diameter incremental encoder with internal ASIC devices for high reliability and strong anti-interference performance. It suits engineers and integrators who need precise position feedback in motion-control or automation systems. A stainless-steel spindle and metal shell provide solid impact resistance. The unit offers selectable resolutions from 100 to 5000 pulses per revolution and multiple output modes including voltage, collector, complementary, push-pull, long-line drive, differential and fork outputs.

What to check

Verify that your controller accepts DC 5 to 26 V open-collector input and can handle the chosen output phase configuration of A, B and Z signals. Confirm the 2 m cable length reaches your termination point without extension. Ensure the 6 mm thrust shaft diameter matches your coupling or mounting hardware. Check that axial loads stay within 30 N and thrust loads within 20 N for the application. The wiring uses brown for positive supply, blue for ground and black for signal lines.

Thermals noise power

The compact encoder draws minimal current from the DC 5 to 26 V supply and generates negligible heat during normal operation. No active cooling is required and the solid metal housing dissipates any warmth passively. Electrical noise is suppressed by the internal ASIC design and the provided reverse-wiring and short-circuit protection. Acoustic noise is absent because there are no moving fan or pump components. Power consumption remains low across the full resolution range.

Highlights

  • High reliability from internal ASIC devices
  • 38 mm diameter suits tight installations
  • Stainless steel spindle handles 30 N radial load
  • Reverse wiring and short-circuit protection built in
  • 2 m cable with DC 5 – 26 V supply range

Specifications

TypeAT

Questions about this item

What comes in the box with the E6B2-CWZ6C encoder and what must be sourced separately?

The unit ships with a 2 m cable already attached; you only need to provide a DC 5 – 26 V power source and any mounting hardware your application requires.

Which resolution option should I choose for the E6B2-CWZ6C encoder?

Available resolutions are 100, 200, 300, 360, 400, 500, 600, 1000, 1024, 1200, 2000, 2500, 3600 or 5000 pulses per revolution; pick the value that matches your controller's required positional granularity.

What does the 38 mm diameter mean when the encoder is installed in a machine?

The 38 mm outer diameter and 6 mm thrust shaft determine the mounting footprint and coupling size; the encoder handles 30 N radial and 20 N axial loads within that compact profile.
