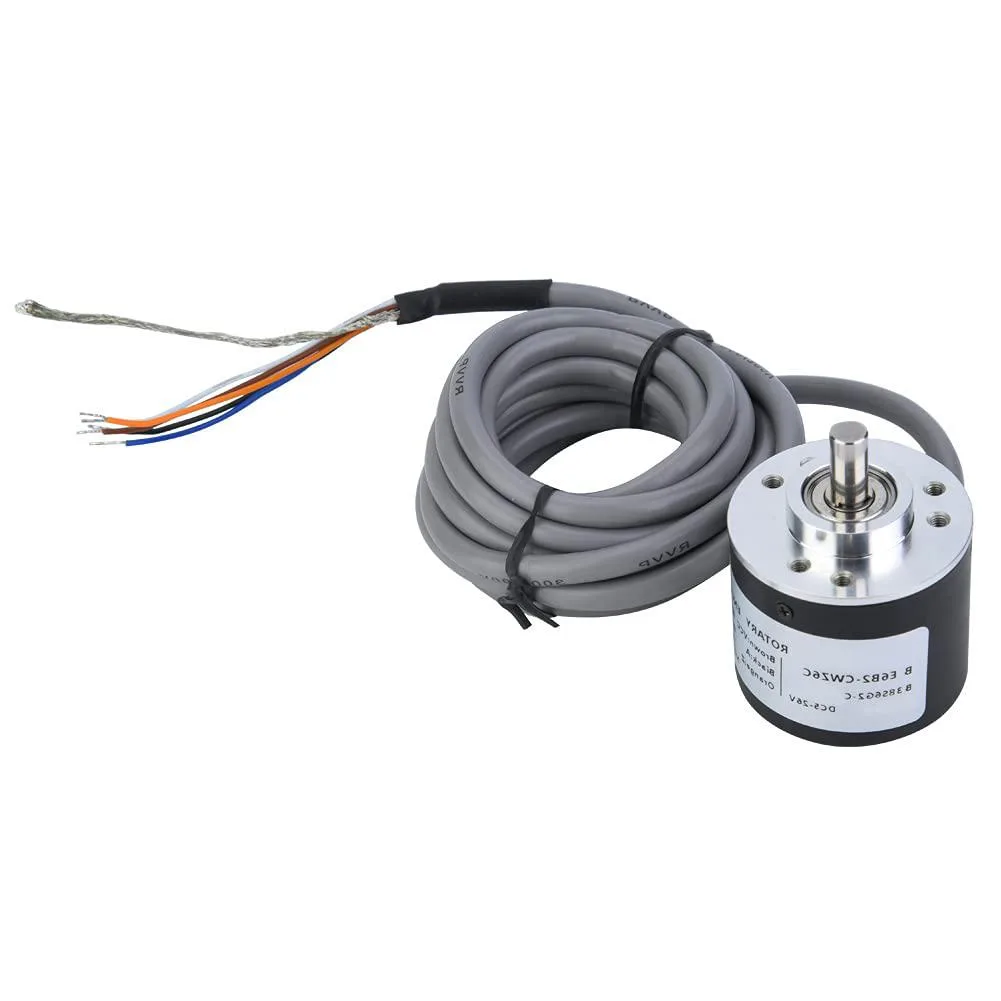

Compact 38mm incremental encoder with 2m cable

myVolts

myVolts E6B2-CWZ6C anti-interference encoder 1000P/R power supply

SKU CH-KHVX-SXF7S MPN E6B2-CWZ6C

A 38 mm incremental encoder delivers 1000 pulses per revolution with ASIC-based anti-interference performance, DC 5–26 V supply, reverse-wiring protection, and a 2 m cable

  • TypeAT
  • 38 mm diameter fits tight spaces
  • 1000 pulses per revolution for precise feedback
  • ASIC circuitry resists electrical noise
  • DC 5-26 V input suits many systems
  • circuit and reverse-wiring protection safeguards hardware

Incremental encoder with anti-interference ASIC

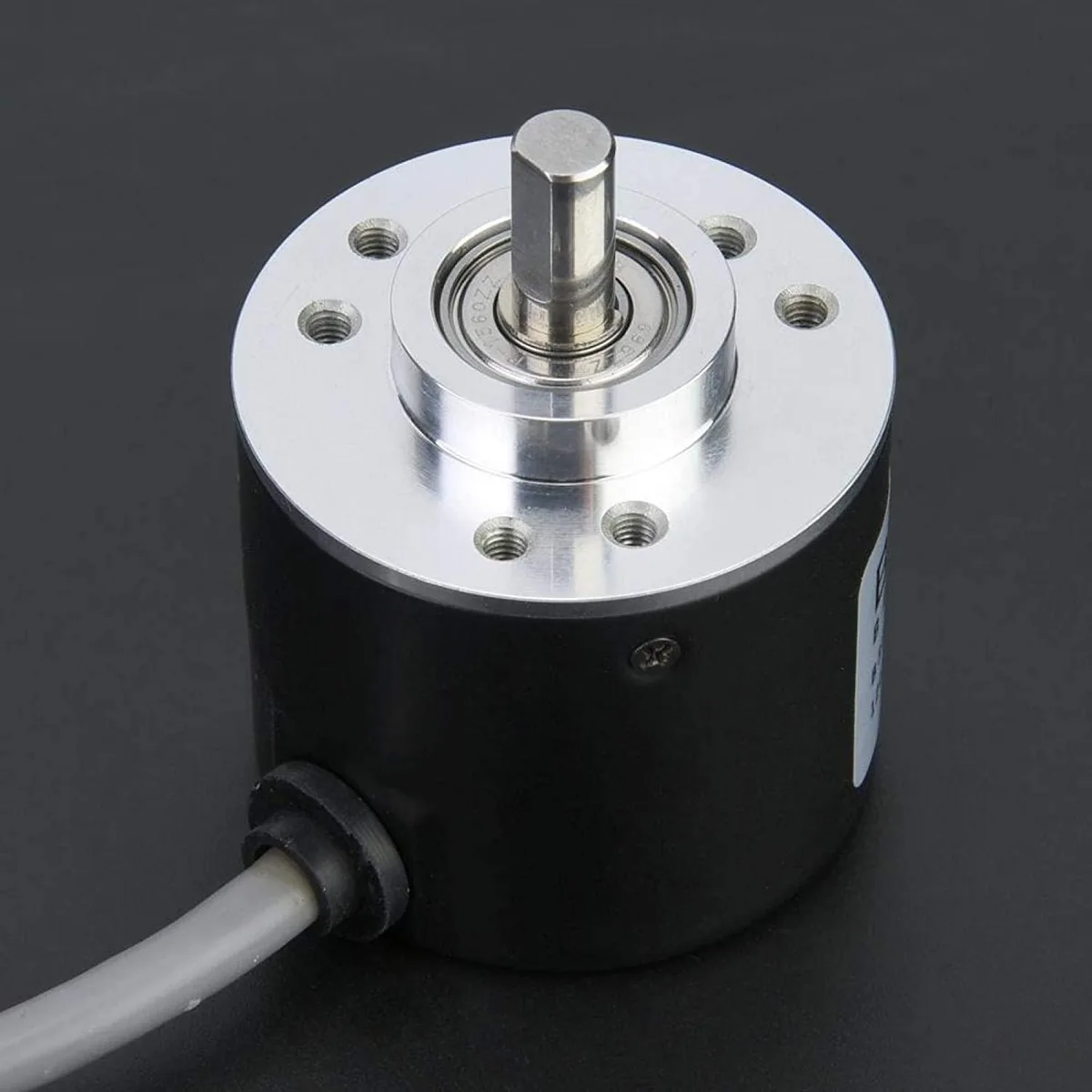

The myVolts E6B2-CWZ6C is a high-quality incremental encoder housed in a 38mm diameter metal shell. It features internal ASIC devices for strong anti-interference performance and long service life. A stainless steel spindle provides higher stability and impact resistance. The compact structure allows for easy installation in industrial setups.

Suited for motion-control systems needing

This encoder fits applications that require load short-circuit protection and power-supply reverse-wiring protection. It handles radial shaft loads up to 30N and thrust loads up to 20N. Builders who need absolute positioning data or a hollow-shaft design should look at other encoder types.

Resolution options from 100 to 5000 pulses per

The model supports optional resolutions of 100, 200, 300, 360, 400, 500, 600, 1000, 1024, 1200, 2000, 2500, 3600 and 5000 P/R. Select the pulse count that matches your controller's counting capability and the precision your application demands.

Highlights

  • 38 mm diameter fits tight spaces
  • 1000 pulses per revolution for precise feedback
  • ASIC circuitry resists electrical noise
  • DC 5-26 V input suits many systems
  • circuit and reverse-wiring protection safeguards hardware

Specifications

TypeAT

Questions about this item

What comes in the box and do I need any extra cables or connectors?

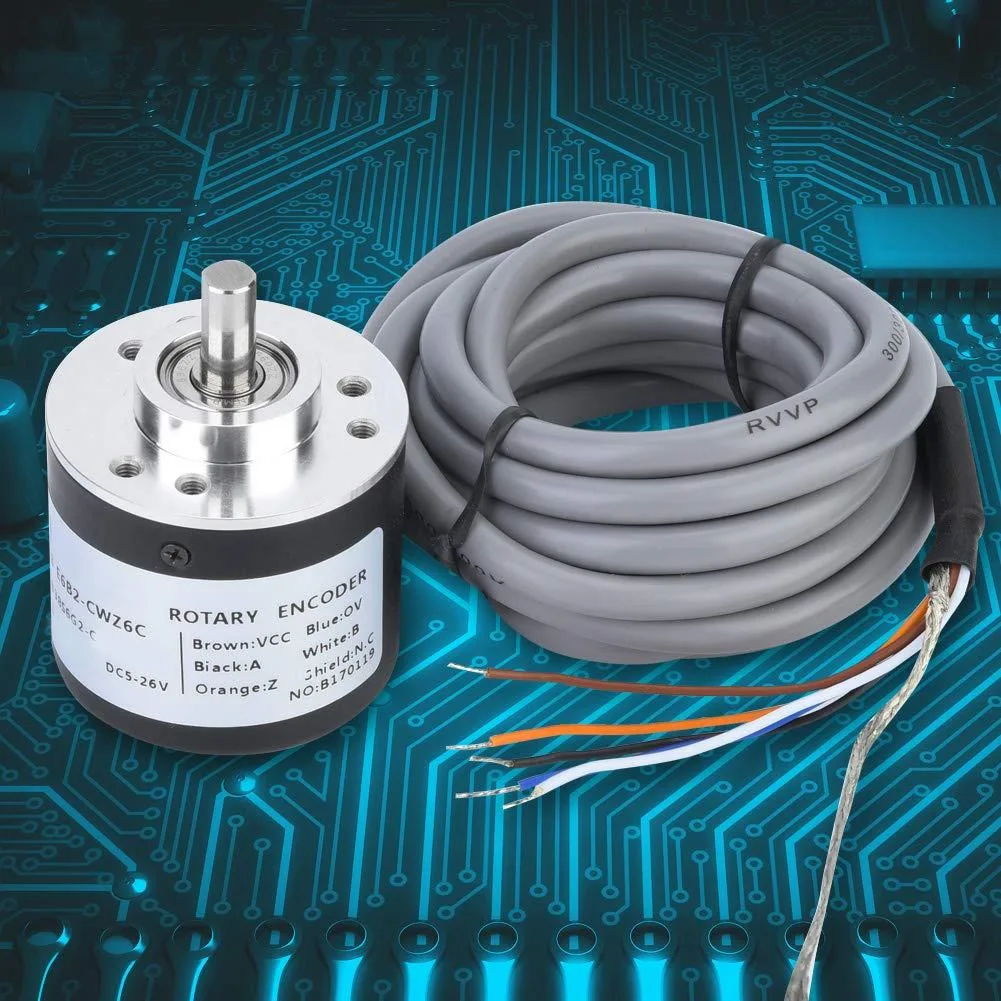

The encoder ships with a 2 m cable permanently attached; the brown wire takes DC 5-26 V, the blue wire is 0 V, and the black wire carries the A phase signal. No separate cable is required.

Which resolution should I choose from the optional list?

Available resolutions are 100, 200, 300, 360, 400, 500, 600, 1000, 1024, 1200, 2000, 2500, 3600 or 5000 pulses per revolution; select the value that matches the positioning accuracy your controller expects.

What does the 1000 P/R rating mean when the encoder is mounted on a 6 mm shaft?

At 1000 pulses per revolution the encoder delivers 1000 distinct A-B transitions per full turn of the 6 mm stainless spindle, giving the controller 1000 position increments per rotation.
