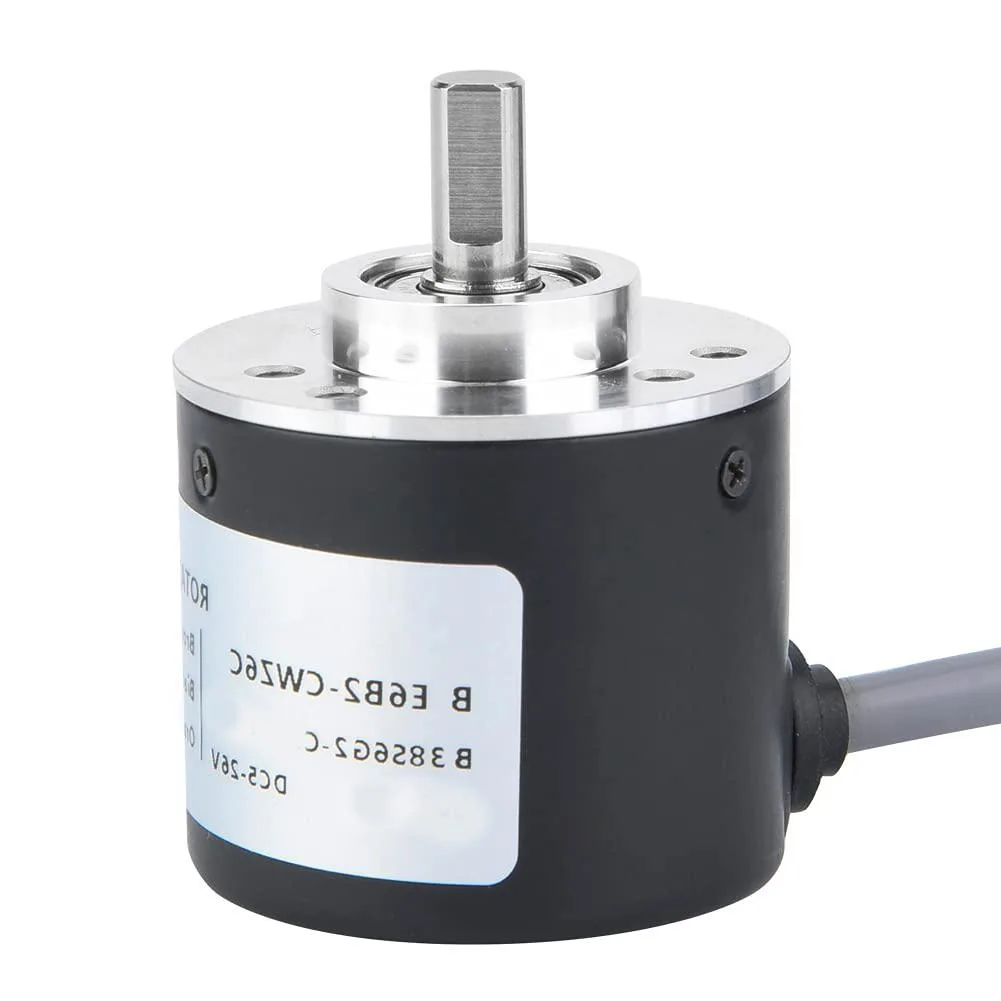

Cylindrical 38 mm encoder with metal shell and 2 m cable

myVolts

myVolts E6B2-CWZ6C incremental encoder 38 mm 2 m cable power supply

SKU CH-2CFS-16KGX MPN E6B2-CWZ6C

Incremental encoder with 38 mm diameter, 2 m cable and DC 5–26 V supply, offering optional resolutions from 100 to 5000 P/R and built-in short-circuit plus reverse-polarity protection

  • TypeAT
  • High reliability from internal ASIC devices
  • Strong anti-interference performance ensures stable signals
  • 38 mm diameter suits compact installations
  • 2 m cable simplifies wiring runs
  • DC 5 to 26 V input fits varied power supplies

38 mm Incremental Encoder

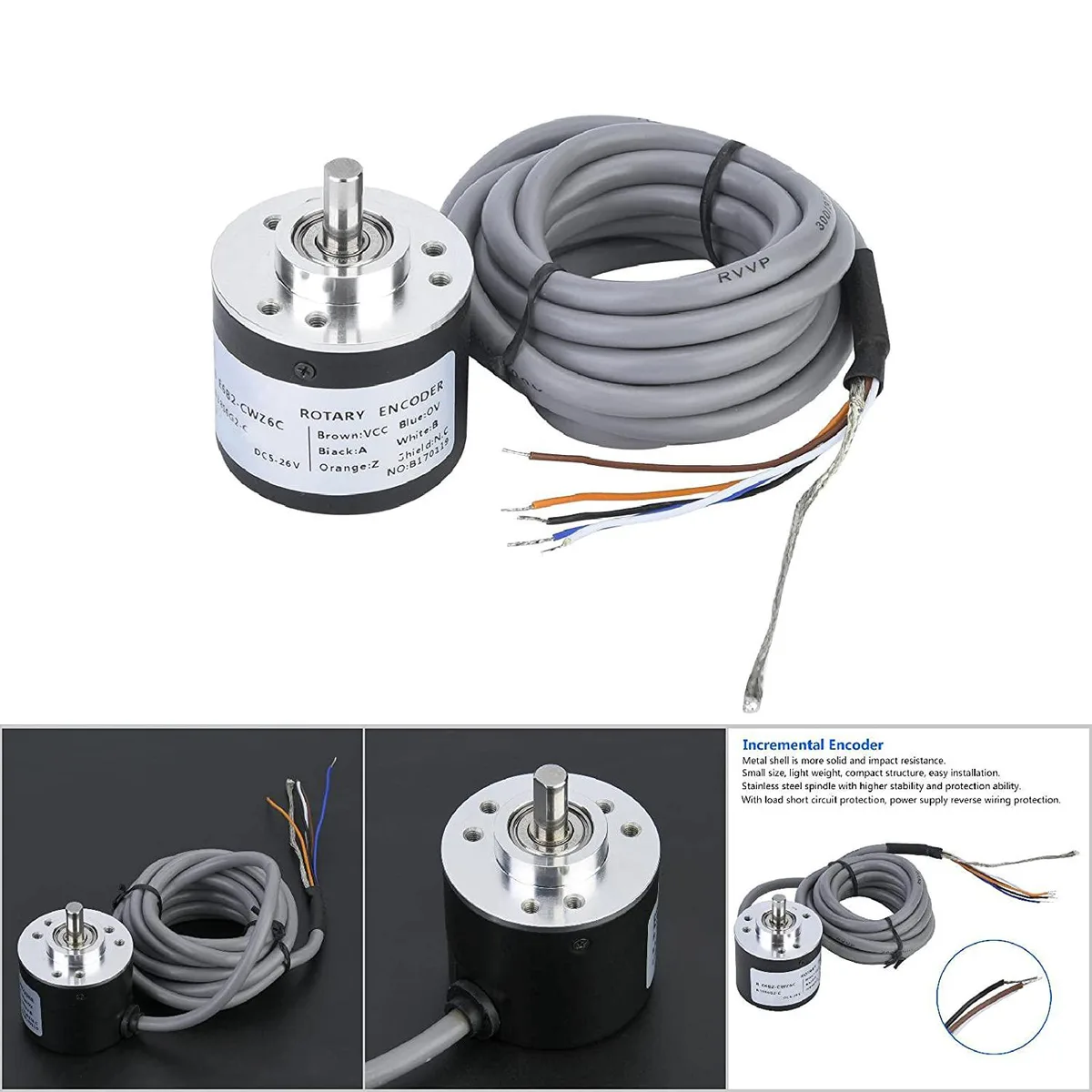

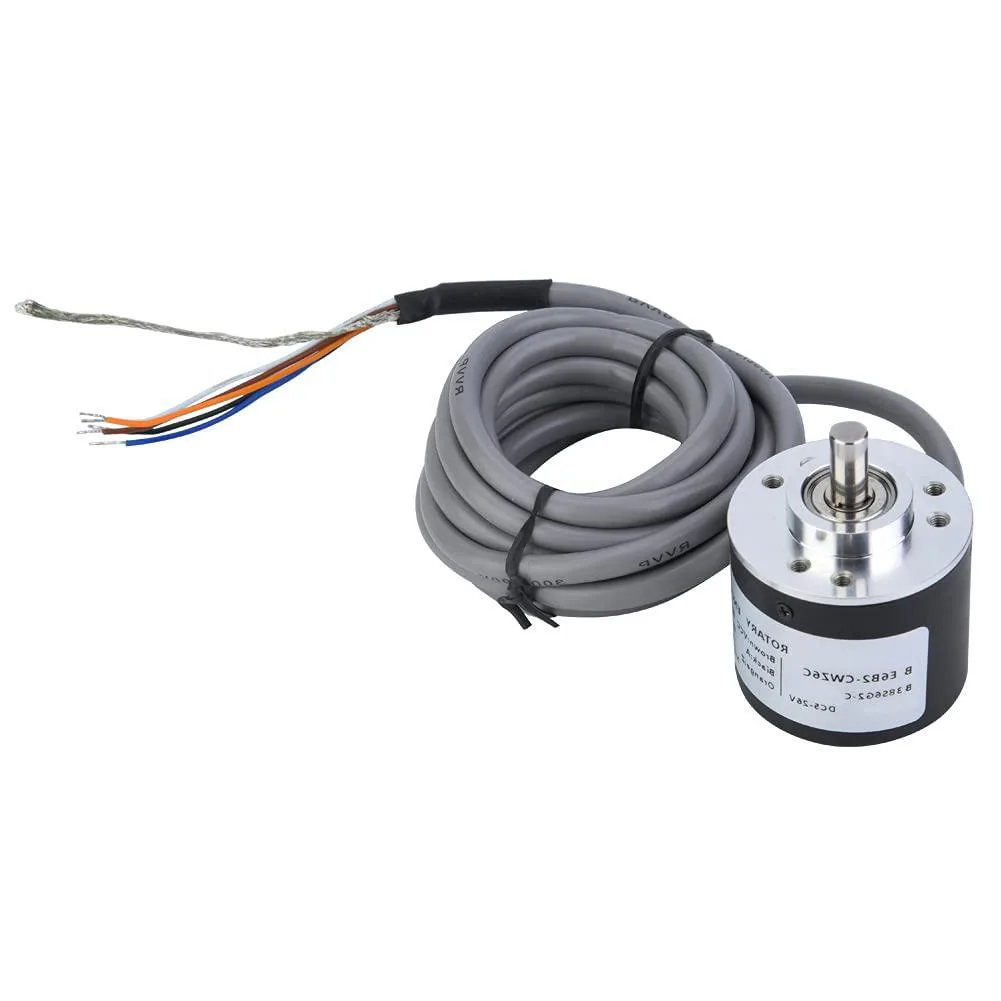

The myVolts E6B2-CWZ6C is a 38 mm diameter incremental encoder built for industrial position feedback. It operates on DC 5 V to 26 V open-collector supply and provides A, B and Z phase outputs. A two metre cable and stainless steel spindle simplify mounting in tight machine frames.

Ideal for Motion Control Integrators

Engineers who need a compact, metal-housed encoder with short-circuit and reverse-wiring protection will find this unit straightforward to install. Buyers requiring absolute position data or hollow-shaft mounting should consider alternative encoder types.

Resolution Options Up to 5000 PPR

The encoder offers selectable resolutions from 100 to 5000 pulses per revolution, including 600, 1024 and 2500 PPR. Choosing the correct pulse count matches the controller’s counting capability and determines the smallest measurable angular step.

Highlights

  • High reliability from internal ASIC devices
  • Strong anti-interference performance ensures stable signals
  • 38 mm diameter suits compact installations
  • 2 m cable simplifies wiring runs
  • DC 5 to 26 V input fits varied power supplies

Specifications

TypeAT

Questions about this item

How much heat or noise does the E6B2-CWZ6C generate during continuous operation?

The encoder has no fan or active cooling; its all-metal shell and ASIC design run silently, and the 5–26 V supply keeps power draw low enough that temperature rise is minimal in typical panel-mount use.

What power source and wiring must I already have to run this encoder?

You need a DC supply between 5 V and 26 V and a way to connect the 2 m cable — brown to positive, blue to ground, black for the signal channels — plus a controller that accepts A, B and Z phase outputs.

Will the 38 mm body and 6 mm shaft fit the older motor mounts and couplings I already use?

The encoder measures 38 mm in outer diameter with a 6 mm thrust shaft and tolerates 30 N radial and 20 N axial loads, dimensions common to many standard 38 mm mounting flanges.
