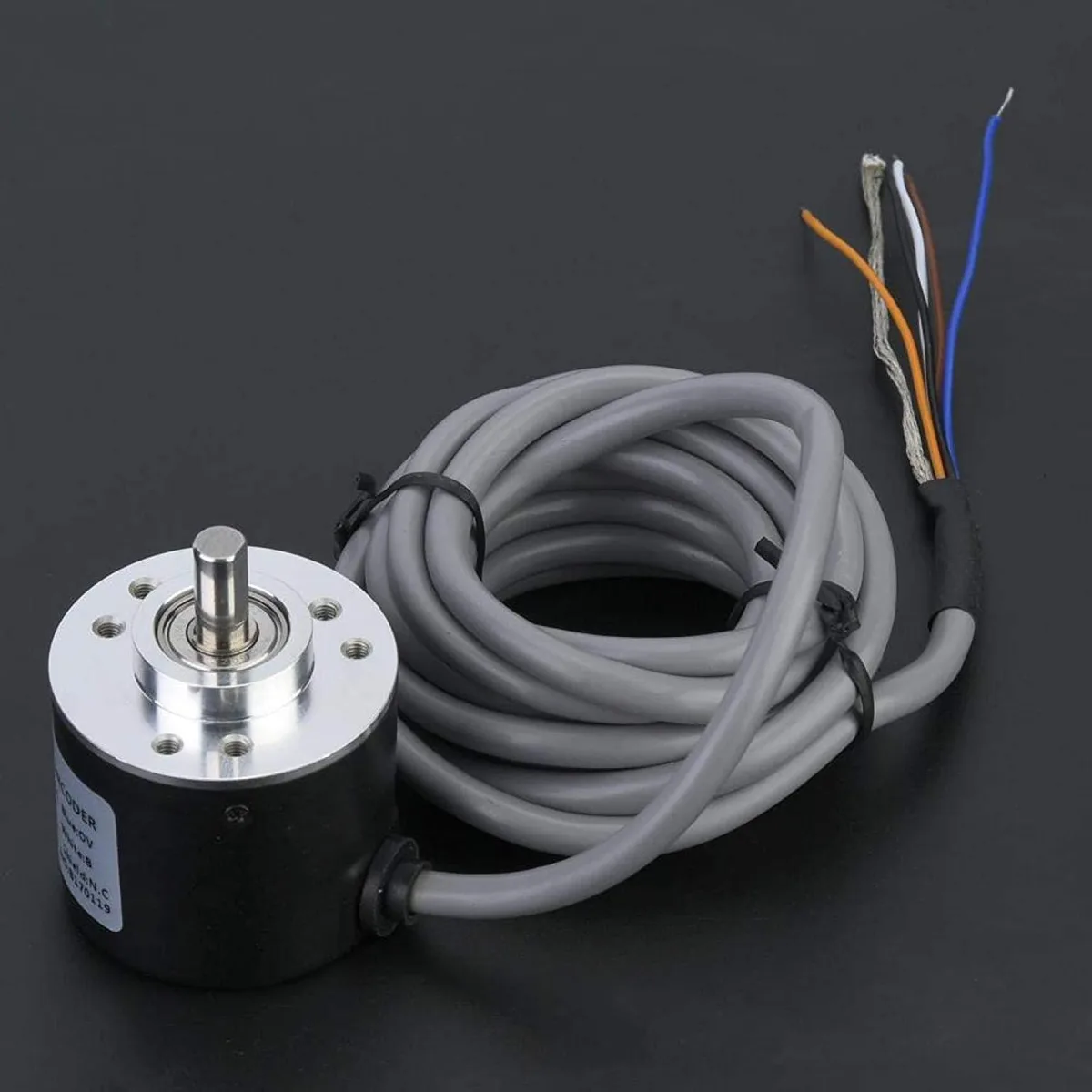

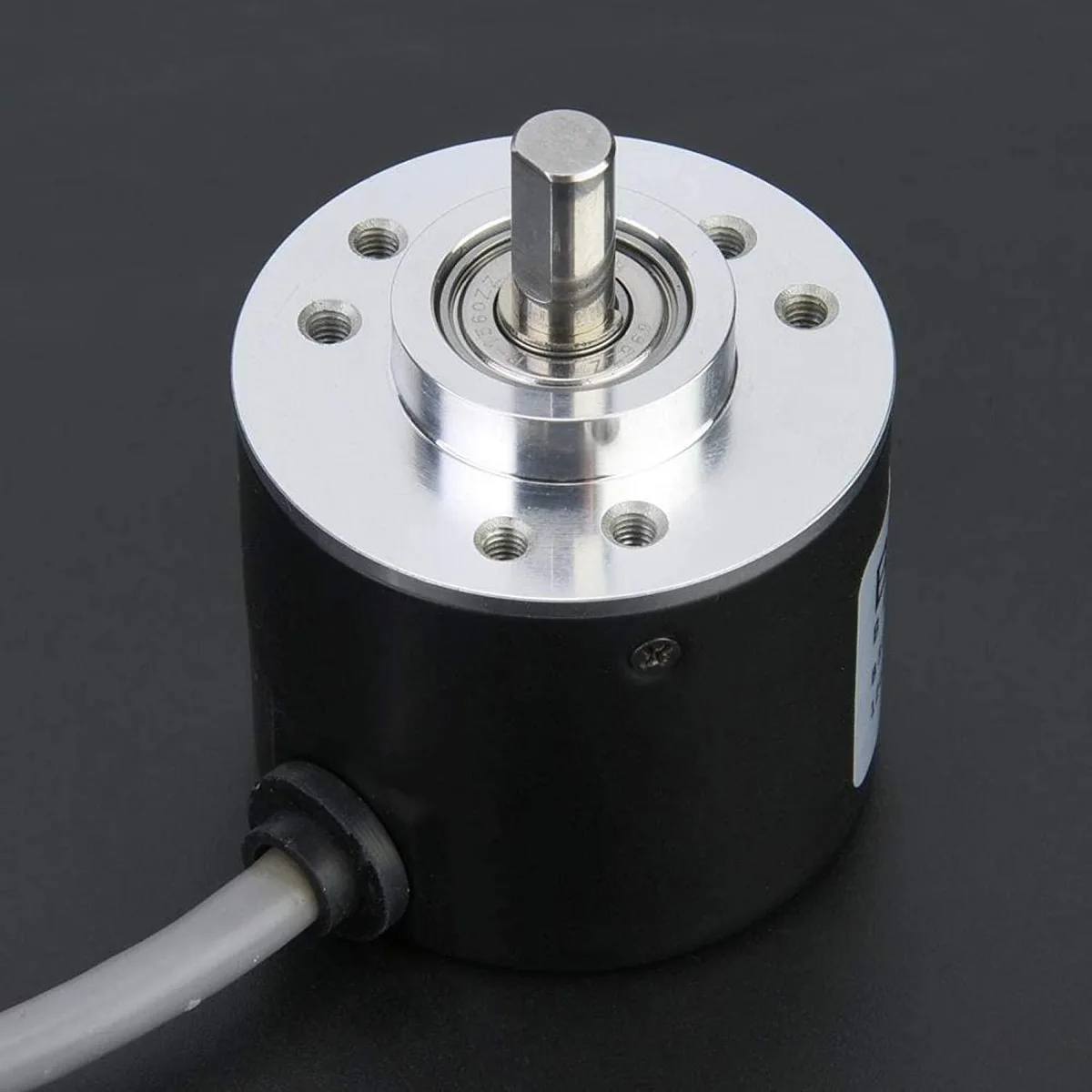

Small metal encoder 38mm diameter stainless shaft 2m cable

myVolts

myVolts E6B2-CWZ6C Incremental Encoder 38mm 100 P/R

SKU CH-P56C-H4GXR MPN E6B2-CWZ6C

38 mm diameter incremental encoder delivering 100 pulses per revolution with 5 – 26 V DC open-collector output and reverse-wiring protection

  • TypeAT
  • Precise positioning with 100 pulses per revolution
  • Reliable operation from DC 5 V to 26 V supply
  • Durable stainless steel spindle handles 30 N radial and 20 N axial loads
  • Protected against short circuits and reverse wiring faults
  • Compact 38 mm metal housing with 2 m cable for easy fit

38 mm Incremental Encoder for Motion Feedback

The myVolts E6B2-CWZ6C is a 38 mm diameter incremental encoder designed for precise position and speed feedback in automation and motion-control systems. It delivers 100 pulses per revolution with A, B and Z phase outputs and operates from a DC 5 V to 26 V supply using an open-collector output stage.

Verify Voltage and Shaft Loading Before Installing

Confirm that your controller accepts a DC 5 V to 26 V open-collector signal and that the 6 mm shaft can accommodate the specified 30 N radial and 20 N axial loads. The 2 m cable uses brown for positive supply, blue for ground and black for signal; ensure your wiring harness matches this colour code and that reverse-polarity protection is not already provided upstream.

Stable Output During Continuous Operation

Internal ASIC circuitry maintains consistent pulse timing and strong anti-interference performance during extended runs. Load short-circuit protection and supply reverse-wiring protection guard the output stage against sustained fault conditions, while the stainless-steel spindle and metal shell resist mechanical wear under continuous shaft loading.

Highlights

  • Precise positioning with 100 pulses per revolution
  • Reliable operation from DC 5 V to 26 V supply
  • Durable stainless steel spindle handles 30 N radial and 20 N axial loads
  • Protected against short circuits and reverse wiring faults
  • Compact 38 mm metal housing with 2 m cable for easy fit

Specifications

TypeAT

Questions about this item

What comes in the box with the E6B2-CWZ6C encoder and do I need to buy a separate power supply?

The encoder ships with a 2 m cable pre-wired for DC 5–26 V open-collector output; a compatible DC power source within that voltage range must be provided separately.

Which resolution should I choose for the 38 mm incremental encoder?

The E6B2-CWZ6C is supplied at 100 pulses per revolution; other resolutions from 200 to 5000 P/R are optional variants you would select when ordering.

What does the 100 P/R rating mean once the encoder is mounted on a 6 mm shaft?

Each full rotation of the 6 mm stainless-steel spindle produces 100 quadrature pulses on the A, B and Z channels, giving a positional granularity of 3.6 degrees per count.
