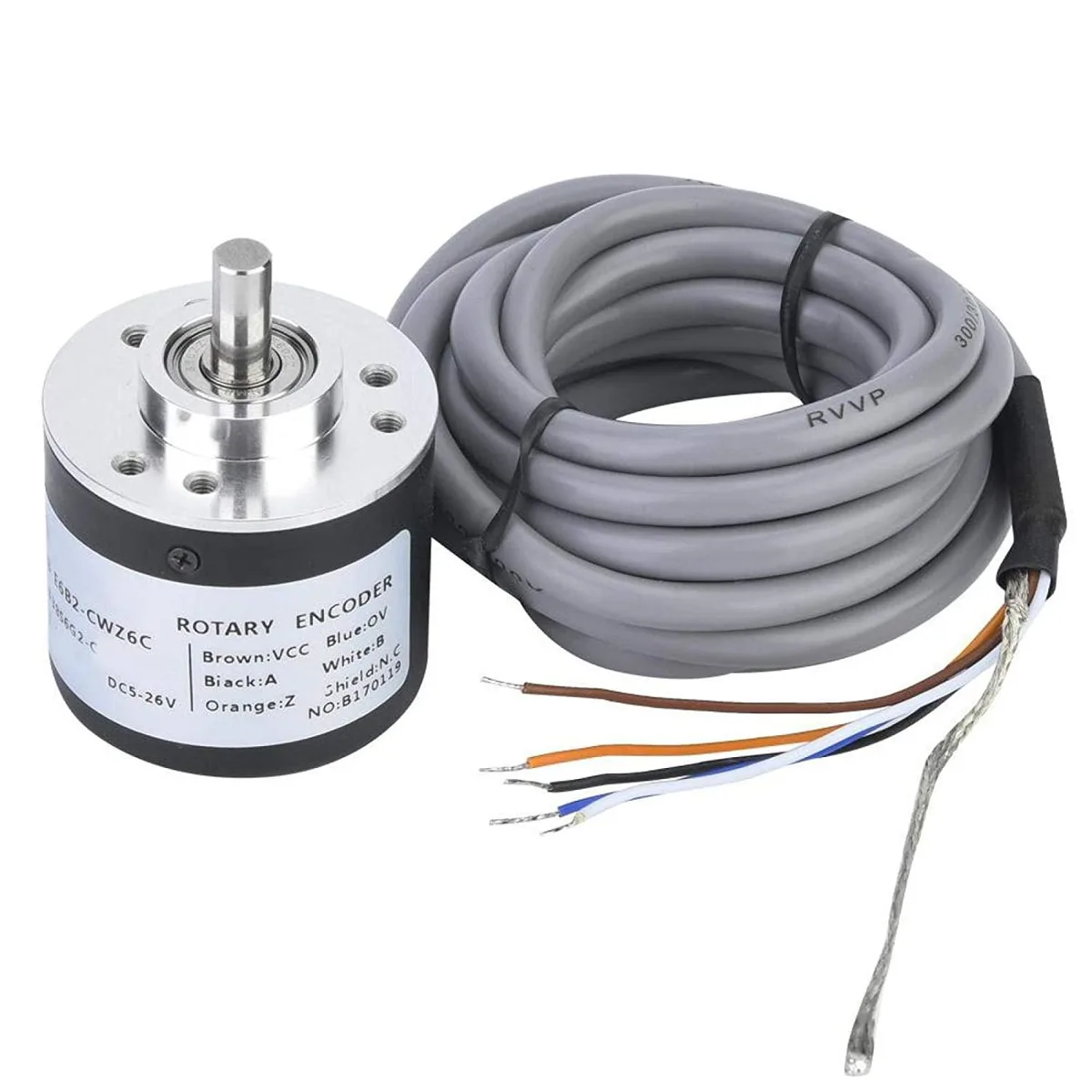

Small cylindrical encoder with metal body and stainless shaft, 38mm diameter, 2m cable

myVolts

myVolts E6B2-CWZ6C Incremental Encoder 38mm DC5-26V 1000P/R

SKU CH-5WFS-8EG7F MPN E6B2-CWZ6C

38 mm incremental encoder with 1000 pulses per revolution, DC 5-26 V supply, stainless steel spindle and reverse wiring protection

  • TypeAT
  • 38 mm diameter encoder fits compact installations
  • 1000 pulses per revolution deliver precise position feedback
  • DC 5‑26 V supply range suits varied power systems
  • ASIC design gives high reliability and strong noise immunity
  • stainless spindle and metal shell withstand 30 N radial and 20 N axial loads

Encoder for industrial motion control

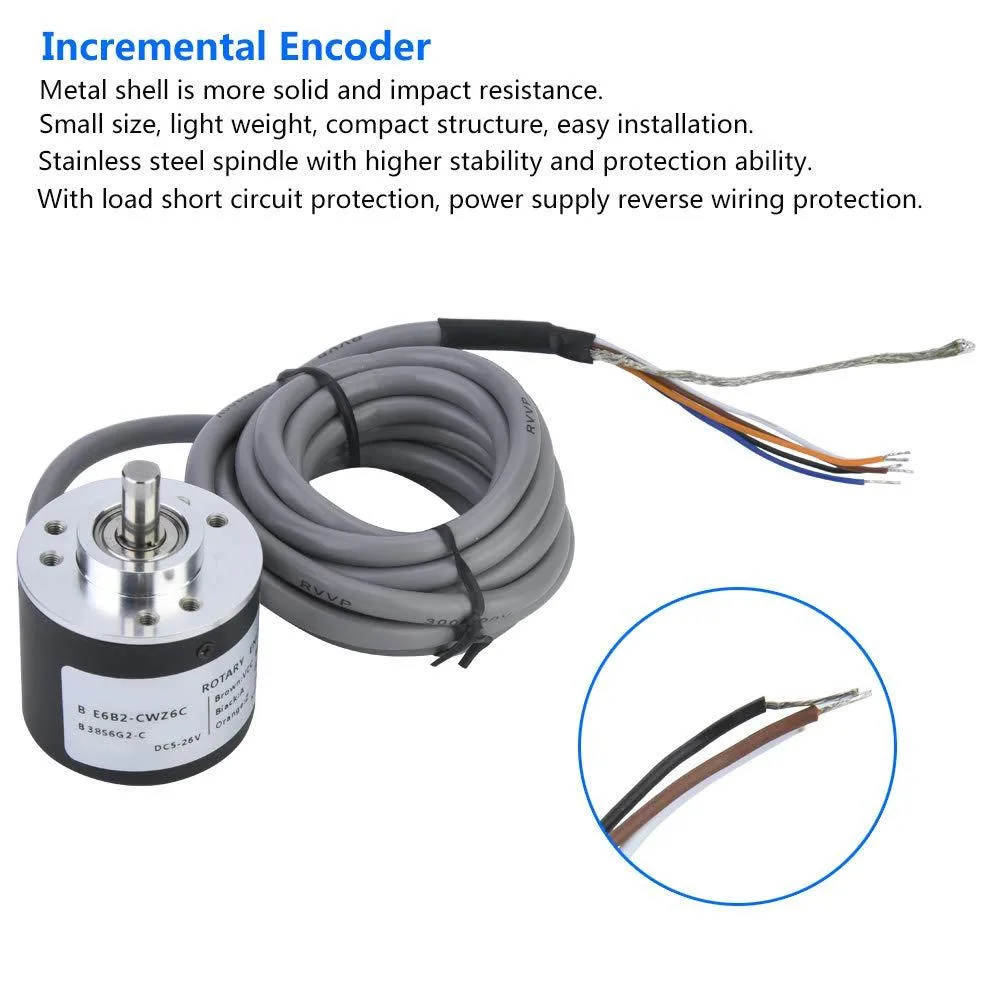

The myVolts E6B2-CWZ6C is a 38mm incremental encoder built for position and speed feedback in automation systems. It operates on a DC5-26V supply and delivers 1000 pulses per revolution through A, B and Z phase outputs. The alloy shell and aluminium body house internal ASIC devices for reliable signal transmission. A stainless steel spindle and metal housing provide mechanical durability in demanding environments.

Replaces worn or lower-resolution encoders

Upgrading from a unit with fewer pulses per revolution improves positioning granularity when the controller can use the higher count. The jump is worthwhile when the application demands finer speed regulation or tighter closed-loop accuracy. The encoder also supersedes devices lacking built-in short-circuit and reverse-wiring protection, reducing the risk of field failures caused by wiring errors. It supports the same 2m cable length and 6mm shaft diameter as many legacy models.

Fits compact machine frames and existing wiring

The small footprint and light weight allow installation in tight enclosures without redesigning mounting brackets. The 6mm thrust shaft accepts standard couplings, while the 30N radial and 20N axial load ratings suit typical drive arrangements. Multiple output modes — voltage, collector, complementary, push-pull, long-line drive, differential and fork — let the encoder interface with a wide range of PLCs and motion controllers without extra signal converters. The 2m cable reaches most cabinet entry points.

Highlights

  • 38 mm diameter encoder fits compact installations
  • 1000 pulses per revolution deliver precise position feedback
  • DC 5‑26 V supply range suits varied power systems
  • ASIC design gives high reliability and strong noise immunity
  • stainless spindle and metal shell withstand 30 N radial and 20 N axial loads

Specifications

TypeAT

Questions about this item

What shaft diameter and mounting diameter does the E6B2-CWZ6C need?

The encoder has a 6 mm thrust shaft diameter and a 38 mm outer diameter for mounting.

How do I wire the brown and blue leads on the E6B2-CWZ6C, and what mistake should I avoid?

Connect brown to DC 5-26 V positive and blue to 0 V negative; the built-in reverse-wiring protection guards against swapping them.

What wear items on the E6B2-CWZ6C will need replacement over time?

The stainless steel spindle and internal ASIC devices are rated for long life; no user-serviceable wear parts are specified.
