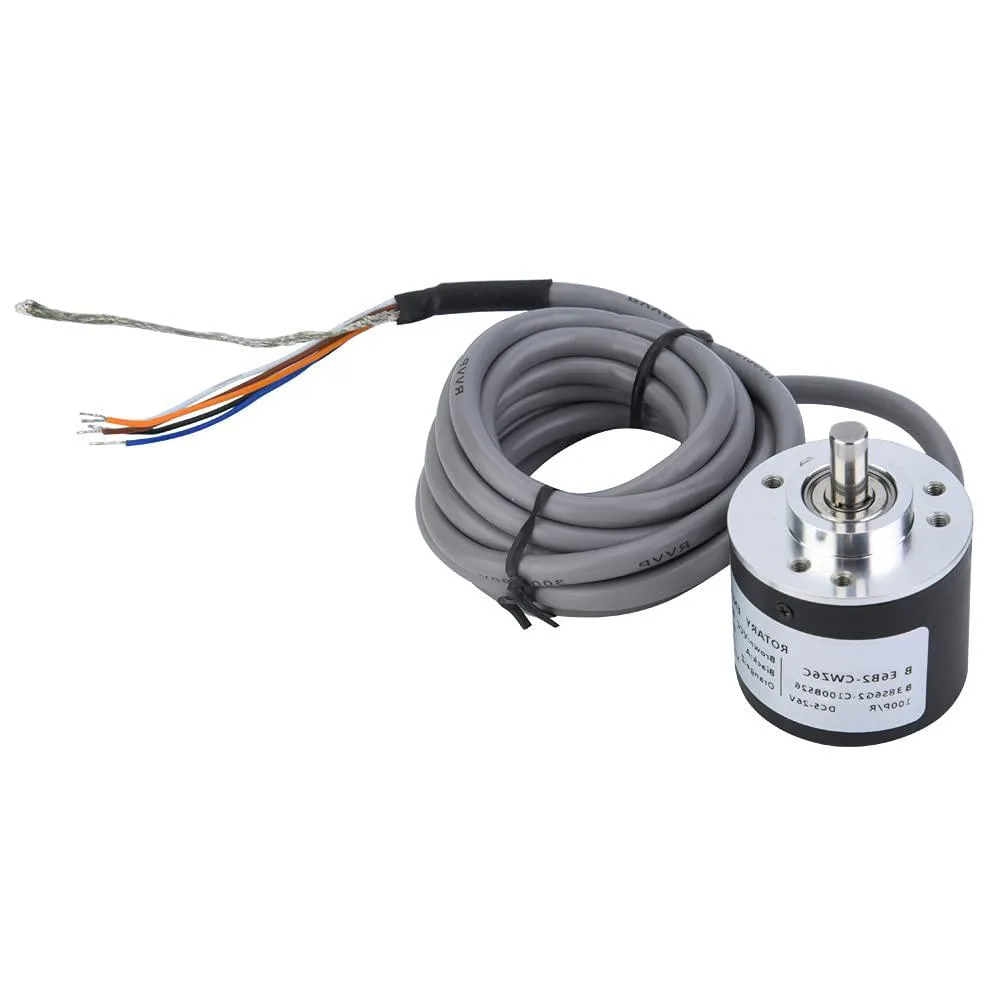

Small silver metal encoder cylinder with a 38 mm body and a protruding stainless steel shaft

myVolts

myVolts E6B2-CWZ6C incremental encoder power supply

SKU CH-KHFJ-V2ZDD MPN E6B2-CWZ6C

A 38 mm incremental encoder with 100 to 5000 pulse options, DC 5 to 26 V supply, and built-in short-circuit and reverse-polarity protection

  • TypeAT
  • Stable rotation with 38 mm stainless spindle
  • Reliable signals from internal ASIC anti-interference design
  • Protected operation via short-circuit and reverse-wiring safeguards
  • Quick setup with compact 2 m wired housing
  • Flexible resolution choice from 100 to 5000 P/R

Industrial incremental encoder

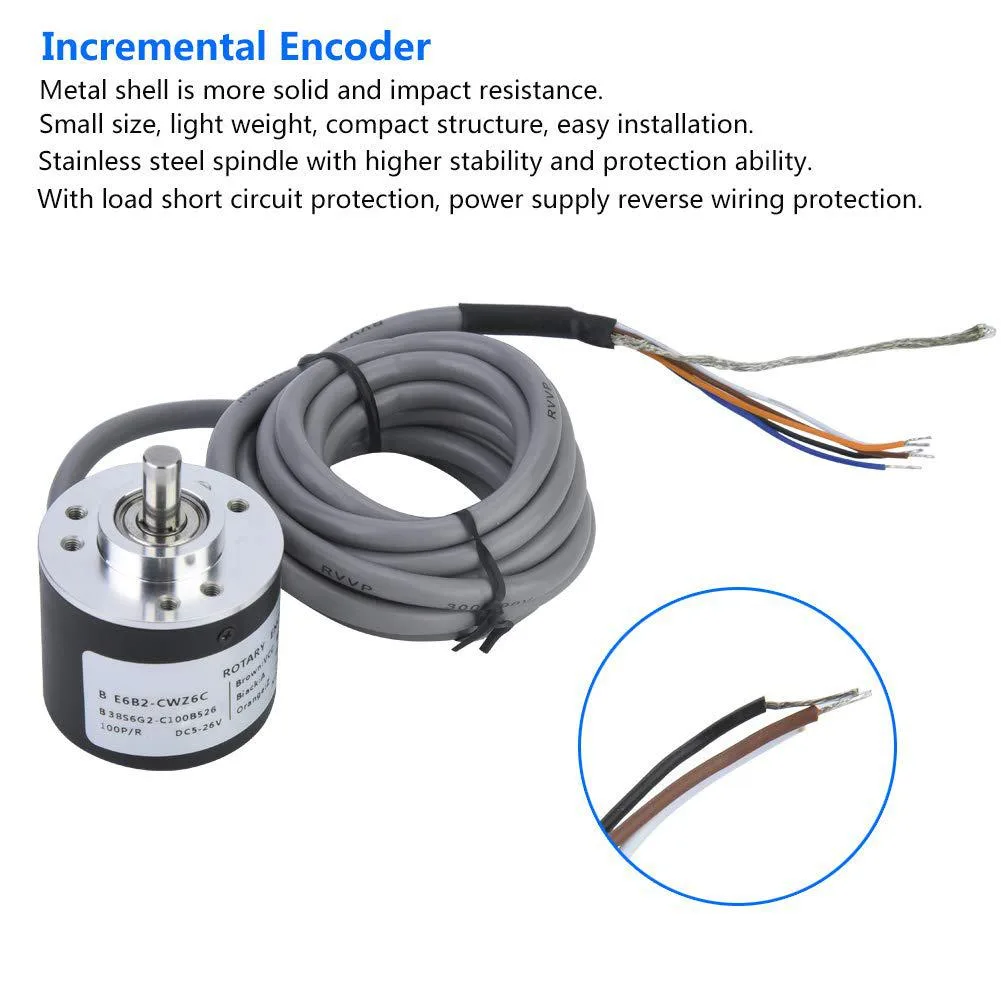

The myVolts E6B2-CWZ6C is a compact incremental encoder built for motion-control systems that need reliable position feedback. Its 38 mm metal housing and stainless steel spindle suit machine tools, robotics and automation equipment where vibration and shock are common.

Resolution options and mechanical limits

The encoder offers selectable resolutions from 100 to 5000 pulses per revolution, covering coarse speed sensing through fine positioning tasks. It accepts axial loads up to 30 N and thrust loads up to 20 N, so it handles moderate shaft forces but will not suit heavy side-loading applications.

Power range and wiring protection

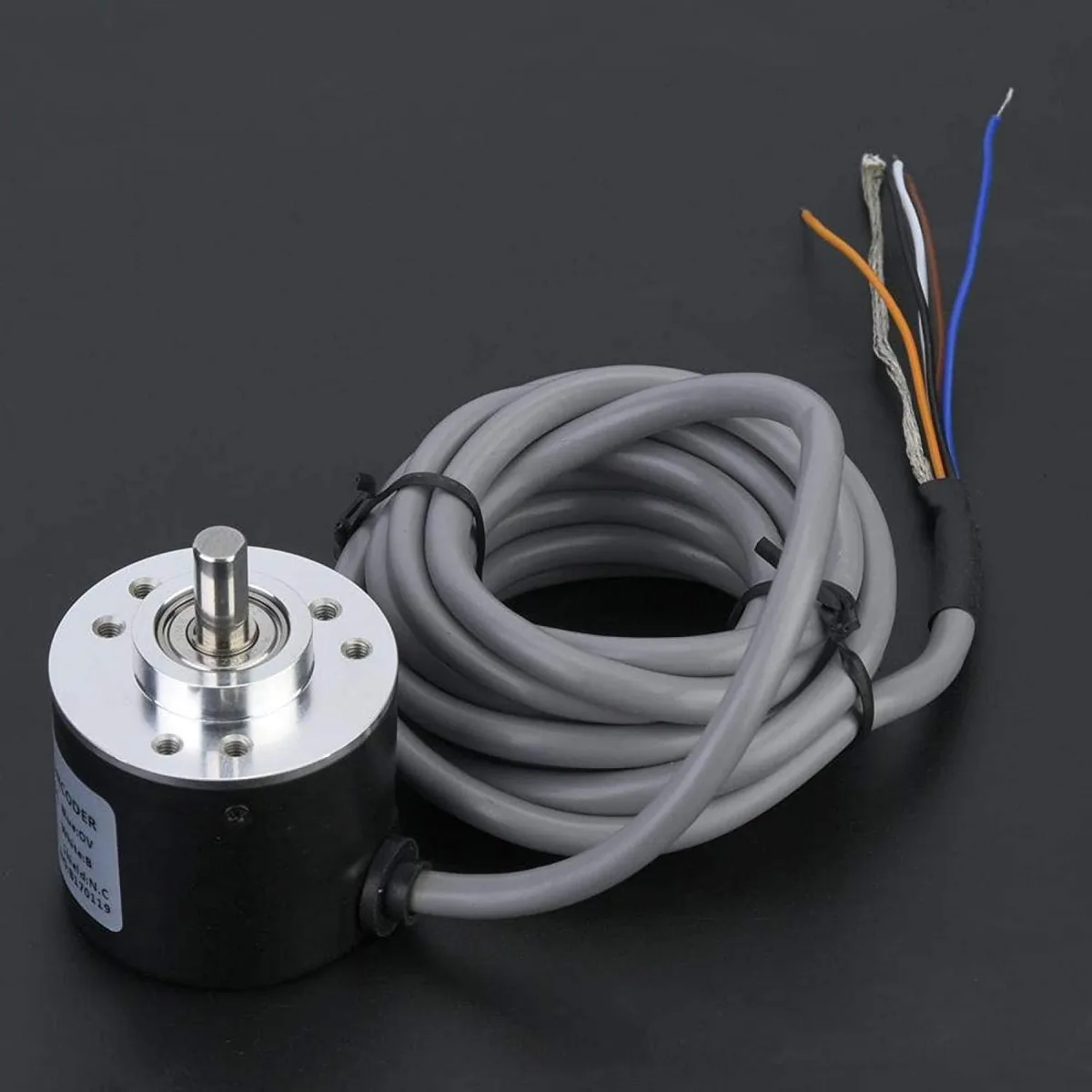

Operation is rated for DC 5 to 26 V with open-collector output, and the unit includes short-circuit and reverse-wiring protection on the supply lines. The fixed 2 m cable uses colour-coded leads for positive, negative and signal outputs, simplifying installation in cabinets where connector space is limited.

Highlights

  • Stable rotation with 38 mm stainless spindle
  • Reliable signals from internal ASIC anti-interference design
  • Protected operation via short-circuit and reverse-wiring safeguards
  • Quick setup with compact 2 m wired housing
  • Flexible resolution choice from 100 to 5000 P/R

Specifications

TypeAT

Questions about this item

Will the 38 mm encoder fit the same mounting pattern as my old 38 mm unit?

The encoder has a 38 mm outer diameter and a 6 mm thrust shaft, so it matches the footprint of other 38 mm units with a 6 mm shaft.

How do I verify the A, B and Z channels are outputting correctly after wiring?

Apply DC 5 – 26 V to the brown and blue leads, then monitor the black, white and orange wires for quadrature A/B pulses and a single Z index pulse per revolution.

Does the box include the 2 m cable and mounting hardware, or must I order them separately?

The encoder ships with a 2 m flying-lead cable already attached; mounting brackets and couplings are not included.
