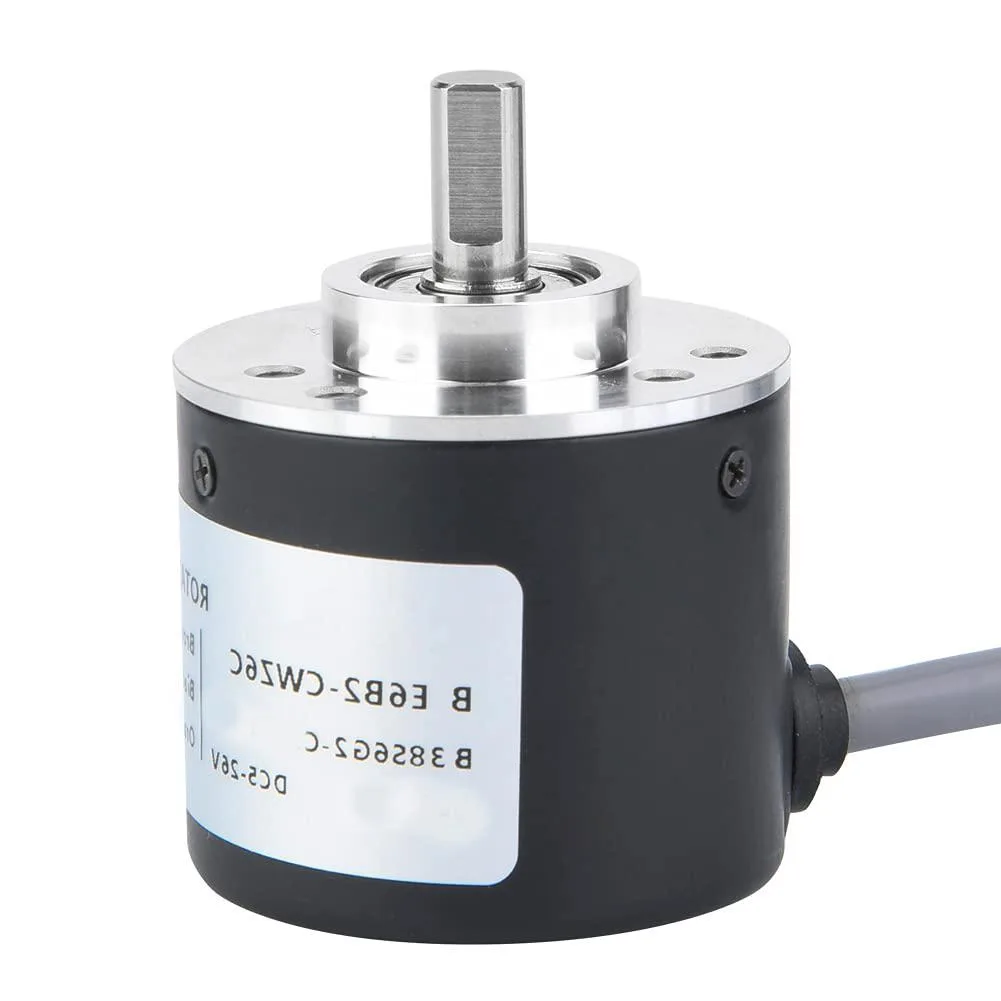

Compact 38mm metal incremental encoder with stainless steel spindle and 2m cable

myVolts

myVolts E6B2-CWZ6C Incremental Encoder Power Supply 38mm 1024P/R

SKU CH-29MX-AA1G0 MPN E6B2-CWZ6C

A 38 mm incremental encoder delivering 1024 pulses per revolution with DC 5–26 V supply, ASIC anti-interference, short-circuit and reverse-wiring protection.

  • TypeAT
  • Precise positioning with 1024 pulses per revolution resolution

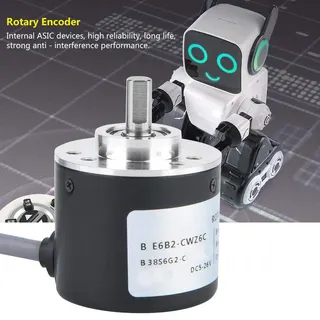

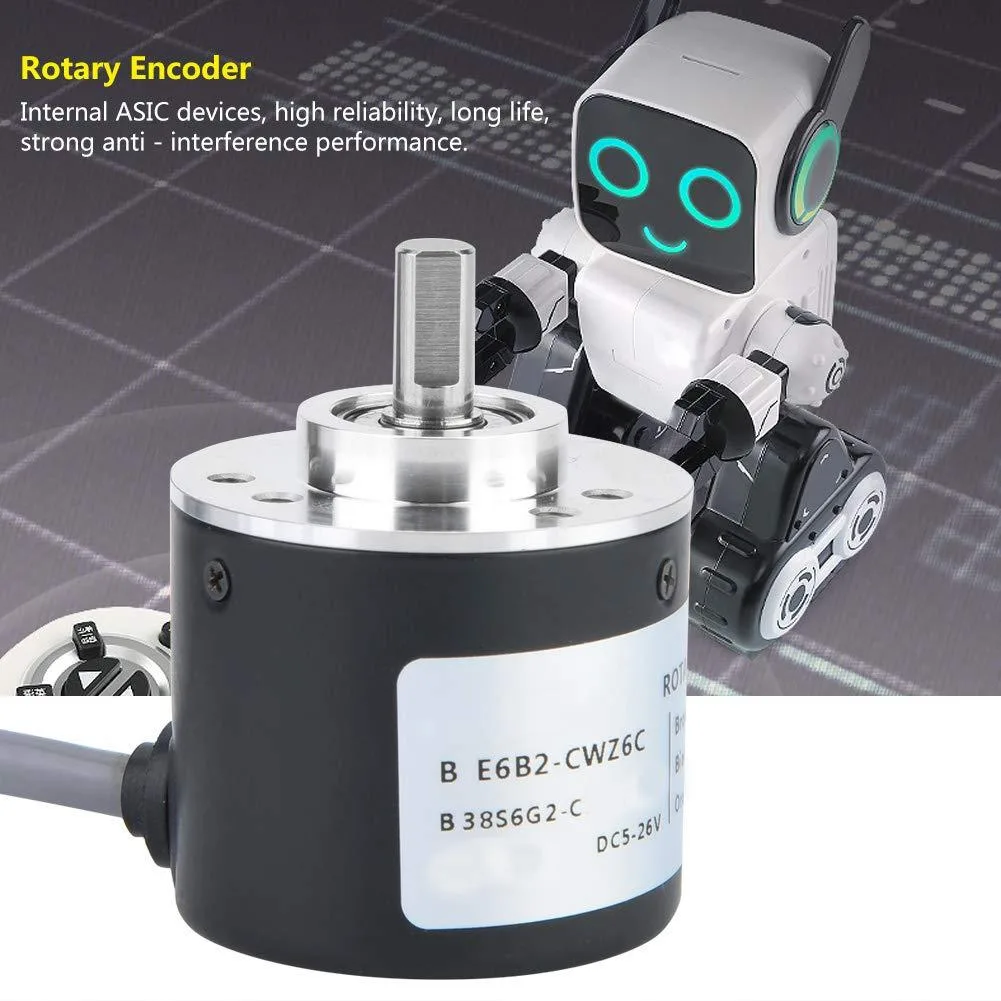

  • Reliable operation through internal ASIC anti-interference design
  • Durable construction via stainless steel spindle and metal shell
  • Flexible integration with DC 5-26V wide voltage range
  • Protected circuitry featuring short circuit and reverse wiring safeguards

38 mm Incremental Encoder Power Supply

The myVolts E6B2-CWZ6C is a 38 mm incremental encoder designed for motion-control systems that need precise position feedback. It delivers A, B and Z phase signals through voltage, collector, complementary, push-pull, long-line-drive, differential or fork output modes. Resolution options range from 100 to 5000 pulses per revolution, with 1024 P/R fitted on this unit. The stainless-steel spindle and metal shell provide mechanical stability in industrial environments.

Check DC Voltage and Shaft Loading

Verify that your controller can accept a DC 5 to 26 V open-collector input before wiring the brown and blue supply leads. Confirm the mechanical interface matches a 6 mm thrust shaft diameter and that axial loads stay within 30 N and thrust loads within 20 N. The encoder ships with a 2 m cable; ensure the routing length and connector style suit your cabinet layout. Reverse-wiring and short-circuit protection are built in, but correct polarity must still be observed.

Bundled Cable and Output Flexibility

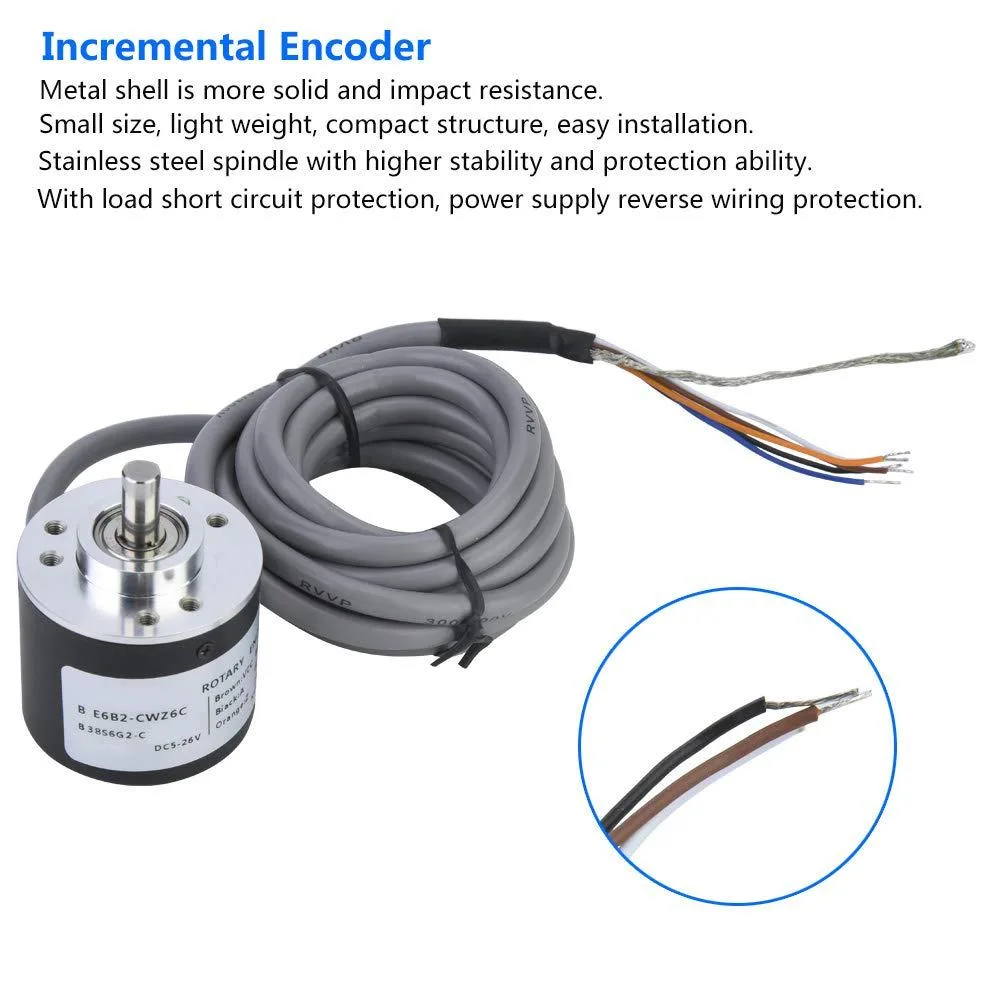

The included 2 m wiring harness uses colour-coded leads for rapid termination: brown for positive supply, blue for ground, black for signal outputs. Multiple output modes let you match the encoder to PLC inputs, motor drives or counter cards without extra signal-conditioning hardware. Selectable resolution up to 5000 P/R allows tuning precision to the application without changing the mechanical package.

Highlights

  • Precise positioning with 1024 pulses per revolution resolution
  • Reliable operation through internal ASIC anti-interference design
  • Durable construction via stainless steel spindle and metal shell
  • Flexible integration with DC 5-26V wide voltage range
  • Protected circuitry featuring short circuit and reverse wiring safeguards

Specifications

TypeAT

Questions about this item

What comes in the box with the E6B2-CWZ6C encoder and what must I source separately?

The encoder includes a 2 m cable with brown (DC5-26 V), blue (0 V) and black (signal) leads; you must supply a DC5-26 V power source and any mounting hardware.

Which resolution should I choose from the 100 to 5000 P/R options for the E6B2-CWZ6C?

Select the resolution that matches your controller’s required counts per revolution; 1024 P/R is a common default for many motion systems.

What does the 1024 P/R rating mean when the encoder is installed on a machine?

Each full shaft rotation produces 1024 pulses on the A and B channels, giving the controller 1024 discrete position steps per revolution.
