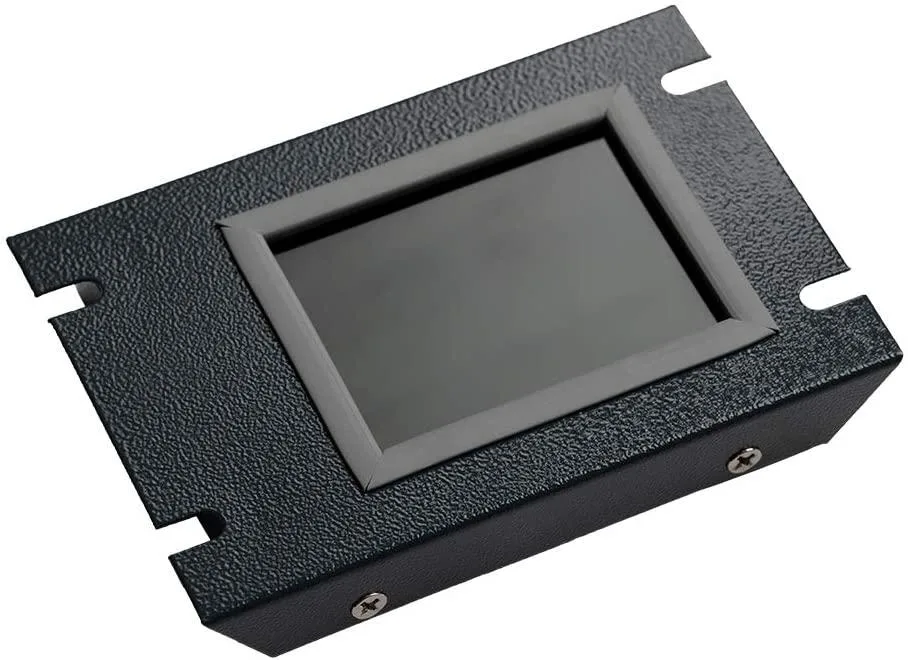

LCD current meter with network cable for HY-Z series power supplies

myVolts

myVolts LCD Current Meter for HY-Z Series 50-150W

SKU CH-H6KF-HD2BT

LCD current meter externally connects to HY-Z series CO2 laser power supplies from 50 W to 150 W, displaying real-time current and status with adjustment on 100 W and 150 W models

  • TypeAT
  • Real-time current monitoring for HY-Z series supplies
  • Compatible with MYJG 50, 60, 80, 100 and 150 W units
  • Adjustable current control on 100 W and 150 W models
  • Read-only current display on 50 W, 60 W and 80 W models
  • External LCD connects via network cable to power supply

External LCD Current Meter

This external LCD current meter attaches to HY-Z series CO2 laser power supplies using a network cable connection. It provides real-time display of processing current and operational status information for laser cutting and engraving workflows.

Replaces built-in monitoring

The meter upgrades power supplies that lack external readouts or adjustment capability. For 100W and 150W units it adds both current display and adjustment via an integrated trimmer potentiometer. For 50W, 60W and 80W units it provides display only without adjustment function.

Integrates with HY-Z power supplies

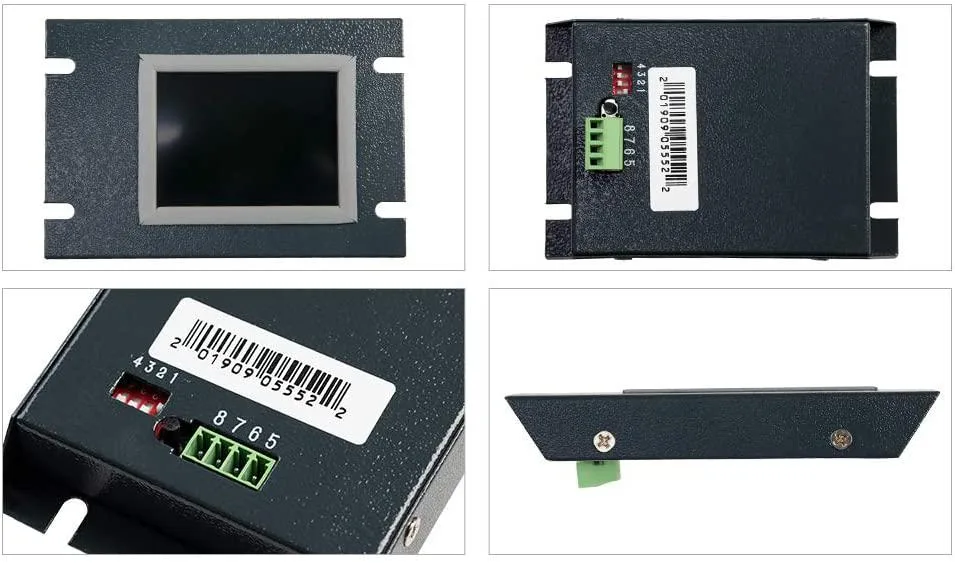

The display connects through a network port and requires a compatible HY-Z series supply to operate. A selector switch controls potentiometer function — right position enables current adjustment on supported models while left position maintains standard display operation.

Highlights

  • Real-time current monitoring for HY-Z series supplies
  • Compatible with MYJG 50, 60, 80, 100 and 150 W units
  • Adjustable current control on 100 W and 150 W models
  • Read-only current display on 50 W, 60 W and 80 W models
  • External LCD connects via network cable to power supply

Specifications

TypeAT

Questions about this item

What connection does the myVolts LCD Current Meter use to attach to a HY-Z series power supply?

It connects externally through a network port using a network cable.

How do I enable current adjustment on the meter when using it with a 100W or 150W unit?

After connecting the power supply, turn the switch on the LCD to the right; the built-in trimmer potentiometer then becomes active for current adjustment.

Does the meter require any periodic recalibration or replacement of the display module?

The LCD screen displays real-time current and status information without a mentioned recalibration schedule or user-replaceable display module.
