Green PCB power module with 24-pin ATX, CPU 4-pin, SATA, IDE and DC connectors, short cables attached

myVolts

myVolts LD-NAS200L 12V 200W ATX power supply

SKU CH-PKH9-QPV1Y MPN LD-NAS200L

A 12V 200W ATX power module plugs directly into the motherboard, removing 24 wires and fitting small ITX cases while delivering +12V 12A, +5V 10A, +3.3V 8A.

  • TypeAT
  • Delivers 200W from a single 12V input for compact builds
  • Direct 24-pin ATX plug removes 24 loose cables inside the case

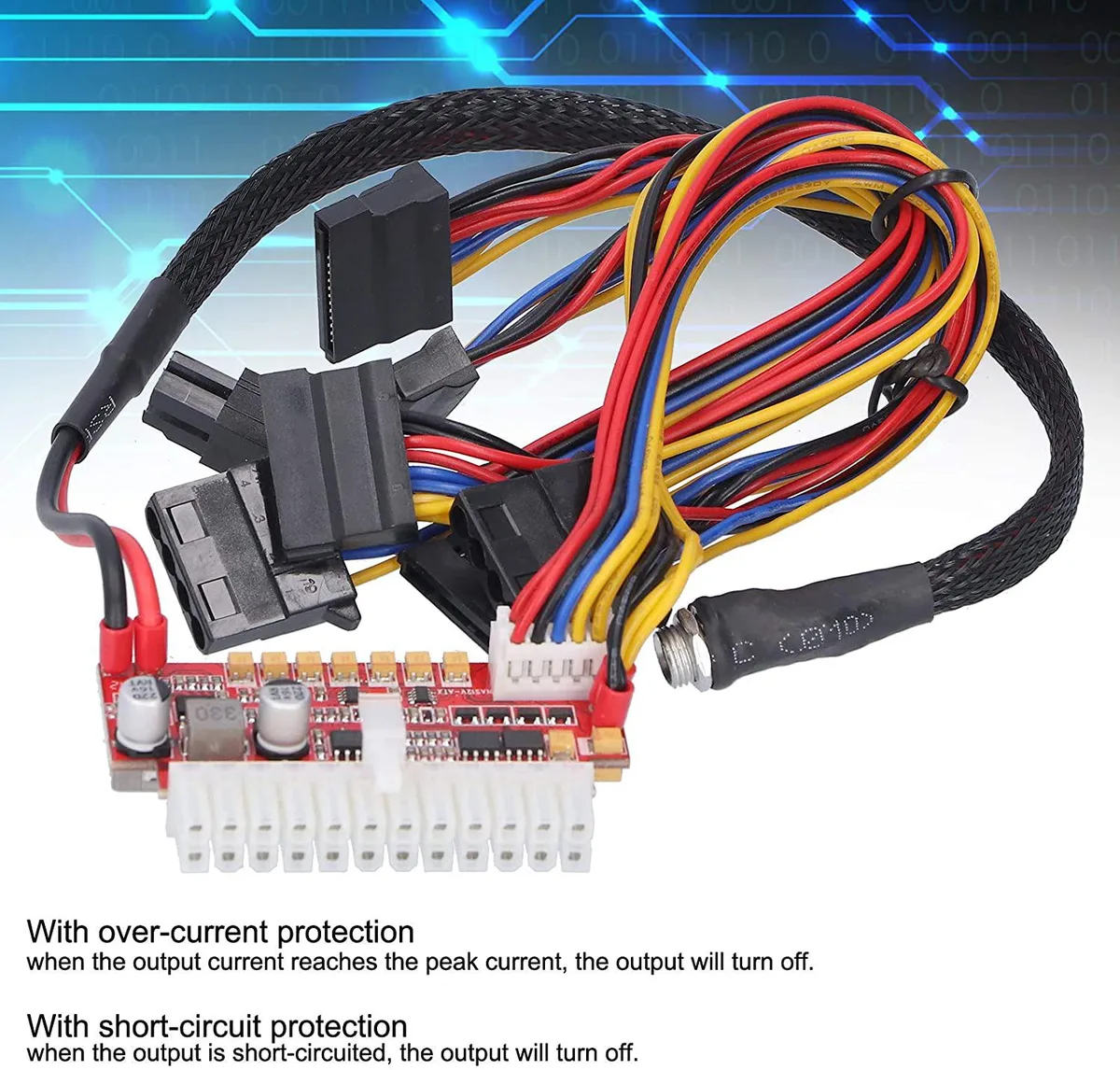

  • Over-current and short-circuit protection shuts down output at peak load
  • Five SATA, two IDE and one CPU 4-pin connectors cover storage and processor needs
  • Premium PCB material resists heat for reliable operation in tight enclosures

What this board powers

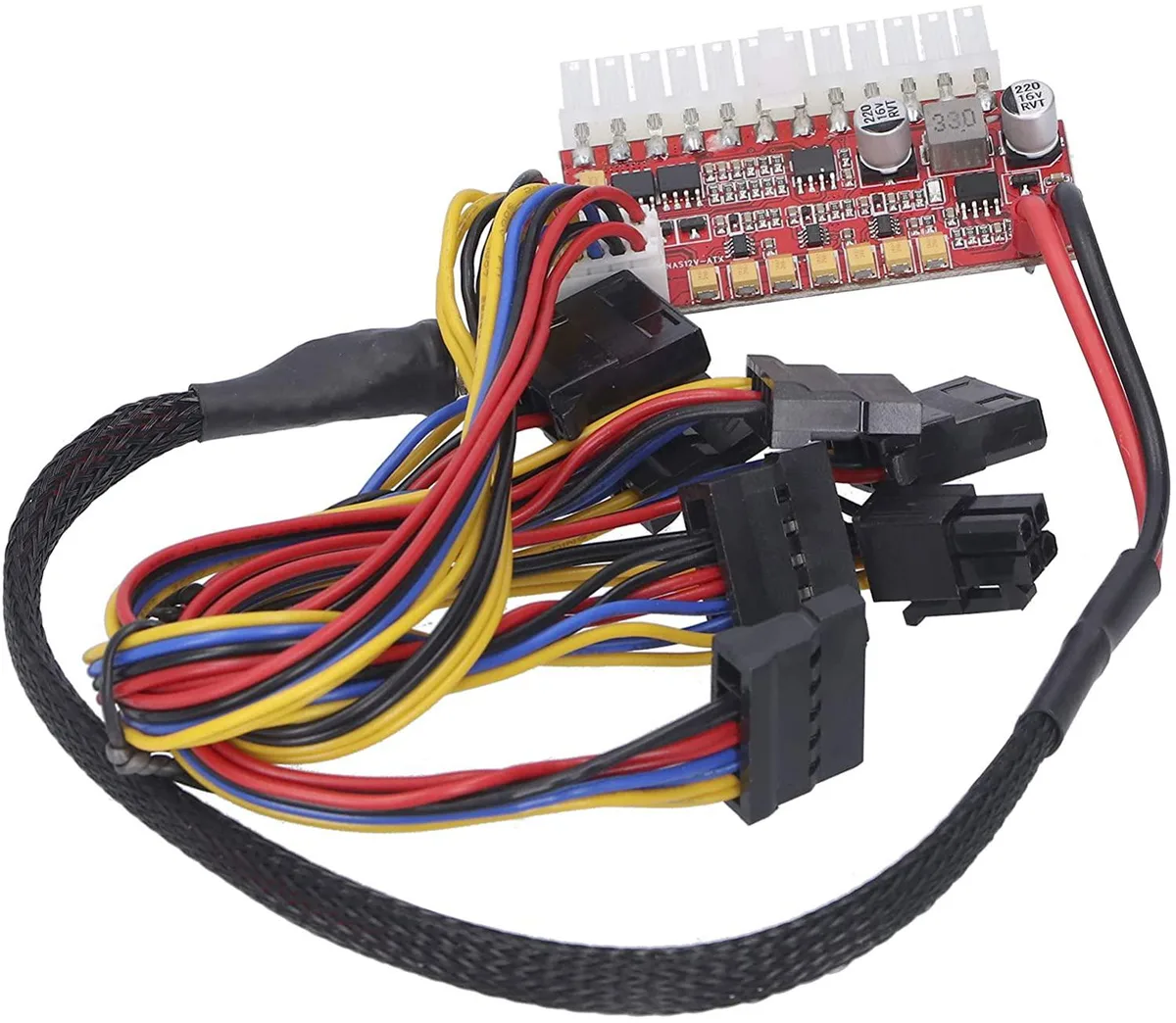

The myVolts LD-NAS200L is a 12V 200W ATX power module that plugs straight into the motherboard 24-pin connector. It replaces a standard PSU and its cable loom for mini PCs, HTPCs, POS terminals, ITX builds, network servers and industrial control systems. Over-current and short-circuit protection shut the output down when peak current is reached or a short occurs.

Who this suits and who should look elsewhere

Builders working with small ATX boards in tight cases will benefit from the direct-plug design and the 320mm DC, 210mm CPU, 200mm IDE and 150mm SATA leads. Systems that need more than 200W total output, additional PCIe power connectors or an internal AC-DC supply cannot use this module.

The 200W limit that decides fit

The board delivers +12V at 12A, +5V at 10A, +3.3V at 8A, +5VSB at 2A and -12V at 0.05A from a single 12V DC source. If the target system draws more than 200W combined across these rails, this unit will not sustain it.

Highlights

  • Delivers 200W from a single 12V input for compact builds
  • Direct 24-pin ATX plug removes 24 loose cables inside the case
  • Over-current and short-circuit protection shuts down output at peak load
  • Five SATA, two IDE and one CPU 4-pin connectors cover storage and processor needs
  • Premium PCB material resists heat for reliable operation in tight enclosures

Specifications

TypeAT

Questions about this item

Does the LD-NAS200L ship with all cables attached or do I need to buy extra leads?

The unit has fixed cables — one 24-pin ATX, one 4-pin CPU, four SATA, two IDE and one DC5525 jack — all included, no separate purchase required.

Should I pick the 200W version or is there a higher capacity model in this series?

This model is rated at 200W with a 12V input; the supplier data lists only this capacity, so choose it if your build stays within the 12V 12A, 5V 10A and 3.3V 8A rail limits.

What does the 200W rating actually deliver once the board is plugged into an ITX motherboard?

It supplies up to 12A on the 12V rail, 10A on 5V, 8A on 3.3V, 2A on 5VSB and 0.05A on -12V, with over-current and short-circuit shutdown protection built in.
