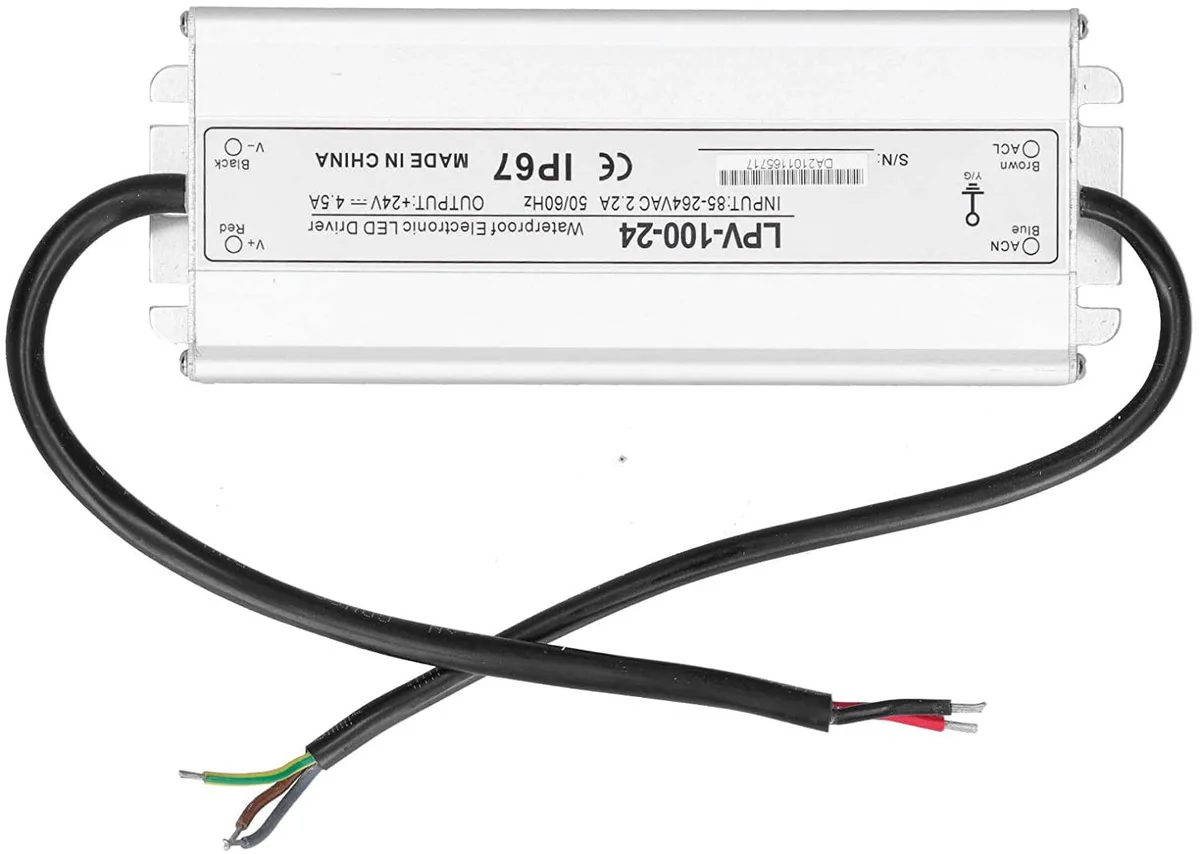

Rectangular aluminium power supply, silver finish, IP67 rated, 185 by 69 by 43 mm

myVolts

myVolts LPV-100-24 100W 24V 4.5A IP67 aluminium switching power supply

SKU CH-VMW1-H0M6Z MPN LPV-100-24

A 100 W IP67 switching supply delivers 24 V at 4.5 A from an aluminium alloy case rated for -10 to +60 °C

  • TypeAT
  • IP67 rated for indoor and outdoor installation
  • Aluminium alloy housing dissipates heat for stable output
  • Automatic protection against short circuit, overload, over-voltage, over-current and over-temperature
  • Single 24 V output delivers up to 4.5 A with current limiting
  • 100 W switching supply accepts 85–264 V AC input

Industrial 24V switching supply

The myVolts LPV-100-24 is a 100W single-output switching power supply that delivers 24V DC at up to 4.5A. Its aluminium alloy housing carries an IP67 rating so the unit can operate indoors or outdoors between -10 and +60°C. Automatic protections cover short circuit, overload, over-voltage, over-current and over-temperature conditions.

Replaces open-frame or lower-rated units

Builders moving from an open-frame supply or a unit without full environmental sealing gain IP67 ingress protection and the aluminium chassis that spreads heat without a fan. The jump is worth it when the installation sits in damp, dusty or temperature-variable locations such as outdoor lighting, industrial cabinets or vehicle-mounted projects.

Suits 24V LED and industrial loads

The supply suits anyone powering 24V LED strips, light bars, instrumentation or similar DC loads up to 100W from a worldwide 85-264V AC mains. It is not for systems that need multiple output voltages, adjustable current limiting beyond the fixed 4.5A ceiling, or a higher power rating than 100W.

Highlights

  • IP67 rated for indoor and outdoor installation
  • Aluminium alloy housing dissipates heat for stable output
  • Automatic protection against short circuit, overload, over-voltage, over-current and over-temperature
  • Single 24 V output delivers up to 4.5 A with current limiting
  • 100 W switching supply accepts 85–264 V AC input

Specifications

TypeAT

Questions about this item

What are the exact dimensions of the aluminium housing so I can check it fits my enclosure?

The aluminium alloy housing measures 185 mm long, 69 mm wide and 43 mm high, which is 7.3 x 2.7 x 1.7 inches.

Which wires do I connect to the AC input terminals and which to the 24 V DC output?

Connect live, neutral and earth to the three AC input terminals rated for 85-264 V AC, then attach the load to the single 24 V DC output terminals that deliver up to 4.5 A.

Does the IP67 seal mean I never need to clean dust or moisture off the fins?

The IP67 rating protects against immersion and dust ingress, but the aluminium fins should still be inspected periodically and brushed clear of debris so heat can dissipate up to the 60 °C operating limit.
