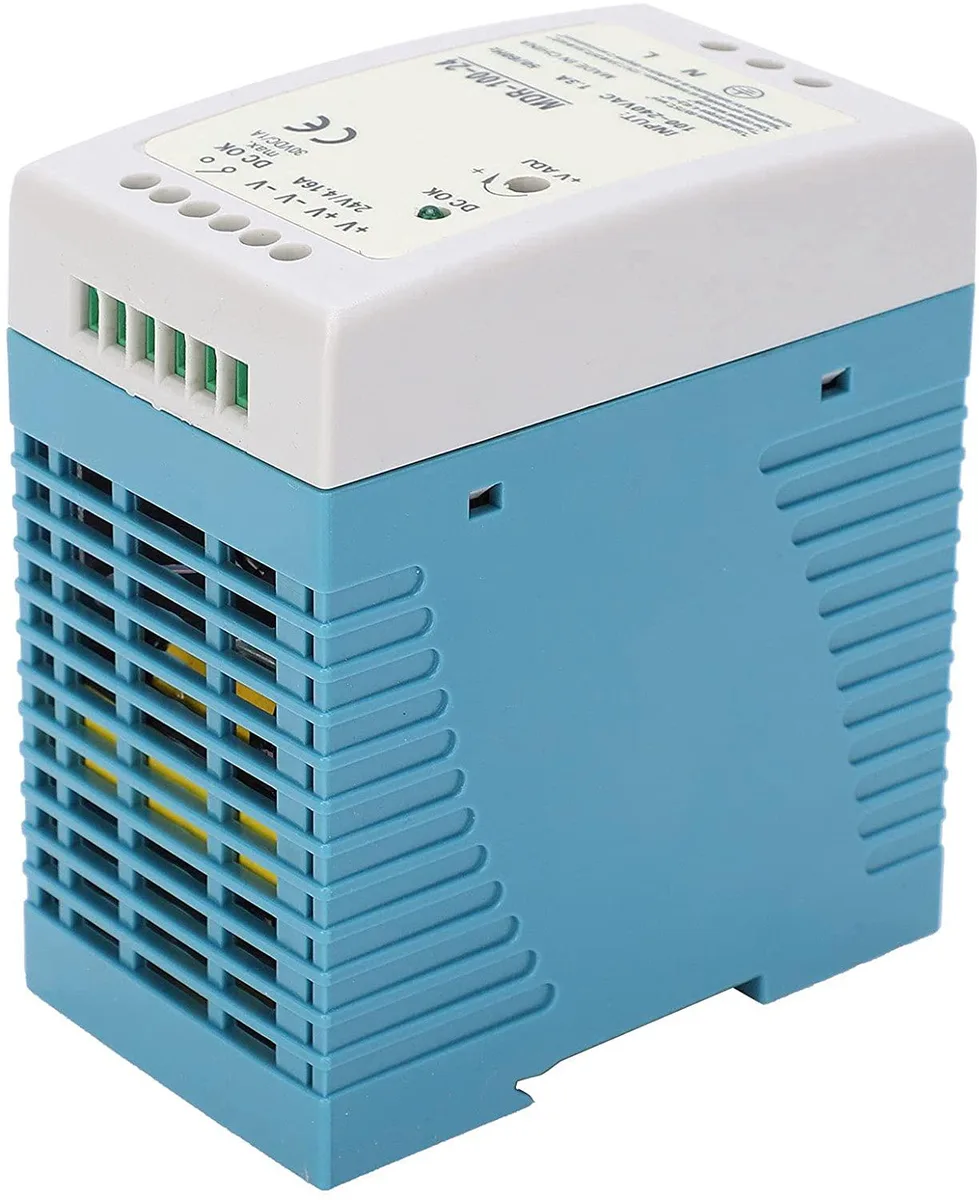

Compact grey ABS DIN rail power supply unit

myVolts

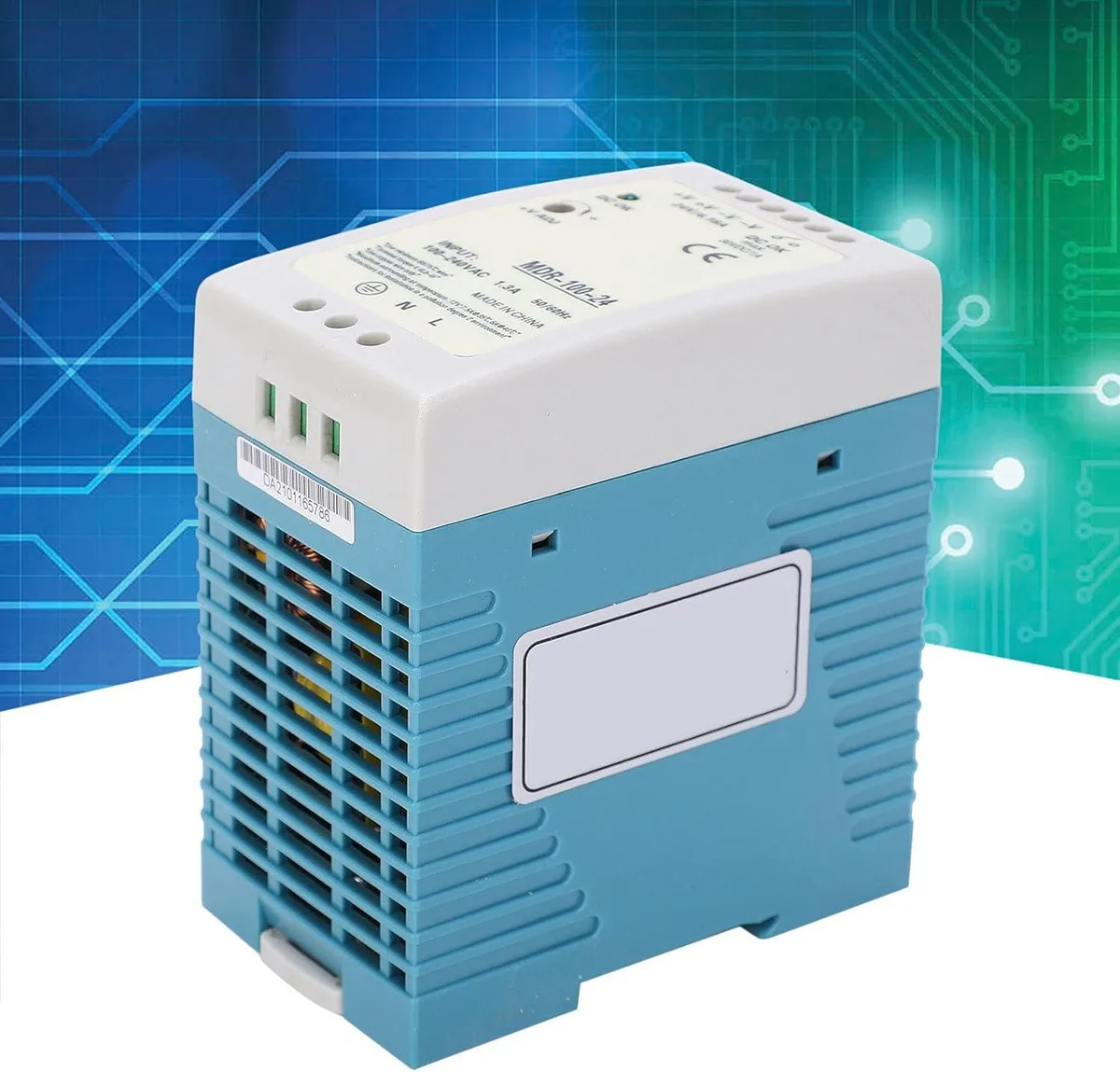

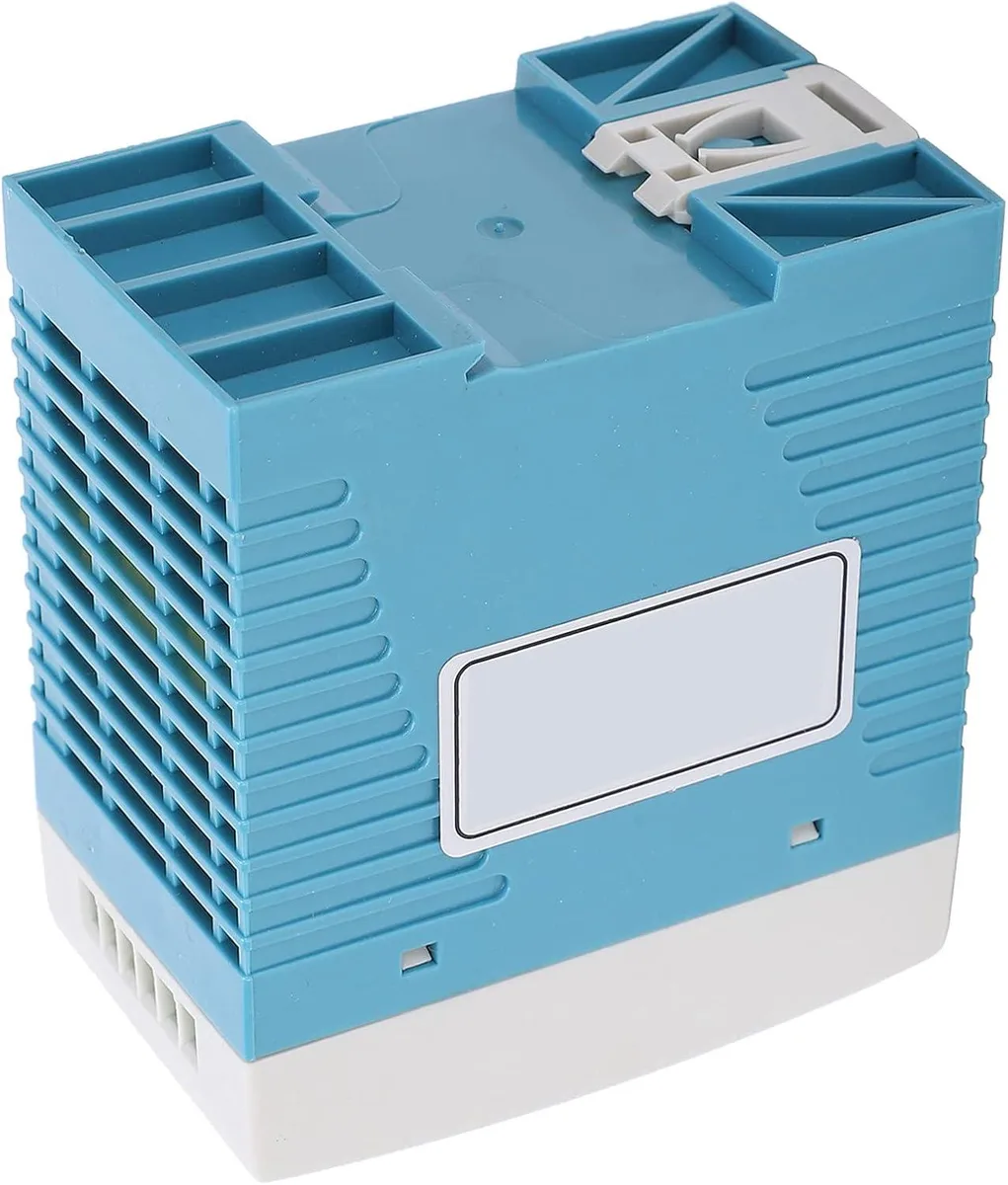

myVolts MDR-100-24 24V 4.16A DIN rail power supply

SKU CH-P851-N1BW8 MPN MDR-100-24

A DIN rail power supply delivering 24V at 4.16A with 100-240VAC input and multiple protections

  • TypeAT
  • DIN rail TS35 mounting for quick installation
  • 100-240VAC input suits global mains supplies
  • 24V 4.16A single output powers industrial loads
  • UL CUL TUV CB CE certified for safety compliance
  • Short circuit overload overvoltage overheat protection built in

DIN Rail 24 V Supply for Control Panels

The myVolts MDR-100-24 is a single-output switching power supply that mounts on TS35 DIN rails, accepting 100 to 240 VAC at 1.3 A and delivering 24 V at 4.16 A. It carries UL, CUL, TUV, CB and CE safety certifications and includes short-circuit, overload, overvoltage and overheat protection.

Installers Needing Compact 100 W DIN Power

Suits electricians and panel builders who need a certified 24 V source that clips onto standard 35 mm or 7.5 mm DIN rail without tools. Not for users who require redundant or battery-backed outputs, adjustable voltage beyond the fixed 24 V, or higher current than 4.16 A.

Built-In DC OK Signal and Active PFC

The unit provides a DC OK relay contact for remote status monitoring and active power-factor correction to reduce harmonic distortion. Low no-load standby loss cuts wasted energy, while the 100 W model adds dedicated over-temperature shutdown for extra reliability.

Highlights

  • DIN rail TS35 mounting for quick installation
  • 100-240VAC input suits global mains supplies
  • 24V 4.16A single output powers industrial loads
  • UL CUL TUV CB CE certified for safety compliance
  • Short circuit overload overvoltage overheat protection built in

Specifications

TypeAT

Questions about this item

What DIN rail do I need to mount the MDR-100-24 power supply?

It mounts on standard TS35 DIN rail in either the 7.5 mm or 15 mm depth profile.

Will the 24 V output work with my existing 24 V industrial sensors and PLCs?

Yes, the single 24 V output rated at 4.16 A is designed for standard 24 V DC control gear.

How can I confirm the MDR-100-24 is operating correctly after wiring it?

The built-in DC OK signal output can drive an external indicator to show the output is live and within regulation.
