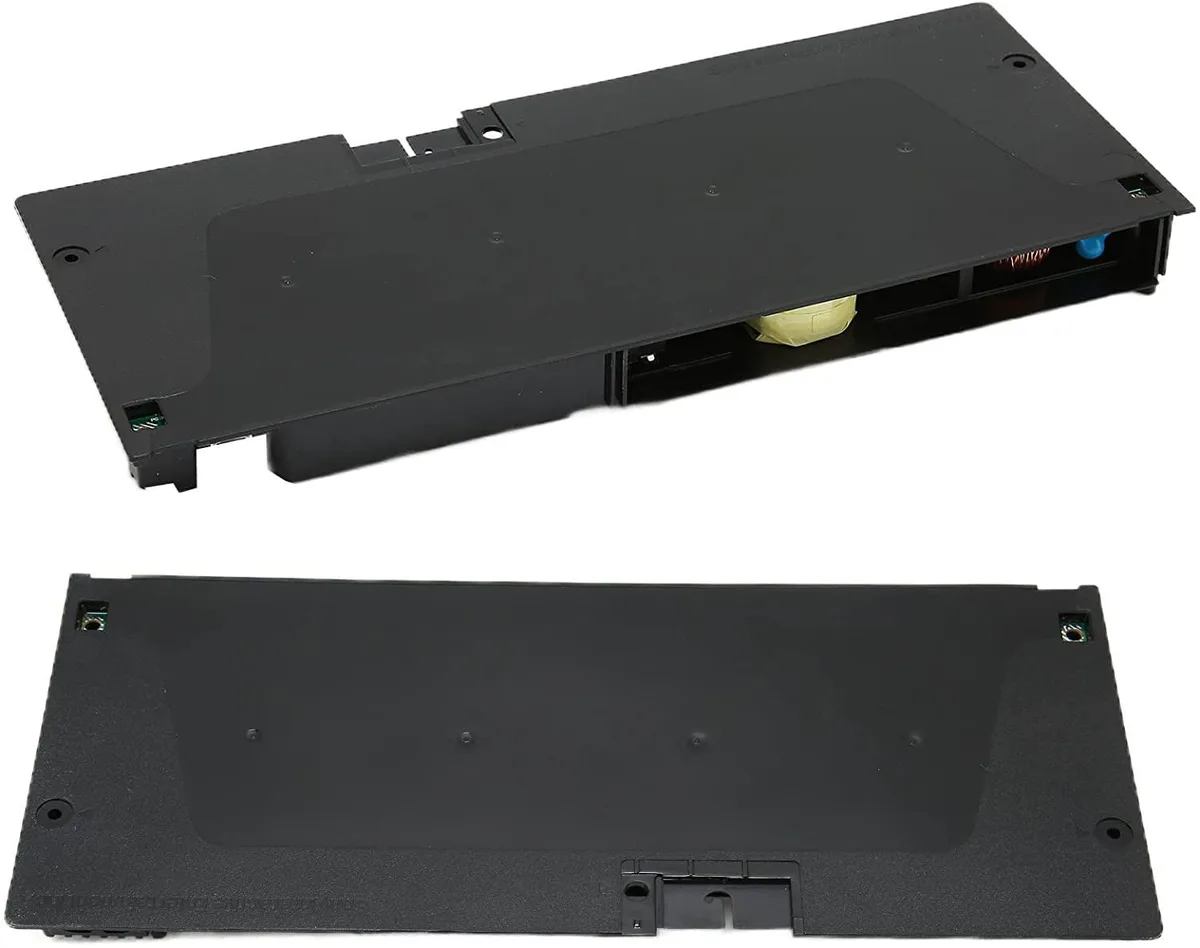

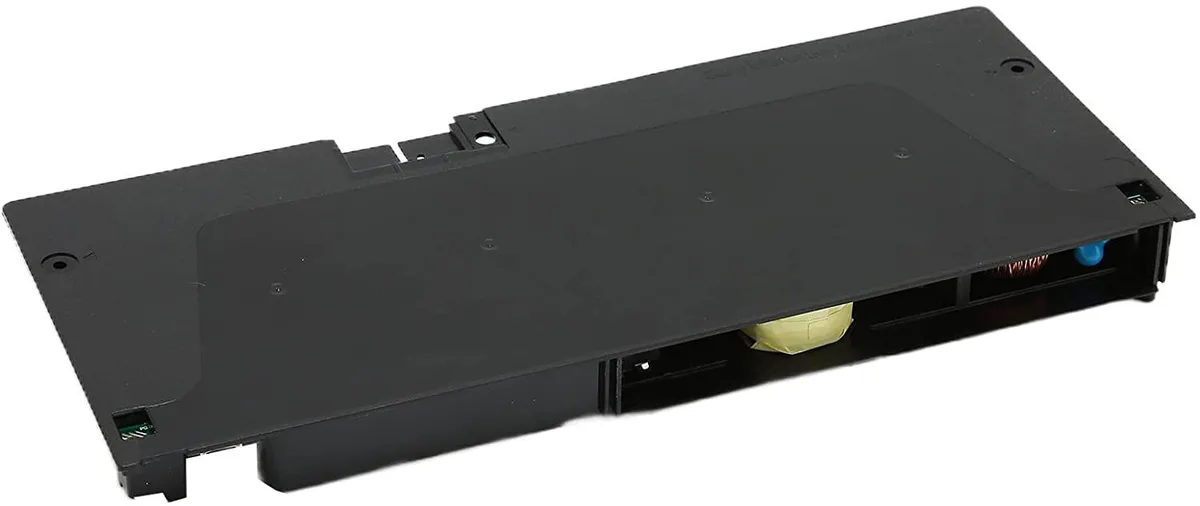

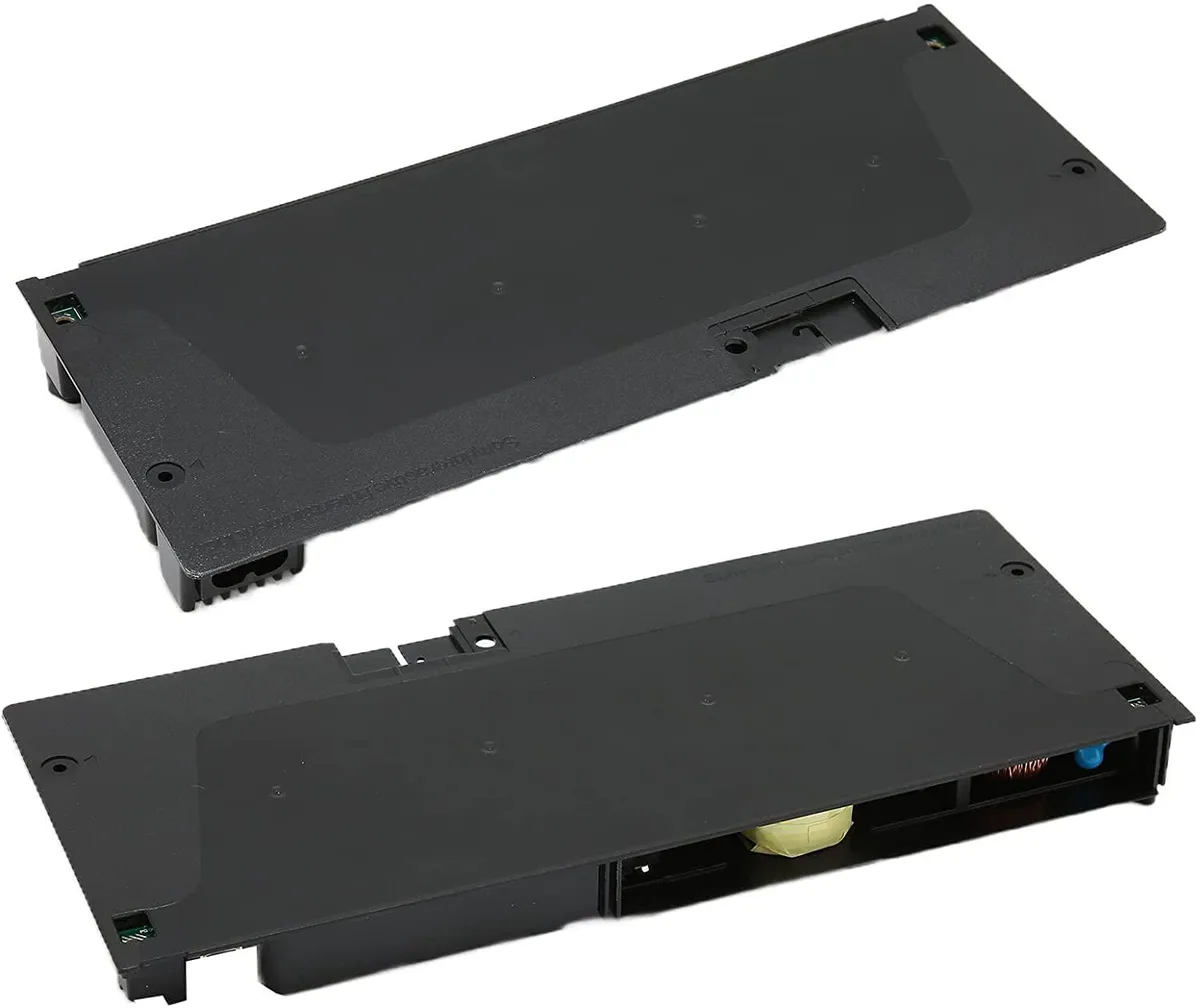

Black rectangular internal power supply unit with four-pin connector

myVolts

myVolts N16-160P1A power supply 100-240V 50/60Hz 12V 13A 4.8V 1.5A 4 pins for CUH-21XX 2115

SKU CH-KRTD-RNFKR MPN N16-160P1A

Replacement internal power supply for CUH-21XX and CUH-2115 consoles delivering 12 V at 13 A and 4.8 V at 1.5 A from a 100-240 V input

  • TypeAT
  • Replaces the original CUH-21XX 2115 unit with a direct 4-pin fit
  • Delivers 12V 13A and 4.8V 1.5A for stable console operation
  • Accepts 100-240V 50/60Hz input for worldwide mains compatibility
  • Compact ABS housing with streamlined sealing simplifies installation
  • Wear-resistant, corrosion-resistant materials extend service life

Replacement for CUH-21XX and CUH-2115 consoles

This internal power supply replaces the original unit in PlayStation 4 Slim models CUH-21XX and CUH-2115. It uses a 4-pin connector that matches the factory socket exactly. The ABS housing fits the existing mounting points without modification. It is intended for owners whose console no longer powers on due to a failed supply.

Dual-rail output rated 12V 13A and 4.8V 1.5A

The board delivers 12V at up to 13A and 4.8V at up to 1.5A simultaneously. This covers the main system rail and the low-voltage standby rail used by the console. Continuous draw near the 13A limit on the 12V rail will exceed the design headroom and may cause shutdown or damage. The 4.8V rail has minimal reserve above the console's idle requirement.

Sealed design runs silently with no moving parts

The unit is fully encapsulated and has no fan, so it adds no audible noise to the system. Heat is dissipated through the metal chassis and the console's own airflow path. Input current is rated 2.1A across 100-240V at 50/60Hz, so power draw from the wall scales with load but remains within the supply's thermal envelope during normal gaming sessions.

Highlights

  • Replaces the original CUH-21XX 2115 unit with a direct 4-pin fit
  • Delivers 12V 13A and 4.8V 1.5A for stable console operation
  • Accepts 100-240V 50/60Hz input for worldwide mains compatibility
  • Compact ABS housing with streamlined sealing simplifies installation
  • Wear-resistant, corrosion-resistant materials extend service life

Specifications

TypeAT

Questions about this item

Will this N16-160P1A unit fit the existing mounting points in my CUH-2115 console without modification?

The supply is built to the exact dimensions of the original CUH-21XX internal PSU, so the screw holes and connector alignment match the factory chassis.

How can I confirm the 12 V rail is delivering the rated 13 A after I swap the unit in?

The console will boot to the dashboard and run a demanding game without sudden shutdowns, which shows the rail is holding its specified load.

Does the box include the 4-pin output harness or must I reuse the cable from the failed supply?

The replacement comes with its own 4-pin connector installed; no separate harness or adapter is required.
