Pink aluminium power supply unit, rectangular, screw terminals visible

myVolts

myVolts S-150-12 12V 12.5A 150W power supply pink

SKU CH-3R6Q-JRPNM

A 150 W AC-to-DC unit delivers 12 V at 12.5 A with overload, overvoltage and short-circuit protection for industrial automation, LED, CCTV and 3D printer use

  • TypeAT
  • Delivers stable 12 V DC at 12.5 A for 150 W loads
  • Built-in short-circuit, overload and overvoltage protection safeguards connected equipment
  • Passes 100 % full-load burn-in test before shipment
  • High insulation strength meets CCC, FCC and CE safety standards
  • Low DC ripple and high efficiency reduce heat in continuous operation

Industrial 12V 150W Supply

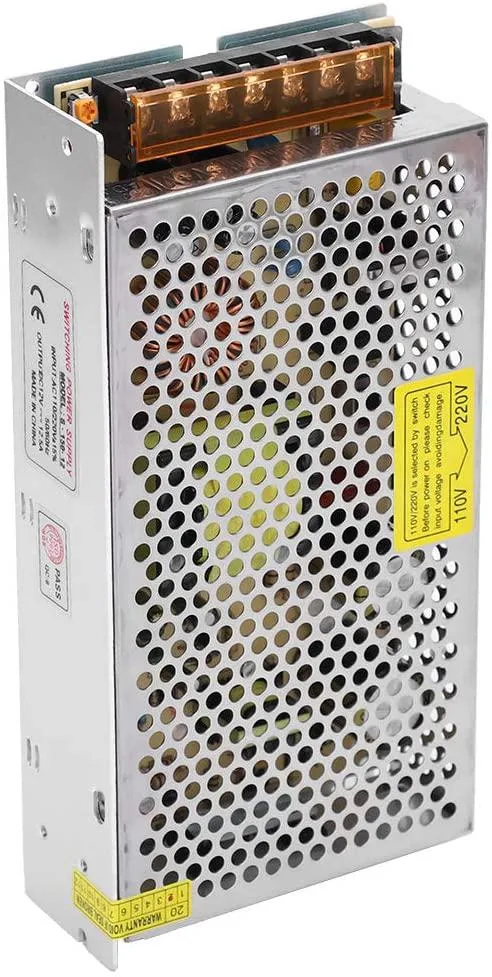

The myVolts S-150-12 is a 150 watt switch-mode power supply delivering 12 volts at 12.5 amps. It accepts AC input from 110 to 220 volts with a 15 percent tolerance. The unit suits industrial automation, 3D printers, LED displays, CCTV systems and similar DC 12V equipment.

Step up from 36W or 50W units

The comparison table lists smaller S-36-12 and S-50-12 models rated at 36 watts and 50 watts respectively. Moving to this 150 watt model is worthwhile when your load exceeds the current capacity of those lower-power supplies or when you need the extra headroom for peak demand.

Verify voltage, current and mounting first

Confirm your device requires exactly 12 volts DC and draws no more than 12.5 amps continuous. Check that the L, N, GND and V terminal connections match your wiring plan. Ensure the operating environment stays within 0 to 40 degrees Celsius and 0 to 95 percent non-condensing humidity.

Highlights

  • Delivers stable 12 V DC at 12.5 A for 150 W loads
  • Built-in short-circuit, overload and overvoltage protection safeguards connected equipment
  • Passes 100 % full-load burn-in test before shipment
  • High insulation strength meets CCC, FCC and CE safety standards
  • Low DC ripple and high efficiency reduce heat in continuous operation

Specifications

TypeAT

Questions about this item

What screw-hole spacing does the 85 × 58 mm aluminium chassis use for panel mounting?

The chassis measures 85 mm by 58 mm; use those centres for M3 or M4 bolts when securing it inside an enclosure.

Which terminal block do I wire first to avoid a live-output mistake?

Connect the AC input terminals L and N before tightening the DC output terminals GND and V so the unit cannot energise the load while mains is being attached.

When should I plan to replace the internal electrolytic capacitors?

Expect capacitor ageing after several years of continuous 12.5 A load at 40 °C ambient; schedule a preventive swap if output ripple rises or the unit trips on over-temperature.
